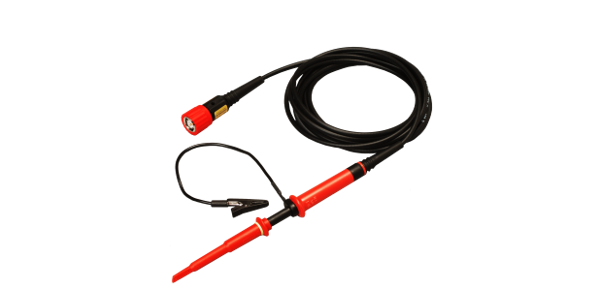

701937 Passive probe 600V / 500 MHz
|
Bandwidth |
: |
DC to 500 MHz |
|
Attenuation |
: |
10:1 |
|
Input Resistance |
: |
10 MΩ |
|
Input Capacitance |
: |
10.5 pF |
|
Max. Input Voltage |
: |
600 V (DC + ACpeak) or 424 Vrms CAT II |
|
Probe length |
: |
1.3 m |
|
Supplied standard with DLM3000, DLM5000, DLM5000HD series |
||
Specifications
 701937 |
 701938 |
701939 |
 701943 |
 701944 |
 701945 |
 701946 |
 701949 |
 702906 |
702907 |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Bandwidth | 500 MHz | 200 MHz | 500 MHz | 500 MHz | 400 MHz | 250 MHz | 500 MHz | 500 MHz | 200 MHz | 200 MHz |
| Max. input voltage | 600 V (DC + ACpeak) | 1000 Vrms | 400 Vrms | 1000 V (DC + ACpeak) | ||||||
| Attenuation ratio | 10:1 | 100:1 | 10:1 | |||||||
| Input impedance | 10 MΩ 10.5 pF |
10 MΩ 13.5 pF |
10 MΩ 10.5 pF |
10 MΩ 12.5 pF |
50 MΩ 7.5 pF |
10 MΩ 9.5 pF |
10 MΩ 16 pF |
10 MΩ 18 pF |
||
| Measurement category | CAT II 600 V (DC + ACpeak) | CAT II 1000 Vrms | CAT II 300 Vrms | CAT II 1000 V (DC + ACpeak) |
||||||
| Compatibility | DLM3000, DLM3000HD, DLM5000, DLM5000HD |
DLM2000 | DL6000, DLM2000, DLM4000, DLM6000 |
DL9000, DL9500, DL9700, SB5000 |
DLM3000, DLM3000HD, DLM5000, DLM5000HD |
DL6000, DLM2000, DLM4000, DLM6000 |
DLM3000, DLM3000HD, DLM5000, DLM5000HD |
DLM2000, DLM4000 |
DLM3000, DLM3000HD, DLM5000, DLM5000HD |
|
