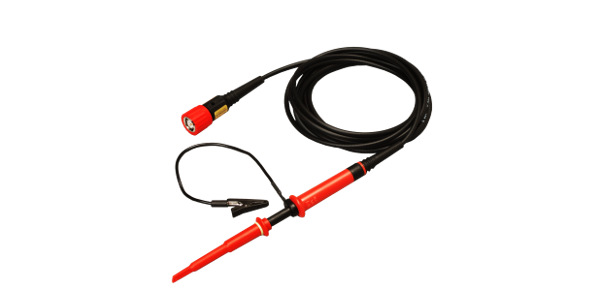

701945 High Voltage Passive Probe 1000Vrms / 250 MHz

Bandwidth	:	DC to 250 MHz
Attenuation	:	100:1
Input Resistance	:	50 MΩ
Input Capacitance	:	7.5 pF
Max. Input Voltage	:	1000 Vrms CAT II, 4000 V transient over-voltage CAT O
Probe length	:	3 m
For use with DL1700, DLM2000, DLM3000, DLM4000, DLM5000, DLM5000HD, DL/6000, DLM6000, DL9000 and SB5000 series

Request a Quote

Technical Support

Brochures

Instruction Manuals

Overview
Details
Documents & Downloads

Overview
Details
Documents & Downloads

An oscilloscope is just one piece of the waveform measurement solution. The probe, its interaction with the measuring instrument, and its connection to the circuit under test can affect the results' quality and validity. The 701945 High Voltage Probe (oscilloscope) is a 100:1 passive probe for high voltage measurement up to 1000Vms. It's 3m with a frequency bandwidth of 250 MHz.

Specifications

Specifications

Specifications

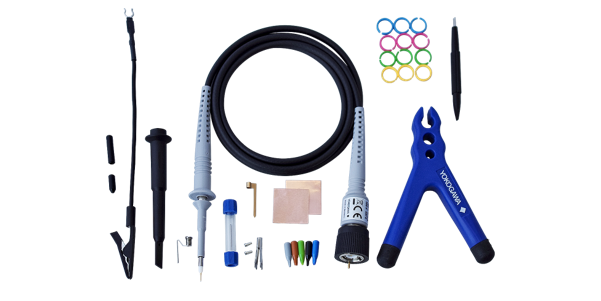

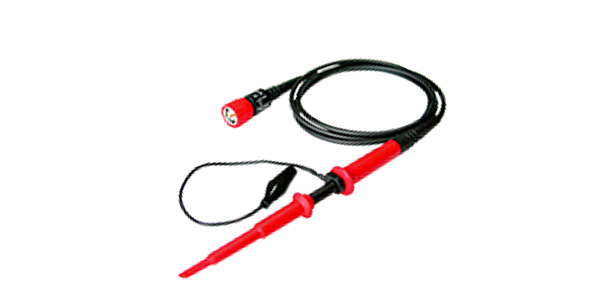

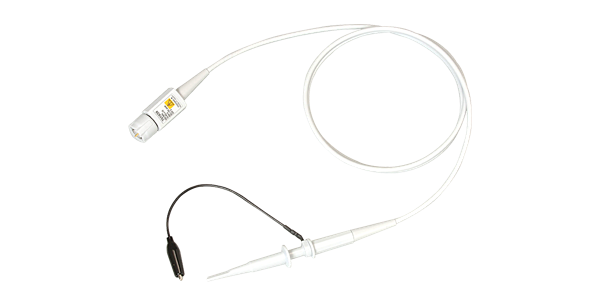

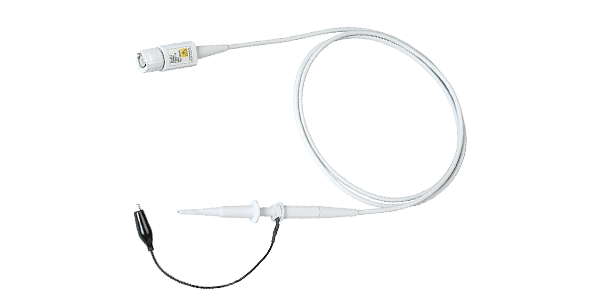

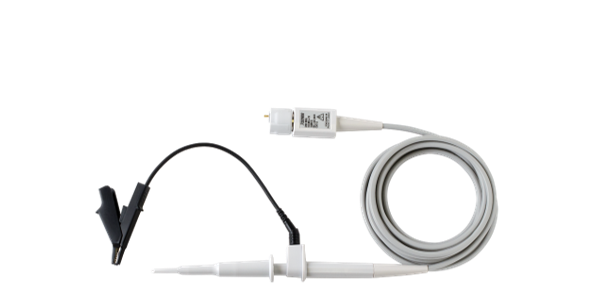

	701937	701938	701939	701943	701944	701945	701946	701949	702906	702907
Bandwidth	500 MHz	200 MHz	500 MHz	500 MHz	400 MHz	250 MHz	500 MHz	500 MHz	200 MHz	200 MHz
Max. input voltage	600 V (DC + ACpeak)				1000 Vrms		400 Vrms		1000 V (DC + ACpeak)
Attenuation ratio	10:1				100:1		10:1
Input impedance	10 MΩ 10.5 pF	10 MΩ 13.5 pF	10 MΩ 10.5 pF	10 MΩ 12.5 pF	50 MΩ 7.5 pF		10 MΩ 9.5 pF		10 MΩ 16 pF	10 MΩ 18 pF
Measurement category	CAT II 600 V (DC + ACpeak)				CAT II 1000 Vrms		CAT II 300 Vrms		CAT II 1000 V (DC + ACpeak)
Compatibility	DLM3000, DLM3000HD, DLM5000, DLM5000HD	DLM2000	DL6000, DLM2000, DLM4000, DLM6000	DL9000, DL9500, DL9700, SB5000	DLM3000, DLM3000HD, DLM5000, DLM5000HD		DL6000, DLM2000, DLM4000, DLM6000	DLM3000, DLM3000HD, DLM5000, DLM5000HD	DLM2000, DLM4000	DLM3000, DLM3000HD, DLM5000, DLM5000HD
