集成软件平台 IS8000
集成软件平台 IS8000
统一
横河仪器的统一性可确保产品研发过程中的测量一致性，允许在整个组织内轻松共享数据。IS8000通过在统一的显示屏幕中查看所有测量值，让调试和分析数据更加简单。
高效
IS8000能够在开发测试系统上花费更少的时间，而将更多的时间用于收集有价值的测试数据，从而有效地简化产品开发流程。使用一套软件来设置和控制所有需要的仪器，这样可以更快、更有效地开始测量数据。
同步
使用一种格式在同一位置存储数据从未如此简单。 IS8000通过利用IEEE1588时基获得多台仪器之间同步测量的结果，提供可靠的数据。
扩展
伴随当今技术的快速发展，具有扩展能力的软件至关重要。 IS8000可以随着需求的发展而演变，使用附加软件包即可实现对数据的深入分析。
*The firmware update is required for each devices to connect IS8000.
DL950：Ver.1.50 or later, WT5000 : Ver. 3.61 (upcoming) or later
Ver.24.1.2.0
- Added harmonic and interharmonic measurement for IEEE 1547-2018 and VDE-AR-N 4105 Standard, as the standard features of IS8001/IS8002.
(G7 option and upcoming firmware ver.3.61 on the connecting WT5000 is required.)
(Not available on the IS8011/IS8012.) - Expanded API features that enable configurations of DAQ condition, recording channels, saving folders, and others.
- Improved operability of the zoom function.
- Added new keypad for DL950 remote control function.
Ver.23.4.1.0
- Added support for DL950/MT1: Motor dq Analysis option.
- Added the Numeric Monitor display for DL950 and RAMScope.
（EM1 option required to connect RAMScope series.) - Enabled preview of Peak-to-Peak compressed waveform from WT5000.
- Enabeld simultaneous recording of Data-Streamed waveform and Peak-to-Peak compressed waveform from WT5000.
（DS option is required on the connected WT5000.） - Serial Bus Analysis function: Enabled search by data information and exporting the decoded data as CSV file.
(SB1 option required) - Improved performance for waveform display.
Ver.23.3.1.0
- Added support for the DLM5000HD Series High Definition Oscilloscopes.
- Improved time taken to launch the software and display the waveforms.
- Enabled to create a cache file to load MDF files faster. The feature can be turned on from the settings menu.
- Added the Peak-to-Peak compression (extracting the maximum and minimum values for each interval) to the compression process for file exporting.
- Enabled to change the number of significant digits displayed for cursor and statistical values.
- Enabled to display the DC component of the FFT waveforms (with MH1 option).
Ver.23.2.1.0
- Added support for new options, Serial bus analysis (SB1) and Modbus/TCP communication (MB1).
- New harmonics acquisition mode compliant with IEC 61000-4-7 Annex B (2k-9kHz) is supported in IS8001/IS8002.
(G7 option is required on the connected WT5000.)
- Math option (MH1): By installing MATLAB Runtime, up to 100M of computed points can be supported
- New IEC61000 standard (3-12 Ed2.0-amd1) is supported in IS8011/IS8012
Ver. 23.1.1.0
- New IEC61000 standard (3-3 Ed3.0-amd2) is supported in IS8011/IS8012.
- "DAQ(WT)", which displays a layout suitable for online DAQ of WT5000, is added to the launcher window.
Ver. 22.6.1.0
- Added new API function: any waveform file access
- Improved the performance of analysis functions
- Enabled importing CSV files saved with DL950, DL850 series, DL350, DLM5000/4000/3000/2000 series, Xviewer Application Software and IS8000 (version 22.6.1.0 or later)
- Enabled importing/exporting CSZ format (CSV data compressed in ZIP format)
Ver. 22.5.1.0
- Added new API functions
- Improved the performance of analysis functions
- Enabled CSV exports of dual-caputured sub-channel data, FFT analysis data, and sequential historical data
- Added support for a vector diagram display for off-line analysis functions
- Added support for the latest IEC standard, IEC61000 3-2 Ed5.0-amd1, with IS8011/IS8012
- Added support for Windows11 with IS8011/IS8012
(All IS8000 series functions except EM1 option are Windows 11 compliant) - FS1 option: The information on camera models that support real-time synchronization has been changed
- MATLAB Runtime support: By installing MATLAB Runtime, up to 100M of FFT points can be supported
Ver. 22.4.1.0
- Added support for Windows11 (except IS8011 and IS8012)
- Added a new API function
- Improved the performance of analysis functions
- Added support for the DAQ (data acquisition) function from DL950 with an external clock
- Added support for a vector diagram display for WT5000’s online monitoring and DAQ function (supporting one for offline analysis functions will be available in a future update)
- Removed the limitations of the maximum DAQ period which were seven days and 500 GB
- Added support for the offline synchronization function with two video files and waveforms (FS1 option required)
- Added support selecting “seconds” and “points” for the time axis information of saved data in the CSV export function
Ver. 22.3.1.0
- Added the new API functions (IS8000 control API)
- Improved performance for offline analysis
Ver. 22.2.2.0
- Supported the IS8000 API (Application Programming Interface)
Ver. 22.2.1.0
- Supported WT5000 data streaming (/DS) function *1
This function streams the waveform data measured by the WT5000 continuously to the PC.
In addition, the measured waveform can be saved as an MDF/CSV file, analyzed for feature points, calculated, and FFT processed *2.
More detailed analysis is possible, such as how a change in the noise or control state affect the power value and each parameter.
*1 DS option is required on the connected WT5000.
*2 MH1 option on the IS8000 is required for some calculations and analysis
- Added the customization of the default window layout
The initial window layout can be customized freely. This is useful when you want to fix the display layout. - Increased the number of harmonic bar graphs displayed from two to six.
Ver. 22.1
- Video File Offline Synchronization (/FS1 option)
It is possible to display video data other than supported high-speed cameras by offline analysis.
*Supported file format
AVI(*.avi)、MP4(*.mp4)、WMV(*.wmv)
AVCHD(*.mts)、MOV(*.mov)、MPEG2-PS(*.mpg, *.mpeg) - Screen Capture function added
The function which save IS8000 display added. It is possible to narrow down the target such as Zoom waveform and save it. - Supports mouse wheel operation for waveform display
It is possible to operate such as moving the vertical scroll bar with the mouse wheel. - Added CSV file batch converter function
It is possible to convert multiple waveform files to CSV at once. - Added Probe setting
The attenuation ratio of the probe that can be set has increased. - The result of power calculation (/ G5) is added to the target of DL950 Flash ACQ data saving.
Supports MDF file saving of DL950 power calculation result in Flash ACQ data saving.
Ver. 1.4
- Added Channel Mapping Function
Channel Mapping function was added to “Channel Setting”.
This function allows you to change the display channel assignments.
- Supported the Real-time Power Math Function of DL950
The online data acquisition of results for the real-time power math computation of DL950 (/G05) is supported on latest IS8000. - Updated CSV file export function
Exporting multiple waveform data with different sampling interval to a single CSV file has been supported. It also supported CSV file exporting function of numeric, matrix and harmonic bar graph data. - Added Apply button to channel setting window of offline analysis
The channel setting changes can be reflected in the waveform window without closing the channel setting window.
Ver. 1.3
- Supported DL950 Flash acquisition function (/ST2)
Acquisition data of DL950 flash acquisition function can be imported to IS8000.
- Supported WT5000 10ms update rate
Update rate of WT5000 can be set to 10ms when connecting IS8000. - Supported matrix display of WT5000 numeric data
Latest IS8000 can display the matrix of WT5000 numeric data in offline analysis. - Supported WVF file
Supports reading WVF file created by DL750 or SL1400.
(The HDR file with the same name as the WVF file is required.) - Added CSV export function on the simple version
It is possible to export measurement data to CSV file on the simple version.
| Version | Date | Description |
|---|---|---|
| V24.1.2.0 | Apr 11, 2024 | Added harmonic and interharmonic measurement for IEEE 1547-2018 and VDE-AR-N 4105 Standard, as the standard features of IS8001/IS8002. (G7 option and upcoming firmware ver.3.61 on the connecting WT5000 are required.) (Not available on the IS8011/IS8012.) Improved operability of the zoom function. Added new keypad for the DL950 remote control function. |
| V23.4.1.0 | Nov 17, 2023 | Added support for DL950/MT1: Motor dq Analysis option. Added the Numeric Monitor display for DL950 and RAMScope. Enabled preview of Peak-to-Peak compressed waveform from WT5000. Enabled simultaneous recording of Data-Streamed waveform and Peak-to-Peak compressed waveform from WT5000. Serial Bus Analysis function: Enabled search by data information and exporting the decoded data as CSV file. Improved performance for waveform display. |
| V23.3.1.0 | Sep 15, 2023 | Added support for the DLM5000HD Series High-Definition Oscilloscopes Improved time taken to launch the software and display the waveforms. Enabled to create a cache file to load MDF files faster. The feature can be turned on from the settings menu. Added the Peak-to-Peak compression (extracting the maximum and minimum values for each interval) to the compression process for file exporting. Enabled to change the number of significant digits displayed for cursor and statistical values. Enabled to display the DC component of the FFT waveforms (with MH1 option). |
Previous version
New options
Serial Bus Analysis（SB1）
This is an analysis function for CAN bus communication widely used in in-vehicle networks and other applications. It enables decoding of communication contents, frame display, and search for specific information in CAN bus communication signal. This new serial bus analysis option can also be used to analyze signal waveforms acquired not only by Yokogawa's oscilloscopes but also by the ScopeCorder series and IS8000. It is effective for reanalysis of communication signal waveforms previously measured, and for comparison and analysis with other physical quantity measurements.
Modbus/TCP Communication（MB1）
Modbus/TCP communication. A communication configuration file for connection to the YOKOGAWA GM10 and VZ20X recorders is included with the software. Other Modbus/TCP communication devices can also be connected to the IS8000 by creating a communication configuration file using the included tool. Integration of these devices with a Yokogawa Test & Measurement’s power analyzer and waveform measuring instrument by the IS8000 will provide a measurement system that supports more input channels, longer recording times and a wider variety of temperature sensors.
Screenshot example of data acquisition with Yokogawa's GM10 and DL950
Modbus configuration file editor
一体多能
IS8000软件平台是一套能加速工程流程的集成解决方案。它是一款高度集成多台仪器时序、控制和数据采集的突破性软件，创建了一套可靠、高效和统一的全方位测量组件。
高达10Gb的高速数据采集
结合DL950和IS8000上的10GbE选件(C60选件)，最多可以以10M点/秒*的采样率在PC上实时存储多达8个通道的数据。
对于高速、多通道输入(如门信号和多相变频器的开关波形)，现在可以实现更长的记录时间。
通过时间同步实现多设备监测（SY1选件）
IS8000和SY1选件能够以最小误差实现跨越多通道功率和波形数据的精准同步。使用IEEE1588技术，可以将来自WT5000功率分析仪和DL950示波记录仪的数据进行时间关联，且误差小于10μs。
实时远程控制和监测
横河的高精度功率分析仪、示波记录仪和示波器可以通过IS8000进行远程操作、监视和配置。还可以控制扩展选件和第三方高速摄像机，以大大减轻对各种仪器进行操作和管理的负担，轻松测量功率、物理现象、视频和控制信号。
FFT和运算功能（MH1选件）
最多可测量16个FFT过程，提供各种分析功能，用于自动计算频率和 积分值，以及滤波处理。
报告生成器 （RP1选件）
通过将测量数据、波形、图像等拖放到工作表上，可以轻松创建自定义报告。
文件导入和导出
IS8000支持二进制、 ASCII和汽车行业中常用的MDF*1格式。 IS8000上的功率和波形数据可以与开发系统或第三方软件共享。
*2 仅支持WT5000保存的功率趋势数据
同步高速摄像机（FS1选件）
IS8000将高速摄像机图像与相应的电流、电压和控制信号进行同步。同时慢动作回放则实现了设计和结果之间的可视化。
选件软件包，用于IEC谐波和闪变符合性测试
IS8011/IS8012可选软件包旨在使用WT5000高精度功率分析仪根据IEC61000-3-2、 3-3、 3-11和3-12标准执行谐波和闪变测试。用户无需任何专业知识即可轻松设置条件并输出测试报告。
用户可通过A、 B、 C和D类谐波电流测量值进行通过/失败判断。
Compatible measurement device:
WT5000 (/G7 option required)
Applicable standards:
IEC 61000-3-2 Harmonic Measurement
- IEC 61000-3-2 Edition 3.0:2005/A1:2008/A2:2009, IEC 61000-3-2 Edition 4.0:2014, IEC 61000-3-2 Edition 5.0:2018
- EN 61000-3-2:2006/A1:2009/A2:2009, EN 61000-3-2:2014, EN 61000-3-2:2019
- IEC 61000-4-7 Edition 1.0:1991, Edition 2.0:2002 and A1 of the Edition 2.0:2008
- EN 61000-4-7:1993, EN 61000-4-7:2002/A1:2009
- JIS C 61000-3-2:2011, JIS C 61000-3-2:2019
- JIS C 61000-4-7:2007
IEC 61000-3-3 Voltage Fluctuation and Flicker Measurement
Voltage fluctuation and flicker suppression standards
- IEC 61000-3-3 Edition 2.0:2008, IEC 61000-3-3 Edition 3.0:2013/A1:2017
- EN 61000-3-3:2008, EN 61000-3-3:2013, EN 61000-3-3:2019
Flicker meter function and design specifications
- IEC 61000-4-15 Edition 1.1:2003, IEC 61000-4-15 Edition 2.0:2010
- EN 61000-4-15:1998/A1:2003, EN 61000-4-15:2011
IEC 61000-3-11 Voltage Fluctuation and Flicker Measurement
Voltage fluctuation and flicker suppression standards
- IEC 61000-3-11 Edition 1.0:2000, IEC 61000-3-11 Edition 2.0:2017
- EN 61000-3-11:2000, EN 61000-3-11:2019
Flicker meter function and design specifications
- IEC 61000-4-15 Edition 1.1:2003, IEC 61000-4-15 Edition 2.0:2010
- EN 61000-4-15:1998/A1:2003, EN 61000-4-15:2011
IEC 61000-3-12 Harmonic Measurement
- IEC 61000-3-12 Edition 1.0:2004, and Edition 2.0:2011
- EN 61000-3-12:2005, EN 61000-3-12:2011
- IEC 61000-4-7 Edition 2.0:2002/A1:2008
- EN 61000-4-7:1993, EN 61000-4-7:2002/A1:2009
IEEE1588 Precision Time Protocol
IEEE 1588 is a standard for the Precision Time Protocol (PTP), a protocol for high-precision time synchronization of networked instruments and control systems. The PTP grandmaster server provides a reference clock for each client instrument to achieve high-precision clock synchronization. Since the ScopeCorder DL950 has the PTP master function, high precision clock synchronization of the corresponding instruments on the same network is possible even without a PTP grandmaster server. The IS8000 is also capable of combining the simultaneous measurement data of each of these PTP-synchronized instruments in the same window.
Optional software package for IEC harmonic and flicker compliance test
IS8011/IS8012 optional software package is designed to perform harmonic and flicker tests in accordance with IEC61000-3-2, 3-3, 3-11 and 3-12 standards using the WT5000 precision power analyzer. Users can easily set the conditions and output the test report without any specialized knowledge. Users can make a pass/fail judgment by class A, B, C, and D of the harmonic current measurement values.
Compatible measurement device:
WT5000 (/G7 option required)
Applicable standards:
IEC 61000-3-2 Harmonic Measurement
- IEC 61000-3-2 Edition 3.0:2005/A1:2008/A2:2009, IEC 61000-3-2 Edition 4.0:2014, IEC 61000-3-2 Edition 5.0:2018/A1:2020
- EN 61000-3-2:2006/A1:2009/A2:2009, EN 61000-3-2:2014, EN 61000-3-2:2019, EN 61000-3-2:2021
- IEC 61000-4-7 Edition 1.0:1991, Edition 2.0:2002 and A1 of the Edition 2.0:2008
- EN 61000-4-7:1993, EN 61000-4-7:2002/A1:2009
- JIS C 61000-3-2:2011, JIS C 61000-3-2:2019
- JIS C 61000-4-7:2007
IEC 61000-3-3 Voltage Fluctuation and Flicker Measurement
Voltage fluctuation and flicker suppression standards
- IEC 61000-3-3 Edition 2.0:2008, IEC 61000-3-3 Edition 3.0:2013/A1:2017/A2:2021
- EN 61000-3-3:2008, EN 61000-3-3:2013, EN 61000-3-3:2013/A1:2019, EN 61000-3-3:2013/A2:2021
Flicker meter function and design specifications
- IEC 61000-4-15 Edition 1.1:2003, IEC 61000-4-15 Edition 2.0:2010
- EN 61000-4-15:1998/A1:2003, EN 61000-4-15:2011
IEC 61000-3-11 Voltage Fluctuation and Flicker Measurement
Voltage fluctuation and flicker suppression standards
- IEC 61000-3-11 Edition 1.0:2000, IEC 61000-3-11 Edition 2.0:2017
- EN 61000-3-11:2000, EN 61000-3-11:2019
Flicker meter function and design specifications
- IEC 61000-4-15 Edition 1.1:2003, IEC 61000-4-15 Edition 2.0:2010
- EN 61000-4-15:1998/A1:2003, EN 61000-4-15:2011
IEC 61000-3-12 Harmonic Measurement
- IEC 61000-3-12 Edition 1.0:2004, and Edition 2.0:2011/A1:2021
- EN 61000-3-12:2005, EN 61000-3-12:2011
- IEC 61000-4-7 Edition 2.0:2002/A1:2008
- EN 61000-4-7:1993, EN 61000-4-7:2002/A1:2009
Supported devices
| Functions | Supported devices |
|---|---|
| Online data acquisition | DL950, WT5000 |
| Remote control and setting, acquisition data download | DL350, DL850 series, DL950, DLM3000 series, DLM5000 series, DLM5000HD series, WT5000 (Remote control and setting only) |
| Data File Import | DL350, DL850 series, DL950, DL750 (Only WVF file), SL1400 (Only WVF file) , SL1000, WT1800 series, WT3000 series, WT5000, DLM2000 series, DLM3000 series, DLM4000 series, DLM5000 series, DLM5000HD series |
| High-speed camera Sync. (FS1 option) |
Supported cameras for online sync.: Photron’s FASTCAM SA-Z, MIni UX*/AX/WX series, NOVA S series, NOVA R2 Supported devices for online sync.: DL950 |
| Modbus/TCP Communication （MB1 option） |
Devices supported Modbus/TCP protocol. |
| ECU Monitor sync. （EM1 option） |
DTS INSIGHT's RAMScope GT170（only for the variable data acquisition and calibration module）, GT122 |
* Pre-trigger recording and multi-trigger recording using the Mini UX series in combination with the FS1 option are not supported.
Main specifications
The writings in red are changes from the previous version.
| Ver. 24.1.2.0 | ||
| Connecting support firmware | DL950 | Ver.1.50 or later |
| WT5000 | Ver. 3.61 (upcoming) or later | |
| Languages | English / Chinese / Japanese | |
| PC requirements | For data acquisition with 10 Gb Ethernet connection; CPU: Desktop PC required Intel Core i7-1165G7 or later Intel CPU 4 cores(8 threads) or more 4.7 GHz or faster Amount of memory: 16 GB or more Amount of SSD: 512 GB or more (M.2 slot is recommended, Sequential read/write 3 GB/s or faster) For data acquisition with 1 Gb Ethernet /USB connection and offline analysis; CPU: Intel Core i5-10210U or later Intel CPU 4 cores(8 threads) or more 4.2 GHz or faster Amount of memory: 8 GB or more Amount of SSD: 256 GB or more (Sequential read/write 400 MB/s or faster) |
|
| OS | Windows 11 Pro or Enterprise edition (except EM1 option) Windows 10 64bit Pro or Enterprise edition |
|
| Communication interface | USB (USBTMC / VISA), Ethernet (VXI-11, HiSLIP, Modbus/TCP *8) | |
| Display resolution | 1366×768 dots or higher, 100 % zoom | |
| Number of connectable units (SY1 option) | Up to 5 units (Only one unit without SY1 option) (SY1 option is required even if the time synchronisation is not used) |
|
| Supported file format | WDF | DL350, DL850 series, DL950, SL1000, DLM2000 series, DLM3000 series, DLM4000 series, DLM5000 series,DLM5000HD series |
| CSV (Waveform data) | DL950, DL850 series, DL350, DLM5000HD/5000/4000/3000/2000 series, Xviewer Application Software and IS8000 *6 | |
| CSZ | IS8000 CSV data compressed in ZIP format | |
| CSV (Power measurement data)*2 | WT5000 (without multi-unit sync. based on IEEE1588 PTP) WT5000 (with multi-unit sync. based on IEEE1588 PTP.) WT3000 series*1 WT1800 series |
|
| WVF | DL750, SL1400 | |
| MD4 | IS8000 data files ASAM MDF 4.1 files |
|
| mepjt, anpjt | IS8000 Project files | |
| Export file formats | ASAM MDF 4.1 files (mf4), ASCII files (csv), CSV files compressed in ZIP format (csz) | |
| Online data acquisition (DL950)*7 |
Motion mode | Scope mode (Trigger/ Free-run)*4 The trigger mode cannot be used with multi-unit synchronized DL950s. |
| Maximum transfer rate | 10G Ethernet connection: 320MB/s (20MS/s x 8ch, 10MS/s x 16ch) 1G Ethernet / USB connection: 6.4MB/s (200kS/s x 16ch) |
|
| Online data acquisition (WT5000)*7 |
Monitoring/DAQ items | Power trend graph and numeric Harmonic bar graph *9 Data-streaming waveform *3 Vector diagram |
| Online data acquisition (common)*7 |
Maximum continuous recording time/size | The recording will be kept until free storage space falls below 10%. |
| Maximum recording channels | 128 channel | |
| Waveform overlays | Aligned by time, absolute time ,head of data, end of data or arbitrary position | |
| Automated waveform parameter measurements | Up to 28 parameters (including P-P, Amp, RMS and Freq). | |
| Display format | Common | TY-Overview (up to 32 ch for each group, up to 4 group), XY (up to 2 windows for each group), TY-View (up to 4 areas for each group), Numeric Monitor（Up to 128 channels） |
| For WT5000 | Power trend graph and numeric display Peak-to-peak compressed waveform (Data update interval: 1s or slower) Bar graph of the amplitude and phase of each harmonic *9 Data streaming waveform display *3 Harmonic list display Matrix display Vector diagram |
|
| Automated waveform parameter measurements | Automated measurement of history statistics | Waveform parameters for each waveform in the historical memory and their statistics can be calculated automatically. |
| Automated measurement of cycle statistics | Waveform parameters of each period of a cyclic waveform and their statistics can be calculated automatically. | |
| Cursor | Vertical, Horizontal, X-Y | |
| Annotation function | Comments, acquired data and calculated values can be added on the overview/view, waveform window and X-Y window. | |
| Supported devices | Data acquisition | DL950 WT5000（760903 Current Sensor Element supported.10ms update rate supported.） |
| Flash ACQ data saving | DL950 | |
| Data file import | DL350, DL850 series, DL950, SL1000, WT1800 series, WT3000 series, WT5000, DLM2000 series, DLM3000 series, DLM4000 series, DLM5000 series,DLM5000HD series, DL750 (Only WVF files), SL1400 (Only WVF files) | |
| Remote control and setting, acq. data download | DL350, DL850 series, DL950, DLM3000 series, DLM5000 series,DLM5000HD series, WT5000（Remote control and setting only） | |
| Screen Capture | Save | Clipboard, ping, jpg, gif |
| CSV batch converter | Load | MF4 (MDF4.1), WDF, WVF |
| Save | CSV | |
| Mathematical data analysis（/MH1） | Number of Math channels | Up to 16 channels |
| Operators | +, -, x, /, Phase shift, ABS, SQRT, LOG, EXP, NEG, SIN, COS, TAN, ATAN, PH, DIF, DDF, INTEG, BIN, P2, P3, F1, F2, FV, PWHH, PWHL, PWLH, PWLL, PWXX, DUTYH, DUTYL, FLT1, FLT2, HLBT, MEAN | |
| Number of computed points | Up to 12.5 M points or up to100 M points can be supported by installing MATLAB Runtime |
|
| Digital filters | Gauss, Sharp, IIR（Butterworth） | |
| FFT analysis （/MH1) | Operator | Type: LS, RS, PS, PSD, CS, TF, CH Sub-type: REAL, IMAG, MAG, LOGMAG, PHASE |
| Window function | Rect, Hanning, Flat top, Hamming | |
| Number of FFT channels | Up to 16 channels independently | |
| Number of computed points | Up to 2 M points or up to100 M points can be supported by installing MATLAB Runtime |
|
| Serial bus analysis（/SB1） | supported protocol | CAN (CAN FD is not supported at present.) |
| Search target | SOF, ID/Data, Error | |
| Number of search points | Up to 100,000 frames | |
| Bit rate | Select the value from 33.3kbps, 83.3kbps, 125kbps, 250kbps, 500kbps,1Mbps, or enter it within the range of 10kbps to 1Mbps in 0.1kbps steps. | |
| High-speed camera Sync. （/FS1） | Supported cameras for online sync | Photron’s FASTCAM SA-Z, MIni UX*5/AX/WX series, NOVA S series, NOVA R2 |
| Supported video format for online sync | high-speed camera video files（avi） | |
| Supported devices for online sync | DL950 | |
| Supported video file formats for offline sync | AVI(*.avi), MP4(*.mp4), WMV(*.wmv), AVCHD(*.mts), MOV(*.mov), MPEG2-PS(*.mpg, *.mpeg) | |
| ECU Monitor sync.（EM1 option） | Supported monitoring tools | DTS INSIGHT's RAMScope GT170（only for the variable data acquisition and calibration module）, GT122 |
| Supported data file | RAMScopeVP output files（a2l） | |
| Supported devices for online sync | DL950 | |
*1 Harmonic measurement data excluded.
*2 The measurement data of first 128 channels can be imported.
*3 /DS option is required for the WT5000 to be connected.
*4 Trigger DAQ with DL950 external clock input is not supported.
Freerun DAQ with DL950 external clock input, including 16-channel input module or CAN/CANFD/LIN/SENT module, is not supported.
*5 Pre-trigger recording and multi-trigger recording using the Mini UX series in combination with the FS1 option are not supported.
*6 Only CSV files saved with Ver. 22.6.1.0 or later IS8000 can be imported.
*7 Connecting instruments and collecting data with multiple launches of the IS8000 software on the same PC is not covered by the specification.
*8 MB1 option is required.
*9 G7 option on the connecting WT5000 is required to display measurement data complying with IEC 61000-4-7 Annex B (2k-9kHz).
Models and features

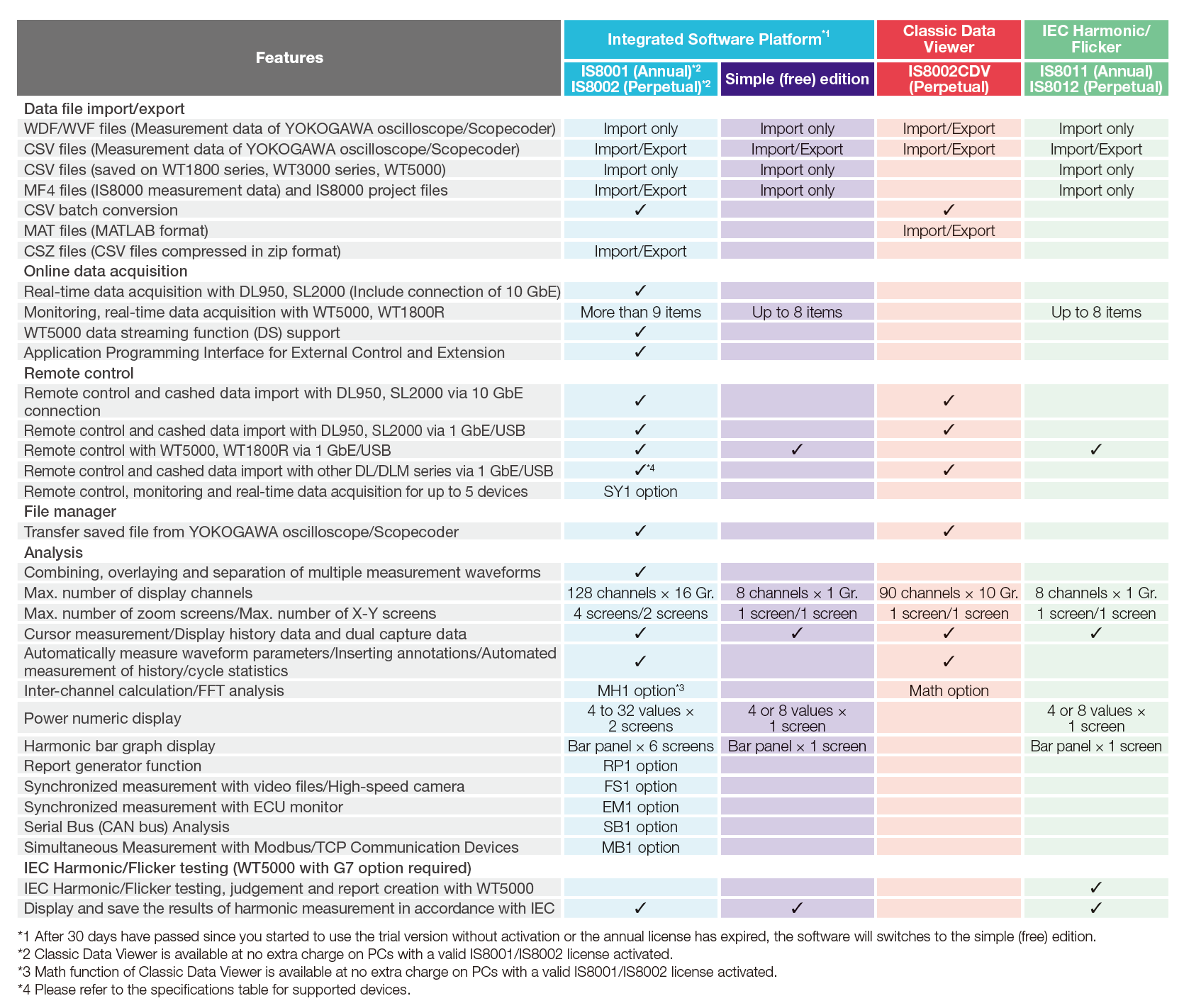

IS8000 Edition, License and Features
DL950 示波记录仪
DL950将混合信号示波器和便携式数据采集记录仪结合为一个平台，可捕获高速瞬态事件和长期趋势，并能进行高达200MS/s和16位A/D的高速多通道测量。为了实际应用可组合超过20种不同的模块，单台仪器即可测量从低压到1000V绝缘模拟信号、逻辑信号、车辆通信信号、振动和应变量、温度等各种信号。它还可以将车辆通信数据(例如CAN/CAN FD/LIN/SENT)显示为趋势波形。 12.1英寸大尺寸触摸屏可实现直观的操作。新设计的应用菜单让常用应用的设置变得更加简单。通过将DL950与IS8000结合使用，可以在测量时将数据直接传输到PC，在PC上进行分析。最多可以有5台DL950通过光纤同步，同时测量多达160个通道。了解更多示波器DL950的信息
WT5000 高精度功率分析仪
WT5000是一款高精度功率分析仪，其基本功率精度为±0.03%，是世界上最优秀的功率分析仪之一。 WT5000具有±0.07%的DC功率精度、 10MHz的电压测量带宽、 5MHz的电流测量带宽以及(视在功率) ±0.02%的低功率因数特性，可对设备功耗、损耗和转换效率进行高精准测量。多达7个功率输入和4个电机扭矩输入，可同时评价多个电机驱动系统。 WT5000可帮助提高EV、 HEV、可再生能源相关设备和节能型家电的开发效率。 了解更多高精度功率分析仪 WT5000的信息
DLM5000HD Series High-Definition Oscilloscope
The DLM5000HD is a compact eight-channel 12-bit oscilloscope with the ability to observe and analyze complex high-speed waveforms in high resolution, making it easy to check fine noise, ringing, and other details. The intuitive touchscreen, auto setup, and extensive analysis functions accelerate complex diagnosis, providing unparalleled testing precision.Click here to learn more about the DLM5000HD Series High-Definition Oscilloscope.
Compatible Models
Standard Functions
*1 Only one unit
*2 Limited functions
*3 "DLM5000" includes DLM5000HD series.
Optional Functions
Compatible high-speed cameras for online synchronization:
Photron FASTCAM SA-Z、MIni UX*2/AX/WX series, NOVA S series, NOVA R2
*1 "DLM5000" includes DLM5000HD series.
*2 Pre-trigger recording and multi-trigger recording using the Mini UX series in combination with the FS1 option are not supported.
汽车和工业领域
电机效率
电机效率 概述
电机效率是电动汽车的一项关键指标，因为小幅改进就可能会增加行驶里程。效率测量需要用电机转速和扭矩进行准确的同步功耗测量。
IS8000优势
实现功率分析仪和高速记录仪的高精度同步测量
使用IEEE1588 PTP技术，可以将来自WT5000功率分析仪和DL950示波记录仪的数据进行时间同步，且误差小于10μs。在同一时间轴上即可显示精确的功率参数和波形。
IGBT变频器的开关波形分析
IGBT变频器的开关波形分析 概述
为了分析电动机和变频器系统，需要三相之间的电压和电流信号，电机I/O信号以及多个IGBT门信号来正确地测量和诊断系统性能和效率。
IS8000优势
组合更多波形
测量负载系统中的变频器性能需要超过8个波形。 IS8000可以连接多台8通道DLM5000示波器，满足在一个控制和观测界面中显示和分析所有通道的需求。
电力/能源行业
太阳能/风能系统开发
太阳能/风能系统开发 概述
风能、太阳能和水力等可再生能源系统必须保持能量转换阶段的高效率，以减少对环境的影响。多个测量点的精准和同步尤为重要。
IS8000优势
查看和比较多台仪器的波形
IS8000可轻松同步多台仪器的波形，生成一个易于比较的视图。使用缩放和平移控制可轻松完成波形操作，用于分析长时间记录的能量波形
产品研发
机器人焊接控制分析
机器人焊接控制分析 概述
对于具有成本效益的制造系统，需要对机器人焊接条件进行优化。要确定机器人的姿态和性能之间的最佳组合，需要监测多个信号和输入(包括高速摄像机输入、源电压和电流以及多个位置和控制I/O信号)。
IS8000优势
同时记录多种信号类型
IS8000可显示多个输入。摄像机图像在时间上与其他波形(包括控制信号以及电压和电流波形)对齐。同时慢动作回放实现了设计和结果之间的可视化。
订阅制许可
此许可是基于平台和选件功能的年度续订。用户可以在需要时购买软件，将初始投资降到最低。
在订阅期间，用户将始终拥有最新版本的软件，始终能够使用最新的功能、标准和安全性。
永久许可
此为一次性购买，无限期使用。其他选件功能可以在以后购买。购买后，该平台可以在长达5年的时间内免费升级主软件版本。在此之后，用户可以继续在同一环境中使用该软件。该许可适用于不打算改变安装软件时的设备环境的用户。
使用软件前激活
除免费试用期外，所有IS8000型号和许可都需要通过互联网进行软件激活才能使用。如果安装了IS8000的PC无法连接到网络，则可以使用另一台可访问网络的PC激活IS8000。有关更多信息，请参阅IS8000产品页面中的电子版手册。
ANIS8000APP02-01EN
ANIS8000APP04-01EN
Detailed measurement methods, supply voltage settings, and others are specified for the harmonic/flicker standard test.
- IS8000 Integrated Software Platform
- Measure current waveform using oscilloscope
ANIS8000APP03-01EN
宣传手册
- IS8000 Integrated Software Platform (3.1 MB)
- 集成软件平台IS8000产品介绍 (1.2 MB)
操作手册
- IS8000 Integrated Software User’s Manual (8.8 MB)
- IS8000 Integrated Software Installation Manual (482 KB)
- IS8000 Integrated Software High-speed Camera Synchronization Feature (FS1 option) User’s Manual (1.3 MB)
- 集成软件平台 IS8000安装手册 (651 KB)
- IS8000 Integrated Software ECU Monitor Synchronization Feature (EM1 option) User’s Manual (875 KB)
- Harmonic/Flicker Software User’s Manual (9.2 MB)
- IS8000 Integrated Software Modbus/TCP Communication Feature (MB1 option) User’s Manual (460 KB)
- IS8000 Integrated Software API Use’ｓ Manual (1000 KB)
- 集成软件平台 IS8000 中文操作手册 (10.5 MB)
软件
操作培训
本视频为大家介绍IS8000软件集成平台一个非常有用的功能，波形缩放功能。
利用WT5000的波形数据流功能，将波形数据流输出到上位机，并借助IS8000软件强大的波形分析功能对功率分析仪输出的波形进行深入分析。
产品展示
IS8000软件平台是一个加速工作流程的集成解决方案。它是一款革命性的软件，紧密集成了多个仪器的计时、控制和数据收集，创建了一个全面的测量套件，使测试工作更高效率、可靠和统一。
Test and measurement engineering work groups can have differing priorities and requirements, which often results in multiple instrumentation systems and data file formats, as well as incompatible reporting. This lack of effective communication between groups and instruments causes decreased efficiency and quality and increased spending and time to market. Unify test and measurement instrumentation, software, and data across engineering teams with a suite of solutions that caters to the different needs of engineering work groups, including accurate power data, fast sampling rates, long recordings of multiple different input types, and insights into waveform data.
入门指南
Looking for a turnkey high-speed data transfer solution with better bandwidth and minimal manual overhead?
The 10Gb Ethernet option on the Yokogawa Test&Measurement DL950 ScopeCorder fits that very role and makes capturing and recording high-speed data seamless and convenient.
Record data at 50 times the speeds of traditional Ethernet and USB connections and automatically transfer data to your PC in a single step using the IS8000 Integrated Software Platform.
The multi-unit synchronization option for the Yokogawa Test&Measurement DL950 ScopeCorder lets you time synchronize up to five DL950 ScopeCorders, for up to 160 channels of voltage, current, temperature, strain measurements, and more. This video walks you through how to set up and connect the multiple DL950 ScopeCorders, take measurements, and pull the data from all of the instruments for analysis with the IS8000 Integrated Test and Measurement Software Platform.
Having multiple memory options allows engineering groups to optimize how data is stored, no matter if you need to record for a long time at slower sampling rates, do a fast capture at high sampling rates, or anything in between.
The Yokogawa Test&Measurement DL950 ScopeCorder operates as an oscilloscope and incorporates the ability to record data for long periods of time like a data acquisition recorder. There are four memory types on the DL950 ScopeCorder: internal memory, solid state drive, flash memory, and PC storage through the IS8000 Integrated Test and Measurement Software Platform. This videos talks about the advantages of each of these and how to pick the best data recording method for you.
获得更多专业服务
