• AQ2211 Frame Controller
• Multi application testing system
• Hot-swapping capability
• Remote monitoring and control
• Even easier with Ethernet support

• AQ2212 Frame Controller
• Multi application test system
• Two frame controller platforms
• Select best platform size for intended measurement applications

The AQ6150 and AQ6151 models simultaneously measures the wavelength and power levels of both CW and Modulated optical signals from Dense Wavelength Division Multiplexing (DWDM) components, transceivers, and transmission systems for metro, long haul, and access network applications with high speed data rates of 10G, 40G, 100G and beyond.

• AQ6151B optical light wavelength meter
• Wavelength and power level of CW and modulated optical signals from tunable lasers and DWDM transmission systems
• Range: 900-1700nm, 1200-1700nm, 1270-2100nm
• Accuracy: ±0.2 ppm

The AQ6370 Viewer is a package of PC application software for the AQ6380, the AQ6360, and the AQ6370 series Optical Spectrum Analyzer.

• AQ6370D Optical Spectrum Analyzer
• Popular TELECOM wavelength Range of 600nm to1700nm
• Ideal model for Telecommunications applications for single-mode and multi-mode optics

• AQ6370E Optical Spectrum Analyzer
• Popular TELECOM wavelength Range of 600nm to1700nm
• New model ideal for Telecommunications applications for single-mode and multi-mode optics

• Dedicated SHORT wavelength Range of 350nm to1200nm
• Accurately measure visible spectrum of 380nm to 780nm
• Bio-sciences and beyond
• Measuring 1064nm Nd:YAG, DPSS Laser sources

• The high-performance optical spectrum analyzer optimized for visible laser measurement
• 3 models line up for various applications [Standard, High resolution, Limited]
• Ideal for the lasers of industrial, bio and medical

• AQ6374 Wide Range Optical Spectrum Analyzer
• Covers wavelengths from 350 to 1750 nm
• Visible lights (380 to 780 nm) and telecommunication wavelengths

• Wide range optical spectrum analyzer covering from visible light to communications wavelength
• Wide wavelength range: 350 to 1750 nm
• Ideal for various applications including fiber

High Performance LONG WAVELENGTH
The AQ6375E covers not only telecommunication wavelengths, but also the SWIR region which is often used for environmental sensing and medical applications.
・Lineup of 3 models [Standard, Extended and Limited]
・Covers wavelengths
     1200 to 2400 nm [Standard, and Limited]
     1000 to 2500 nm [Extended ]

MWIR WAVELENGTH with internal gas purge and cut filter
The AQ6376E is the latest version of our bench-top optical spectrum analyzer extending the wavelength coverage well beyond the NIR range of our previous models into the MWIR region from 1500 to 3400 nm.
Popular applications include the detection of gases such as carbon oxides (COx), nitrogen oxides (NOx), and hydrocarbon gas (CxHy) for environmental studies.

• AQ6377 long-wavelength optical spectrum analyzer model covering the MWIR region over 5 μm
• AQ6370D optical analyzer model with highest resolution (up to 20 pm)
• Highest close-in dynamic (up to 78 dB)
• Widest measurement power (up to 110 dB)

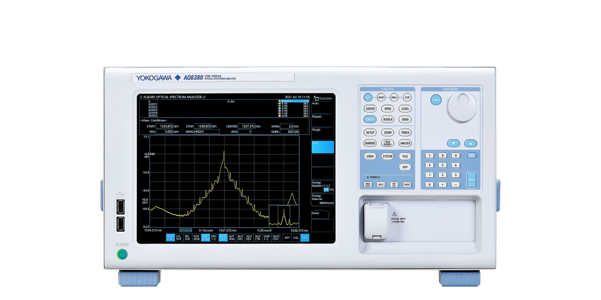

AQ6380 OSA: 5 pm (0.624 GHz) high wavelength resolution, ±5 pm accuracy, 65 dB wide close-in dynamic range, 80 dB high stray light suppression

• Optical Spectrum Analyzer is used to measure and display power distribution of an optical source
• Optical analyzer traces and displays power in vertical scale and wavelength in horizontal scale

• Yokogawa optical test equipment solutions to measure optical components/systems
• Serves demand for high capacity fiber lines and new component technologies

• Optical time domain reflectometer precision instrument for access network optical fiber installation and maintenance
• Locate events or faults along fiber link during OTDR testing procedure

A Michelson interferometer-based optical wavelength meter with high measurement performance and excellent cost performance that meets measurement needs from optical devices to optical transmission equipment.
