700929 Isolated Passive Probe 1000V / 100 MHz
Isolated Probe
The 700929 is for the passive input module of the ScopeCorder Series for use with isolated BNC inputs. Passive oscilloscope probes like the 700929 by Yokogawa are basic probes that offer broad versatility in both everyday measurement and high-speed signals.
Passive vs. Active Probe
Analog voltage probes can be passive or active. What's the difference between passive vs. active probes? Passive voltage probes are for high voltage and low capacitance and cover oscilloscopes and ScopeCorders. Active probes can be either single-ended or differential for high speed and high voltage.
Frequency bandwidth: 100MHz
Maximum input voltage: 1000 V (DC + AC peak)
Input resistance/capacitance: 10 MΩ/approx. 18 pF
Attenuation ratio: 10:1
Total length: 1.5m
Compatible accessories: 701948 Plug-In Clip
Specifications

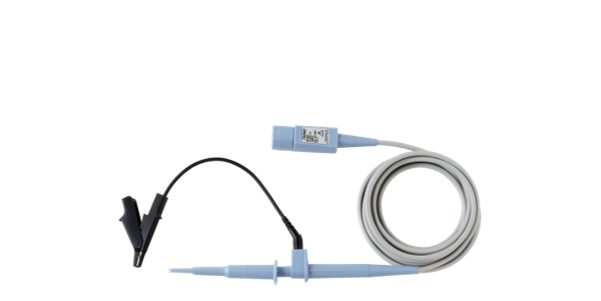

 702902 |

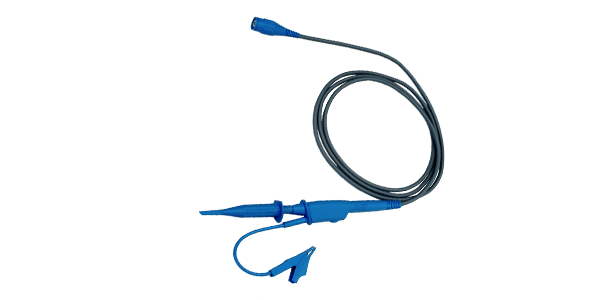

 700929 |

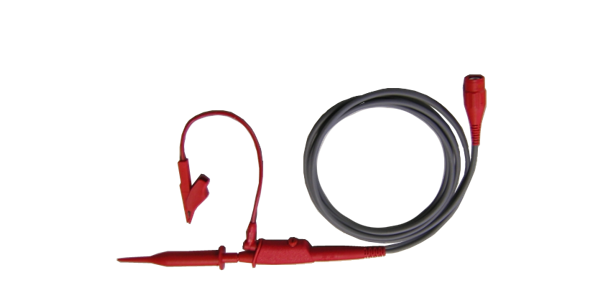

 701947 |

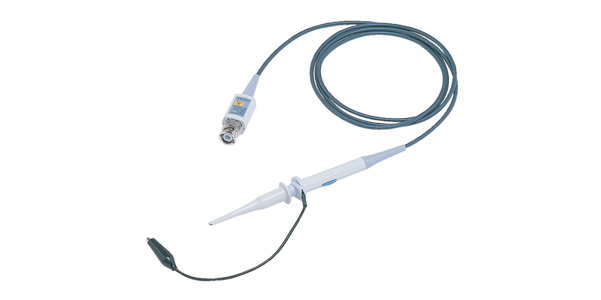

 701940 |
|
|---|---|---|---|---|
| Isolation | Isolated | Isolated | Isolated | Non-isolated |
| Frequency bandwidth | 60 MHz | 100 MHz | 200 MHz | 10 MHz |
| Maximum input voltage | 1000 V (DC + ACpeak) | 1000 V (DC + ACpeak) | 3540 V (DC + ACpeak) | 600 V (DC + ACpeak) |
| Attenuation ratio | 10:1 | 10:1 | 100:1 | 1:1, 10:1 |
| Input resistance (with module) | 10 MΩ | 10 MΩ | 100 MΩ | 10 MΩ |
| Input capacitance (typical) | approx. 17 pF | approx. 18 pF | approx. 7 pF | approx. 22 pF (@10:1) |
| Total length | 2.5 m | 1.7 m | 1.7 m | 1.5 m |
| Measurement category | 1000 V (DC + ACpeak) CAT II |
1000 V (DC + ACpeak) CAT II 600 Vrms CAT III |
3540 V (DC + ACpeak) CAT O 1000 V (DC + ACpeak) CAT II |
600 V (DC + ACpeak) CAT II |
