SMU Application Handbook
Combining a precision current and voltage source with a high resolution digital multimeter, source measure units are precision DC instruments that can operate in all four quadrants to allow it to be used as a generator and load. As such, they have seen use in many applications where they are operated as a battery, a stimulus for transistors, a power supply, and as a test device for verifying analog to digital converters. Download the source measure unit applicaiton handbook to learn about the endless capabilties of this device.
Related Products & Solutions

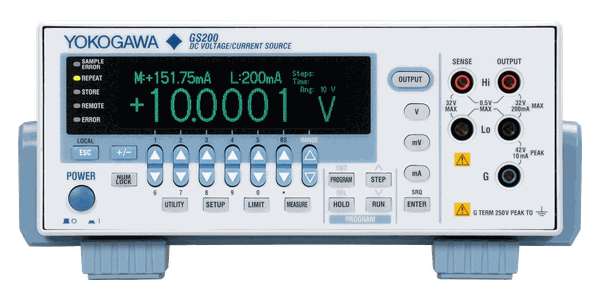

GS200 DC Voltage / Current Source
- Ultra low noise (3 µVp-p)
- 10/100mV, 1/10/30V
- Resolution: 100 nV / 10 nA
- Max. Output: ±200 mA (at 1/10/30V)
GS610 Source Measure Unit
- 1-Channel
- ±110V / ±0.5A or ±12V / ±3.2A
- Resolution: 1 µV / 100 pA
- Sweep: Linear, Log, Custom
- Output: DC, Pulse (50 µs to 3600 s)
GS820 Source Measure Unit
- 2-Channel
- ±50V / ±1.2A or ±18V / ± 3.2A
- Resolution: 1 µV / 1 pA
- Sweep: Linear, Log, Custom
- Output: DC, Pulse (50 µs to 3600 s)
Programmable DC Sources
A Programmable DC Source instrument provides controlled, adjustable DC voltage and/or current with precise, programmable output.
Source Measure Units
A Source Measurement Unit (SMU) is a flexible test instrument which is capable of both sourcing and measuring voltage and/or current at the same time.
