Superb accuracy has never been easier, thanks to multi-channel measurements, custom triggers and computations, advanced harmonic analysis and filtering, and user-friendly operation. The Yokogawa WT5000 precision power analyzer is a versatile platform that delivers extraordinary precision and exceptional performance for the most demanding applications. Equipped with seven user swappable and reconfigurable input elements plus four motor channels, the WT5000 high accuracy power meter is an ideal instrument for electrical and mechanical power and efficiency measurements. The Yokogawa power analyzer is now listed as an accepted device for SPEC Power® testing and IEC harmonic and flicker standards. Its out-of-the-box software solution, highly responsive touchscreen, and intuitive menu operations for simple connection, configuring, and use make the WT5000 an ideal instrument for your testing needs.
Test Product of the Year
The WT5000 was awarded "Test Product of the Year" at the 2019 Elektra Awards.
Power Product of the Year
Yokogawa's WT5000 Precision Power Analyzer won the prestigious “Power Product of the Year” trophy at the second annual Electronics Industry Awards.
The WT5000 is the world’s most accurate precision power analyzer with a basic power accuracy of ±0.03%. Its accuracy specifications are guaranteed from 1% to 130% of the selected voltage and current ranges. With minimum influence of low power factor (0.02% of apparent power) the unit is also accurate at large phase shifts and frequencies.

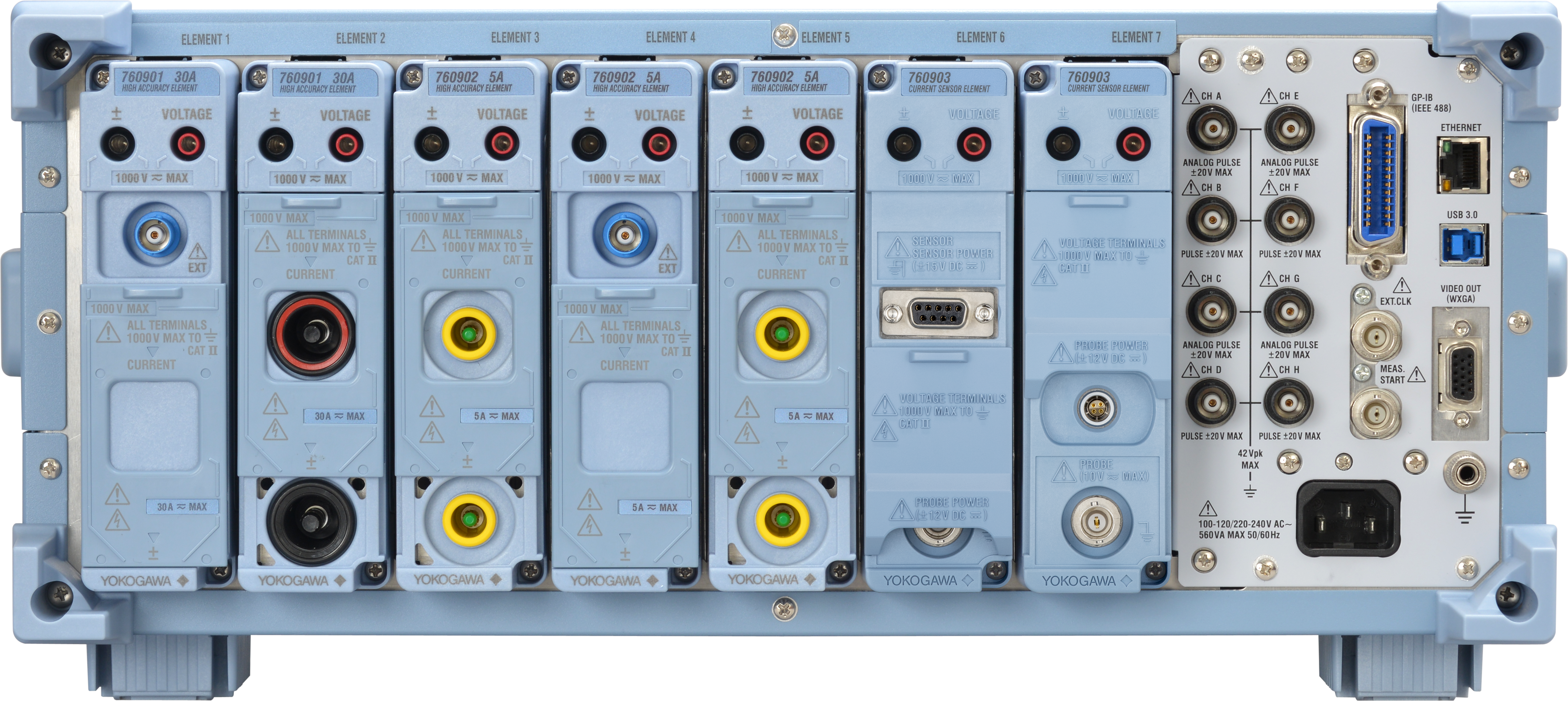

Measure from up to 7 different power phases at 10 MS/s (18 bits). The high resolution, 10.1 inch WXGA display allows split screen viewing of up to 7 waveforms and can display up to 12 pages of diverse measurement parameters, making it ideal for efficiency tests of inverter driven motors, renewable energy technologies and traction applications like pumps, fans and electric vehicles. Measurements are also displayed in vector format or trending in time.
Use of the internal DC power supply for AC/DC current sensors simplifies the preparations before measurement and the measurement setup only requires the current sensor and a connecting cable. Using an external DC power supply and additional wiring is no longer required. There are three sensor connection cable lengths available; i.e., 3 m, 5 m, and 10 m.
*Firmware version 3.01 or later is required.

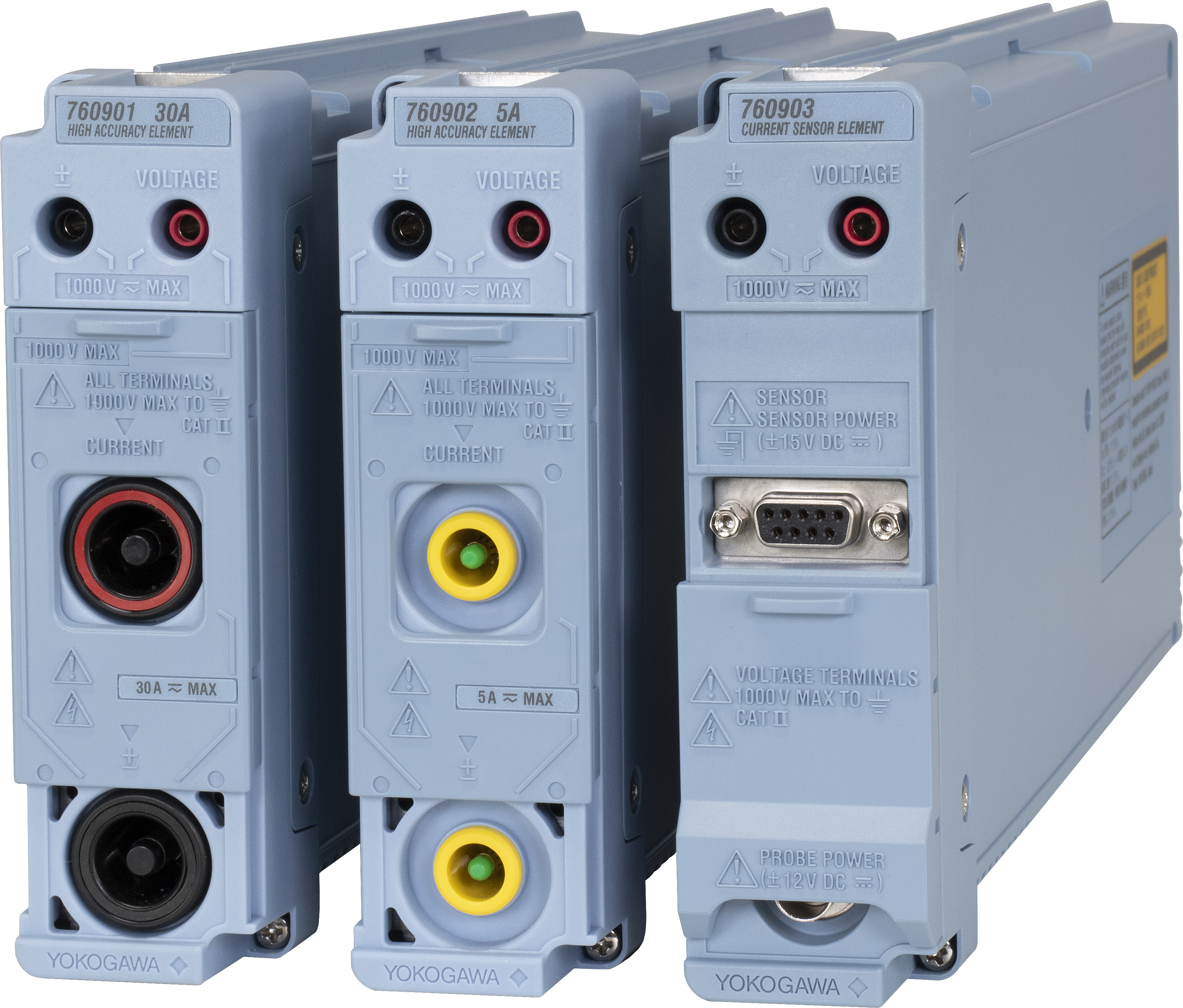

760903 Current Sensor Element

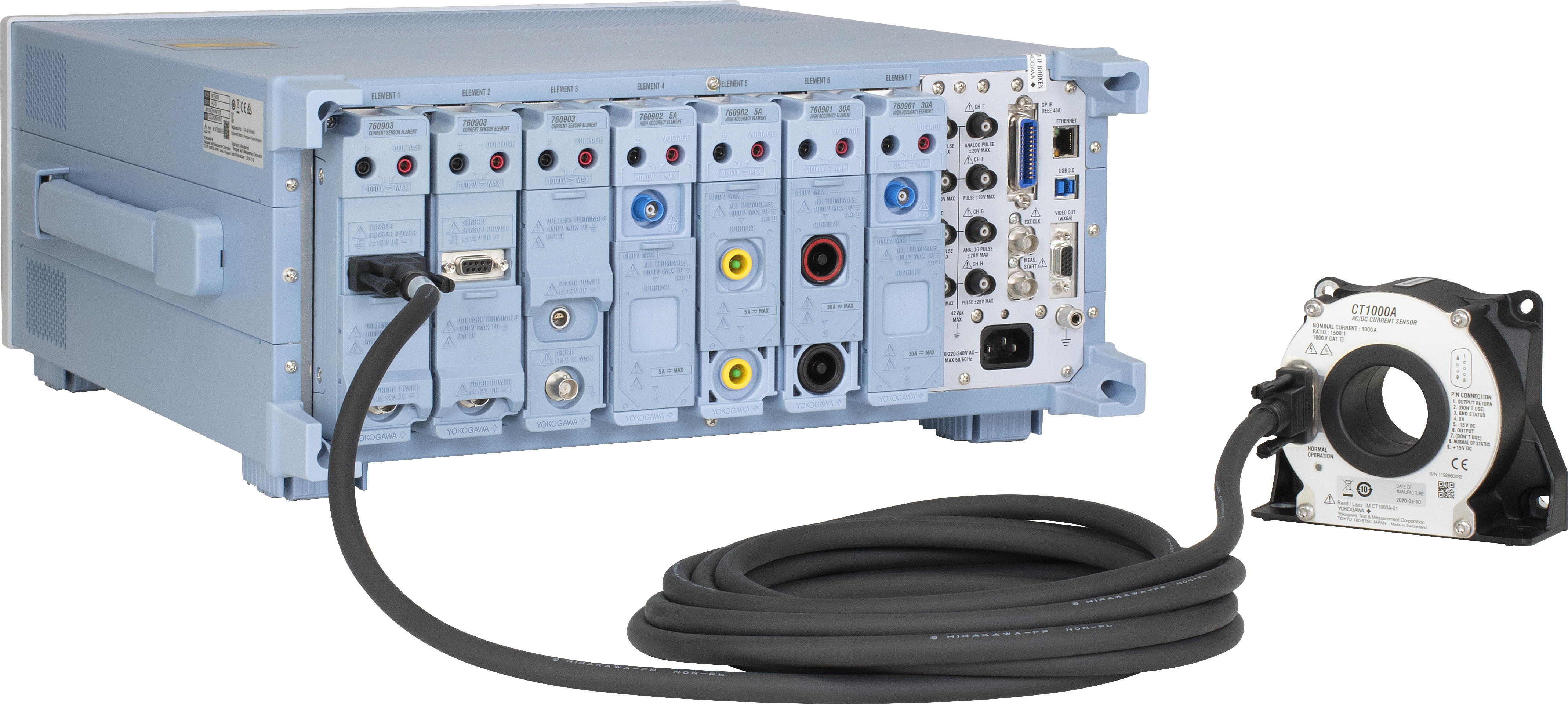

Example of connection to CT1000A

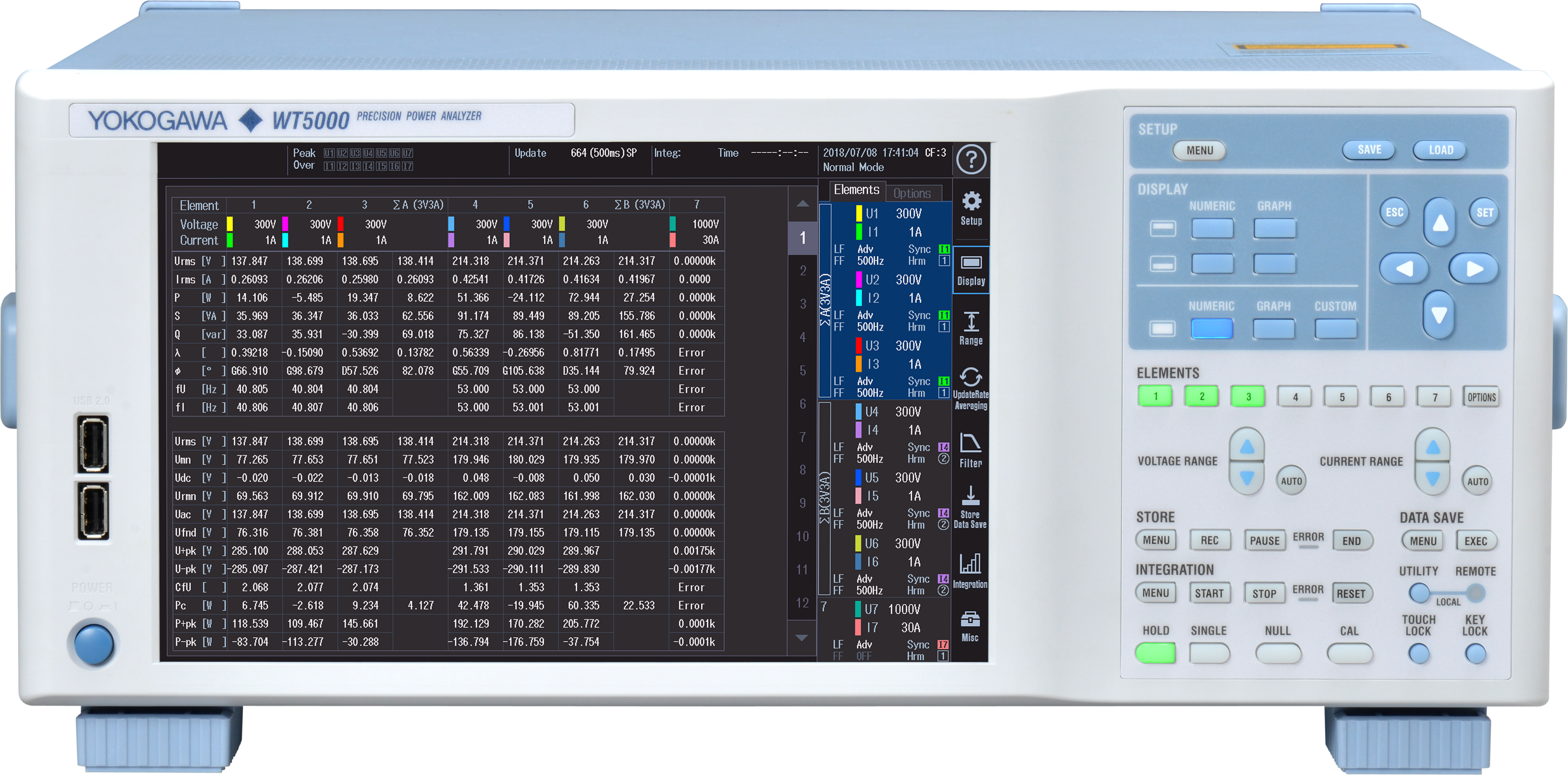

Operable by touch and/or hardware hot-keys independently, the WT5000 offers a seamless and intuitive experience that makes connecting, configuring and measuring easier than ever before. The 10.1 inch WXGA touchscreen delivers excellent noise immunity even in high noise environments such as motors and inverters.
The operability of the touch panel has been improved. "Time / div" can be set by pinch / out. Also, you can flick the waveform display contents.
In addition to low pass frequency filters and line filters, the WT5000 features advanced filtering capabilities that provide unprecedented control to analyze even the toughest of waveforms with precision.
Evaluate and compare input and output harmonics of inverters, motors or power conditioners up to the 500th order. The WT5000 allows users to not only measure harmonics and power simultaneously but also offers side by side comparison of harmonics from two different input sources.
The effects of noise and aliasing are minimized by antialiasing and line filters with Digital Parallel Path technology allowing simultaneous power analysis of wide band and narrow band components.
Combined with the /G7 option and IEC Harmonic /Flicker measurement software, the WT5000 measured harmonic data can be saved into a PC and tested according to IEC regulations. To support large equipment over 16 A/phase (IEC61000-3-12) the CT200 current sensor model can be used.
The waveform data is streamed without any gaps up to 2 MS/s and is synchronized with the numerical data. Abnormal findings in numerical data can be directly linked and be evaluated in the waveform data. For example, one can find numeric parameter variations caused by the influence of imposed high-frequency noise.
Define and use event triggers and custom computations as per application needs. The event trigger function allows users to set limits to capture readings that fall within or outside a specific range of power, current or other parameters. Users can also define and use up to 20 different expressions for custom calculations. Data that meets the trigger conditions can be stored, printed, or saved to a USB memory device.
This feature can follow fluctuating input frequencies without gaps by changing the data update rate automatically when measuring devices like motors whose input signal frequency fluctuates with changes in rotation speed. It can cover from frequencies as low as 0.1Hz. In addition to constant-interval update mode of 10ms-20s, “Auto update mode”, which updates data in sync with the cycle of input signal, is now available. This new feature is useful for continuous measurement, such as automated testing.
Current range, various filters, data update rate, and measurement period can be automatically switched according to the measurement scene.
The measurement scene can be selected from among "50/60Hz," "DC," "PWM," "High Frequency," and "General.
After the automatic setting, the switched items can be checked at a glance and the settings can be easily adjusted.
When three-phase delta wiring is used, the results of converting to phase voltage using delta-star conversion can be used to measure harmonics, display waveforms on screen, and output data. (When using star connections, it is possible to measure harmonics using the result converted to line voltage using star-delta conversion.)
It can calculate the fundamental wave components of phase voltages required for measuring motor parameters (Ld, Lq), and can be used to evaluate synchronous motors.
Overview
Between 16 to 18% of the total charge of an electric car is consumed by electric drive system losses. Electric and hybrid car manufacturers therefore need to accurately evaluate motor and inverter control in order to achieve higher precision and greater efficiency. Additionally, the accurate analysis of inverter waveforms without interference from switching noise is a key part of evaluating the motor drive circuit.
Key requirements:
The WT5000 Advantage
With high accuracy, multi-channel power measurements, evaluation of up to 4 motors and harmonic comparison capabilities, the WT5000 helps automotive engineers improve conversion efficiency, shorten charging times and improve driving range.
Guaranteed accuracy in multichannel measurements
It enables simultaneous measurements of voltage, current, power, torque, rotation speed, electrical angle and mechanical power.
Motor evaluation and mechatronic efficiency
Measure rotation speed, torque, and output (mechanical power) of motors from analog/pulse inputs of rotation or torque sensors. A single WT5000 can be configured for synchronized measurements from up to 4 motors simultaneously.
Battery charging & discharging characteristics
Integration of Instantaneous positive and negative values of energy allows the evaluation of battery charging and discharging characteristics.
Harmonics Analysis & comparisons
With the ability to measure harmonics up to the 500th order even at low rotation speeds, the WT5000 supports harmonic analysis without the need for an external sampling clock.
Overview
Energy generated by photovoltaic cell modules and wind turbines is converted from DC to AC by a power conditioner. Minimizing losses in these conversions is key to improve the efficiency of the overall energy system.
Key requirements:
The WT5000 Advantage
WT5000 helps engineers working in the development of renewable energy solutions, to improve conversion efficiency by offering precision insights in charging, discharging, storage and overall efficiency.
Multi-channel Power measurements
Evaluate Power conditioner efficiency with simultaneous measurements from the inputs and outputs of boost converter, inverter, and storage battery. With measurement capabilities from up to 7 input elements the WT5000 is ideal for voltage, current, power, and frequency (for AC) before and after each converter, as well as converter efficiency and charging efficiency.
Instantaneous peak power
In photovoltaic power generation, an Maximum Power Point Traker (MPPT) controller varies the voltage to maximize energy harvested from the solar panel. The WT5000 is capable of measuring not only the voltage, current, and power but also the voltage, current, and power peak values plus (+) and minus (−) sides, respectively
Energy Bought/Sold and Charged/Discharged
The WT5000E provides a current integration (q), apparent power integration (WS), reactive power integration (WQ), as well as effective power integration capable of integration in the power sold/bought and charge/discharge modes.
Harmonics Analysis & comparisons
Voltage fluctuations and harmonics flow into the power systems due to reverse power flow. The harmonic measurement function enables measurement of harmonic components to compute and display total harmonic distortion (THD) and harmonic distortion factor.
Overview
Motor drive technology has become more complex in recent years, pure sine-wave PWM is less common, and cases where the mean voltage differs greatly from the fundamental voltage waveform, are more frequent.
Key requirements:
The WT5000 Advantage
With high accuracy, multi-channel power measurements, motor evaluation and harmonic comparison capabilities, the WT5000 helps engineers in motor and drive development to improve power consumption and conversion efficiency in inverter/motor drive systems.
Guaranteed accuracy across a wide range
The WT5000 guarantees a basic power accuracy of ±0.03%, between 1% to 130% of the selected voltage and current measurement ranges, at 50/60 Hz.
Simultaneous measurements from the inputs and outputs of boost converter, inverter, and storage battery
Inverter and motor efficiency
In addition to computing power conversion efficiency of inverter and motor (up to 7 power inputs), the WT5000, also allows the measurement of rotational speed, torque, and output (mechanical power) from the analog/pulse inputs of rotation or torque sensor.
Harmonics Analysis & comparisons
With the ability to measure harmonics up to the 500th order even at low rotation speeds the WT5000 supports harmonic analysis without the need of an external sampling clock.
Overview
In transformer or reactor development, the WT5000 can be used to evaluate magnetic material characteristics using Epstein frame system.
Key requirements:
The WT5000 Advantage
Highest voltage and current accuracy
WT5000 provides highest power accuracy:
0.01% of reading + 0.02% of range (50/60 Hz)
High accuracy at low power factor
Effect of Power Factor of WT5000:
0.02% of S (0.5 A or more)
0.07% of S (200 mA or less)
Overview
For customers who use a large number of power meters, WT5000 can be used as a reference standard for periodic in-house calibration of power measurement instruments, such as the WT300E series and WT500.
Key requirements:
The WT5000 Advantage
Highest power accuracy
WT5000 provides highest power accuracy:
0.01% of reading + 0.02% of range (50/60 Hz)
High accuracy at low power factor
Effect of Power Factor of WT5000:
0.02% of S (0.5 A or more)
0.07% of S (200 mA or less)
Maximum torque per ampere (MTPA) is an optimization strategy for the control of electric motors and drives that employ field-oriented control (FOC), particularly with electric vehicles (EVs) and industrial automation applications. The goal of MTPA is to achieve the maximum possible torque output from a motor for a given current input.
Maximum power point tracking (MPPT) charge controllers play a crucial role in the optimization of renewable energy system efficiency and performance. Through dynamic tracking of a renewable energy source’s maximum power point, an MPPT controller enables more efficient energy harvesting, faster charging, and adaptability to changing environmental conditions.
Energy consumption in low-power and standby modes is an important issue due to increased awareness that energy resources are becoming limited and demand for energy-saving household electrical appliances continues to grow. IEC62301 Ed2.0 (2011) and EN 50564:2011 define standby mode as the lowest energy consumption of an appliance not performing its main function, when connected to the mains. IEC62301 Ed2.0 (2011) defines test methods and requirements for both the mains supply and the test equipment. It is crucial that design and test engineers choose highly accurate power measurement tools to confirm that their devices meet these requirements.
【search key】 WT5, WT50, WT500, WT
ANIS8000APP04-01EN
【search key】 WT1, WT18, WT180, WT3, WT30, WT5, WT50, WT500, WT
Detailed measurement methods, supply voltage settings, and others are specified for the harmonic/flicker standard test.
ANIS8000APP02-01EN
Government agencies that define the standardization of energy efficiency metrics continue to be a driving force behind the development of the next generation electric vehicle powertrains. These metrics require manufacturers to have high confidence in their measurements and motivate the optimization of efficiency.
This training module covers the following topics:
Test and measurement engineering work groups can have differing priorities and requirements, which often results in multiple instrumentation systems and data file formats, as well as incompatible reporting. This lack of effective communication between groups and instruments causes decreased efficiency and quality and increased spending and time to market. Unify test and measurement instrumentation, software, and data across engineering teams with a suite of solutions that caters to the different needs of engineering work groups, including accurate power data, fast sampling rates, long recordings of multiple different input types, and insights into waveform data.
The current sensor element for the Yokogawa Test&Measurement WT5000 Precision Power Analyzer is ideal for applications requiring a current transformer for high-current measurements. The internal DC power supply simplifies preparations before measurement, requiring only a connecting cable and eliminating the external power supply.

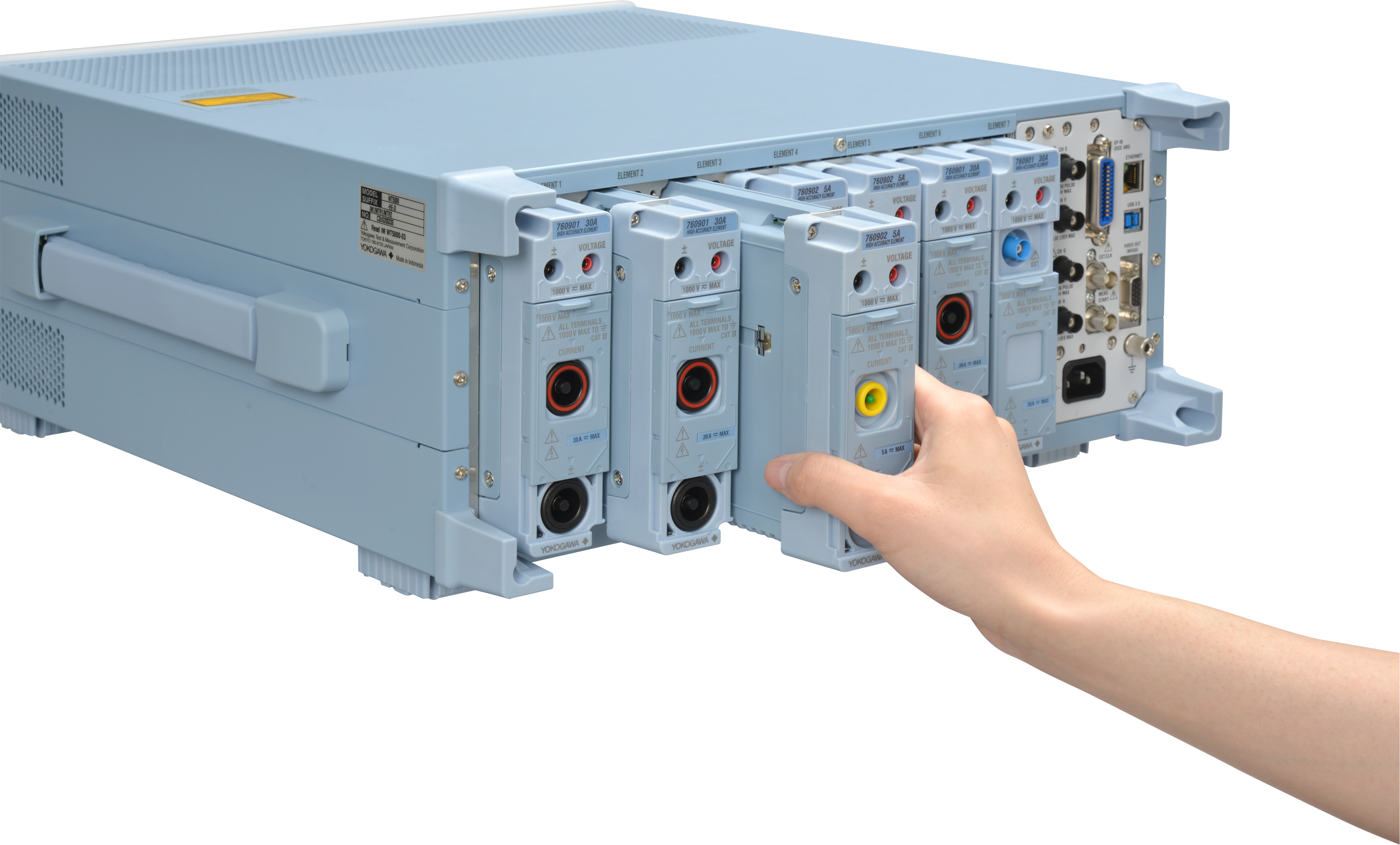

The WT5000, an industry-leading power analyzer, features seven field-removeable elements, 10 MS/s, 1 MHz power bandwidth, 18-bit resolution, and 0.03% basic power accuracy. Yokogawa Test&Measurement continues to innovate on the platform, enabling /D7 data streaming, /G7 harmonics, and flicker analysis.
