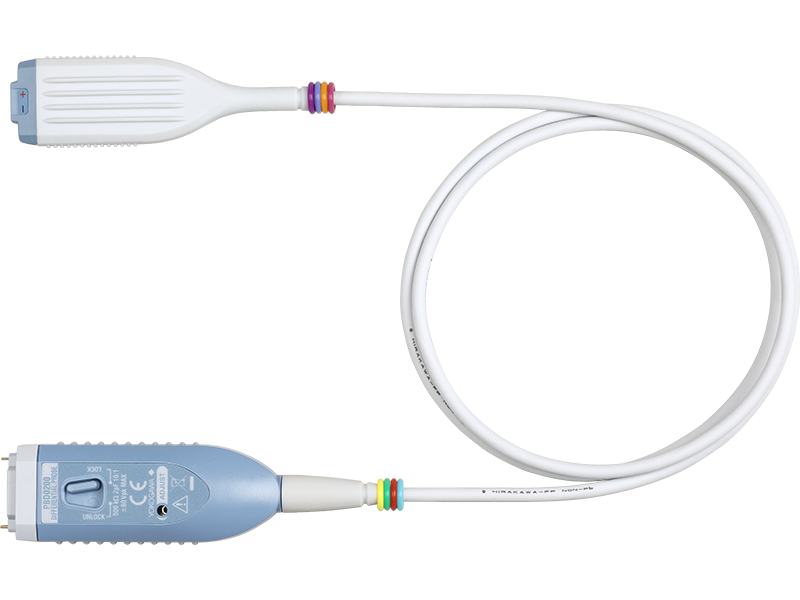

702928 PBD0200 Differential Probe 20 V / 200 MHz
|
Frequency Band (-3 dB) |
|
|---|---|
|
DC to 200 MHz |
|
|
Attenuation Ratio |
10:1 |
|
Differential input voltage range |
|
|
±20 V (DC + ACpeak) |
|
|
Maximum input voltage |
|
|
±60 V DC, ±42 V ACpeak |
|
|
Output Connector Type |
|
|
Yokogawa dedicated probe interface |
|
|
Probe Power |
Dedicated probe interface |
- The 200 MHz bandwidth makes the 702928 ideal for measuring mid- to low-speed differential signals such as CAN and CAN FD. Its ±20 V differential input range, ±60 V maximum input voltage, and low noise performance (4 mV) enable highly accurate floating measurements—even for signals with relatively high common-mode voltages.
- The 702928 is equipped with the YOKOGAWA probe interface, enabling automatic configuration of settings such as attenuation ratio and input impedance simply by connecting them to the DLM series. This eliminates the need for manual adjustments and minimizes the risk of setup errors. The probes are powered directly by the DLM series main unit, so no external power source is required.
| Frequency Band (-3 dB) | DC to 200 MHz |
|---|---|
| Attenuation Ratio | 10:1 |
| DC gain accuracy | ±1% |
| Differential input voltage range (between +/- terminals) |
±20 V (DC + ACpeak) |
| Maximum input voltage (to ground) | ±60 V DC, ±42 V ACpeak |
| CMRR (typical) | -80 dB (60 Hz), -70 dB (100 kHz), -50 dB (10 MHz), -20 dB (100 MHz) |
| Input equivalent noise (typical) | 4 mVrms or less |
| Input capacitance (to ground) (typical) | 2 pF |
| Input resistance (to ground) (typical) | 500 kΩ |
| Output Connector Type | Yokogawa dedicated probe interface |
| Operating temperature range | +5°C to +40°C |
| Operating humidity range | 20% to 80% RH (no condensation) |
| Probe length | Approx. 1.2 m |
| Weight | Approx. 90 g |
