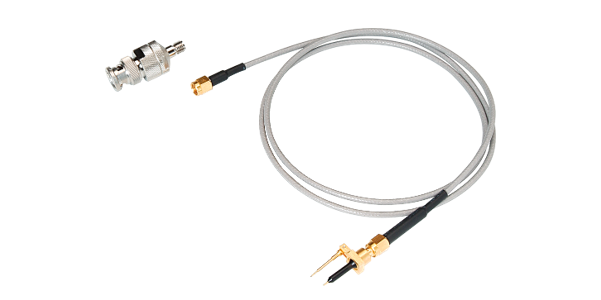

701974 Low Capacitance Probe 5 GHz
|
Bandwidth |
: |
DC to 5 GHz (-3 dB) |
|
Attenuation |
: |
10:1 or 20:1 (±2%) |
|
Input resistor |
: |
450 Ω or 950 Ω (±1%) |
|
Input resistor |
: |
500 Ω or 1000 Ω (when used with 50 Ω scope input / termination) |
|
Input capacitance |
: |
approx 0.25 pF (typ. 450 Ω), 0.4 pF (typ. 950 Ω) |
|
Max. input voltage |
: |
20 Vrms (40 VACpeak) |
|
Probe Length (coax) |
: |
1.1 meter |
Oscilloscope Probe Capacitance
Low capacitance probes are a type of passive, analog voltage probe, alongside high voltage and general-purpose probes. The most basic probe, a passive probe, is also the most versatile. When used with select attachments, passive probes can be used with higher-speed signals. Additionally, Yokogawa Test&Measurement provides probes for extreme cases including high-voltage, wide temperature ranges, and high-speed signal measurement.
Measuring Capacitance with an Oscilloscope
How to measure capacitance with an oscilloscope: Measure the time of charging to a given voltage using a simple circuit for a capacitor in series with a resistor. Then, the oscilloscope helps to measure the voltage across the capacitor.
Specifications

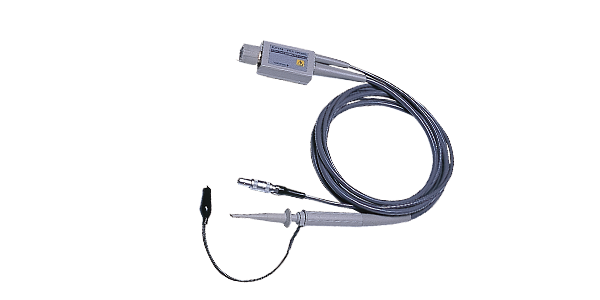

 700939 |
 701974 |
|
|---|---|---|
| Frequency bandwidth | 900 MHz | 5 GHz |
| Maximum input voltage | ±10 V (DC + ACpeak) | 20 Vrms |
| Maximum nondestructive voltage | ±40 V (DC + ACpeak) | 40 V ACpeak |
| Attenuation ratio | 10:1 | 10:1, 20:1 |
| Input resistance / capacitance | 2.5 MΩ / approx. 1.8 pF | 450 Ω / approx. 0.25 pF 950 Ω / approx. 0.4 pF |
| Total length | 1.5 m | 1.0 m |
| Power supply | Probe power supply | Not required |
