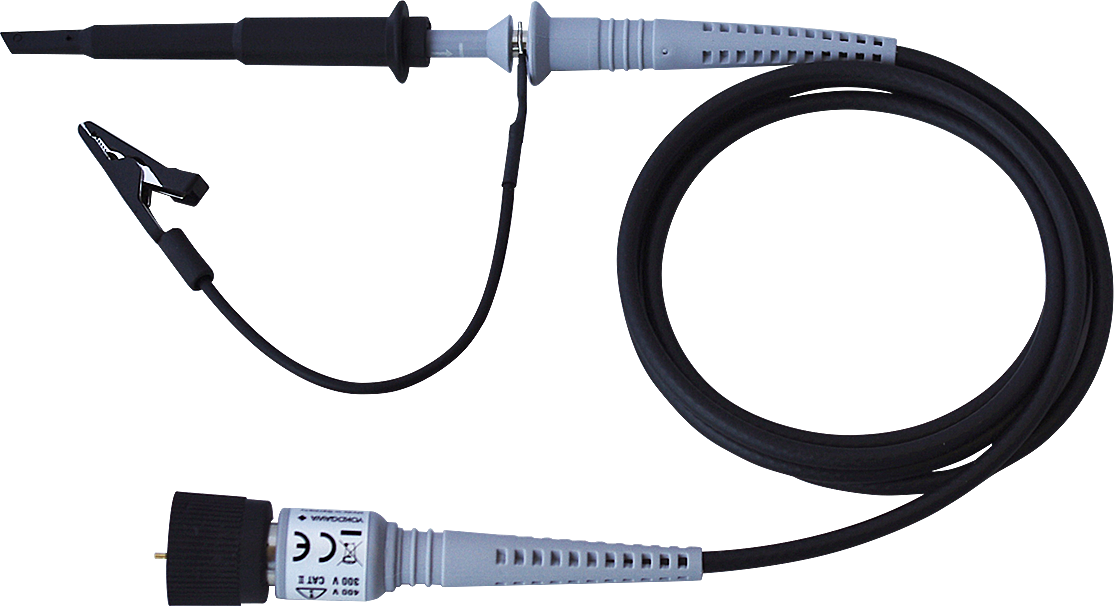

701949 Miniature Passive Probe 400V / 500 MHz

Bandwidth

:

DC to 500 MHz

Attenuation

:

10:1

Input Resistance

:

10 MΩ

Input Capacitance

:

9.5 pF

Max. Input Voltage

:

400 Vrms

Probe length

:

1.3 m

For use with DLM3000, DLM5000, DLM5000HD series

  • Bandwidth: DC to 500MHz (-3dB)
  • Attenuation Ratio: 10:1±2%
  • Input resistance: 10MΩ±1%
  • Input capacitance: 9.5pF(typical)
  • Compensation Range: 10pF to 25pF
  • Rise Time:700 ps(typical)
  • Max. input voltage: 400Vrms
  • Probe Length:1.3 meter(without the pincher tip)

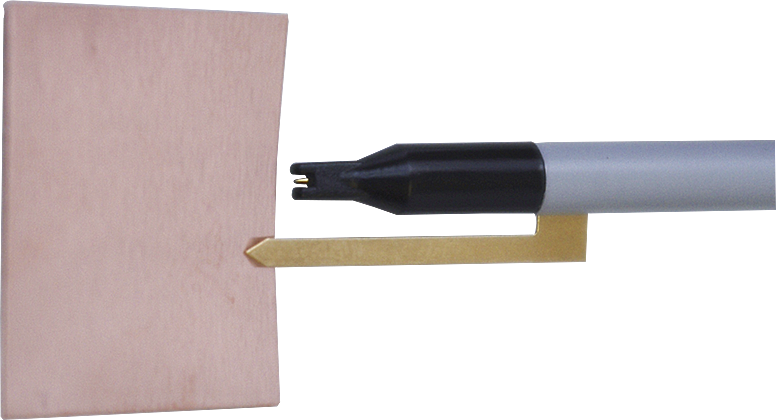

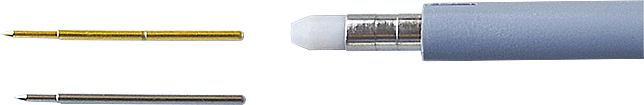

  • Standard accessories include: generous accessory kit included for IC and PCB measurements
