SMU Application Handbook
Combining a precision current and voltage source with a high resolution digital multimeter, source measure units are precision DC instruments that can operate in all four quadrants to allow it to be used as a generator and load. As such, they have seen use in many applications where they are operated as a battery, a stimulus for transistors, a power supply, and as a test device for verifying analog to digital converters. Download the source measure unit applicaiton handbook to learn about the endless capabilties of this device.
Related Products & Solutions

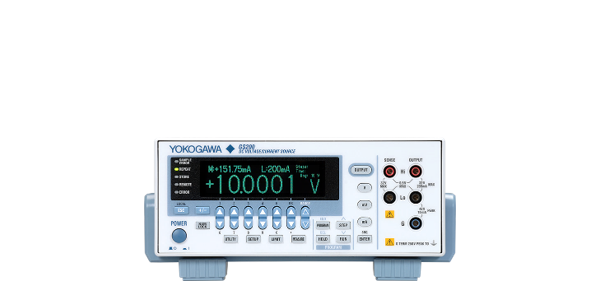

GS200 DC Voltage / Current Source
The GS200 DC Voltage/Current Source Pulse Generator from Yokogawa Test&Measurement is a low voltage/current DC source with high accuracy, high stability, and high resolution.
GS610 Source Measure Unit
The GS610 is made up of a programmable current and voltage source, a voltmeter, and an ammeter. Each function can be combined into numerous operation modes.
GS820 Multi Channel Source Measure Unit
- Yokogawa source measure unit GS820
- Precision SMU quick response for automated testing
- High-speed communication improves productivity
- Customizable to enable any test
Programmable DC Sources
Yokogawa's instruments go beyond conventional options. They are highly accurate, highly functional with programmable voltage/current source that incorporates voltage/current generation for a broader application.
Source Measure Units
A Source Measurement Unit (SMU) is a flexible test instrument which is capable of both sourcing and measuring voltage and/or current at the same time.
