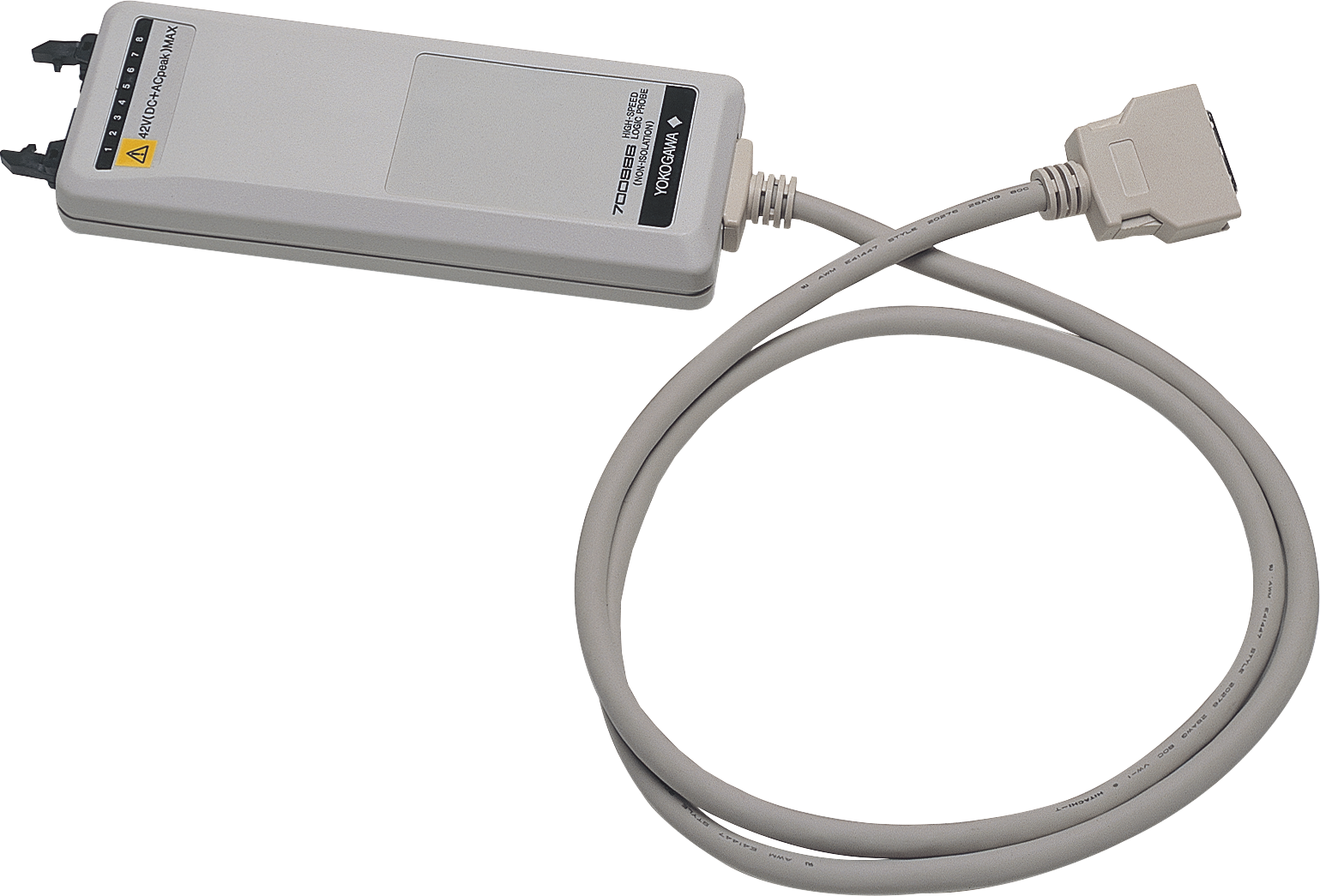

700986 Logic Probe
8-bit, non-isolated, response speed: 1µs, threshold level approx 1.4V
Two measurement leads (B9879PX and B9879KX) included.
| Number of inputs | 8 |
|---|---|
| Input Type | Non-isolated (earth of all bits is common, Main unit earth and earth of all bits are common) |
| Maximum input voltage (1 kHz or less) (across probe tip and earth) | 42 V (DC+ACpeak)(CAT I and CAT II, 30 Vrms) |
| Response Time | 1 µs or less |
| Input Impedance | Approx. 100 kΩ |
| Threshold Level | Approx. 1.4 V |
