The Precision DC Cailibrator Model 2553A is powered by Yokogawa's expertise in highly accurate and precise voltage and current generation technology, combined with high reliability and high stability.

An AC voltage and current standard is used as a trusted reference for the cost effective calibration of AC measuring instruments. The 2558A can be operated manually with intuitive front panel controls or programmatically via a remote computer interface.

The 2560A is a DC calibrator featuring a wider range of voltage and current outputs, while retaining the same best-in-class precision expected from Yokogawa benchtop standards.

Optical power meter and light sources in a small, light and easy to use field test set for measuring the transmission loss of optical fibers.

The AQ1200 Multi Field Tester Optical Time Domain Reflectometer is a compact and lightweight handheld OTDR optimized for the installation and maintenance of optical fiber cables. Designed with ease of use in mind to simplify field testing, improve work efficiency and ensure qualify results. Seven models are offered, each with unique wavelength(s) based on their specific application.

• Yokogawa AQ1210 series OTDR
• Fast and precise
• Optical time domain reflectometer delivers high reliability
• Harsh field conditions
• Multi-touch touchscreen, automatic measurement

• Handheld AQ1300 Series 1G/10G Ethernet Multi Field Tester
• Supports 10M to 1G/10G Ethernet
• Easy to Operate for Network Path Testing and Maintenance

"Hot-swapping" capability and remote monitoring and control are even easier with Ethernet support.

The multi application test system is available in two different frame controller platforms. Each model has a certain number of slots for connecting modules, so you can select the best platform size for your intended measurement applications.

"Hot-swapping" capability and remote monitoring and control are even easier with Ethernet support.

• AQ2212 Frame Controller
• Multi application test system
• Two frame controller platforms
• Select best platform size for intended measurement applications

This lineup includes 3-slot and 9-slot frames equipped with trigger synchronization and remote-control functions.

Speed, ease-of-use, increased efficiency of optical network testing is exactly what the AQ7260 provides to simplify your application processes.

Setting the new global OTDR standard, the AQ7270 offers leading edge technology with exceptional value. Multiple functions and one button testing further simplifies operations.

High performance OTDR module for RFTS (Remote Fiber Test System)

• High performance OTDR module
• For RFTS (Remote Fiber Test System)

• Yokogawa AQ7280 Optical Time Domain Reflectometer (OTDR)
• Fast and precise measurements with confidence
• Satisfies broad range of test and measurement needs
• Analyzing optical networks from access to core

The CA500 and CA550 are high-performance, multi-function calibrators designed for use in multiple applications. Featuring useful functions for field work, these multi-function calibrators help you calibrate field instruments with improved source and measurement accuracy.

The MT300 delivers high speed, high resolution, and synchronous measurements for high measurement accuracy and long term stability.

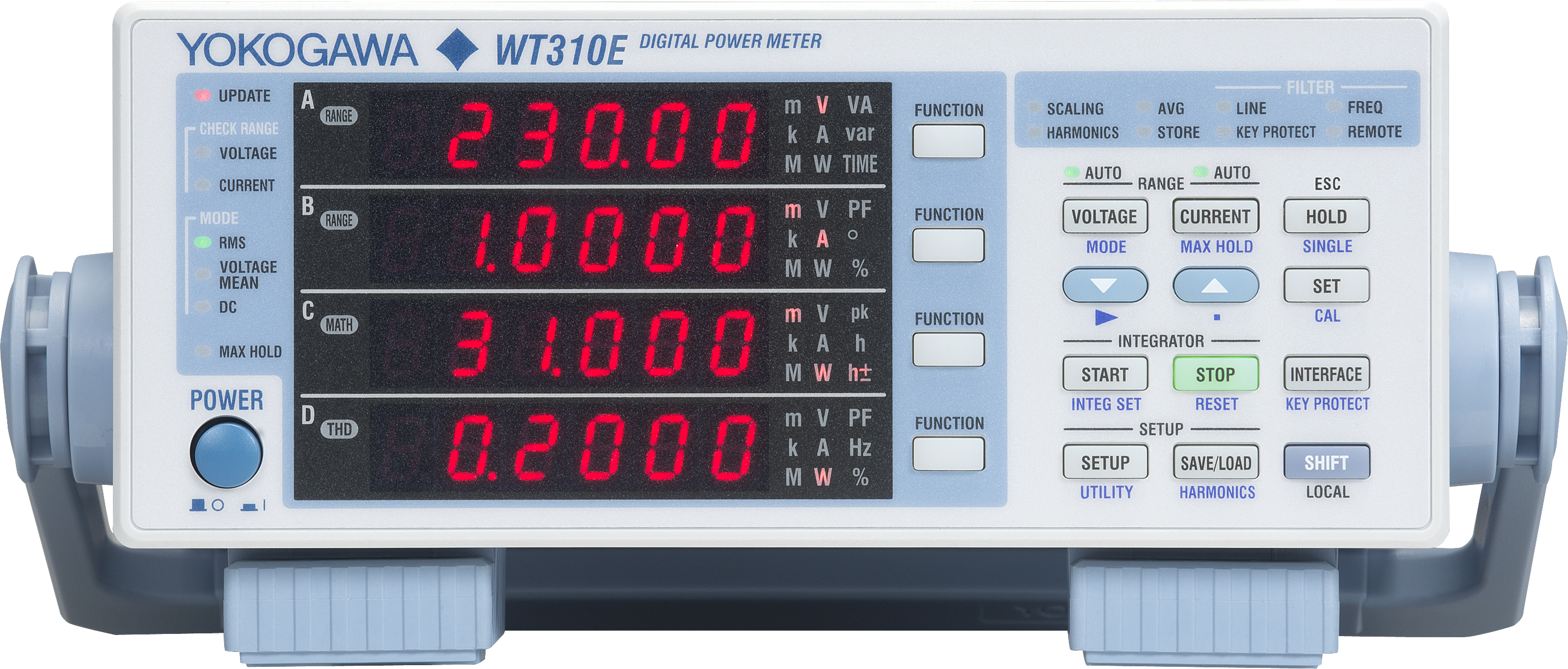

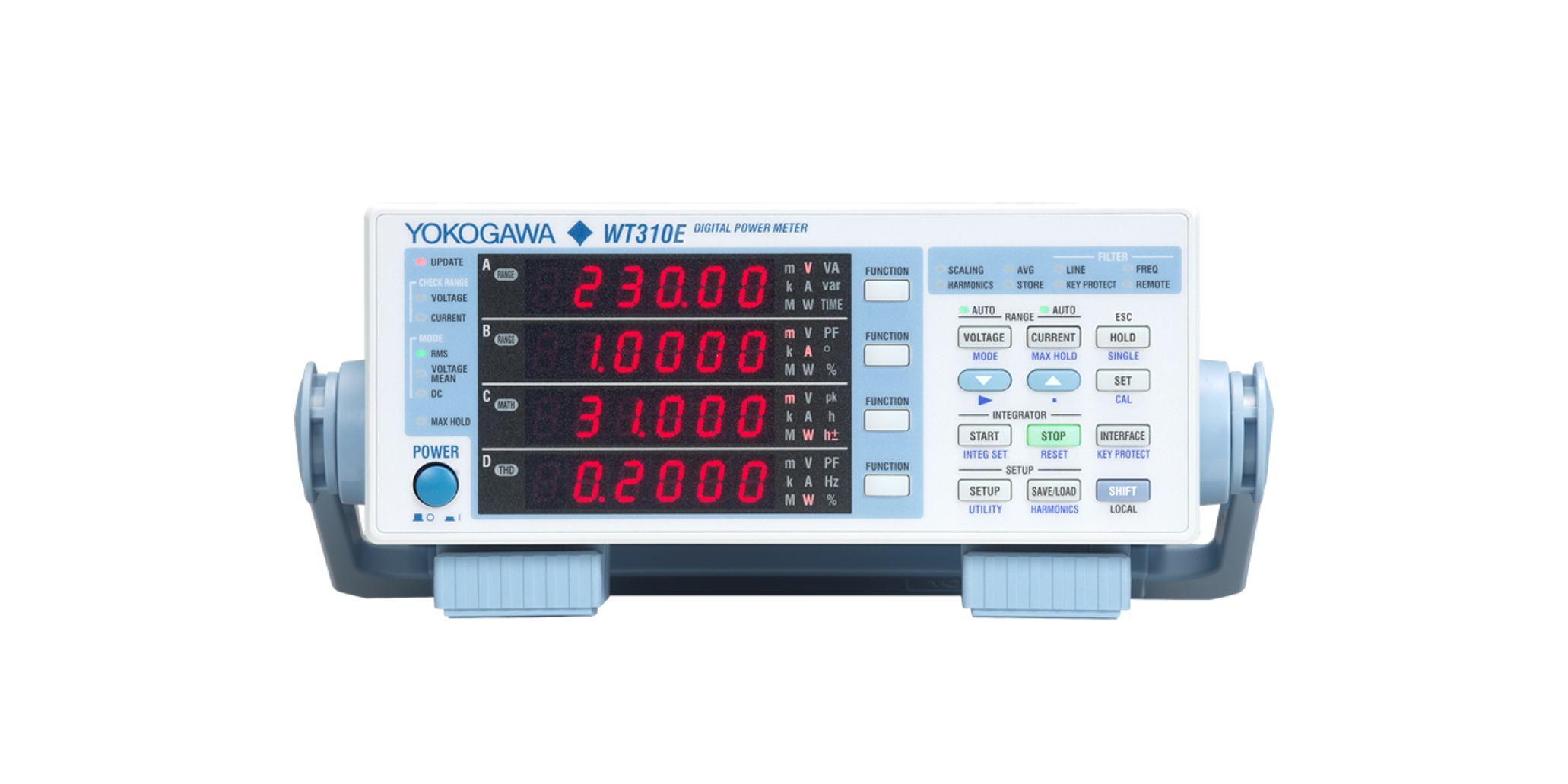

The WT300 offers high performance and high reliability in a compact package with excellent price value, making it ideal for multiple applications from R&D to manufacturing test. It is the fifth generation of Yokogawa's value series power meter, and the world's best selling power meter.

*

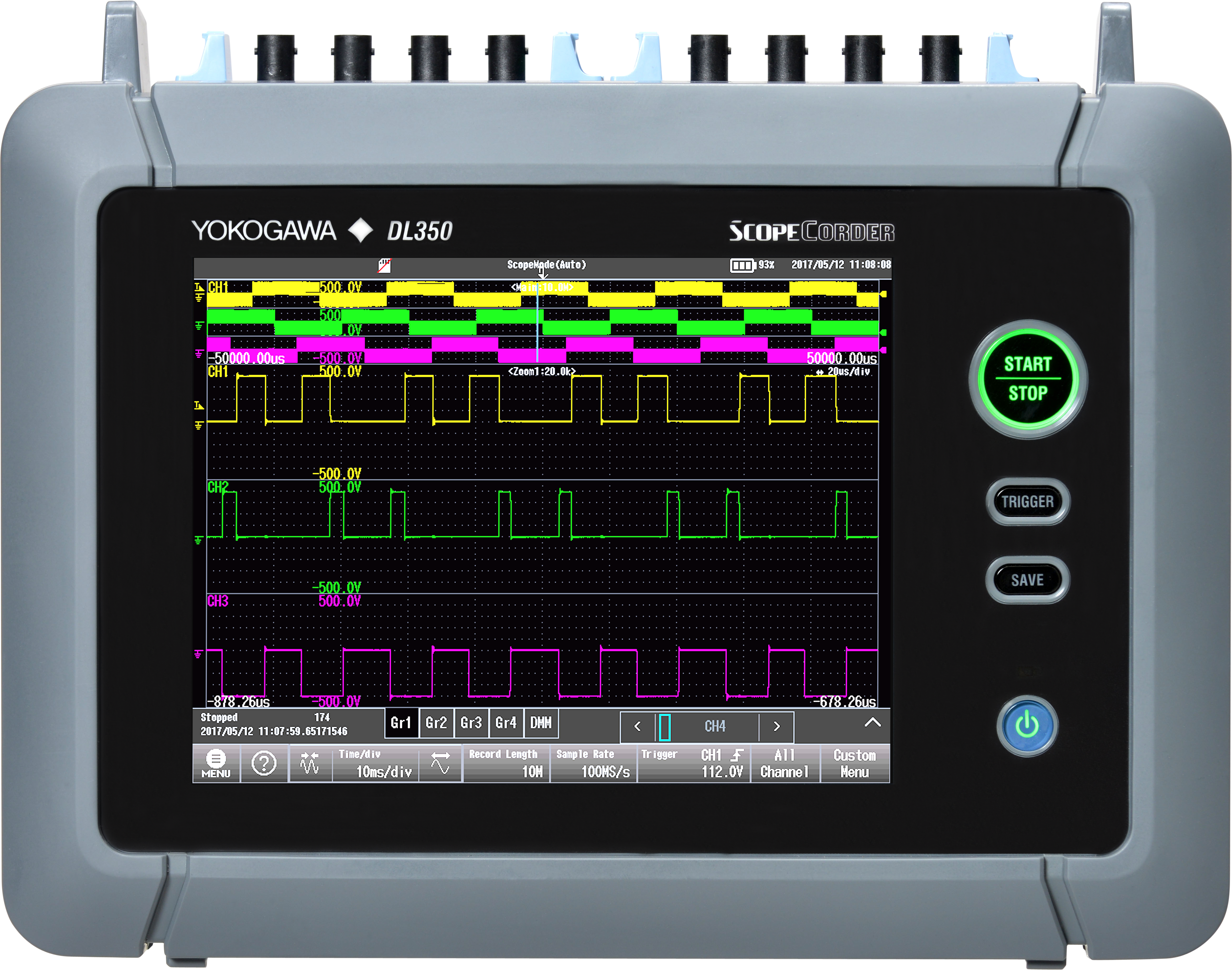

A compact, battery-powered, touch screen instrument you can take into the field featuring the deep measurement and recording capabilities you need in the lab.

8-channel 500 MHz oscilloscope with 16 logic inputs, for applications where four channels aren't enough.  Support for eight analog channels, 16 bits with 250MHz logic bandwidth, 16MP of recording memory, power analysis, serial bus analysis, and a broad selection of voltage and current probes.

The DL750 ScopeCorder: A new measurement tool combining the functions of an oscilloscope for capturing instantaneous phenomena and a data recorder for monitoring long-term trends.

Combining the capabilities of an Oscilloscope and the characteristics of a Data Acquisition Recorder, the Yokogawa Scopecorder is a versatile tool for engineers making measurements in the industrial, transportation and energy sectors.

An all-in-one electromechanical measurement system offering the deepest measurement and analysis features to turn data into insights.

500MHz, 1.0GHz, and 1.5GHz DSOs for debug and high performance applications. 10th
generation oscilloscope from Yokogawa with industry leading 2.5 million wfms/sec and lowest dead time. Winner of Test & Measurement World's "Best in Test" award.

500MHz, 1.0GHz, and 1.5GHz MSOs for debug and high performance applications. 4 channel models with 16 or 32 logic inputs.  10th generation oscilloscope from Yokogawa with industry leading 2.5 million wfms/sec and lowest dead time.

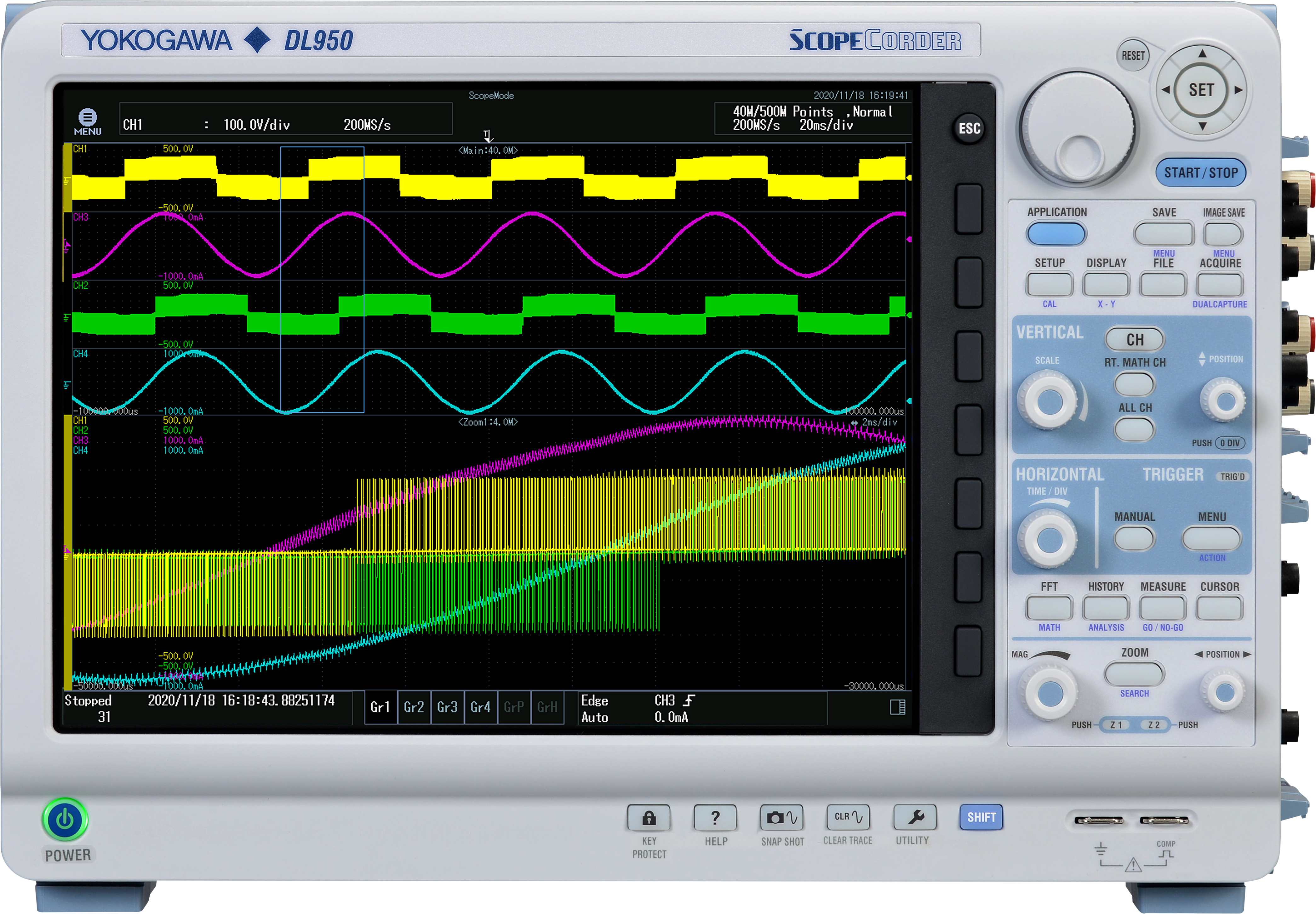

The Yokogawa DL950 ScopeCorder captures and analyzes a wide variety of electrical, physical sensor signals, and serial buses. It offers a unique combination of high sampling rates, for a detailed view and long recording times to monitor trends over time.

200, 350, and 500MHz mixed-signal oscilloscopes for every engineer. Best-in-class performance in usability, acquisition, analysis, and display—all at a price you can digest. Options include serial bus, vehicle bus, and power supply analysis functions.

The DLM3000 series is ideal for any test enviroment thanks to its small footprint.

• 2 or 4 analog channels
• 8-bit logic optionally switchable
• Bandwidth: 200, 350 or 500 MHz
• Sample Rate: up to 2.5 GS/s
• Vertical resolution: 8 bit
• High resolution mode: up to 12 bit
• Measurement memory: up to 500 MegaPoints
• History waveforms: up to 100,000 triggers
• 14 low-pass filters/channel for effective noise suppression
• Logic and Serial Bus Analysis

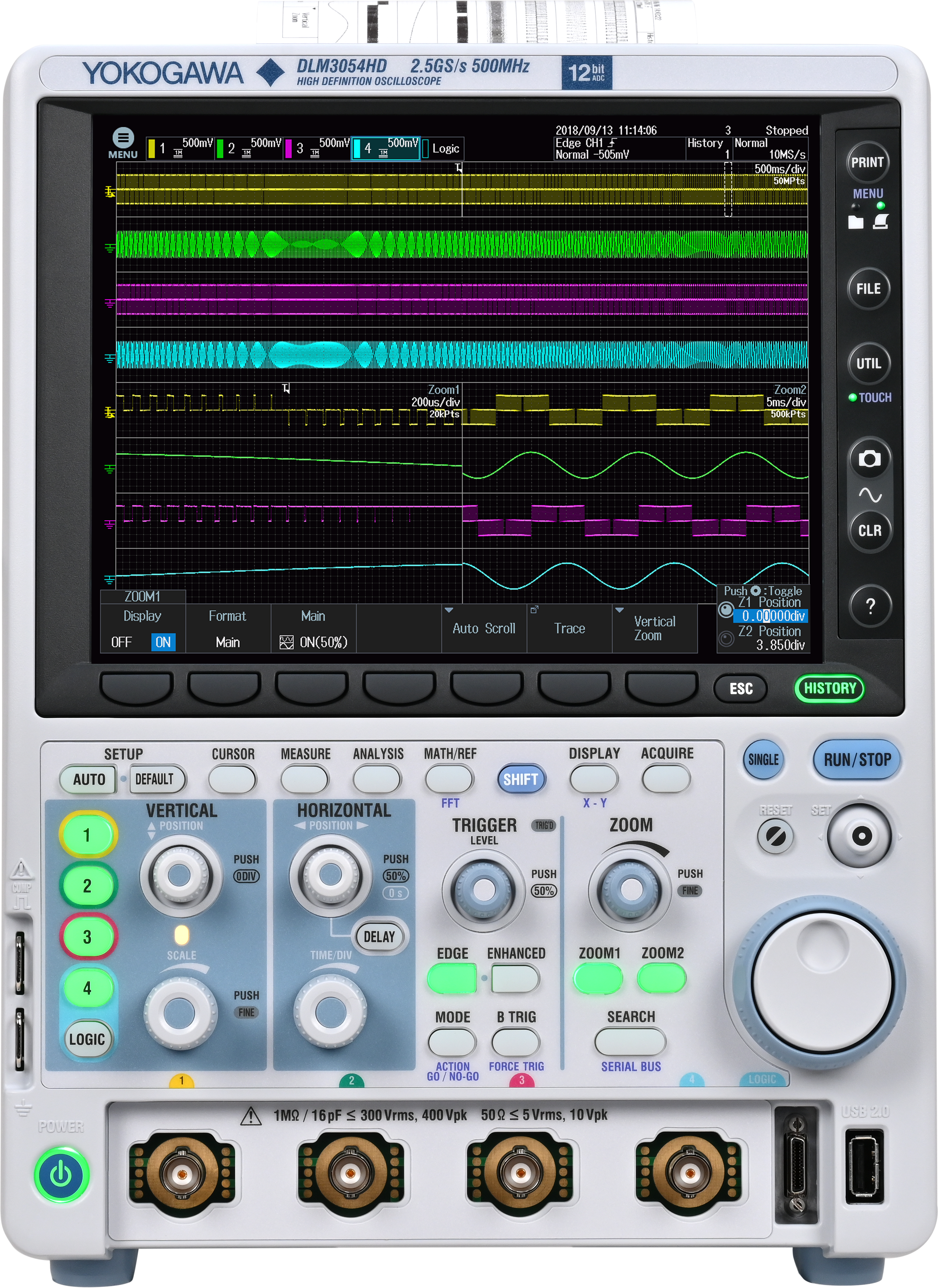

The DLM3000HD redefines high-definition in a compact design

• 4 analog channels
• 8-bit logic
• Bandwidth: 350 or 500 MHz
• Sample Rate: up to 2.5 GS/s
• Vertical resolution: 12-bit
• High resolution mode: up to 16-bit
• Measurement memory: up to 1 GigaPoints
• History waveforms: up to 200,000 triggers
• Synchronization function for up to 8 analog channels
• Logic and Serial Bus Analysis

8 channel mixed-signal oscilloscopes for every engineer in bandwidths of 350 MHz or 500 MHz. Best-in-class performance in usability, acquisition, analysis, and display.

The DLM5000 series offers versatile measurement options with up to 8 analog channels.

• 4 or 8 analog channels
• 16-bit logic + optional additional 16-bit logic
• Bandwidth: 350 or 500 MHz
• Sample Rate: up to 2.5 GS/s
• Vertical resolution: 8 bit
• High resolution mode: up to 12 bit
• Measurement memory: up to 500 MegaPoints
• History waveforms: up to 100,000 triggers
• Synchronization function for up to 16 analog channels
• Logic and Serial Bus Analysis

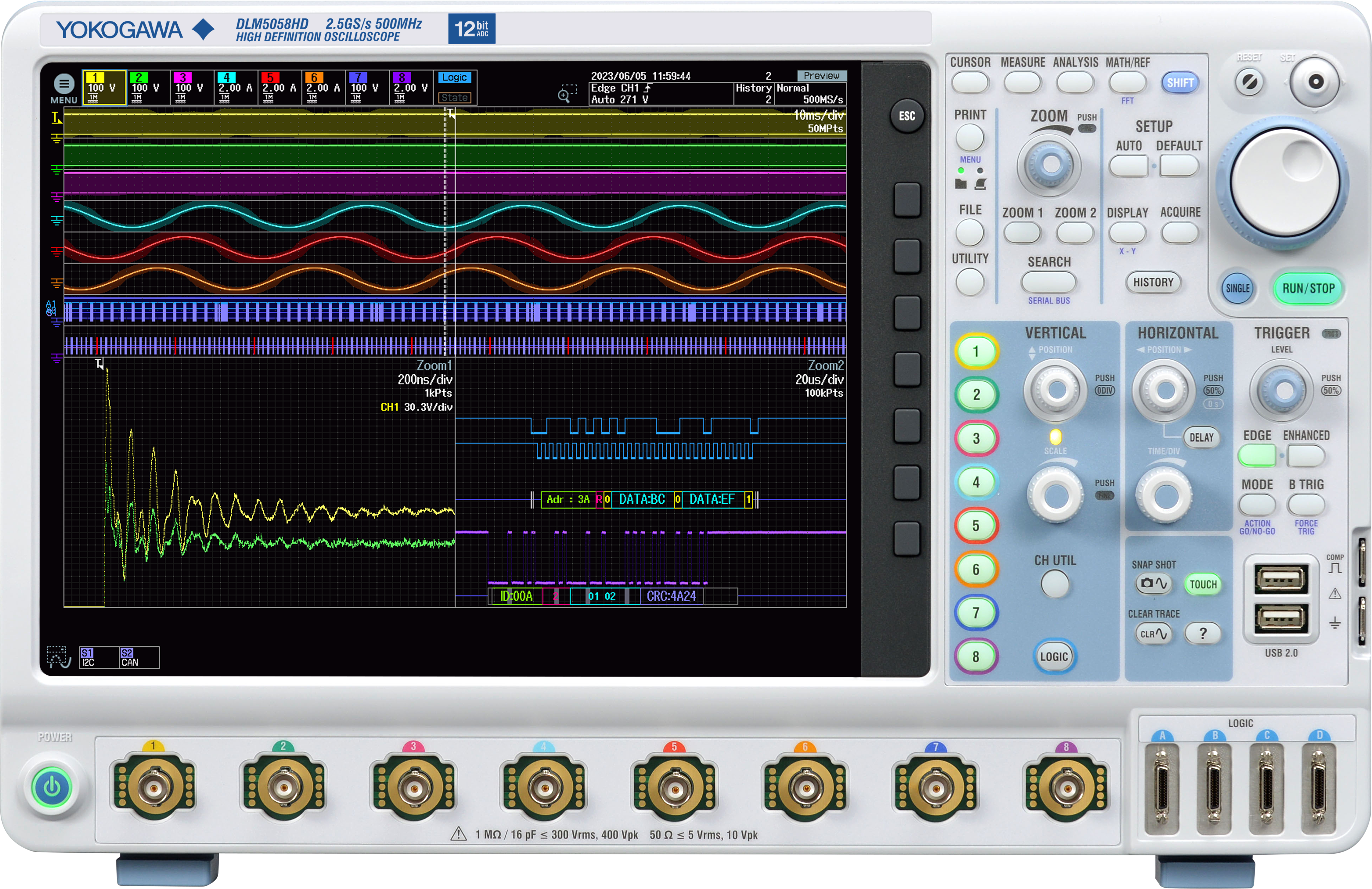

The DLM5000HD series sets a new standard for high-definition oscilloscopes.

• 4 or 8 analog channels
• 16-bit logic + optional additional 16-bit logic
• Bandwidth: 350 or 500 MHz
• Sample Rate: up to 2.5 GS/s
• Vertical resolution: 12 bit
• High resolution mode: up to 16 bit
• Measurement memory: up to 1 GigaPoints
• History waveforms: up to 200,000 triggers
• Synchronization function for up to 16 analog channels
• Logic and Serial Bus Analysis

500MHz, 1.0GHz, and 1.5GHz DSO and MSO models for debug, waveform characterization, bench top, or automated test applications. 4 channel models with 16 or 32 logic inputs. 12th generation oscilloscope with ergonomic physical and on-screen improvements.

The DM7560 is a flexible 6.5-digit digital multimeter with high-accuracy, high-speed data logging (up to 30k S/s) with deep 100k reading memory and built-in statistical analysis.

The FG400 Isolated Arbitrary/Function Generators provides precision output for test stimulus in power electronics applications. It generate standard and custom waveforms.

The GS200 DC Voltage/Current Source Pulse Generator from Yokogawa Test&Measurement is a low voltage/current DC source with high accuracy, high stability, and high resolution.

The GS610 is made up of a programmable current and voltage source, a voltmeter, and an ammeter. Each function can be combined into numerous operation modes.

• Yokogawa source measure unit GS820
• Precision SMU quick response for automated testing
• High-speed communication improves productivity
• Customizable to enable any test

• IS8000 test and measurement software that integrates data
• Fast data for efficient product development
• Synchronized measurements
• Add-on software packages

The LS3300, Yokogawa’s first high precision AC Power Standard.  New features include a high quality LCD Display, a vector diagram, the ability to emulate the most commonly encountered wiring schemes, and independent voltage and current sources.

The MY600 Digital Insulation Tester has enhanced operation compared to the conventional model, by using a shortened measurement time and color indicating judging function. This is a new concept in insulation testing and includes enhanced communication to a PC or tablet.

The AQ7275 is one of the best selling OTDRs in the world. Model lineup has been expanded to a total of 9 models to choose from with a dynamic range of up to 45dB . Wavelength capability spans from 850nm (MMF) to 1650nm (SMF). An impressive 0.8m event dead zone makes this model an excellent choice for FTTH and metro, core networks.

Our 8 or 16 channel portable data logger accepts DCV, T/C, and RTD inputs and allows you to view on a colorful LCD display. With internal memory and output functions of RS232 or Modbus, the Portable Data Logger can make monitoring data simple and efficient.

With 0.02% accuracy and 1MHz bandwidth, the WT3000 delivers where the highest precision measurements are required. It is the industry standard for R&D work on inverters, motor drives, lighting systems and electronic ballasts, UPS systems, aircraft power, transformer testing, and other power conversion devices.

The CA700 is a highly accurate and highly functional pressure calibrator specifically designed for the calibration of differential pressure and pressure transmitters, which are widely used in plant processes these days and are improving in terms of accuracy and functionality.

• Transient/Start-up Waveform Capture & Power Analysis
• Harmonics, Cycle by cycle and FFT analysis

1.0GHz MSOs optimized for parallel and serial bus design and debug. Supports CAN bus, LIN, FlexRay, I2C, SPI, UART, and user-defined busses.  Display, decode, analyze, search, and trigger on popular serial bus attributes.

An easy-to-use plug-in module-type chart recorder that can be used widely in maintaining plants and factories.

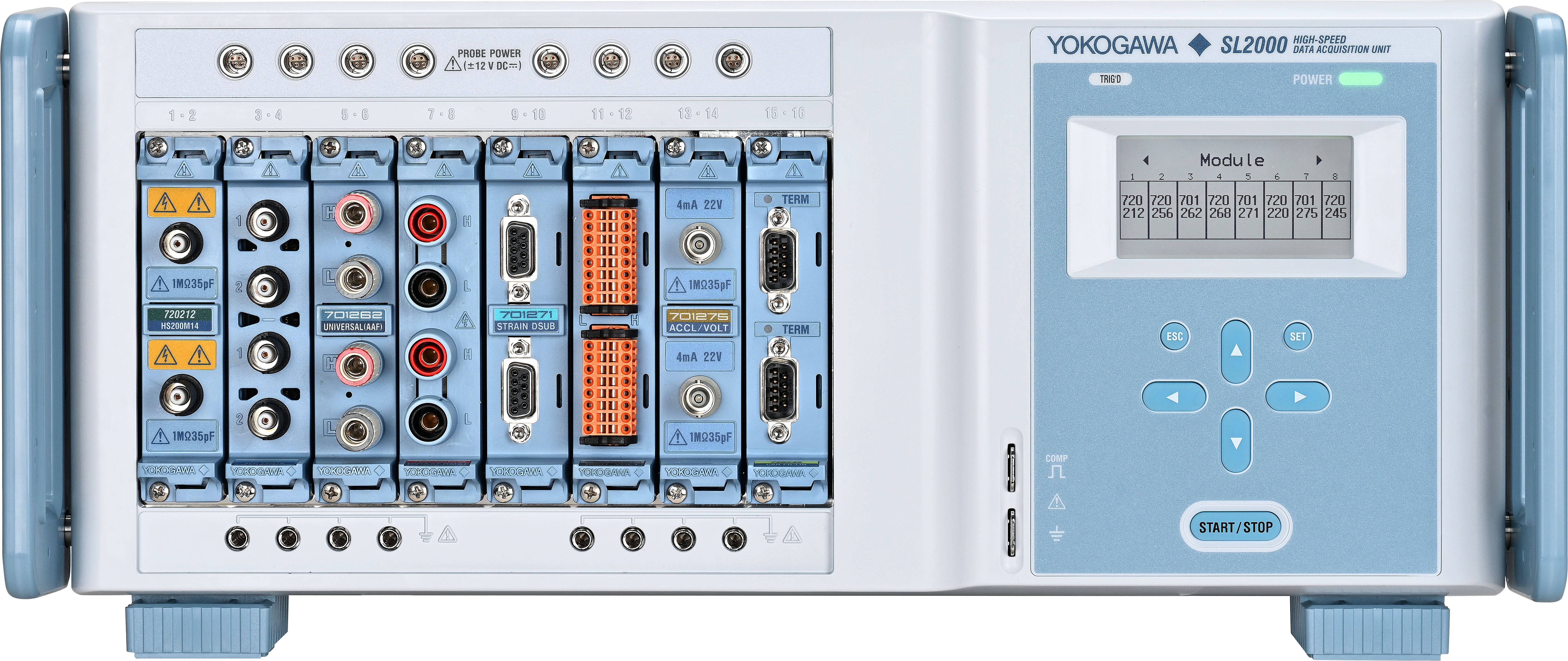

A headless ScopeCorder system capable of connecting multiple chassis into one PC-based system.

The WT1800 Power Analyzer offers maximum flexibility with up to six wattmeter elements, high bandwidths, simultaneous high speed digitizing, and wide voltage and current ranges. Although this model is still available, the newer WT1800E offers higher accuracy.

• Power, Harmonics (THD) Measurements (up to 500th order)
• Electrical & Mechanical Efficiency of Inverters and Motors in EV and HEV

• High Accuracy Electrical & Mechanical Efficiency of Inverters and Motors in EV and HEV
• IEC Harmonics (IEC61000-3-2 & IEC61000-3-12); Voltage Fluctuations and Flicker (IEC61000-3-3 & IEC61000-3-11)

• Standby Power Measurements, Energy Star®, SPEC Power® and IEC62301/EN50564
• Evaluation and Testing of Batteries, Home Appliances and Uninterruptible Power Supplies (UPS)

• Power and Harmonic (THD) Measurements with Independent Range Controls
• Efficiency measurements of AC/DC or DC/AC Inverters & Motors

• Yokogawa WT5000 precision power analyzer with superior accuracy
• 7 swappable input elements
• 4 motor inputs
• Harmonics test compliant to IEC 61000-3-2

• Xviewer (701992) / XviewerLITE app
• Oscilloscope app for Windows
• File transfer and remote control between DL(M) instruments and PC

• XWirepuller Oscilloscope Software
• Free software
• Display front panel of DLM/DL/SL/WT series on PC screen
• Mouse/keyboard control
• Monitor waveform signals
