720212 High-Speed Isolation Module

Key Advantages

• High-Speed Data Capture with Fine Detail: Sample at 200 million points per second to capture switching events, transients, and noise dynamics with exceptional clarity and 14-bit precision.

• Optically Isolated Channels: Each input channel is optically isolated, providing robust protection against ground loops and common-mode interference while maintaining accurate differential measurements even in high-voltage systems.

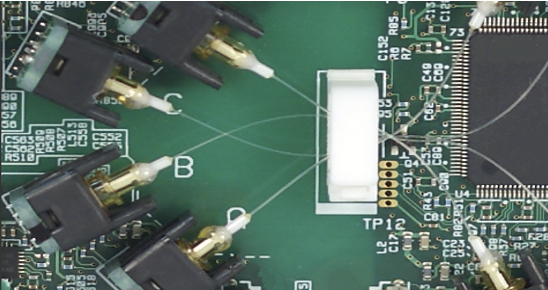

  Using high-speed optical fiber-based transmission, IsoPRO technology enables 1kV isolated measurements*. The module achieves high-speed ADC clock and data isolation.

• Exceptional Signal Integrity: The combination of high sampling rate, wide dynamic range, and low noise floor ensures that every captured waveform reflects true system behavior—critical for high-speed power and control analysis.

• Seamless System Integration: Fully compatible with Yokogawa’s ScopeCorder and high-speed DAQ platforms, the 720212 extends system capability without adding setup complexity.

• Engineered for Modern Power and Energy Applications: Purpose-built for environments such as inverter testing, EV drivetrain development, and renewable-energy conversion systems, where precision and safety are equally essential. The 720212 provides the performance needed to observe high-efficiency inverters, which employ high voltages, large currents, and ever increasing switching speed.

*in combination with the 700929, 702902, or 701947 probes
