Why Doesn't WTViewer Communicate with my WT Series Power Meter via GPIB?

There are several items you will need to check and verify to solve this issue.
  1. Verify the GP-IB connection
    Some instruments have a D/A output connector located next to the GP-IB connector. There have been some instances where users have connected the GP-IB cable to the D/A connector. Make sure you connect the GP-IB cable to the GP-IB connector.
  2. Set the instrument to GP-IB communication mode
    For the PZ4000, WT1600, WT1800, WT3000 or WT500 instrument, set the instrument to GP-IB mode through the Remote Control menu. For the WT210/230, set the instrument to 488.2 mode using the SHIFT
    » OUTPUT menu.
    Note: You can specify the GP-IB address on the instrument, but you will have to restart the instrument for the changes to take place.
  3. Verify the GP-IB Controller Address on the PC is "0"
    If you have more than one GP-IB controller on your PC, please make sure you connect the WT power meter to the controller with the address GPIB0. The WTViewer will not communicate with any other controller address. The instrument may have any number address but the controller address must be GPIB0. You will also need to match the GP-IB address on the instrument with the GP-IB address in WTViewer.
  4. Verify that communication is compatible with controller program/software
    Send the "*IDN?" command to the controller program/software to see if the instrument returns the correct instrument ID. If this is successful, the controller program/software will be able to communicate with WTViewer.
  5. Verify the GP-IB address on WTViewer matches the instrument
    Once you have launched WTViewer and selected on-line mode, select GP-IB and specify the correct instrument address.

If the problem still persists, please contact your nearest Yokogawa Technical Customer Support Center.

Related Products & Solutions

Precision Power Analyzer WT3000

With 0.02% accuracy and 1MHz bandwidth, the WT3000 delivers where the highest precision measurements are required. It is the industry standard for R&D work on inverters, motor drives, lighting systems and electronic ballasts, UPS systems, aircraft power, transformer testing, and other power conversion devices.

PZ4000 Power Analyzer

The PZ4000 is designed for High Frequency Power Measurements as well as Transient Power Measurements. Its real-time acquisition system can perform cycle-by-cycle power measurements. One to Four input elements offer Basic Power Accuracy of 0.2% with 2 MHz Bandwidth and 5MS/sec digitizing rates.

WT1600 Digital Power Meter

The High-end WT1600 is designed for a wide range of applications, from energy-saving to large load applications. The WT1600 has a six element input capability to provide maximum flexibility, and Basic Power Accuracy of 0.1% with 1 MHz Bandwidth.

WT1800 High Performance Power Analyzer

The WT1800 Power Analyzer offers maximum flexibility with up to six wattmeter elements, high bandwidths, simultaneous high speed digitizing, and wide voltage and current ranges. Although this model is still available, the newer WT1800E offers higher accuracy.

WT500 - Mid Range

  • Power and Harmonic (THD) Measurements with Independent Range Controls
  • Efficiency measurements of AC/DC or DC/AC Inverters & Motors


Power Analyzers and Power Meters

Yokogawa, the world's largest manufacturer of energy and power analyzers and meters, provides a broad choice of digital power analyzers to satisfy all requirements.

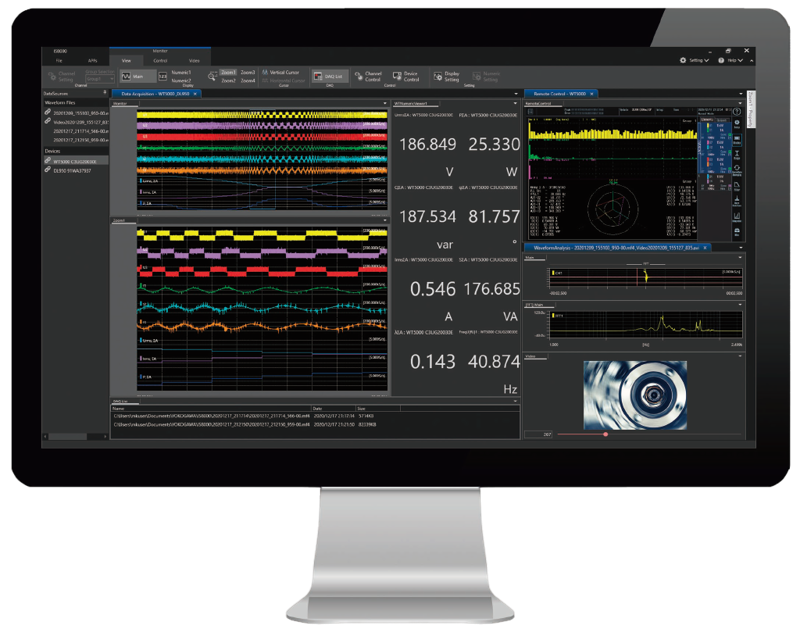

Power Measurement Application Software
