Sondas

• 701977 Differential Probe for Oscilloscope 7000 V / 50 MHz
• 50 MHz, 1000:1 / 100:1, Max.
• Differential Voltage: 5000 Vrms and 7000 Vpeak or less

• 701978 Differential Probe for Oscilloscope
• 1500 V / 150 MHz
• 500:1 / 50:1
• Max. Differential Voltage：±1500 V (DC + ACpeak)

• 701927 Isolated Differential Probe
• 150 MHz
• Max. Differential Voltage: ±1400 V (DC + ACpeak) at 500:1
• Probe Power: dedicated probe interface For DLM, DL, and SB5000 series

500 MHz, 50：1, Max. Differential Voltage：±25 V（DC+ACpeak）
Probe Power：Dedicated probe interface

• 701924 Differential Probe
• 1 GHz, 50:1, Max. Differential Voltage: ±25 V (DC + ACpeak), Probe Power: dedicated probe interface

200 MHz, 10:1, ±1000 V (DC + ACpeak) CAT II, 2.5 m,Wide operating temperature range (−40 to +85°C)
For DLM2000, DLM4000 series.

500 MHz, 10:1, 600 V (DC + ACpeak) CAT II, 1.3 m Supplied standard with DLM3000, DLM5000, DLM5000HD series

• 701938 Passive Probe
• 200 MHz, 10:1, 600 V (DC + ACpeak) CAT II, 1.5 m
• For DLM2000 (200 MHz model)

• 701939 Passive Probe 600V / 500 MHz - Current Probe
• 500 MHz, 10:1, 600 V (DC + ACpeak) CAT II, 1.3 m
• For DLM2000, DLM4000, DL6000, DLM6000 series

• 701940 Passive Probe
• 10 MHz, 10:1/1:1, 600 V (DC + ACpeak) CAT II, 1.5 m
• For ScopeCorder Non-Isolated Modules

500 MHz, 10:1, 400 Vrms/1250 Vpeak CAT O　300 Vrms CAT II, 1.2 m
For DLM2000, DLM4000, DL6000, DLM6000 series

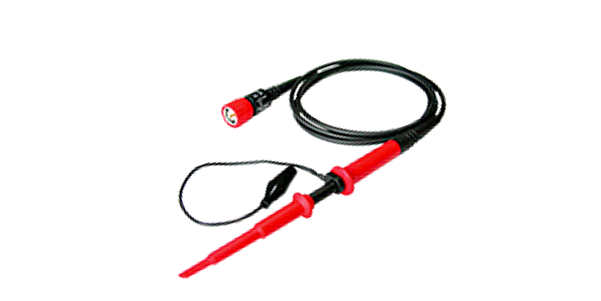

• 701944 High Voltage Passive Probe 1000Vrms / 400 MHz
• For DL1700, DLM2000-6000, DL6000, DL9000, SB5000 series

• 3m High Voltage Probe (oscilloscope)
• DC to 250 MHz bandwidth
• 100:1 attenuation
• Max Input 1000 Vrms CAT II 4000 V transient over-voltage CAT O

• Versatile 700929 passive oscilloscope probe
• 100MHz frequency bandwidth
• Isolated input module of ScopeCorder series
• For use with isolated BNC inputs

Passive Probe, 1000V(DC+ACpeak)　CAT II, 60MHz, 10:1, 10MΩ, 2.5m
Wide operating temperature range(-40 to 85°C)
For isolated BNC input modules for ScopeCoder series

• 1.5m Isolated Probe (ScopeCorder)
• DC to 200 MHz bandwidth
• 100:1 attenuation Isolated
• BNC connector type
• For ScopeCorder Isolated Modules

• 701974 Low Capacitance Probe
• 5 GHz, 20:1 / 10:1, 20 Vrms / 40 VACpeak, 1.1 m, For DLM series
• Low input capacitance
• Low input resistance

• 700939 Active FET Probe
• 900 MHz Active FET Probe Circuit
• 10:1, ±10 V (DC + ACpeak) FET Input Active Probe
• 1.5 m

400 MHz, 10:1/1:1, 600 V (DC + ACpeak) or 424 Vrms CAT II, 1.5 m
For DL9000, DL9700/DL9500, SB5000 series

1 set 4 pcs Red Black White Blue Ø 4 mm Approx. 3 m

• 701917 oscilloscope current probe
• Frequency bandwidth: DC to 50 MHz
• Maximum continuous input range: 5 Arms
• Functions with Digital Oscilloscopes, ScopeCorders, other waveform measuring instruments

• Yokogawa 701918 Current Probe
• Frequency bandwidth: DC to 120 MHz
• Maximum continuous input range: 5 Arms
• Functions with Digital Oscilloscopes, ScopeCorders, other waveform measuring instruments

• 701928 scope current probe
• Front-end powered
• Recognized automatically
• Adjust zero position from operation of DLM2000, DLM3000, DLM4000, DL6000/DLM6000, DL9000/DLM9000. SB5000

• 701929 Current Probe 50 MHz / 30 ARMS
• Front-end powered
• Auto-recognized
• DLM2000-4000, DL/DLM6000, DL/DLM9000, SB5000

• 701930 Current Probe 10 MHz / 150 ARMS
• Powered by Yokogawa Digital Oscilloscopes, Scopecorders or external power supply

• 701931 Current Probe 2 MHz / 500 ARMS
• Powered by Yokogawa Digital Oscilloscopes, Scopecorders or external power supply

• 701932 Current Probe 100 MHz / 30 ARMS
• Powered by Yokogawa Digital Oscilloscopes, Scopecorders, or external power supply

• 701933 50 by 30 current probe
• Powered by Yokogawa Digital Oscilloscopes, Scopecorders or external power supply

The 720930 and 720931 passive clamp-on current probes allow current waveform readings directly via analog input modules on ScopeCorders including the DL350 and DL850 using isolated BNC connections.

• AC 50 A
• 40 Hz to 3.5 kHz Bandwidth

The 720931 passive clamp-on current probe anables current waveform readings directly via analog input modules on ScopeCorders including the DL350 and DL850 using isolated BNC connections.

• AC 200 A
• 40 Hz to 3.5 kHz Bandwidth

Special AC-Input Clamp-on Probes for Large-current Hot Line Measurement

• 96030 Clamp-on Current Probe
• AC 200 A: output AC 2.5 mV/A

• 96031 Current Clamp for Multimeter
• AC 500 A: output AC 1.0 mV/A

• 96033 Clamp-on Current Probe
• AC 50 A: output AC 10 mV/A

φ40 mm AC 2 A, Leakage current measurement.

• 96061 Clamp-on probe
• φ18 mm AC 50 A, Load current measurement

• 96062 Clamp-on Probe
• Load current measurement
• φ24 mm AC 100 A

φ30 mm AC 200 A, Load current measurement.

φ40 mm AC 500 A, Load current measurement.

• 96065 Current clamp-on probe
• max. approx. 110 mm
• AC 1000 A flexible type load current measurement

• 96066 Clamp-on probe
• max. approx. 150 mm
• AC 3000 A, 3 CH Load current measurement

AC/DC clamp probe
AC: 130 A (40 Hz to 1 kHz)
DC: ±180 A

701988 (PBL100) Logic Probe

100 kΩ input resistance, toggle frequency of 250 MHz

8-bit, non-isolated, response speed: 3µs or less, treshold level approx 1.4V
702911: 1 meter cable, 702912: 3 meter cable

8-bit, non-isolated, response speed: 1µs, threshold level approx 1.4V
Two measurement leads (B9879PX and B9879KX) included.

• 700987 Logic Probe - Isolated Inputs
• 8-bit, isolated, response speed: 1ms or less (DC), 20ms or less (AC), threshold level 6VDC, or 50VAC.
• 758917 and 758922, 758929, 701954

90029B　-40 to 260°C　(Bead TC)

90020B -50 to 600°C (rounded end)
90021B -50 to 600°C (rounded end)
90022B -50 to 600°C (rounded end)
90023B -50 to 500°C (needle)
90024B -50 to 500°C (needle)
90029B -40 to 260°C (Bead TC)

90030B　 -20 to 250°C 　(Surface straight)
90031B　 -20 to 250°C 　(Surface angled)
90032B　 -20 to 500°C 　(Surface straight)
90033B　 -20 to 500°C 　(Surface angled)

90050B -50 to 600 ° C (For liquids)
90051B -50 to 600 ° C (For liquids)
90055B -20 to 250 ° C (For surfaces)
90056B -20 to 500 ° C (For surfaces)

Length: 1.4 m, MY600 only

Length: 2.0 m, Earth probe and alligator clip adapters

Size: 61.9 × 26 mm

Length: 115.4 mm

Logic probe accessory kit for use with 701989.

• 701919 oscilloscope probe stand
• Flexible arm, heavy base to hold and stabilize 8-13mm probes
• Can simplify circuit board testing

• 701934 External Probe Power Supply
• Power supply for current probes, FET probes, and differential probes
• Supplies power for up to four probes, including large current probes

200 MHz, 10:1, ±1000V (DC + ACpeak) CAT II, 2.5 m
Operating environment: −40 to +85°C (no condensation)
For DLM3000, DLM5000, DLM5000HD series.

500 MHz, 10:1, 400 Vrms, 1.3 m
For DLM3000, DLM5000, DLM5000HD series

• 702915 Current Probe
• Freq bandwidth: DC to 50 MHz
• Maxi continuous input range: 0.5 Arms/ 5 Arms/ 30 Arms
• Digital Oscilloscopes, ScopeCorders, other waveform measuring instruments

Frequency bandwidth: DC to 120 MHz
Maximum continuous input range: 0.5 Arms/5 Arms/30 Arms
Functions with Digital Oscilloscopes, ScopeCorders and other waveform measuring instruments

Measure high currents without disassembling existing cabling. Compatible with power analyzers and waveform measurement instruments.

• Wide-bandwidth high-voltage differential probe
• 400 MHz bandwidth
• Max. differential voltage: ±1000V (DC + ACpeak) at 500:1
• Probe power: Dedicated probe interface for DLM3000, DLM3000HD, DLM5000, DLM5000HD

• Wide-bandwidth high-voltage differential probe
• 400 MHz bandwidth
• Max. differential voltage: ±2000V (DC + ACpeak) at 1000:1
• Probe power: Dedicated probe interface for DLM3000, DLM3000HD, DLM5000, DLM5000HD
