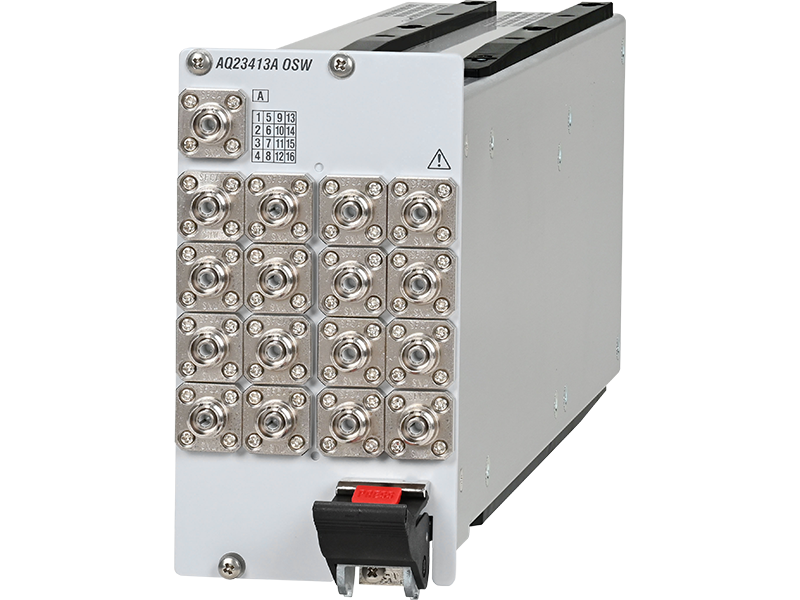

AQ23413A Optical Switch (1×16)
High-Density Sixteen-Port Optical Switching for Multiport Test Systems
The AQ23413A is a 1 × 16 optical switch module for the AQ2300 Series Test Platform. It enables a common optical path to be routed to one of 16 ports, supporting automated measurement of devices with a large number of optical channels.
The module is suitable for multiport optical component testing, production inspection, and measurement systems where high port density and repeatable optical path selection are required.
Key Specifications
- Compact: Optical switches with 1 x 16 port configuration in a two-slot size module
- Low insertion loss: 1.0 dB (typ.)
- High switching reproducibility: within ±0.01 dB
- Wavelength range: 1260 to 1650 nm
- Applicable fiber: SMF
- Connector: FC/PC, SC/PC
AQ2300 Series Test Platform
- Easy-to-use touch panel
- 3 and 9-slot frame controllers
- Hot-swappable reconfiguration
- Synchronized trigger I/O by frame or module
- USB, Ethernet, GPIB (optional)
