Oscilloscopes
Oscilloscopes, also called Digital Storage Oscilloscopes (DSOs) or Mixed Signal Oscilloscopes (MSOs), are a common type of test instrument used to capture, analyze, and troubleshoot electrical or real world physical signals. Oscilloscopes observe the change of electrical signals over time, continuously graphed on a display as voltage or amplitude vs. time. During observation, oscilloscopes can analyze waveforms parametrically (i.e. frequency, RMS, peak-to-peak amplitude, rise time, etc.) Non-electrical signals, especially mechatronic signals such as vibration, strain, temperature, or current can be converted to voltages and displayed.
Yokogawa oscilloscopes deliver a range of bandwidths, the world's only eight channel and sixteen channel (plus logic) oscilloscopes, unparalleled suites of triggers and signal analysis, and a unique ability to save multiple triggered-events to "History" memory.
-
A mixed signal oscilloscope is an instrument enabling the simultaneous, time correlated observations and analysis of analog with digital (logic) signals, to establish causal relationships between the various areas of a device's electronics. They are purpose-built tools for troubleshooting electrical anomalies, measuring parametric values, and monitoring cause and effect relationships between signals.
-
A ScopeCorder is an instrument combining a mixed signal oscilloscope and portable data acquisition recorder into a modular platform designed to capture both high-speed transients and low-speed trends. Yokogawa’s ScopeCorder product family provides flexible and high-performance multi-channel test instruments by combining a variety of signal conditioning input modules, onboard calculations, and deep data acquisition storage into an off-the-shelf data acquisition solution.
-
An oscilloscope is only as good as its probes. Our range includes high voltage, differential, active, low capacitance, and passive types, with ranges to 30kV and frequency bandwidths to 5 GHz.
-
Current probes allow you to measure DC or AC current. Yokogawa's selection of current probes allow measurements ranges up to 500 ARMS and bandwidths up to 100MHz.
-
Oscilloscopes accessories include probe stands, cables, cases, various adaptors and more.
-

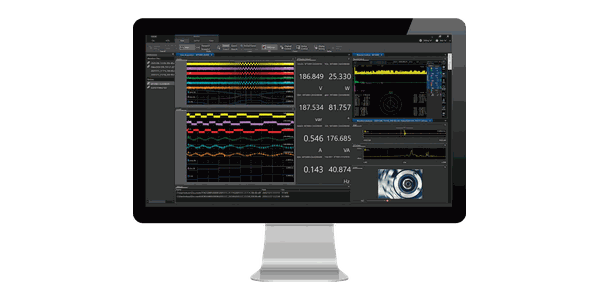

View, export, analyze, and manage your data using Yokogawa's oscilloscope application software.
-
Logic probes allow you to capture signals using the logic portion of a mixed signal instrument. Yokogawa offers low and high voltage, isolated and non-isolated logic probes.
Overview:
Construction and verification of SENT communication system
Industries:
Overview:
From digital home electronics to automobiles, a boom has recently occurred in various industries that use embedded systems in which functionality is achieved through processors and software. Even if the I/O to and from a system is an analog signal such as a sensor or voice transducer, the processor handles the A/D-converted digital signal. In order to debug these types of systems, we are now seeing an increasing need to interpret the digital signals and confirm the corresponding action. Given this need, we have developed the DLM2000 series of mixed signal oscilloscopes which are compact, lightweight, portrait-shaped (293 mm (H) × 226 mm (W) × 193 mm (D), 4.5 kg, see figure 1) models that inherit the shape of our conventional DL1000 series. The DLM2000 comes standard with 8-bit logic, and offers advanced waveform display performance with waveform analysis functions. The name “DLM2000” represents the familiar “DL” series plus mixed analog/digital system analysis (a mixed-signal oscilloscope), hence the “M.”
Overview:
The Yokogawa DL850E is a waveform measuring and recording instrument with eight slots for signal conditioning and data acquisition modules. In addition to high-speed signal inputs up to 100 MHz sampling rate, the DL850E has features for real-time signal processing that provide advantages to scientists and engineers trying to observe complex systems.
Industries:
Overview:
A new generation of 8-channel mixed-signal oscilloscopes enables engineers to address many of the measurement challenges presented by the increasingly complex electrical and electronics signals found in today’s industrial control and power systems.
Overview:
After a disastrous 2009, the large publicly held test companies enjoyed booming business in 2010.
Overview:
The definition of a high-performance oscilloscope really is all about the customer's point of view. Two scopes may have the same bandwidth, number of channels, sampling rate, operating modes, and memory length. Yet, one will be bought instead of the other because its software or triggering capability or measurement suite better matches the customer's application requirements.
Overview:
An increasing number of oscilloscope users are finding that the traditional four channels that have been the norm for decades are no longer sufficient. In this article you find out how eight channels provide the answer.
Overview:
Yokogawa Europe's Clive Davis, Kelvin Hagebeuk and Hafeez Najumudeen discuss how instruments can evolve to meet the latest automotive challenges.
Overview:
Joseph Ting, digital oscilloscope product manager at Yokogawa Corporation of America, outlined two primary advantages in using a scope platform to analyze serial bus activity. 'First, a scope can identify waveform quality issues related to analog characteristics such as noise, rise time, or overshoot. By comparison,' he continued, 'a logic analyzer or dedicated protocol analyzer typically can only extract timing or protocol information. Second, a scope's additional channels support time correlation of the serial bus activity with other mixed signals in the system, such as power supply, analog sensor, or memory bus.'
Overview:
The definition of a high-performance oscilloscope really is all about the customer's point of view. Two scopes may have the same bandwidth, number of channels, sampling rate, operating modes, and memory length. Yet, one will be bought instead of the other because its software or triggering capability or measurement suite better matches the customer's application requirements.
Overview:
The warranty period for the 701934-D and 700938-3-D Active Probe Power Supply is 1 year.
Overview:
Unfortunately, it does not work for the files created on a DL750. It is a dedicated feature available only for the DL850/DL850V.
Overview:
Yes, the following attached file contains sample C/C++ and Visual Basic programs for controlling the DL850/DL850V. You can also obtain the latest sample programs from the Software Downloads sections on y-Link.
Overview:
Xviewer .FLD Floating Data Format Information
Xviewer saves wveform data as a .FLD Data ... here is example of how to gain access via VBA to that waveform data:
Example1) Please copy the file "OK.FLD" to ...
Overview:
Xviewer will save the logic information of decimal data into one cell when saving data in *.CSV file format. To calculate the bit by bit information from the decimal data, use a binary calculator to conver the decimal ...
Overview:
No, MATLAB cannot use the WDF File Access API to read *.WDF files.There is a special function in the WDF File Access API called WdfGetSacleWave64, which is used to read the data from the *.WDF file. This command uses ...
Overview:
Please make sure you have the latest version of Xviewer installed.
Overview:
SNTP (SNTP)The DLM2000 clock can be set using Simple Network Time Protocol (SNTP). The DLM2000 can be configured to automatically adjust its clock when it is turned on.
SNTP Server (SNTP Server)Specify the IP address of ...
Overview:
The AC Power Input in all Yokogawa instruments is designed as a 3-pin connection (one of which is a GND pin). In some parts of the world, PCs are sold with AC power cables that are 2-pin. Often times this means the ...
Overview:
The timestamp on the DLM2000 corresponds to the end of waveform acquisition and is the time of the very last acquisition. Likewise, the timestamp in history corresponds to the last waveform acquisition.Please ...
Overview:
The DLM2000 has a unique feature that will allow you to save the timestamps in the History List. Please verify or update the firmware version on your DLM2000 to version 1.81 or later. There are two different save ...
Overview:
The measured propagation delay for the PB500 500 MHz Passive Probe (701943) is approximately 8.2 ns. A simple way of measuring the propagation delay, using the DL9000, is to measure the delay between two ...
Overview:
High Resolution mode can be used to remove high frequency noise and increase vertical resolution. It achieves this by increasing the number of effective bits per data to 12-bits through digital and bandwidth filters.
Overview:
Unbalanced, non-isolated inputs are single-ended amplifiers. These inputs are suitable for measurements where common mode voltages are extremely small or zero and measurements are referenced to GND.
Unbalanced, ...
Overview:
When saving to ASCII format, select the channels to be saved or select All. When channels are selected, only those channels will be saved. When All is selected, all channels are saved.
FAQ
Overview:
To use the WT3000 with the Flicker Software, the WT3000 must have the following options:
/G6 option - Advanced Calculations
/FL option - Flicker Measurements
1 to 3 elements - 30A Input Module
Note: The 2A input ...
Overview:
The data is saved in blocks of 8-bits and is expressed in decimal notation. In other words, if all 8-bits are zeroes, the decimal value is 0; if all 8-bits are 1s, the decimal value is 255.
Overview:
When saving measured data or set-up data, there is a limitation on the number of files that can be saved depending on the data format. The number of files that can be saved for the data format is listed below:
Waveform ...
Overview:
The performance varies depending on the firmware version. The details are shown as follows:
Saving byte data to a 230 MB MO: 1 kW:4 s 10 kW:4 s 50 kW:6 s 100 kW:7 s 250 kW:11 s 500 kW:18 s 1 MW:32 ...
Overview:
Decimation is a technique used to reduce the total number of samples. You can use Xviewer to perform decimation on your waveform data files that have the WDF/WVF/ASCII CSV extension format. Decimation reduces the ...
Overview:
The DLM2000 Series Oscilloscope is capable of performing enhanced parameter measurements and calculations. This feature allows you to perform automated measurements of waveform parameters of two different areas. It ...
Overview:
The DL series instruments are capable of measuring the delay between traces or the delay between channels. The measured output value can be displayed in either time or degree. To setup the DL850 to measure delay, follow ...
Overview:
The rated specification for channel to channel skew on the DLM2000 is 1 ns or less, where 1 ns typically denotes the worst case scenario. To measure channel to channel skew on the DLM2000 series oscilloscope, you will ...
Overview:
For the DLM2000 with user-defined math (G2 Option), you can calculate the ratio of two voltages in decibels. The formula for calculating the ratio of two voltages in dB is:
dB = ...
Overview:
DL708/DL708E: The ON/OFF conditions of bit signals from A1 to A8 and B1 to B8 are expressed as a 16-bit value. The 16-bit value is then converted to a decimal value and the result is saved. The value is written as a ...
Overview:
Unfortunately, we do not have an instruction manual describing the*.WDF file format structure like we did for the *.WVF files. However, we do provide a list of support options which will contain more details ...
Overview:
There are two methods to programmatically determine if the calculations for waveform parameters is completed on the DL series oscilloscopes.
Send the :MEAS:WAIT? command. This will ensure that no other commands are ...
Overview:
With the DLM2000 series mixed signal oscilloscope, up to 20,000 previously captured waveforms can be saved into the acquisition memory. You can use the HISTORY function to search, display and save just one or all of ...
Overview:
If your DL series oscilloscope is not measuring rise or fall time, it may be because you are attempting to measure asymmetric waveforms. It is not possible to perform automatic rise or fall time measurements on DL ...
FAQ
Overview:
The following statement "setup time (15 ns typical) with respect to the edge of the logic trigger" referes to the amount of time in which the combination conditions of the logic input must be met before the detection ...
Overview:
When communicating or controlling the DL7400 via USB in LabVIEW, you must use the USB driver files provided by NI-VISA (Version 3.0 or later). The Yokogawa USB driver files labeled YKUSB or YKMUSB can be used when ...
Overview:
Frequency to Voltage Conversion
Problem:
A transducer produces a sine-wave output dependant on the voltage-input; here is how to decode that output with a scope or a ScopeCorder.
For 3kV input, the transducer ...
Overview:
Can we upgrade the DLM2000 memory to /M2?
No – DLM2000 Memory is factory only (must be ordered at time of new purchase); there is not a mod available for this type of upgrade.
Overview:
Question:If the DL9000 is in normal trigger mode and no waveform acquisitions have been made i.e. the scope has not triggered, a query to the instrument using the :Waveform:Record or :History:Record? Minimum it returns ...
Overview:
The DL850 can be installed with one of the following language options:JapaneseEnglishChineseKoreanGermanFrenchItalianSpanishRussianFor the English (-HE) model, the menu and message language can be changed in the UTLITY ...
Overview:
In the menu of GO/NO-GO determination, there is no menu option for setting the for measuring range.The measuring range can be set in the Area1 sub-menu of the Automated Waveform Measurement Parameter menu..
Overview:
The DLM2000 has a Serial Bus Analysis option from /F1 to /F4. This includes the CAN, LIN, UART, I2C, and SPI protocols. However, there is one more User-Defined Serial Bus Analysis, which is not an add-on ...
Overview:
When using voltage probes, please set the channel probe mode using the command :CHANnel:PROBe 10.00 or 0.01. When using current probe, please set the channel probe mode using the command :CHANnel:PROBe C10 or ...
Overview:
The DLM2000 can save multiple waveform history data to 1 file when the file type is set to Binary format. However, when the file save type is set to ASCII, only the displayed waveform data can be saved regardless ...
Overview:
Yes, the DLM2000 can decode and analyze J1939.
Overview:
Please verify the following items:
USB does not exceed 16 GB
Latest firmware is installed on DLM2000
USB Format is FAT32
USB works properly on PC
Test USB on another USB port
If the problem persists, please ...
Overview:
The SINGLE START key is active only when the measurement is stopped and not in progress. Pressing the SINGLE START key or the START/STOP key will stop measurements in progress. This applies to all DL Series models ...
Overview:
Even though the display record length is shorter than the specified record length, measurement is made over the full record length. There is no function that allows you to move the display position to view the other ...
Overview:
During the averaging mode, the operation of the Single Start key differs from the usual operation.
Exponential averaging: Operates in the same fashion as when the START/STOP key is pressed. The operation does not stop ...
Overview:
You can disable the soft menu from saving to a screenshot by setting the Mode to Normal through the Utility menu.
Overview:
There is zero delay because the external trigger circuit on the DL2700 is located before the A/D converter. The timing is approximately 10 ns faster than the trigger captured on the measured waveform, since there are ...
Overview:
The Time Axis Accuracy is the accuracy of the A/D clock. It is not possible to directly measure the A/D clock and the A/D clock is not output from the DL850/SL1400. To verify the accuracy of the A/D clock, you will ...
Overview:
The following procedure will allow the hard disk to be read properly.
For Windows 95, open the "Settings" tab in the properties dialog box for the connected drive, and check the Removable box. Select "My Computer -> ...
Overview:
The data transfer rates for binary data is as follows:
1 kW
0.035s
10 kW
0.180s
50 kW
0.779s
100 kW
1.536s
250 kW
3.812s
500 kW
7.527s
1 ...
Overview:
The dead time is approximately 10µs.
Overview:
The AC Power Input in all Yokogawa instruments is designed as a 3-pin connection (one of which is a GND pin). In some parts of the world, PCs are sold with AC power cables that are 2-pin. Often times this means the ...
Overview:
Yes, please see attached documents for details.
Overview:
Currently, the SB5000 and DLM2000 series oscilloscopes provide the CAN Bus symbolic decode analysis function. Once the zooming magnitude is enlarged, the indication appears automatically. The DL9000 does not provide CAN ...
Overview:
Yes, VXI-11 is required and needs to be enabled for the DLM2000 to connect properly to Xviewer when using an ethernet connection. If the VXI-11 option is unchecked, a connection failed message will appear.
Related ...
Overview:
Please download the attached article. This article discusses the three types of display interpolation found in the Yokogawa DL9000 and SB5000 digital oscilloscopes. It is also applicable to other Yokogawa oscilloscopes.
Overview:
Xviewer may only be used to view and analyze data saved by the SL1000, it cannot be used to remotely control the SL1000. You can also transfer files between the SL1000 and a PC. For the SL1000, Xviewer can support ...
Overview:
Yes, the NAK CAN Bus Trigger is supported on the DLM2000 and DL9000. DL9000: Refer to the IM 701310-51E (page 3-13)DLM2000: Refer to the IM 710105-02E (page 2-16)
Overview:
The actual input limit for the DLM2000 is 212V (DC+ACpeak) for not only a 0.01 or 0.001 Hz AC signal but also a DC signal. The reason why 150 Vrms is indicated on the DLM2000 specification sheet is that the safety ...
Overview:
You can disable the soft menu from saving to a screenshot by setting the Mode to Normal through the Utility menu.
Overview:
The DLM2000 base model with standard storage memory capacity is 100MB. With the /C8 Option, the internal storage memory capacity is 1.8GB.
Overview:
Please download the attached document for detailed instructions on how to work around the DLM2000 ASCII record length limit Error Code 545
Overview:
Please see the attached document for complete instructions on how to get connected to the DLM2000 using Xviewer
Overview:
The symbol editor for the DL9000/SB5000/DLM2000 instruments has two operating modes: CAN and LOGIC. The CAN bus symbol definition allows symbolic decode for CAN bus packets.
The logic symbol display, on the other ...
FAQ
Overview:
The DLM2000 will prohibit any attempts to save a waveform in CSV format if the file is larger than 1.25 Mpts. There are two methods to work around this issue:
Compress the data using the Data Compression feature on the ...
Overview:
Please make sure to set Time/Div to a setting which will display a minimum of sixteen (16) Cycles.
To setup the instrument for harmonic analysis:
Press the WINDOW1 key
Press the Type soft key
Select ...
Overview:
The sanitation procedure for various Yokogawa oscilloscopes have been documented below. Please download the document or pdf that refers to your Yokogawa oscilloscope.
Overview:
The Yokogawa .SNP file is a proprietary Yokogawa file format for saving waveform snapshots. This file has no relation to the Microsoft Snapshot Viewer program. The .SNP file can only be viewed on the oscilloscope.
Overview:
To use wireless mouses or keyboards on a device, a driver needs to be installed. Yokogawa instruments will not let you install drivers on the device, therefore it is not possible to connect a wireless mouse or ...
Overview:
Any DL9000 with firmware version 1.82 or older will require a one time upgrade via FAT-16 PC Card. After applying the one time upgrade, any subsequent new firmware update can be performed via USB flash drive. Please see ...
Overview:
Yes, the HDMI pinout carries the I2C on pins 15 and 16 of the HDMI connector cable. The HDCP (content protecting encryption keys) signal is carried on pins 15 and 16.
Overview:
There are three kinds of standards for which a differential probe is necessary:
FlexRay
CAN
UART (Some but not all UART)
It is not necessary to use a differential probe for the LIN, I2C and SPI standards.
Overview:
Although the DLM2000/DL9000 does not have a BoxAvg acquisition mode, there is an alternative method for achieving the same effect. The combination of Hi-Res mode and a low pass bandwidth filter will work in the same ...
Overview:
The DLM2000 can save all history acquisition waveforms into one file, if the data type is set to Binary (file extension *.WDF) and History Mode is set to All. If the data type is set to ASCII, only the latest ...
Overview:
Unfortunately we do not have an automated program for adjusting the DL9000 is it is failing calibration. Please follow the procedures on the DL9000 service manual or the CE handbook.
Overview:
You can express any arbitrary exponentiation, in Xviewer or DL series instruments, by using the LOG (common logarithm) and EXP (exponential) functions. For example, for C1 raised to the exponent of 0.2, the math ...
Overview:
The DLM6000 shows the network icon to notify the user that the instrument is disconnected from a network. This is a specification of the LXI standard that is on the DLM6000 that requires the instrument to show the icon ...
Overview:
The Header Size entry, for a ASCII format data file, denotes the number of header lines in the header part of the ASCII File.
Overview:
SNTP (SNTP)The DLM2000 clock can be set using Simple Network Time Protocol (SNTP). The DLM2000 can be configured to automatically adjust its clock when it is turned on.
SNTP Server (SNTP Server)Specify the IP address of ...
Overview:
Yes, you can use the 700929 isolated probe with non-isolated input modules.
Overview:
In general, the recommended sampling rate for CAN bus or I2C analysis is 10x the bit-rate. If the waveform is not noisy, the sampling rate can be set to around 4-5x the bit-rate.
Overview:
Question:
I would like to confirm DC Precision when changing the position setting on DL1600. According to the specification of vertical (voltage) axis accuracy, in the case that voltage axis is set to 0.5 V/div:
DC ...
Overview:
The Offset function is used to set the vertical position of a waveform and is defined by a voltage value (V). The Position function is used to set the horizontal location of a waveform and is defined by a division ...
Overview:
The DL/DLM6000 series supports up to 4 Math Channels, which can be accessed by pressing one of the M1-M4 buttons.
Overview:
Yes, Xviewer has the capability of opening multiple files from different DL, SL, and WE series instruments into a single window display. The only requirement for viewing files from different products is that the sample ...
Overview:
In the oscilloscope's QIS (Quality Inspection Standards), the "beat method" can be used to inspect and verify the time base accuracy. The "beat method" utilizes the aliasing effect to create a "beat waveform." The "beat ...
Overview:
Yes, the /F3 UART, I2C, SPI and the /f4 UART,CAN,LIN trigger and analysis options can be installed on the same DL/DLM6000 unit.
Overview:
No, the DL9000 cannot be upgraded or modified to a SB5000.
Overview:
The IEC Harmonic analysis on the DL/DLM series oscilloscopes provides a rough analysis and estimation for harmonic testing. The scope will perform an FFT on the current waveform and can be used to measure the general ...
Overview:
The true noise floor of a Yokogawa oscilloscope is ≤ 2-3mVpp.
The DL9000, for example, has approximately 280uV residual noise at 2mV/Div with input termination set to 50Ω. The residual noise may be measured by ...
Overview:
If you selected Decimation or P-P Compression when saving waveform data in ASCII CSV format, then the HResolution will not be equivalent to the Sampling Rate. If Decimation or P-P Compression is not selected, then ...
Overview:
If your DLM2000 has firmware version 1.245 or later, then you can use a USB flash drive to upgrade the firmware of your unit.
Note:DLM2000 refers to models DLM2024, DLM2022, DLM2034, DLM2032, DLM2052, DLM2054
Overview:
The rated specification for channel to channel skew on the DLM2000 is 1 ns or less, where 1 ns typically denotes the worst case scenario. To measure channel to channel skew on the DLM2000 series oscilloscope, you will ...
Overview:
The DL series instruments are capable of measuring the delay between traces or the delay between channels. The measured output value can be displayed in either time or degree. To setup the DL850 to measure delay, follow ...
Overview:
The DLM2000 Series Oscilloscope is capable of performing enhanced parameter measurements and calculations. This feature allows you to perform automated measurements of waveform parameters of two different areas. It ...
Overview:
For the DLM2000 with user-defined math (G2 Option), you can calculate the ratio of two voltages in decibels. The formula for calculating the ratio of two voltages in dB is:
dB = ...
Overview:
Decimation is a technique used to reduce the total number of samples. You can use Xviewer to perform decimation on your waveform data files that have the WDF/WVF/ASCII CSV extension format. Decimation reduces the ...
Overview:
With the DLM2000 series mixed signal oscilloscope, up to 20,000 previously captured waveforms can be saved into the acquisition memory. You can use the HISTORY function to search, display and save just one or all of ...
Overview:
There are two methods to programmatically determine if the calculations for waveform parameters is completed on the DL series oscilloscopes.
Send the :MEAS:WAIT? command. This will ensure that no other commands are ...
Overview:
Unfortunately, we do not have an instruction manual describing the*.WDF file format structure like we did for the *.WVF files. However, we do provide a list of support options which will contain more details ...
Overview:
If your DL series oscilloscope is not measuring rise or fall time, it may be because you are attempting to measure asymmetric waveforms. It is not possible to perform automatic rise or fall time measurements on DL ...
FAQ
Overview:
To use the WT3000 with the Flicker Software, the WT3000 must have the following options:
/G6 option - Advanced Calculations
/FL option - Flicker Measurements
1 to 3 elements - 30A Input Module
Note: The 2A input ...
Overview:
High Resolution mode can be used to remove high frequency noise and increase vertical resolution. It achieves this by increasing the number of effective bits per data to 12-bits through digital and bandwidth filters.
Overview:
Unbalanced, non-isolated inputs are single-ended amplifiers. These inputs are suitable for measurements where common mode voltages are extremely small or zero and measurements are referenced to GND.
Unbalanced, ...
Overview:
The timestamp on the DLM2000 corresponds to the end of waveform acquisition and is the time of the very last acquisition. Likewise, the timestamp in history corresponds to the last waveform acquisition.Please ...
Overview:
The DLM2000 has a unique feature that will allow you to save the timestamps in the History List. Please verify or update the firmware version on your DLM2000 to version 1.81 or later. There are two different save ...
Overview:
The measured propagation delay for the PB500 500 MHz Passive Probe (701943) is approximately 8.2 ns. A simple way of measuring the propagation delay, using the DL9000, is to measure the delay between two ...
Overview:
The performance varies depending on the firmware version. The details are shown as follows:
Saving byte data to a 230 MB MO: 1 kW:4 s 10 kW:4 s 50 kW:6 s 100 kW:7 s 250 kW:11 s 500 kW:18 s 1 MW:32 ...
Overview:
When saving measured data or set-up data, there is a limitation on the number of files that can be saved depending on the data format. The number of files that can be saved for the data format is listed below:
Waveform ...
Overview:
The data is saved in blocks of 8-bits and is expressed in decimal notation. In other words, if all 8-bits are zeroes, the decimal value is 0; if all 8-bits are 1s, the decimal value is 255.
Overview:
When saving to ASCII format, select the channels to be saved or select All. When channels are selected, only those channels will be saved. When All is selected, all channels are saved.
Overview:
DL708/DL708E: The ON/OFF conditions of bit signals from A1 to A8 and B1 to B8 are expressed as a 16-bit value. The 16-bit value is then converted to a decimal value and the result is saved. The value is written as a ...
Overview:
The dead time is approximately 10µs.
Overview:
During the averaging mode, the operation of the Single Start key differs from the usual operation.
Exponential averaging: Operates in the same fashion as when the START/STOP key is pressed. The operation does not stop ...
Overview:
Even though the display record length is shorter than the specified record length, measurement is made over the full record length. There is no function that allows you to move the display position to view the other ...
Overview:
The SINGLE START key is active only when the measurement is stopped and not in progress. Pressing the SINGLE START key or the START/STOP key will stop measurements in progress. This applies to all DL Series models ...
FAQ
Overview:
The following statement "setup time (15 ns typical) with respect to the edge of the logic trigger" referes to the amount of time in which the combination conditions of the logic input must be met before the detection ...
Overview:
There is zero delay because the external trigger circuit on the DL2700 is located before the A/D converter. The timing is approximately 10 ns faster than the trigger captured on the measured waveform, since there are ...
Overview:
The data transfer rates for binary data is as follows:
1 kW
0.035s
10 kW
0.180s
50 kW
0.779s
100 kW
1.536s
250 kW
3.812s
500 kW
7.527s
1 ...
Overview:
The following procedure will allow the hard disk to be read properly.
For Windows 95, open the "Settings" tab in the properties dialog box for the connected drive, and check the Removable box. Select "My Computer -> ...
Overview:
The Time Axis Accuracy is the accuracy of the A/D clock. It is not possible to directly measure the A/D clock and the A/D clock is not output from the DL850/SL1400. To verify the accuracy of the A/D clock, you will ...
Overview:
The lowest possible device setting for sample rate on the DL850 is 5 Sa/sec. There are however, different methods that will allow you to achieve much lower sample rates which includes the use of an external clock, ...
Overview:
The SL1000 has the following types of memory:
Internal Hard Drive: 40 GB Non-Volatile SRAM
Waveform Acquisition Memory: 128 MW or 256 MB Volatile RAM
Setup File Data Storage: 1 MB Volatile SRAM(Battery-Backup)
Overview:
The SL1000 doesn’t support offset summing like DLM2000. The SL1000 doesn't have offset hardware; instead, the vOffset variable is used to affect the displayed value only. So, using this parameter would have no ...
FAQ
Overview:
Unfortunately we do not have any experience using the SL1000 Acquisition Software on a PC that has Symantec Endpoint Encryption Software (SEES) installed.
SEES is a storage encryption software that provides data ...
FAQ
Overview:
There are some modules which can be used with the DL750 but cannot be used with the DL850. This is due to the nature of the FPGA for that module, which cannot be interchanged between the DL750 and the DL850. During ...
Overview:
Even though the correct USB drivers have been installed, and the device displays correctly in the Windows Device Manager Window, the SL1000 Acquisition Software fails to detect the SL1000 main unit. Solutions:
Verify ...
Overview:
How to use SNTP on DL850 The sequence below is very important for SNTP to work properly.1. Set DATE/TIME and GMT Time Difference to your location FIRST. EDT is -4 hours, EDT is -5 hours - as examples. 2. Set a SNTP ...
Overview:
The free software DL-GATE can be used for the following products only:DL1700E seriesDL7400 series (firmware version after 1.32)DL1600 series (firmware version after 1.13)DL750 series (firmware version after ...
Overview:
Please verify the following items:
USB does not exceed 16 GB
Latest firmware is installed on DLM2000
USB Format is FAT32
USB works properly on PC
Test USB on another USB port
If the problem persists, please ...
Overview:
The correct AC coupling test for the 720210 Analog Voltage module must be performed at 20 Hz.
The service manual, SMDL850-01EN_010 1st Ed, suggests that you perform the AC COUPLING test at 15 Hz. This is a typo and ...
Overview:
To perform a shunt calibration using the 701271 strain gage module and the ScopeCorder, please complete the following procedures:
Connect the strain module 701271, bridge head 701957/701958 and the strain ...
Overview:
The SL1000 is capable of transferring previous data sets/files while streaming is still in progress through the File Divide feature. When the SL1000 starts recording, it opens a new file and starts logging data. If the ...
Overview:
The Gage Factor setting for the 701271 Strain Input Module can be directly inputted within the range of 1.90 to 2.20. However, it is possible to indirectly set the Gage Factor to a larger value by setting the constant ...
Overview:
No, the SL1000 and 720210 service manual does not include any adjustment procedures however, it does contain the inspection procedure (QIS).
Overview:
Depending on the mode, the dead time may range from 0 to 10ms approximately. The dead time for the different modes are listed below.
Free Run Mode: 0ms
Normal Mode without HDD recording: 10ms
Normal Mode with HDD ...
Overview:
The maximum total file size you can record continuously depends on your sample rate, channel count and storage capacity.
Please see the attached PDF file for an example of recording settings.Note: The dead-time between ...
Overview:
Please follow the procedures listed in the attached document for instructions on how to update the firmware on the SL1000.
Overview:
Please see the attached document.
Overview:
The SL1000 is capable of linking up to 8 units, up to 128ch max, in synchronized mode using our SL1000 Acquisition Software. Using a common LINK file, data from all units can be processed and analyzed, as one, at the ...
Overview:
One possible solution is to use a third party 10:1 attenuator such as the one shown in the attached document. You may use the attenuator to allow the direct input of higher voltage levels with the 701262 module, since ...
Overview:
Yes, the DLM2000 can decode and analyze J1939.
Overview:
Question:If the DL9000 is in normal trigger mode and no waveform acquisitions have been made i.e. the scope has not triggered, a query to the instrument using the :Waveform:Record or :History:Record? Minimum it returns ...
Overview:
Can we upgrade the DLM2000 memory to /M2?
No – DLM2000 Memory is factory only (must be ordered at time of new purchase); there is not a mod available for this type of upgrade.
Overview:
Frequency to Voltage Conversion
Problem:
A transducer produces a sine-wave output dependant on the voltage-input; here is how to decode that output with a scope or a ScopeCorder.
For 3kV input, the transducer ...
Overview:
When communicating or controlling the DL7400 via USB in LabVIEW, you must use the USB driver files provided by NI-VISA (Version 3.0 or later). The Yokogawa USB driver files labeled YKUSB or YKMUSB can be used when ...
Overview:
The DL850 can be installed with one of the following language options:JapaneseEnglishChineseKoreanGermanFrenchItalianSpanishRussianFor the English (-HE) model, the menu and message language can be changed in the UTLITY ...
Overview:
In the menu of GO/NO-GO determination, there is no menu option for setting the for measuring range.The measuring range can be set in the Area1 sub-menu of the Automated Waveform Measurement Parameter menu..
Overview:
The DLM2000 can save multiple waveform history data to 1 file when the file type is set to Binary format. However, when the file save type is set to ASCII, only the displayed waveform data can be saved regardless ...
Overview:
When using voltage probes, please set the channel probe mode using the command :CHANnel:PROBe 10.00 or 0.01. When using current probe, please set the channel probe mode using the command :CHANnel:PROBe C10 or ...
Overview:
The DLM2000 has a Serial Bus Analysis option from /F1 to /F4. This includes the CAN, LIN, UART, I2C, and SPI protocols. However, there is one more User-Defined Serial Bus Analysis, which is not an add-on ...
Overview:
Please make sure to set Time/Div to a setting which will display a minimum of sixteen (16) Cycles.
To setup the instrument for harmonic analysis:
Press the WINDOW1 key
Press the Type soft key
Select ...
FAQ
Overview:
The DLM2000 will prohibit any attempts to save a waveform in CSV format if the file is larger than 1.25 Mpts. There are two methods to work around this issue:
Compress the data using the Data Compression feature on the ...
Overview:
The symbol editor for the DL9000/SB5000/DLM2000 instruments has two operating modes: CAN and LOGIC. The CAN bus symbol definition allows symbolic decode for CAN bus packets.
The logic symbol display, on the other ...
Overview:
The sanitation procedure for various Yokogawa oscilloscopes have been documented below. Please download the document or pdf that refers to your Yokogawa oscilloscope.
Overview:
The Yokogawa .SNP file is a proprietary Yokogawa file format for saving waveform snapshots. This file has no relation to the Microsoft Snapshot Viewer program. The .SNP file can only be viewed on the oscilloscope.
Overview:
Yes, the HDMI pinout carries the I2C on pins 15 and 16 of the HDMI connector cable. The HDCP (content protecting encryption keys) signal is carried on pins 15 and 16.
Overview:
Any DL9000 with firmware version 1.82 or older will require a one time upgrade via FAT-16 PC Card. After applying the one time upgrade, any subsequent new firmware update can be performed via USB flash drive. Please see ...
Overview:
To use wireless mouses or keyboards on a device, a driver needs to be installed. Yokogawa instruments will not let you install drivers on the device, therefore it is not possible to connect a wireless mouse or ...
Overview:
Please see the attached document for complete instructions on how to get connected to the DLM2000 using Xviewer
Overview:
Please download the attached document for detailed instructions on how to work around the DLM2000 ASCII record length limit Error Code 545
Overview:
Please download the attached article. This article discusses the three types of display interpolation found in the Yokogawa DL9000 and SB5000 digital oscilloscopes. It is also applicable to other Yokogawa oscilloscopes.
Overview:
Yes, VXI-11 is required and needs to be enabled for the DLM2000 to connect properly to Xviewer when using an ethernet connection. If the VXI-11 option is unchecked, a connection failed message will appear.
Related ...
Overview:
Currently, the SB5000 and DLM2000 series oscilloscopes provide the CAN Bus symbolic decode analysis function. Once the zooming magnitude is enlarged, the indication appears automatically. The DL9000 does not provide CAN ...
Overview:
Yes, please see attached documents for details.
Overview:
Xviewer may only be used to view and analyze data saved by the SL1000, it cannot be used to remotely control the SL1000. You can also transfer files between the SL1000 and a PC. For the SL1000, Xviewer can support ...
Overview:
Yes, the NAK CAN Bus Trigger is supported on the DLM2000 and DL9000. DL9000: Refer to the IM 701310-51E (page 3-13)DLM2000: Refer to the IM 710105-02E (page 2-16)
Overview:
The DLM2000 base model with standard storage memory capacity is 100MB. With the /C8 Option, the internal storage memory capacity is 1.8GB.
Overview:
Although the DLM2000/DL9000 does not have a BoxAvg acquisition mode, there is an alternative method for achieving the same effect. The combination of Hi-Res mode and a low pass bandwidth filter will work in the same ...
Overview:
The actual input limit for the DLM2000 is 212V (DC+ACpeak) for not only a 0.01 or 0.001 Hz AC signal but also a DC signal. The reason why 150 Vrms is indicated on the DLM2000 specification sheet is that the safety ...
Overview:
There are three kinds of standards for which a differential probe is necessary:
FlexRay
CAN
UART (Some but not all UART)
It is not necessary to use a differential probe for the LIN, I2C and SPI standards.
Overview:
Unfortunately we do not have an automated program for adjusting the DL9000 is it is failing calibration. Please follow the procedures on the DL9000 service manual or the CE handbook.
Overview:
In the oscilloscope's QIS (Quality Inspection Standards), the "beat method" can be used to inspect and verify the time base accuracy. The "beat method" utilizes the aliasing effect to create a "beat waveform." The "beat ...
Overview:
No, the DL9000 cannot be upgraded or modified to a SB5000.
Overview:
The DL/DLM6000 series supports up to 4 Math Channels, which can be accessed by pressing one of the M1-M4 buttons.
Overview:
Yes, the /F3 UART, I2C, SPI and the /f4 UART,CAN,LIN trigger and analysis options can be installed on the same DL/DLM6000 unit.
Overview:
If your DLM2000 has firmware version 1.245 or later, then you can use a USB flash drive to upgrade the firmware of your unit.
Note:DLM2000 refers to models DLM2024, DLM2022, DLM2034, DLM2032, DLM2052, DLM2054
Overview:
If you selected Decimation or P-P Compression when saving waveform data in ASCII CSV format, then the HResolution will not be equivalent to the Sampling Rate. If Decimation or P-P Compression is not selected, then ...
Overview:
The true noise floor of a Yokogawa oscilloscope is ≤ 2-3mVpp.
The DL9000, for example, has approximately 280uV residual noise at 2mV/Div with input termination set to 50Ω. The residual noise may be measured by ...
Overview:
The IEC Harmonic analysis on the DL/DLM series oscilloscopes provides a rough analysis and estimation for harmonic testing. The scope will perform an FFT on the current waveform and can be used to measure the general ...
Overview:
Yes, Xviewer has the capability of opening multiple files from different DL, SL, and WE series instruments into a single window display. The only requirement for viewing files from different products is that the sample ...
Overview:
Question:
I would like to confirm DC Precision when changing the position setting on DL1600. According to the specification of vertical (voltage) axis accuracy, in the case that voltage axis is set to 0.5 V/div:
DC ...
Overview:
You can express any arbitrary exponentiation, in Xviewer or DL series instruments, by using the LOG (common logarithm) and EXP (exponential) functions. For example, for C1 raised to the exponent of 0.2, the math ...
Overview:
The Offset function is used to set the vertical position of a waveform and is defined by a voltage value (V). The Position function is used to set the horizontal location of a waveform and is defined by a division ...
Overview:
The DLM2000 can save all history acquisition waveforms into one file, if the data type is set to Binary (file extension *.WDF) and History Mode is set to All. If the data type is set to ASCII, only the latest ...
Overview:
The DLM6000 shows the network icon to notify the user that the instrument is disconnected from a network. This is a specification of the LXI standard that is on the DLM6000 that requires the instrument to show the icon ...
Overview:
The Header Size entry, for a ASCII format data file, denotes the number of header lines in the header part of the ASCII File.
Overview:
In general, the recommended sampling rate for CAN bus or I2C analysis is 10x the bit-rate. If the waveform is not noisy, the sampling rate can be set to around 4-5x the bit-rate.
Overview:
Yes, you can use the 700929 isolated probe with non-isolated input modules.
FAQ
Overview:
There are some modules which can be used with the DL750 but cannot be used with the DL850. This is due to the nature of the FPGA for that module, which cannot be interchanged between the DL750 and the DL850. During ...
Overview:
The SL1000 doesn’t support offset summing like DLM2000. The SL1000 doesn't have offset hardware; instead, the vOffset variable is used to affect the displayed value only. So, using this parameter would have no ...
Overview:
The SL1000 has the following types of memory:
Internal Hard Drive: 40 GB Non-Volatile SRAM
Waveform Acquisition Memory: 128 MW or 256 MB Volatile RAM
Setup File Data Storage: 1 MB Volatile SRAM(Battery-Backup)
Overview:
The lowest possible device setting for sample rate on the DL850 is 5 Sa/sec. There are however, different methods that will allow you to achieve much lower sample rates which includes the use of an external clock, ...
FAQ
Overview:
Unfortunately we do not have any experience using the SL1000 Acquisition Software on a PC that has Symantec Endpoint Encryption Software (SEES) installed.
SEES is a storage encryption software that provides data ...
Overview:
The correct AC coupling test for the 720210 Analog Voltage module must be performed at 20 Hz.
The service manual, SMDL850-01EN_010 1st Ed, suggests that you perform the AC COUPLING test at 15 Hz. This is a typo and ...
Overview:
The free software DL-GATE can be used for the following products only:DL1700E seriesDL7400 series (firmware version after 1.32)DL1600 series (firmware version after 1.13)DL750 series (firmware version after ...
Overview:
How to use SNTP on DL850 The sequence below is very important for SNTP to work properly.1. Set DATE/TIME and GMT Time Difference to your location FIRST. EDT is -4 hours, EDT is -5 hours - as examples. 2. Set a SNTP ...
Overview:
No, the SL1000 and 720210 service manual does not include any adjustment procedures however, it does contain the inspection procedure (QIS).
Overview:
To perform a shunt calibration using the 701271 strain gage module and the ScopeCorder, please complete the following procedures:
Connect the strain module 701271, bridge head 701957/701958 and the strain ...
Overview:
The maximum total file size you can record continuously depends on your sample rate, channel count and storage capacity.
Please see the attached PDF file for an example of recording settings.Note: The dead-time between ...
Overview:
The SL1000 is capable of transferring previous data sets/files while streaming is still in progress through the File Divide feature. When the SL1000 starts recording, it opens a new file and starts logging data. If the ...
Overview:
Depending on the mode, the dead time may range from 0 to 10ms approximately. The dead time for the different modes are listed below.
Free Run Mode: 0ms
Normal Mode without HDD recording: 10ms
Normal Mode with HDD ...
Overview:
One possible solution is to use a third party 10:1 attenuator such as the one shown in the attached document. You may use the attenuator to allow the direct input of higher voltage levels with the 701262 module, since ...
Overview:
The SL1000 is capable of linking up to 8 units, up to 128ch max, in synchronized mode using our SL1000 Acquisition Software. Using a common LINK file, data from all units can be processed and analyzed, as one, at the ...
Overview:
Please see the attached document.
Overview:
Please follow the procedures listed in the attached document for instructions on how to update the firmware on the SL1000.
Overview:
The Gage Factor setting for the 701271 Strain Input Module can be directly inputted within the range of 1.90 to 2.20. However, it is possible to indirectly set the Gage Factor to a larger value by setting the constant ...
Overview:
Even though the correct USB drivers have been installed, and the device displays correctly in the Windows Device Manager Window, the SL1000 Acquisition Software fails to detect the SL1000 main unit. Solutions:
Verify ...
Overview:
You can use the DL9000 to measure the offset of the 701912, 701913, or 701914 Active Probe. The specification for the Active Probes is ± 2mV. To measure the offset, follow the procedures listed below.
Connect the ...
Overview:
No, only a single DL Series Digital Oscilloscope can be controlled by the Matlab toolkit "mexDLControl" function at a time. Since the "ComStart" function can only be connected to one instrument you cannot ...
Overview:
Unfortunately Xviewer is not a client-server type software and it is not recommended to run Xviewer on a Windows Server based OS. Xviewer needs to be installed on a client PC to operate without issue. We cannot ...
Overview:
It is possible to monitor the START/STOP status of the DL716 using communication commands. To do this, you will have to send the ":STATus:CONDition?" (without quotations) command to the instrument, in order to query ...
Overview:
The new 700929 isolation probe has two new parts: Safety Plug-on clip B9940WX and Safety Clip Lead B8023ZC. The old 700929 isolation probe only has one part, the Pincher Tip B9940WH. Please refer to the attached PDF ...
Overview:
The impedance of the 366924 and the 366925 BNC cable is 50 Ω.
Overview:
Using the DL850, the waveform data was directly saved as an ASCII file in the *.CSV and *.WDF file format (NOT an Xviewer conversion). The sample files that have been provided contain the same waveform data, which is a ...
Overview:
If you wish to view the timestamp data in high resolution, you will need to open the *.CSV file with Notepad or Wordpad. If you use Microsoft Excel to open the file, Excel will round the timestamp data, preventing you ...
Overview:
The DL1600 will not save timestamp data into a column like some of the newer scopes (DL850 and DLM2000). There are two methods for adding timestamp data to the DL1600 listed below:
WARNING:
Please use caution when ...
Overview:
We recommend the 700960 200 MHz Passive Probe as the replacement for the 700952 150 MHz Passive Probe. The probe specification for the 700960 probe is the closest match to the 700952 probe, when using the ...
Overview:
The measurement function can be used only when data are saved in the ACQ (BIN) format. In addition, when data are saved in this format, all functions including waveform zoom can be used in the same fashion as with the ...
Overview:
Yes, data is retained in the DL1500 internal memory even if power is turned OFF because there is a lithium battery.
Overview:
Yes, if all the data cannot fit onto one disk, a message will appear prompting you to enter the next floppy disk. Simply follow the instructions to save the data to multiple floppy disks. The same procedure also ...
FAQ
Overview:
Yes, screen image data can be saved in BMP and other formats even if the built-in printer is not installed.
Overview:
The data will be in IS2 format unless the History Memory function is active, then it will be in the IS1 format.
Overview:
When using color the file size ranges from 50 KB to 200 KB, if Compression is turned ON. The size varies greatly since the compression rate changes depending on the density of the waveform. The file size is larger for ...
Overview:
It is currently not possible to load .WVF waveform data saved by a DL1540 onto the DL1540C/DL1540CL or vice versa. This is because the internal circuit is not common between the two models. It is however, possible to ...
Overview:
Yes, you can select color or monochrome when saving or transferring the screen image data.
Overview:
There are two types of waveform data that can be loaded.
Waveform data saved using P-P.Computation and X-Y display cannot be performed on P-P display waveform data that are loaded.
Waveform data saved in ACQ BIN ...
Overview:
It is the power spectrum defined by PS = 20 x Log(X/1Vrms)
Overview:
If Y(V) is the converted value for X(dBV), the equation is: Y = 10(X/20) from X=20*LOG(Y)
Overview:
If the FFT does not appear, check to assure that the horizontal position of the waveform is set exactly to Zero. If the horizontal position is set to a non-zero value, the FFT will not be performed.
Overview:
The result of the computation between channels is displayed in units of divisions. By subtracting ch1 from ch2, you obtain 10 V. However, the result shows 2, a value obtained after dividing 10 V by the V/div value (10/5).
Overview:
The averaging function supported by the DL1500 Series is exponential averaging. The models that support linear averaging (simple averaging) are the DL4000 Series, DL2700, and DL708.
Overview:
The minimum dead time on the DL1540 and DL1540L is approximately 200 µs. However, this value varies depending on the T/Div setting, the number of channels, and the data length. Consider the minimum value to be the ...
Overview:
The FFT is computed based on the ACQ data. In order to perform the FFT over 1 k points, the ACQ data are decimated (reduced) from 10 kW to 1 kW. At this point the sampling rate is equivalent to 100 kSs (1/10 of 1 MS/s).
Overview:
The display channel colors are fixed to: CH1-yellow, CH2-green, CH3-pink, CH4-blue.
Overview:
Yes, the color of the snapshot waveform is white so the displayed waveform will change colors if you move the position of the snapshot waveform.
Overview:
The manufacturer of our LCD has stated the luminance of the LCD drops to half after 25000 hours.
Overview:
The width level of the Window trigger cannot be set to a value less than the voltage corresponding to 1 division at the specified voltage sensitivity. For example, if the voltage sensitivity is set to 500 V/div, then ...
Overview:
Yes, there is no restriction on specifying or using the two functions simultaneously.
Overview:
This function is available on firmware version 1.10 and higher. To check the version, press the MISC key on the front panel. and then select Information using the soft keys. This function is available on all versions of ...
Overview:
The menu screen and messages are cleared when commands such as "start" and "cursor on" are issued.
Overview:
Only P-P data can be transferred once measurements are being made. The instrument must be stopped to transfer ACQ data.
Overview:
The transfer could take up to 10 seconds. Normally it is 6 or 7 seconds, however this will vary depending on the performance of the PC and the GP-IB board. On the DL1540C, this may take longer than 10 s, because the ...
Overview:
Error:Code 915 is the error message "Can't detect listener." This error occurs when the hard copy destination is not set to the "printer," but to "plotter" without connecting external devices.
Overview:
The update rate is 1 to 2 Hz when all measurement items are specified on Trace1 through Trace4. The update rate is 5 to 6 Hz when only a few measurement items are specified on Trace1.
Overview:
Approximately 500 ms when performing zone determination.Approximately 700 ms when performing parameter determination.
Overview:
No, the power supply section of the DL1540, DL1540L, DL1540C, and DL1540CL automatically switches between 100-120 VAC and 220-240 VAC. The power supply section of the DL1520 and DL1520L is specified when you order the ...
Overview:
Yes, please visit our Contact Website and contact your local Yokogawa Representative to request a replacement for part no. A9080ZG.
Overview:
The NO-GO output is controlled by software. Thus, there may be fluctuations in the processing time depending on the sensing conditions. Since the signal remains low until the next determination can be accepted, this ...
Overview:
The SCSI connector type is half-pitch 50-pin (pin type).
Overview:
No, the DL1540C/CL uses the color TFT LCD screen. The output to the monitor is supported by the VGA output function (optional).
Overview:
To use the isolated input unit, the firmware version of the DL1540 must be 1.10 or higher. Please check the version number. If the version number is lower than 1.10, the firmware must be upgraded.
Overview:
Up to 25 characters can be entered and displayed. If you attempt to edit a preexisting comment, only the first nine characters are displayed. In this case, you must reenter characters after the ninth character.
Overview:
Please see the attached PPT for a tutorial of the JS01 Xviewer Advanced File Utility.
With the JS01 option, you can perform:
channel merge of multiple WDF files
time merge of multiple WDF files
convert file format ...
Overview:
The DL850 FLD file extension contains the acquired waveform data in IEEE 32-bit floating point format. You can analyze the floating point format using the low-level file I/O commands in MATLAB. FLD file format contains ...
Overview:
There is no specification of the lowest current for our current probe.However, it is possible to calculate the lowest current from the accuracy of this probe. Models 701929/701933/701928/701932Amplitude Accuracy: +/- ...
Overview:
If the "remote procedure call failed" error appears, when attempting to open a DL850V binary WDF file in Xviewer, it can be resolved by updating and installing the latest version of Xviewer. You can download the latest ...
Overview:
Can Xviewer.exe be run as multiple instance?
No - not at this time.
Xviewer can not control two or more DL850 chassis.
Xviewer can not connect to two or more instruments at the same time.
Two or more Xviewer ...
Overview:
What is Blocknumber and Blocksize in a DL750 ASCII Header?
(example attached)
The “BlockNumber” relates to the number of records (acquisitions) you saved to the binary file.
EXAMPLE: if you saved 2 ...
Overview:
How does the DL750 save Logic data for MATLAB?
Unfortunately, the format of .wvf files (from a DL750) is not open to the end-user. Also, the MATLAB tool kit for DL series (701991) and WVF file access API (707712) ...
Overview:
Xviewer 1.35 will not recall MATH Channels:
Problem:
After opening a WVF file and performing MATH functions in Xviewer Math version 1.35 - adjusting display settings, scale settings, etc - and then saving the ...
Overview:
Unable to connect to DL850 via GPIB after a WDF file is loaded into acquisition memory.
This is a confirmed issue and exists only when using GPIB.
(Ethernet and USB do not exhibit this behaviour.)
Solution: ...
Overview:
DL850 .WDF File will not open with Xviewer 1.64
Solution: Please update to latest version (now at version 1.72).
Overview:
Xviewer 1.70 Math Issue
Normally, for the math expression 'Mn' (when n
Overview:
Xviewer 1.70 Parameter Issue
When the history data is too large and when we want to save all parameter data, the calculation is mis-behaved or has longer than normal saving-time; saving may not terminate normally.
Overview:
Xviewer 1.64 Cannot open .WDF file with PP Compression
Solution: Please update to latest version of Xviewer, version 1.71 or later.
Overview:
Load File Failed when using DL850 with eSATA external HDD
This can occur when power is lost during recording, HDD was disconnected, etc.
Solution:
It is possible to recover that file using the Xviewer File ...
Overview:
What is Algorithim for Xviewer's PP Compression?
PP Compression is peak-peak compression ... and it is an option when you save a waveform data file (WVF or WDF).
When you select the PP Comp option, Xviewer saves ...
Overview:
What is the temperature range of the 700929?
The operation temperature for the 700929 is from 5 degree C to 40 degree C. (It is same range for DL850/DL750 mainframe.)
Overview:
Can I buy a ground clip for my new-style 700929? Two part numbers required for new-style probe: NEW STYLE features/requires two pieces: ground ref clip and safety plug-on clip. B9940WX Clip, plug-on, ...
Overview:
Can Xviewer decode RPM from a pulse-train?
I recommend using a Freq module for this - becuase it has many advantages;
However, in a pinch, Xviewer could be used to do this:
RPM = Frequency divided by ...
Overview:
When WDF files are opened in Xviewer, Xviewer creates a temporary hidden file and will remember all setting changes made to the WDF file. Therefore any changes made to the WDF file prior to exiting out of Xviewer will ...
Overview:
No, the USB port is not insulated from the analog input connector.
Overview:
Xviewer buttons may appear to be missing or cut off if the Windows Display setting is changed from the default setting. The default setting is "Small-100%(default)".To correct this problem, please change the text size ...
Overview:
For any users with the MATLAB tool kit version 1.19 or earlier installed, wanting to update the software to the latest version, a license key will be required to update the software. However, the CD for MATLAB tool kit ...
Overview:
The default save location for Xviewer software settings file is: WindowsXPC:\Program Files\YOKOGAWA\Xviewer\SettingDataWindows7C:\Users\xxxxxxx\AppData\Roaming\Yokogawa\Xviewer\SettingData xxxxxxx is your user name
Overview:
Yes, to provide safety and isolation to sensitive test points please use the following banana jack adaptors:
M1223WP-A Push-on Safety Male Banana Plug
M1223WQ-A Banana Plug Reference Lead
We also provide various ...
Overview:
After the 30-day Xviewer trial version expires, the following features continue to be available:
View a .WVF or .WDF file
Vertical cursor measurements
Export via 'Save As..." to .CSV format
Before installing a ...
Overview:
To open the CSV ASCII file saved by your ScopeCorder:
Start Xviewer
Open a New Viewer Window
Drag and drop your CSV file into the empty viewer window
Additional Note:ScopeCorder refers to the DL750/DL750P, ...
Overview:
Because of their relative low cost, passive probes are classified as consumables and as such, are not covered by a warranty. More expensive probes such as the FET Probe and the Current Probe are covered by a warranty.
Overview:
The warranty period of the differential probes, 701920, 701922, 701923 and 701924, are 1 year. If the probe is delivered from Yokogawa Japan, the warranty certificate of Yokogawa would be in the box that the probe was ...
Overview:
Please see the attached screenshot images of the ScopeCorder instrument cart.
Overview:
Unfortunately, waveform data saved by Xviewer in the *.WVF, *.CSV, or *.FLD format cannot be loaded onto DL series instruments.
FAQ
Overview:
To select a target waveform from a list of history waveforms (acquired through N-Single Trigger mode), please complete the following procedures:
Activate the FFT Viewer
Click on Window
Select History Windows
Select a ...
Overview:
Port #10,001 needs to be opened via your firewall in order to connect WirePuller with the DL750. A through-firewall connection may also be required for port-forwarding.
Overview:
The following softwares have been tested for Windows 7 compatibility.
WTViewer
Xviewer
SL1000 Acquisition Software
USB Instrument Drivers for all USB supported instruments
TMCTL Library Files for programming with VB, ...
Overview:
The dimension specifications of the 701906 Long Test Clip is provided in the attached file. Please refer to the PDF for more information.
Overview:
When you display the cursor readout values or the measured values on Xviewer, it is possible to copy those values to the clipboard by [Ctrl]+[C]. Then you can paste it to any other application program such as Excel.
Overview:
No, the DL1540C cannot load the binary data file of the DL1500. The DL1540C can only load the binary data file saved by the DL1540C. The DL1540CL can load the binary data file saved by the DL1540C and DL1540CL
Overview:
The temperature range of the 700929 Isolated Probe is from 41°F - 104°F (5°C - 40°C). It is the same as the 701947 isolated probe.
Overview:
The maximum external HDD size is 1.5 TB.
Overview:
The 702911 and 702912 Logic Probes cannot be used with the DL750/DL750P. The logic probes were orginally designed to be used with the OR Series.
The SL1400 can use the 700986, 700987, 702911, 702912.
The DL750 can ...
Overview:
Please use the attached "Sampling Rate Table.xls" to help you determine the appropriate Record Length and Time/Div setting to achieve XYZ Sample/Sec Sample Rate. Keep in mind that there are limitations to the amount of ...
FAQ
Overview:
The /HD0 External HDD Interface and /HD1 Internal HDD options cannot be installed on the same instrument. When the internal HDD reaches capacity, it must transfer files to the PC to clear space before saving the next ...
Overview:
We have tested the following IRIG generator for compatibility with the DL850.
GPS200 (Masterclock)http://www.masterclock.com/products/gps200.phphttp://www.masterclock.com/popup/standard_antenna.htm
ES101 ...
Overview:
Whether you are new to the DL850/DL850V ScopeCorder or it's been awhile since you last operated the instrument, the DL850 Self-Paced Student Workbook is a great getting started guide. It contains 18 step-by-step ...
Overview:
In most cases, all the DL750 modules will be compatible with the DL850 and SL1000.
However, there are some module which can be used with DL750 but cannot be used with DL850. These are typically the early DL750 modules ...
Overview:
Unfortunately, the DL850 is neither IVI nor LXI compliant and there are no drivers for either standards.
Overview:
If during the DL850/DL850 firmware upgrade process, the display screen turns black, blue, or something in between and the installation failed, please complete the following steps. You will need a USB printer cable to ...
Overview:
The DL850/DL850V cannot be set to 100ns/div when the following modules are installed:
720240 CAN Bus Monitoring Module
720220 16 Channel Voltage Input Module
Removing these modules permits the DL850/DL850V to be ...
Overview:
The lowest, guaranteed operating temperature covered under warranty is 5°C.
The lowest, guaranteed storage temperature covered under warranty is -20°C.Unfortunately, we have no practical way of determining which ...
Overview:
The largest flash drive size that can be detected by the DL850 is 16 GB. The largest external hard drive size that can be detected by the DL850 is 1.5 TB.
Overview:
To determine the start and end point of the zoom box, issue the following commands:
:WAVEFORM:START
:WAVEFORM:END
:ZOOM:POSITION?
:ZOOM:MAG?
:ZOOM:POSITION1?
:ZOOM:MAG1?
:WAVEFORM:LENGTH?
You can then calculate the ...
Overview:
Please download and view the attached QIS document for detailed calibration procedures for the 720240 CAN bus monitor module. In addition, the "720240 Settings.doc" has step-by-step screenshots on the settings you will ...
Overview:
In terms of display resolution, the 720210 and 701250 modules (12-bit) are equivalent to a 4 digit DMM. The 701262 module (16-bit) is equivalent to a 5 digit DMM. However, in terms of DC accuracy, the 720210 and 701250 ...
FAQ
Overview:
If you discover that your waveform data/trace or some channels have disappeared from the DL850/DL850V or Xviewer when you re-load the WDF data file, this is normal behaviour due to an incomplete acquisition.
For ...
Overview:
No, it is not possible to use the WDF File Access API in LabView to read *.WDF files.
Although LabVIEW can use and access DLLs, there is a special function in the WDF File Access API called WdfGetSacleWave64, which ...
Overview:
The formula for calculating the file size for a Binary type (with *.WDF extension) is: File Size = 805kB + (DataLength*ChannelCount*HistoryCount*2) where 805kB is the ...
Overview:
This method will not work as the signal waveform would be very distorted. The coax acts as a heavy shunt-capacitance at the 'output' jack of the passive probe circuit. As a result, this excessive shunt-capacitance ...
Overview:
Unfortunately it is not possible to convert a .WVF file to a .WDF file. A .WVF file saved by a DL750 can only be loaded in Xviewer or a DL750.
Xviewer is capable of loading both .WVF and .WDF file formats.
Overview:
No, if you send commands simultaneously from another communications interface, that has not been selected on the DL850/DL850V, the instrument will not execute the commands properly.
Overview:
If the files saved on the DL850 do not appear on the PC, please disconnect and reconnect the USB connection from the DL850 to the PC.This behavior is normal for Windows based operating systems including Windows XP, ...
Overview:
The measured output response time of the 701260 Analog Voltage Input Module, when observing RMS is:
Rising (0 to 90% of 10 div): 100ms
Falling (100 to 10% of 10 div): 250ms
An attached JPEG displays the results of ...
Overview:
For the 701280 Frequency Input Module with a 4th order IIR 6Hz lowpass filter, a 60Hz sine wave (FM modulated with a square wave) was measured with deviations of ± 3Hz. Please download and view the attached image for ...
Overview:
The attached file contains an Excel spreadsheet with an API that will query data from the DL850 via USB, to obtain and display the Time/Div setting. To use the Excel API, follow these procedures:
Download and extract ...
Overview:
Xviewer can be used to calculate various power analysis measurements such as power factor, real power, reactive power, and apparent power. Two sample waveforms are available in the attached zip file, and should be used ...
Overview:
The Delay Measurement value is a Fixed-Point Number.The Delay Measurement feature on the DL850 comes in two modes, Time and Degree. The output of the Delay Measurement feature is a time-based value and not an amplitude ...
Overview:
The DL850 is capable of linearizing an input signal using the Polynomial Feature in the /G3 Realtime Math option. The polynomial feature performs a fourth order polynomial calculation on the selected source waveform. To ...
Overview:
To set the DL850 in Roll Mode, turn the Time/Div knob until it is set to 100msec/Div or longer. If the Time/Div is set to 1Hr/Div or longer, waveform scrolling can be difficult to observe in real-time. This is due ...
Overview:
Please make sure you have the latest version of Xviewer installed.
Overview:
The DL850 G3 Power Measurement option can be used to calculate the power of a Sinusoid-Current Burst. Please download and view image for a screenshot demonstration of the DL850 G3 Power Function.The firmware version of ...
Overview:
It is not necessary to perform deskew on a DL850 when using a current probe. The DL850 does have enough resolution to perform deskew and will not be able to find the time offset.
Typically the deskew value ranges from ...
Overview:
For the DL850 G3 Frequency Function, you will need to set the hysterisis of the edges that are used to detect the periods. This will increase the tolerance for noise and improve measurement reliability.To configure ...
Overview:
The DL850 can save measured waveform data to a file in Binary, ASCII, or Floating Point format. You can use the FILE Waveform Save Menu or the SAVE MENU menu to set how files are saved.To save using the SAVE MENU ...
Overview:
Unfortunately there is no way to read these warning messages on the DL750. In addition, there is no other command available to determine if there was "No Matching Record" found in History for a particular ZONE ...
Overview:
To determine the exact trigger time of the waveform acquisition, use the ":HISTORY:TIME? 0" command, where 0 refers to the latest acquisition record.To determine the exact trigger sample number, use the ...
Overview:
If the only active module in the DL850 Chassis is the 720220 16 Channel Voltage Module, the waveform data file (ASCII or WDF) will NOT contain repeated samples. If multiple modules, including the 720220, are installed ...
Overview:
Please download and view the attached PowerPoint presentation for a comprehensive guide on how to operate the DL850 Dual Capture mode.
Overview:
Error(Code:539) Press ESC Key to Close.
Module configuration is not matched, so it couldn’t loaded. Configuration of saved data can see by File property.
The following error is ...
Overview:
On the DL850, the list starts with #0000 and corresponds to the last triggered waveform captured. The next entry, #0001, corresponds to the first triggered waveform captured and proceeds to list the captured waveforms ...
Overview:
The correct syntax for implementing the Atan function on the DL850 is ATAN(C1).There is a typo in the DL850 IMDL85001EN 4thEd Features Guide, ATAN(C1,C2) is in-correct. However, the syntax for the DL750 IS ...
Overview:
Noise or glitches occurring on the unterminated input sub-channel for the 720221 module is normal.
You must install a short-circuit jumper on the input terminal which is not used. The wave becomes GND level and ...
Overview:
When viewing the ASCII Header File *.HDR, each timestamp row corresponds to the time a trigger occurs. Multiple timestamp rows will be created if the trigger mode is set to Single(N) and History is set to "All." ...
Overview:
You can superimpose a previous acquisition onto the current acquisition through the Snapshot feature on the DL850. You may also consider using Go/No-Go testing, as long as the requirement for a reference waveform is ...
Overview:
There are a number of reasons as to why the ScopeCorder does not detect or format your eSATA drive. Please verify the following conditions:
Cable connections are secure
Connect either SATA or USB cable
Connect and ...
Overview:
Please see the attached "DL850 Wave Window FAQ.zip" for detailed instructions and setup feature explanations. There is also a wave window FAQ discussion included in the zip file.
Overview:
Please download and see the attached DL850 IRIG Tutorial presentation.
Overview:
If the DL850 WDF file was saved through the hard disk recording feature (HD Recording), then the file may be recovered by using the Finalize feature in Xviewer File Utility. Files that were saved through the normal ...
FAQ
Overview:
Yes the operating temperature range of the individual modules is the same as the operating temperature range of the DL850/DL750 main chassis unit.
Overview:
No, this "calibration" does not refer to the ScopeCorders Auto-Cal feature. When the Auto-Cal function is set to OFF, the ScopeCorder will not automatically calibrate after a 30 minute warm-up period. You must do a ...
FAQ
Overview:
No, the Standard Operating Conditions are not equivalent to the compensated temperature range. The unit's accuracy specifications are valid when operated within the Standard Operating Conditions and when the temperature ...
Overview:
If there is a temperature coefficient listed in the specifications of the instrument's user manual, that coefficient is to be applied in the following conditions:
The unit is calibrated within the Standard Operating ...
Overview:
The 701280 frequency input module measures only time domain values, it does not measure any voltage or any amplitude domain value. Since the temperature coefficients are only applied to the amplitude domain value, the ...
Overview:
Yes, you can use GPIB to remotely control the DL850/DL850 using Xviewer or LabVIEW and have the scope save data onto a shared network drive using the Ethernet interface.
FAQ
Overview:
There is no limitation. A single DL850 unit can support 128 channels.
Overview:
The power source is switched automatically when AC and DC are used simultaneously. AC is given priority. The DC input can be used as a backup power supply. If the AC power goes down, the DL850V /DC instantly switches to ...
Overview:
INTEG1 vs INTEG2 - as demonstrated on DL850 G3
Examples of two different ways to INTEGRATE on the DL850/G3 DSP.
One attachment.
Overview:
DL850 - How to maximize repeatability of Phase Measurements
Use a direct-input if possible; this will remove the delay due to passive-probes 700929 being different between a pair of input channels (in phase ...
Overview:
701260 Calibration Procedure Typo
This should be "+1V +/- 2.5mV" and "0V +/-2.5mV". The service manuals for DL750 and for SL1400 have same mistakes in writing.
one attachment
Overview:
What does VARIABLE feature do on DL750?
In terms of using VARIABLE on your input channel; it is a display-value feature - not a resolution feature.
the A/D on the front-end still uses the V/Div which you had ...
Overview:
DL750 web server with IE8 and Windows XP 32bit OS
If IE8 cannot load the DL750 WebServer, and the runtime has been installed:
In Internet Explorer, add the IP of the DL750 URL to the list of "Trusted Sites" ..
Overview:
My DL750 HDD RECORDING "REALTIME" Files are missing. Please help. (Or: You need to locate them and move them to my PC via USB THUMB DRIVE.) DL750 REALTIME FILES ".WDF Files" are not visible on the DL750 HDD ...
Overview:
Do you have a specification for the DL750 realtime clock in terms of accuracy and drift ?
There is no specification for the realtime clock on DL750.In the worst case, this clock drifts about 10 minute in one month ...
Overview:
My DL750 Ethernet Port is not visible.
First, Press UTILITY and then OVERVIEW .. and Ethernet will be listed as an option on that unit.
If it is listed there, you can pry the plastic cover out with a very small ...
Overview:
Marker cursor and Measure function do not work simultaneously
Unfortunately, this is true;
We can not use the Measure function and the Cursor function at the same time in legacy DL such as DL750; (DLM2000 and DL850 ...
Overview:
How to trigger DL850 with a hand-switch
The DL850 is pulled-to 5V internally; a TTL signal going-low will trigger it naturally (pulling it to LOW); likewise, it can trigger on either the rising or the falling edge of ...
Overview:
DL750 Version 6.xx File (WVF/HDR) Auto-Naming Not Working with NetDrive
(The first file will write correctly .. but auto-naming will not work properly after that)
This issue has been confirmed when using MICROSOFT ...
Overview:
How to trigger on a CAN ID using DL850
A starndard DL850 cannot provide a CAN trigger … but the feature added is “CAN ID” a new operator added in Realtime.
The CAN ID G3 operator uses an ANALOG input as the ...
Overview:
Putting a SPACE after a .WDF file extension - and the WDF will not load into the DL850
Example1: "FILENAME.WDF" is a normal filename and will re-load properly into DL850 Version 2.05
Example2: "FILENAME.WDF_" ...
FAQ
Overview:
Please see the attachment file for more details.
Overview:
For a strain gage factor greater than 2.20, please set the strain gage factor to 2.0 and use linear scaling. Refer to the example below. For X > 2.20: - set gage factor of strain module to 2.00 - set ...
Overview:
The common mode isolation voltage 300V is available for both, between channels in the same module and channels in different modules.
Overview:
The DL750 does not support encrypted USB thumb drives. Please use non-encrypted USB thumb drives to save waveform data or other data files.
Overview:
Unfortunately the DL750 cannot survive an automobile crash. The vibration testing on the DL750 verifies the x-y-z axis at about 0.1G at random.
Overview:
Yes, it is possible to synchronize more than 3 DL750's by using the trigger signal, in a one-to-one connection method, as long as the limits of the delay time is not exceeded. Example Configuration:DL750 [TRIG ...
Overview:
No, as described in the service manual, either the 701250/701255 10 MS/sec or the 720210 100 MS/sec modules is required for time base calibration.
Overview:
The isolation module specifications for maximum allowable common mode voltage using direct input is 42V(DC+ACpeak). The maximum allowable common mode voltage using the 701901(1:1) safety cable is 400V or ...
Overview:
To turn any unused channels OFF on the 720220 module, please select OFF in the Coupling menu.
Overview:
The V Scale SPAN mode on the DL850 can be used to adjust the upper and lower display limits of the zoom window. To optimize the V Scale SPAN mode to make the best resolution measurements, follow the procedures listed ...
Overview:
The following eSATA and USB external hard drives are compatible with the ScopeCorder:
Buffalo HD-HS500SU2 500GB
IOMEGA LPHD080-U 80GB
ELECOM LaCie d2 quadra LCH-2D1TQ 1TB
IO DATA RHD-UX1.0T 1TB
Logitec ...
