Oscilloscope Accessories
Yokogawa offers a range of oscilloscope accessories, including oscilloscope probe holders and other accessories, rack mount kits, BNC cables, alligator clips, carrying cases, and more. Our variety of accessories for oscilloscopes provides everything you need to connect to your signals.

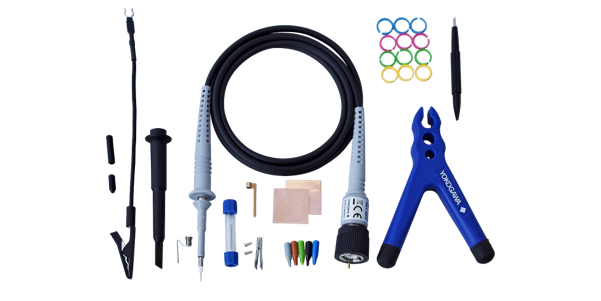

500 MHz, 10:1, 600 V (DC + ACpeak) CAT II, 1.3 m Supplied standard with DLM3000, DLM5000, DLM5000HD series

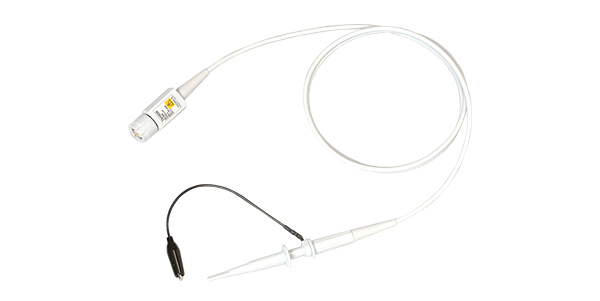

- 701938 Passive Probe
- 200 MHz, 10:1, 600 V (DC + ACpeak) CAT II, 1.5 m
- For DLM2000 (200 MHz model)
- 701939 Passive Probe 600V / 500 MHz - Current Probe
- 500 MHz, 10:1, 600 V (DC + ACpeak) CAT II, 1.3 m
- For DLM2000, DLM4000, DL6000, DLM6000 series
400 MHz, 10:1/1:1, 600 V (DC + ACpeak) or 424 Vrms CAT II, 1.5 m
For DL9000, DL9700/DL9500, SB5000 series

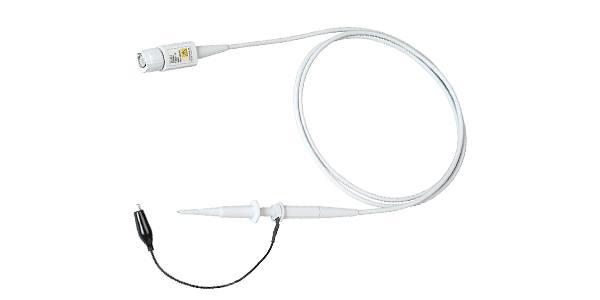

500 MHz, 10:1, 400 Vrms/1250 Vpeak CAT O 300 Vrms CAT II, 1.2 m
For DLM2000, DLM4000, DL6000, DLM6000 series
500 MHz, 10:1, 400 Vrms, 1.3 m
For DLM3000, DLM5000, DLM5000HD series
- 701944 High Voltage Passive Probe 1000Vrms / 400 MHz
- For DL1700, DLM2000-6000, DL6000, DL9000, SB5000 series

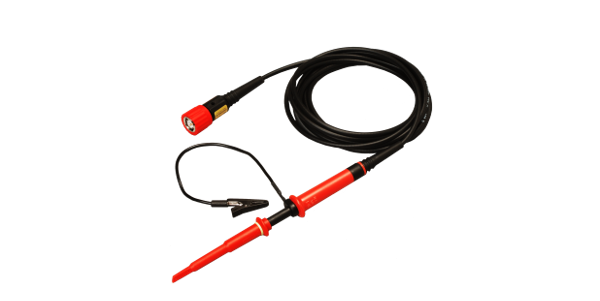

- 3m High Voltage Probe (oscilloscope)
- DC to 250 MHz bandwidth
- 100:1 attenuation
- Max Input 1000 Vrms CAT II 4000 V transient over-voltage CAT O

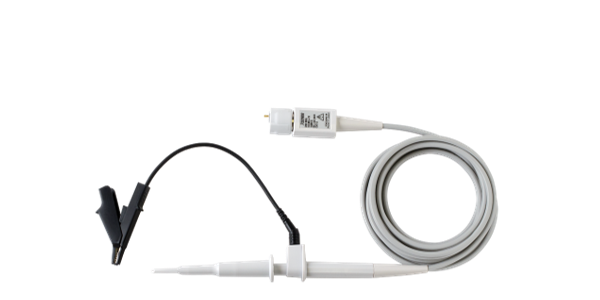

200 MHz, 10:1, ±1000 V (DC + ACpeak) CAT II, 2.5 m,Wide operating temperature range (−40 to +85°C)
For DLM2000, DLM4000 series.
200 MHz, 10:1, ±1000V (DC + ACpeak) CAT II, 2.5 m
Operating environment: −40 to +85°C (no condensation)
For DLM3000, DLM5000, DLM5000HD series.
500 MHz, 50：1, Max. Differential Voltage：±25 V（DC+ACpeak）
Probe Power：Dedicated probe interface
- 701924 Differential Probe
- 1 GHz, 50:1, Max. Differential Voltage: ±25 V (DC + ACpeak), Probe Power: dedicated probe interface
- 701927 Isolated Differential Probe
- 150 MHz
- Max. Differential Voltage: ±1400 V (DC + ACpeak) at 500:1
- Probe Power: dedicated probe interface For DLM, DL, and SB5000 series
- 701977 Differential Probe for Oscilloscope 7000 V / 50 MHz
- 50 MHz, 1000:1 / 100:1, Max.
- Differential Voltage: 5000 Vrms and 7000 Vpeak or less
- 701978 Differential Probe for Oscilloscope
- 1500 V / 150 MHz
- 500:1 / 50:1
- Max. Differential Voltage：±1500 V (DC + ACpeak)

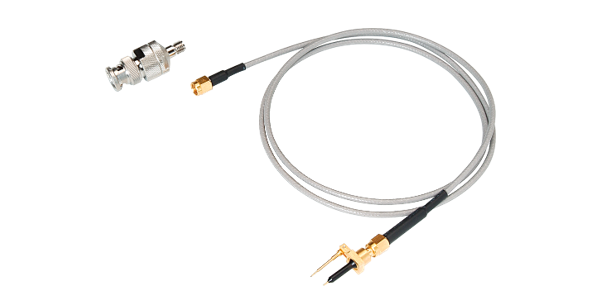

- 701974 Low Capacitance Probe
- 5 GHz, 20:1 / 10:1, 20 Vrms / 40 VACpeak, 1.1 m, For DLM series
- Low input capacitance
- Low input resistance

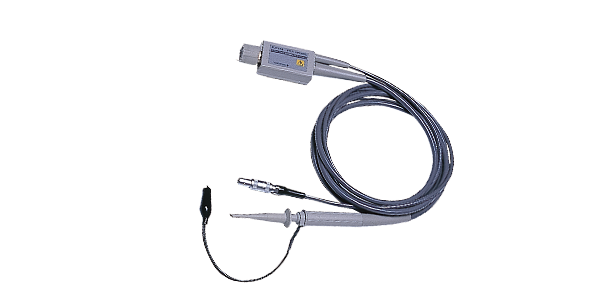

- 700939 Active FET Probe
- 900 MHz Active FET Probe Circuit
- 10:1, ±10 V (DC + ACpeak) FET Input Active Probe
- 1.5 m
- 701917 oscilloscope current probe
- Frequency bandwidth: DC to 50 MHz
- Maximum continuous input range: 5 Arms
- Functions with Digital Oscilloscopes, ScopeCorders, other waveform measuring instruments
- Yokogawa 701918 Current Probe
- Frequency bandwidth: DC to 120 MHz
- Maximum continuous input range: 5 Arms
- Functions with Digital Oscilloscopes, ScopeCorders, other waveform measuring instruments
- 701928 scope current probe
- Front-end powered
- Recognized automatically
- Adjust zero position from operation of DLM2000, DLM3000, DLM4000, DL6000/DLM6000, DL9000/DLM9000. SB5000
- 701929 Current Probe 50 MHz / 30 ARMS
- Front-end powered
- Auto-recognized
- DLM2000-4000, DL/DLM6000, DL/DLM9000, SB5000
- 701930 Current Probe 10 MHz / 150 ARMS
- Powered by Yokogawa Digital Oscilloscopes, Scopecorders or external power supply
- 701931 Current Probe 2 MHz / 500 ARMS
- Powered by Yokogawa Digital Oscilloscopes, Scopecorders or external power supply
- 701932 Current Probe 100 MHz / 30 ARMS
- Powered by Yokogawa Digital Oscilloscopes, Scopecorders, or external power supply
- 701933 50 by 30 current probe
- Powered by Yokogawa Digital Oscilloscopes, Scopecorders or external power supply
- 702915 Current Probe
- Freq bandwidth: DC to 50 MHz
- Maxi continuous input range: 0.5 Arms/ 5 Arms/ 30 Arms
- Digital Oscilloscopes, ScopeCorders, other waveform measuring instruments
Frequency bandwidth: DC to 120 MHz
Maximum continuous input range: 0.5 Arms/5 Arms/30 Arms
Functions with Digital Oscilloscopes, ScopeCorders and other waveform measuring instruments
- 701934 External Probe Power Supply
- Power supply for current probes, FET probes, and differential probes
- Supplies power for up to four probes, including large current probes
- 701936 Deskew Correction Signal Source
- Improve switching-loss measurements by deskewing
- Accommodates both clamp-on current probes and through-type ‘CT' Current Transformers
- B9852ES Logic Probe IC Pin Clips
- Attach to tips of logic probe (701988 or 701989) or mini-clips (B9852CR)
- Clip contiguous 0.5-mm pitch terminals
- 10 clips included
BNC-Banana-jack (female) adapter. Use for circuits having voltage levels no greater than 42 V.
Banana-plug (male)-BNC adapter. Use for circuits having voltage levels no greater than 42 V.
T-adapter for BNC connectors. Use for circuits having voltage levels no greater than 42 V.
For 701937, 701938, 701939, 701943 (PB500) and 700939.
Quantity of 1 unit: 10
For 701937,701938, 701939, 701943 (PB500) and 700939 Standard accessories include: Adapter, red wire (3), black wire (3)
Safety-terminal-binding-post adapter. Use for circuits having voltage levels no greater than 42 V.
For conversion between BNC and female banana plug
Applicable for DL750/DL750P, SL1000 & SL1400.
- Set of 0.8m long red and black multimeter test leads
- Used in combination with a pair of optional 758922 or 758929 alligator-clip adapters
- 1000 Vrms, 32 Arms CAT II
Used to connect an oscilloscope having a 1M-ohm input to a probe with a 50-ohm output. It is required when using the 701920 and 701922 probes with the DL1600 series.
A clip set designed for 701937, 701938, 701939, 701943 (PB500) and 700939
- 701901 BNC to Safety Banana 1.8m Cable, 1:1
- 1000 Vrms-CAT II, 1.8 m long
- Safety BNC(male) to safety banana(female)
- 701959, 701954, 758921, 758922, 758929
Set contains one black and one red clip
1000 Vrms-CAT II
2 pieces (red and black) in 1 set
Connected to the 758933, 758917, or 701901
Length: 0.3m
Applicable for DL750/DL750P, SL1000, SL1400
Connected to the 700929, 701947
Maximum input voltage: 1,000V (DC + ACpeak)
Length: 0.26m/0.3m/0.4m
Applicable for DL750/DL750P, SL1000, SL1400
Set contains one black and one red clip.
1000 Vrms-CAT II.
- Yokogawa 758929 Alligator Clip Adapter
- Rated at 1000V
- Attaches to 758917 test leads
- Sold in pairs black/red
Rated at 300 V. Attaches to the 758917 test leads. Sold in pairs.
- 758921 Fork Terminal Adapters
- For fitting a 4mm banana plug to a fork terminal
- One black and one red clip
- 1000 Vrms-CAT II
Two adapters to a set for 5 A current
(screw-fastened type using B9317WD)
- 366924 BNC to BNC cable for oscilloscope
- 1m BNC wire
- Simultaneous measurement with 2 units
- Input external trigger signal
BNC-BNC 2m. For connection to simultaneously measurement with 2 units, or for input external trigger signal.
- 1 m long BNC to alligator clip cable
- Only for circuits with voltage levels no greater than 42 V
- Applicable for DL750/DL750P, SL1000 & SL1400
A subassembly of 1.2 m long test leads with alligator-clip adapters.
Use only for circuits having voltage levels no greater than 42 V.
Applicable for SL1000 & SL1400.
This cable is used to connect an external device, however, do not use this cable for purposes other than DL750/1600/1700/1700E/7400 GO/NO-GO judgement.
- 701919 oscilloscope probe stand
- Flexible arm, heavy base to hold and stabilize 8-13mm probes
- Can simplify circuit board testing
- Quality thermal printer paper for DL750P and the SL1400.
- Paper width: 210 mm (A4 size)
- Paper length: 20 m
- Order Qty: 6 (1set)
Three pockets are provided for storing accessories and the user’s manual.
Three pockets are provided for storing accessories and the user’s manual.
- A1105JC DC Power Supply Connector
- For DC power supply model (-DC)
- DC100 Data Collector accessory
- Rack mount kit for DLM4000/DLM5000/DLM5000HD Mixed Signal Oscilloscope series
- EIA/JIS standard compliant
- DLM Micro USB Cable
- 701982-01 Connection cable for DLM 1.0 m
- 701982-02 Connection cable for DLM 2.8 m
- Wide-bandwidth high-voltage differential probe
- 400 MHz bandwidth
- Max. differential voltage: ±1000V (DC + ACpeak) at 500:1
- Probe power: Dedicated probe interface for DLM3000, DLM3000HD, DLM5000, DLM5000HD
- Wide-bandwidth high-voltage differential probe
- 400 MHz bandwidth
- Max. differential voltage: ±2000V (DC + ACpeak) at 1000:1
- Probe power: Dedicated probe interface for DLM3000, DLM3000HD, DLM5000, DLM5000HD
For safety, metal parts of the probe body and the BNC connector are insulated except the probe tip.
Oscilloscope and ScopeCorder BNC connectors accommodate the 758924 Conversion adapter for fitting a 4 mm wide banana jack, and the 366923 T-adapter for voltage measurements under 42 V.
Oscilloscope connectors include:
- A1105JC DC power supply connector for the DC power supply model
- A1002JC NDIS connector for direct connection to a strain module
High-voltage measurement accessories such as the 701902/701903 Safety BNC cable enable safe, high-voltage measurements when used with the DL350, DL950, and SL1000 isolated input modules.
Oscilloscope Cables include:
- BNC cables
- 366973 Go/No-Go cable for DLM series to connect an external device
- 701982 Connection cable for synchronous operation of DLM5000 (DLMsync)
- ScopeCorder DC power cables and synchronous connecting cables
Oscilloscope Adapters:
- Solder-in probe adapters, BNC adapters, printed circuit board adapter, and 4mm conversion adapters for probes
- Conversion adapters
If used with differential probes such as the 700924, 701927 etc. the specifications of the maximum input voltage and frequency bandwidth may change:
- Small and large high-voltage measurement alligator clip adapters
- Fork terminal adapters
See Probes and Accessories for Oscilloscopes for Combination examples of measurement leads with appropriate clips/adapters for safe measurement.
