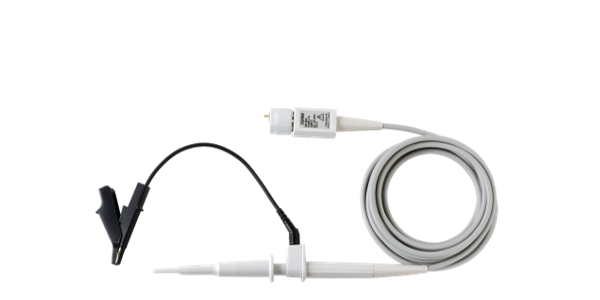

701937 Passive probe 600V / 500 MHz
|
Bandwidth |
: |
DC to 500 MHz |
|
Attenuation |
: |
10:1 |
|
Input Resistance |
: |
10 MΩ |
|
Input Capacitance |
: |
10.5 pF |
|
Max. Input Voltage |
: |
600 V (DC + ACpeak) or 424 Vrms CAT II |
|
Probe length |
: |
1.3 m |
|
Supplied standard with DLM3000, DLM5000 series |
||
- Bandwidth: DC to 500MHz (-3dB)
- Attenuation Ratio: 10:1
- Input resistance: 10MΩ
- Input capacitance: 10.5 pF
- Compensation Range: unspecified
- Rise Time: 700 ps
- Max. input voltage: 600V (DC + ACpeak) or 424 Vrms
- Probe Length (coax): 1.3 meter
- Standard accessories include: ground lead, pinchers tip, IC test tip, spring ground, marker tip
Supplied standard with DLM3000/DLM5000.
