AQ2300 Series Test Platform

The AQ2300 Series is Yokogawa's advanced test solution for silicon photonics, semiconductors, optical fibers, passive components, and optical communications equipment. It builds on the AQ2200’s performance with faster processing, higher module density, improved data transfer speed and storage capacity.

With a new optical power meter module and SMU synchronization, the AQ2300 is designed to boost measurement efficiency — helping you meet the demands of automated testing with precision and speed.

Drag and Drop Capability |AQ2300 Series Manufacturing Test Platform | Yokogawa Test&Measurement
  • 3-slot and 9-slot frame controllers
  • Synchronized trigger I/O by frame or module
  • USB, Ethernet, GPIB (optional)

*The AQ2200 series modules other than the AQ2200-232 and AQ2200-242 sensor heads cannot be used.

Covers Applications from R&D to Production

Frame Features

The frames are available in 3-slot or 9-slot types and can be flexibly adapted to small and medium-sized measurement systems.

  • Expandable up to 18 channels with 2-channel modules
  • Digital I/O interface can be selected
  • 3-trigger synchronization systems
  • Simplified response adjustment
  • High-speed data transfer
  • Measurement data storage up to 100 k points per channel
  • Channel-to-channel and module-to-module isolation
  • Hot swappable modules

Digital I/O (Factory Option)

Receives the start-of-operation signal from external equipment and sends the end-of-operation signal to external equipment.

Digital I/O Interface Port Configurations

Digital I/O Interface Port Configurations | AQ23811A Source Measure Unit | Yokogawa Test&Measurement

Save polling operations to monitor the timing of voltage or current generation start and end.

Various Trigger Synchronization Functions

The AQ2300 series SMU have trigger ports not only on the frame side, but also on each channel of the SMU. In addition, in-frame synchronization functionality is also provided, allowing flexible selection of the connection method.

Synchronize Frame with External Equipment | AQ23811A Source Measure Unit | Yokogawa Test&Measurement
Synchronize Frame with External Equipment


Synchronize Channel with External Equipment | AQ23811A Source Measure Unit | Yokogawa Test&Measurement
Synchronize Channel with External Equipment


Synchronize SMU Channels | AQ23811A Source Measure Unit | Yokogawa Test&Measurement
Synchronize SMU Channels

Faster Data Transmission Speeds

Reduce the time between measurements for significantly improved operational efficiency.

Faster Data Transmission Speeds | AQ23811A Source Measure Unit | Yokogawa Test&Measurement

50001 points I/V Measuring time (using Ethernet)

Fewer Measurement Segments

Store measurement data up to 100 k points per channel to reduce the number of measurement segments or files.

Fewer Measurement Divisions | AQ23811A Source Measure Unit | Yokogawa Test&Measurement

Example of stored data
Note: Please refer to the manual for the actual format.

Application

The frame has useful applications installed.

  • Sweep measurement for optical power meters and source measure units
  • Logging measurement for optical power meters
  • Display of images of end-face observations of optical connectors

Application menu

Application menu

Logging graph display

Logging graph display

End face image

End face image

Source and Measurement Functions

Accommodate different function combinations for each channel in each slot:

  • Voltage or Current
  • Generation or Measurement
  • Generation and Measurement

Source and Measurement Functions | AQ23811A Source Measure Unit | Yokogawa Test&Measurement

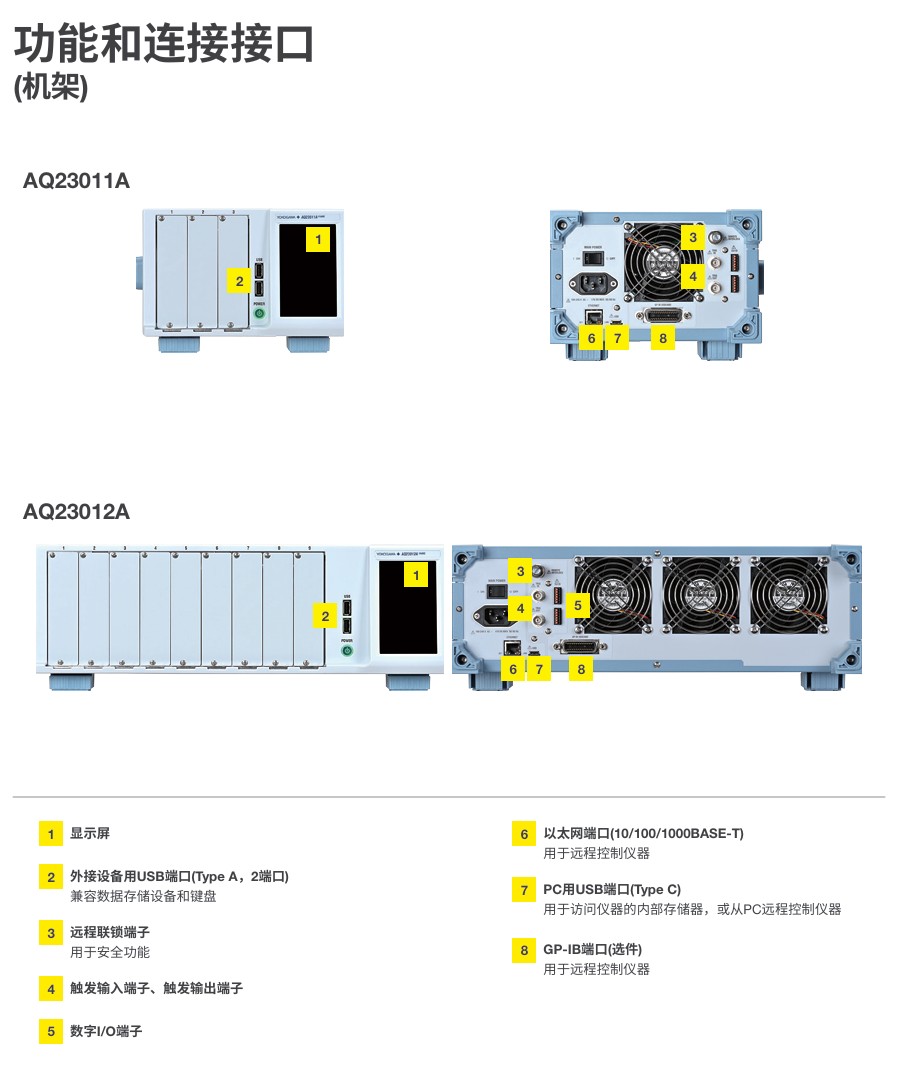

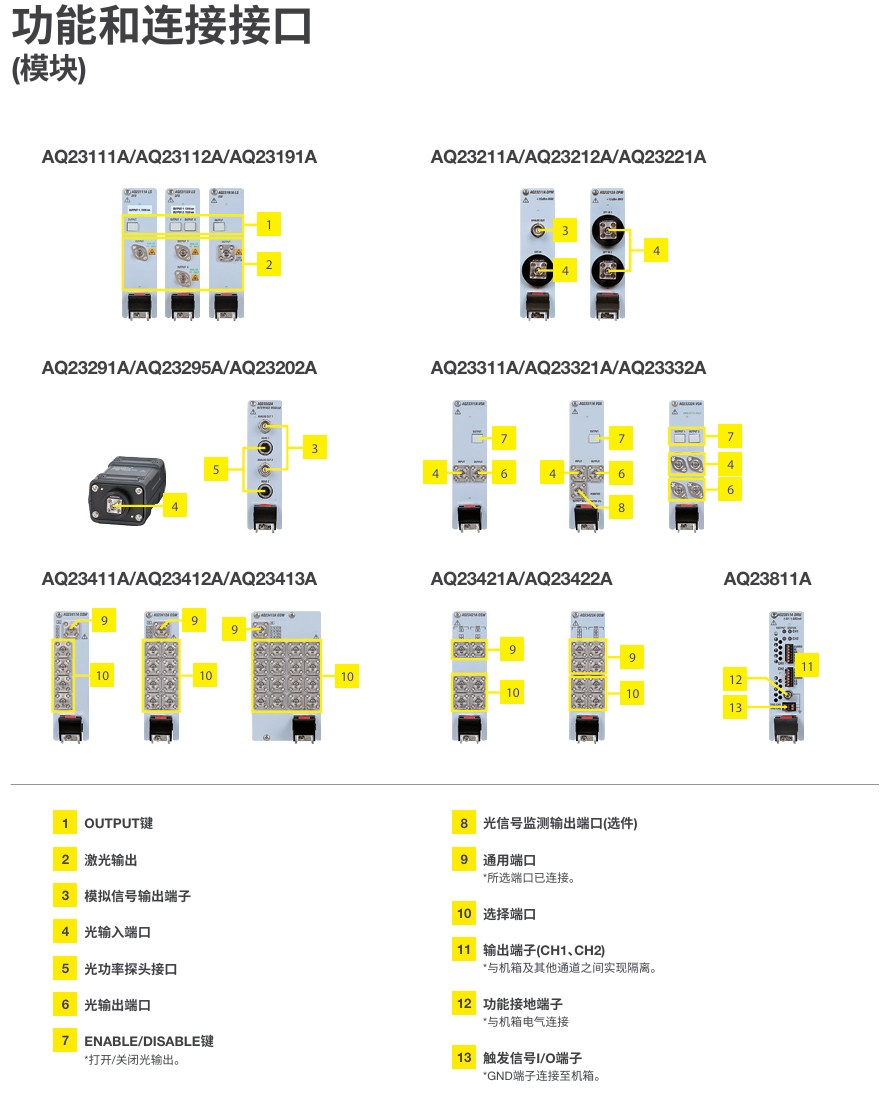

Connection Interfaces

AQ2300 Series Source Measure Unit Connection Interfaces | Yokogawa Test&Measurement

AQ2300 Series Source Measure Unit Connection Interfaces | Yokogawa Test&Measurement

AQ2300 Series Manufacturing Test Platform Models

AQ2300 Series Modular Source Measure Unit Frame Models | Yokogawa Test&Measurement
