随着能源利用效率不断受到重视，市场对更高精度和更可靠的功率分析仪的需求也在日益增长。功率分析、待机功耗、变压器和逆变器效率，以及由变频器、电机、照明电路、电源等导致的波形失真等都需要精确可靠的测量。作为全球最大的能源和功率分析仪器制造商，YOKOGAWA可以为您提供多种不同领域的选择，其中包括(WT5000高精度功率分析仪、WT1800E高性能功率分析仪、WT300E系列数字功率计、WT500功率分析仪 、CW500电能质量分析仪等)可以满足您的需求。而且仪器主机享受三年质保。
YOKOGAWA功率分析仪测量技术不仅可以提供一流的精度和稳定性，也可以使精度、可读性、同步测量功能、高级运算以及谐波分析和闪变测量功能实现最佳性能。
| 型号 | WT5000 | WT1800E | PX8000 | WT500 | WT300E |
|---|---|---|---|---|---|
| 外观 |
|
|
 |
|
|
| 输入通道数 | 1 - 7 | 1 - 6 | 1 - 4 | 1 - 3 | 1, 2 or 3 |
| 基本功率精度(50/60 Hz) | 读数的0.01%+ 量程的0.02% |
读数的0.05%+ 量程的0.05% |
读数的0.1% + 量程的0.1% |
读数的0.1% + 量程的0.1% |
读数的0.1%+ 量程的0.05% |
| 带宽 | DC，0.1Hz~10MHz | DC，0.1Hz~5MHz | DC，0.1Hz~20MHz | DC，0.1Hz~1MHz | DC，0.1Hz~100kHz |
横河可以支撑您自信的进行精准测量：
- 在广泛的范围和带宽上保证精度
- 标准机构的首选
- 针对众多行业应用的解决方案
- 丰富的技术支持和培训资源
精度 – 在同类功率分析仪器中， WT1800E能保证功率精度达到“ 读数的0.05% + 量程的0.05%” ， 它可以执行多达500次谐波分析(50/60Hz基波频率)。
可靠 – 测量需要重复执行并需要追求准确性。WT1800E稳定性极高， 无论现在还是将来， 都可以确保完成精准的测量。
灵活 – WT1800E不但拥有最多6输入通道、 宽量程显示和分析功能， 还可以和电脑相连接，能在功率效率和谐波分析领域为客户提供广泛的测量解决方案。
WT300E系列数字功率计是久负盛名的横河（Yokogawa）紧凑型功率计的第五代产品。横河的功率计产品在确保能耗标准和电气设备功耗测量的领域中长期扮演至关重要的角色。 WT300E系列包括：WT310E单相输入型；WT310EH单相输入/大电流型；WT332E 2输入单元型；WT333E 3输入单元型，精度为读数的0.1% +量程的0.05%。 WT310E提供的电流测量功能最低到50微安左右，高至26安培RMS，能够轻松支持客户测试自己的产品是否符合能源之星、SPECpower 、IEC62301 / EN50564等标准 ，进行电池和待机功耗等低水平电压测试，使用WT300E系列无疑是这些应用领理想解决方案。
YOKOGAWA CW500电能质量分析仪是一款使用电流钳的便携式现场功率测量仪器，适用于供电线路的功耗测量及电能质量分析。可捕捉短时间的功率故障，符合IEC 61000-4-30 Class S标准。
Request a Quote
Conditions
Input Channels >= Frequency >= ADC Resolution >= ADC Sampling rate >= Voltage >=
|
Model Code
|
WT5000
|
WT1801E to WT1806E
|

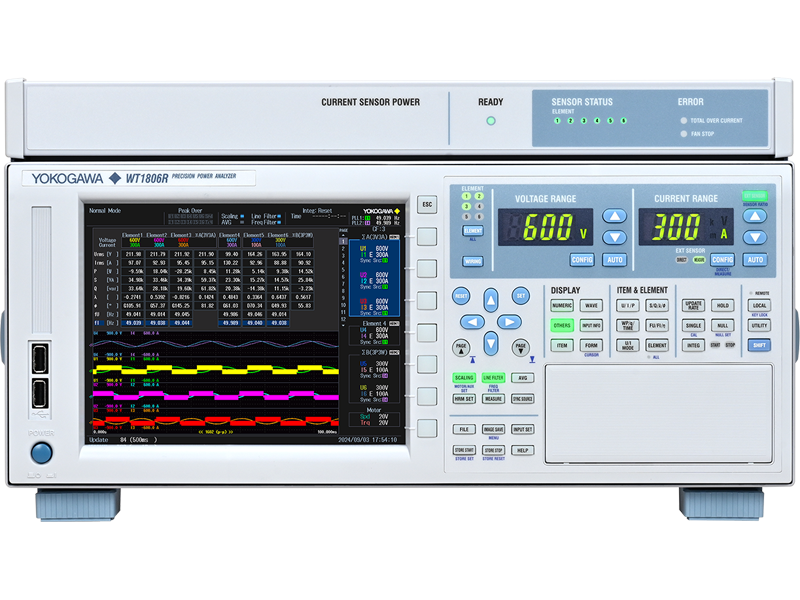

WT1801R to WT1806R
|
760201 to 760203
|
WT310E
|
WT310EH
|
WT332E/WT333E
|
PX8000
|
CW500
|
|
Number of Input Channels
|
Max. 7
|
WT1801E: 1 WT1802E: 2 WT1803E: 3 WT1804E: 4 WT1805E: 5 WT1806E: 6
|
WT1801R: 1 WT1802R: 2 WT1803R: 3 WT1804R: 4 WT1805R: 5 WT1806R: 6
|
760201: 1 760202: 2 760203: 3
|
1
|
1
|
WT332E: 2 WT333E: 3
|
Max. 4
|
With the same voltage; Single-phase 2-wire: 4 systems, single-phase 3-wire: 2 systems, three-phase 3-wire 2-current: 2 systems
|
|
Basic Power Accuracy (50/60 Hz)
|
0.01% of reading + 0.02% of range
|
0.05% of reading + 0.05% of range
|
0.05% of reading + 0.05% of range
|
0.1% of Reading + 0.1% of range
|
0.1% of reading + 0.05% of range
|
0.1% of reading + 0.05% of range
|
0.1% of reading + 0.05% of range
|
0.1% of Reading + 0.1% of range
|
±(0.8% rdg + 0.2% rng) when using clamps 96061, 96062, 96063, 96064, ±(1.1% rdg + 0.2% rng) when using clamp 96065, ±(1.3% rdg + 0.2% rng) when using clamp 96066,
|
|
Power Frequency Range
|
DC and 0.1 Hz to 1 MHz
|
DC and 0.1 Hz to 1 MHz
|
DC and 0.1 Hz to 1 MHz
|
DC and 0.5 Hz to 100 kHz
|
DC and 0.1 Hz to 100 kHz
|
DC and 0.1 Hz to 20 kHz
|
DC and 0.1 Hz to 100 kHz
|
DC and 0.1 Hz to 1 MHz
|
45 to 70Hz
|
|
A/D Converter
|
18-bit Max. 10 MS/sec
|
16-bit 2 MS/sec
|
16-bit 2 MS/sec
|
16-bit 100 kS/sec
|
16-bit 100 kS/sec
|
16-bit 100 kS/sec
|
16-bit 100 kS/sec
|
12-bit Max. 100 MS/sec
|
-
|
|
Voltage Ranges
|
1.5/ 3/ 6/ 10/ 15/ 30/ 60/ 100/ 150/ 300/ 600/ 1000 V (crest factor CF3)
|
1.5/ 3/ 6/ 10/ 15/ 30/ 60/ 100/ 150/ 300/ 600/ 1000 V (crest factor3)
|
1.5/ 3/ 6/ 10/ 15/ 30/ 60/ 100/ 150/ 300/ 600/ 1000 V (crest factor3)
|
15/ 30/ 60/ 100/ 150/ 300/ 600/ 1000 V (crest facter 3)
|
15/ 30/ 60 /150/ 300/ 600 V (crest facter 3)
|
15/ 30/ 60 /150/ 300/ 600 V (crest facter 3)
|
15/ 30/ 60 /150/ 300/ 600 V (crest facter 3)
|
1.5/ 3/ 6/ 10/ 15/ 30/ 60/ 100/ 150/ 300/ 600/ 1000 V(crest facter 3)
|
600V, 1000 V
|
|
Current Ranges
|
Direct input (5 A element): 5 m/ 10 m/ 20 m/ 50 m/ 100 m / 200 m/ 500 m / 1/ 2/ 5 A (crest factor CF3) External current sensor input - 50 m/ 100 m/ 250 m/ 500 m / 1/ 2.5/ 5/ 10 V (crest factor CF3) Direct input (30 A element): 0.5/ 1/ 2/ 5/ 10/ 20/ 30 A (crest factor CF3) External current sensor input - 50 m/ 100 m/ 250 m/ 500 m / 1/ 2.5/ 5/ 10 V (crest factor CF3)
|
Direct input (5 A element): 10 m/ 20 m/ 50 m/ 100 m / 200 m/ 500 m / 1/ 2/ 5 A (crest factor3) External current sensor input - 50 m/ 100 m/ 250 m/ 500 m / 1/ 2.5/ 5/ 10 V (crest factor3) Direct input (50 A element): 1/ 2/ 5/ 10/ 20/ 50 A (crest factor3) External current sensor input - 50 m/ 100 m/ 250 m/ 500 m / 1/ 2.5/ 5/ 10 V (crest factor3)
|
Direct input (5 A element): 10 m/ 20 m/ 50 m/ 100 m / 200 m/ 500 m / 1/ 2/ 5 A (crest factor3) External current sensor input - 50 m/ 100 m/ 250 m/ 500 m / 1/ 2.5/ 5/ 10 V (crest factor3) Direct input (50 A element): 1/ 2/ 5/ 10/ 20/ 50 A (crest factor3) External current sensor input - 50 m/ 100 m/ 250 m/ 500 m / 1/ 2.5/ 5/ 10 V (crest factor3)
|
Direct input: 0.5/ 1/ 2/ 5/ 10/ 20/ 40 A (crest facter 3) External input (optional): External input - 50 m/ 100 m/ 200 m/ 500 m / 1/ 2/ 5/ 10 V (crest facter 3)
|
Direct input: 5 m / 10 m/ 20 m/ 50 m/ 100 m/ 200 m/ 500 m/ 1/ 2/ 5/ 10/ 20 A (crest facter 3) External input (optional): 2.5/ 5/ 10 V or 50 m/ 100 m/ 200 m/ 500mV/ 1/ 2 V (crest facter 3)
|
Direct input: 1/ 2/ 5/ 10/ 20/ 40 A (crest facter 3) External input (optional): 2.5/ 5/ 10 V or 50 m/ 100 m/ 200 m/ 500mV/ 1/ 2 V (crest facter 3)
|
Direct input: 0.5/ 1/ 2/ 5/ 10/ 20 A (crest facter 3) External input (optional): 2.5/ 5/ 10 V or 50 m/ 100 m/ 200 m/ 500mV/ 1/ 2 V (crest facter 3)
|
Direct input: 10 m/ 20 m/ 50 m/ 100 m/ 200 m/ 500 m/ 1/ 2/ 5 A(crest facter 3) External input: 50 m/ 100 m/ 200 m/ 500mV/ 1/ 2/ 5/ 10 V(crest facter 3)
|
96060 (2A) 2000mA *Leakage current only 96061 (50A) 5000mA/50.00A/AUTO 96062 (100A) 10A/100A/AUTO 96063 (200A) 20A/200A/AUTO 96064 (500A) 50A/500A/AUTO 96065 (1000A) 100A/1000A/AUTO 96066 (3000A) 300A/1000A/3000A
|
|
Continuous Allowable Max. Input Voltage
|
Peak voltage of 1.6 kV or RMS of 1.5 kV, whichever is lower
|
Peak voltage of 2 kV or RMS of 1.1 kV, whichever is lower
|
Peak voltage of 2 kV or RMS of 1.1 kV, whichever is lower
|
The peak is 1.5 kV, or the RMS of 1kV, whichever is less.
|
Peak voltage of 1.5 kV or RMS of 1.0 kV, whichever is lower
|
Peak voltage of 1.5 kV or RMS of 1.0 kV, whichever is lower
|
Peak voltage of 1.5 kV or RMS of 1.0 kV, whichever is lower
|
Peak voltage of 2 kV or RMS of 1.1 kV, whichever is lower
|
1200 Vrms
|
|
Continuous Allowable Max. Input Current
|
Direct input (5 A element): Peak current of 10 A or RMS of 7 A (whichever is lower.), Direct input (30 A element): Peak current of 90 A or RMS of 33 A (whichever is lower.) External Current Sensor Input - Peak not to exceed 5 times range-value or 25 V (whichever is lower)
|
Direct input (5 A element): Peak current of 10 A or RMS of 7 A (whichever is lower.), Direct input (50 A element): Peak current of 150 A or RMS of 55 A (whichever is lower.) External Current Sensor Input - Peak not to exceed 5 times range-value
|
Direct input (5 A element): Peak current of 10 A or RMS of 7 A (whichever is lower.), Direct input (50 A element): Peak current of 150 A or RMS of 55 A (whichever is lower.) External Current Sensor Input - Peak not to exceed 5 times range-value
|
Direct input: The peak is 100 A, or RMS is 45 A, whichever is less. External input: The peak is 5 times the range or less.
|
Direct input: 5-200 mA Peak current of 30 A or RMS of 20 A (whichever is less.), 0.5-20 A Peak current of 100 A or RMS of 30 A (whichever is less.) External input: Peak value of 5 times range or less.
|
Direct input: 1-20 A Peak current of 100 A or RMS of 44 A (whichever is less.) External input: Peak value of 5 times range or less.
|
Direct input: 0.5-20 A Peak current of 100 A or RMS of 30 A (whichever is less.) External input: Peak value of 5 times range or less.
|
Direct input: 8.5 A Peak or RMS of 6 A (whichever is less.) External input: Peak value of 4 times range or less.
|
96060 (2A) 60Arms 96061 (50A) 130Arms 96062 (100A) 100Arms 96063 (200A) 250Arms 96064 (500A) 500Arms 96065 (1000A) 1300A 96066 (3000A) 3600A
|
|
Display Type
|
10.1-inch color TFT LCD with touch screen
|
8.4-inch color TFT LCD
|
8.4-inch color TFT LCD
|
5.7-inch TFT color LCD
|
7 segment LED 4 displays
|
7 segment LED 4 displays
|
7 segment LED 4 displays
|
10.4 inch color TFT LCD
|
3.5-inch TFT color LCD (320 x 240 Pixel)
|
|
Measuring Items
|
U, I, P, S, Q, Power factor, Frequency, Efficiency, Phase angle, Upk, Ipk, f, Wp, q, CF, FF, Impedance, Rs, Rp, Xs, Xp, Pc, Harmonic, Fundamental values
|
U, I, P, S, Q, Power factor, Efficiency, Phase angle, Upk, Ipk, f, Wp, q, CF, FF, Impedance, Rs, Rp, Xs, Xp, Pc, Harmonic
|
U, I, P, S, Q, Power factor, Efficiency, Phase angle, Upk, Ipk, f, Wp, q, CF, FF, Impedance, Rs, Rp, Xs, Xp, Pc, Harmonic
|
U, I, P, S, Q, PF, efficiency, phase angle, Upk, Ipk, f, CF, Harmonic
|
U, I ,P, S, Q, PF,phase angle, Upk, Ipk, UHz, IHz, Wh, q, CF,Harmonic
|
U, I ,P, S, Q, PF,phase angle, Upk, Ipk, UHz, IHz, Wh, q, CF,Harmonic
|
U, I, P, S, Q, PF,phase angle, efficiency, Upk, Ipk, UHz, IHz, Wh, q, CF,Harmonic
|
U, I, P, S, Q, Power factor, Efficiency, Phase angle, Upk, Ipk, f, CF, FF, Impedance, Rs, Rp, Xs, Xp, Pc, Harmonic, THD and 24 waveform parameters
|
U, I, f, P, S, Q, Active energy, Reactive energy, Apparent energy, Pf, Phase Advancing Condensor, Neutral current, Demand, Harmonics, Power Quality (Swell/ Dip/ Interrupt/ Transient overvoltage, Inrush current, Unbalance rate. IEC flicker)
|
|
Storages
|
External USB memory, 2 GB Internal Memory (optional 32 GB inernal memory)
|
External USB memory, 32 MB Internal Memory
|
External USB memory, 1 GB Internal Memory
|
USB memory, 20MB Internal Memory
|
Internal memory normal measurement: Max 9000 blocks, normal + harmonic measurement: Max 700 blocks
|
Internal memory normal measurement: Max 9000 blocks, normal + harmonic measurement: Max 700 blocks
|
Internal memory normal measurement: WT332E: Max 4000 blocks WT333E: Max 3000 blocks, normal + harmonic measurement: WT332E: Max 300 blocks WT333E: Max 200 blocks
|
USB memory and SD memory card
|
SD Card (2 GB)
|
|
Interface
|
GP-IB, Ethernet, and USB
|
GP-IB, Ethernet, and USB
|
GP-IB(option), Ethernet, and USB
|
GP-IB, USB, Ethernet
|
USB, GP-IB or RS-232
|
USB, GP-IB or RS-232
|
USB, GP-IB or RS-232
|
GP-IB, Ethernet and USB
|
USB, Bluetooth
|
|
Optional Features
|
32 GB Internal Memory, 20-channel D/A output, Motor Evaluation Function 1, Motor Evaluation Function 2(requires select of Motor Evaluation Function 1)
|
External Current Sensor Input, Built-in printer, Harmonic Measurement, Dual Harmonic Measurement, RGB Output, 20-channel D/A output, Motor Evaluation Function, Auxiliary Inputs, Power supply for external current sensors
|
GP-IB interface, External Current Sensor Input, Harmonic Measurement, Dual Harmonic Measurement, RGB Output, 20-channel D/A output, Motor Evaluation Function, Auxiliary Inputs, Power supply for external current sensors
|
harmonic measurement, VGA output, external input, delta calculation, GP-IB, Ethernet
|
Ethernet interface, D/A output (4 channels), harmonic measurement, External current sensor input *Ethernet interface supports Modbus/TCP
|
Ethernet interface, D/A output (4 channels), harmonic measurement, External current sensor input *Ethernet interface supports Modbus/TCP
|
Ethernet interface, D/A output (12 channels), harmonic measurement, External current sensor input *Ethernet interface supports Modbus/TCP
|
Built-in printer, IRIG, Harmonic Measurement, 50M/CH Memory, 100M/CH Memory and Probe power (4-output), Power supply for external current sensors
|
-
|
|
Dimensions (W x H x D)
|
426 x 177 x 496 mm
|
426 x 177 x 459 mm 426 x 221 x 459 mm (/PD2 option)
|
426 x 177 x 459 mm 426 x 221 x 459 mm (/PD2 option)
|
213 x 177 x 409 mm
|
213 x 88 x 379 mm
|
213 x 88 x 379 mm
|
213 x 132 x 379 mm
|
355 x 259 x 180 mm 355 x 259 x 245 mm (/PD2 option)
|
120 x 175 x 68mm
|
|
Max. Weight
|
Approx. 12.5 kg (including /M1,/ MTR1 and /DA20 options without any input element)
|
WT1801E: Approx.11.6 kg WT1802E: Approx.12.3 kg WT1803E: Approx.13 kg WT1804E: Approx.13.6 kg WT1805E: Approx.14.3 kg WT1806E: Approx.15 kg /PD2 option WT1801E: Approx.13.6 kg WT1802E: Approx.14.3 kg WT1803E: Approx.15 kg WT1804E: Approx.15.6 kg WT1805E: Approx.16.3 kg WT1806E: Approx.17 kg
|
WT1801R: Approx.11.6 kg WT1802R: Approx.12.3 kg WT1803R: Approx.13 kg WT1804R: Approx.13.6 kg WT1805R: Approx.14.3 kg WT1806R: Approx.15 kg /PD2 option WT1801R: Approx.13.6 kg WT1802R: Approx.14.3 kg WT1803R: Approx.15 kg WT1804R: Approx.15.6 kg WT1805R: Approx.16.3 kg WT1806R: Approx.17 kg
|
760201: Approx.5.5 kg 760202: Approx.6.0 kg 760203: Approx.6.5 kg
|
Approx. 3 kg
|
Approx. 3 kg
|
Approx. 5 kg
|
Approx. 6.5 kg Approx. 7.5kg (/PD2 option)
|
Approx. 0.9 kg (with battery)
|
