Touch panel application menu

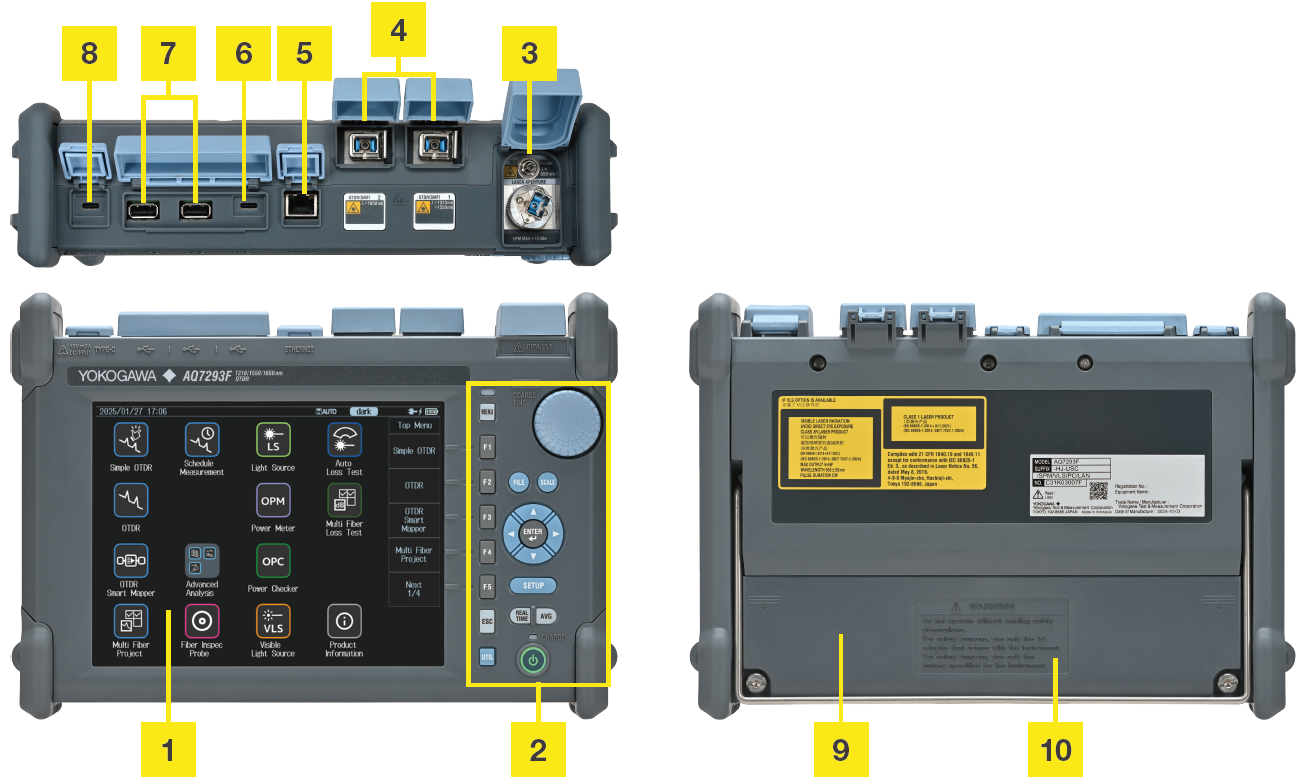

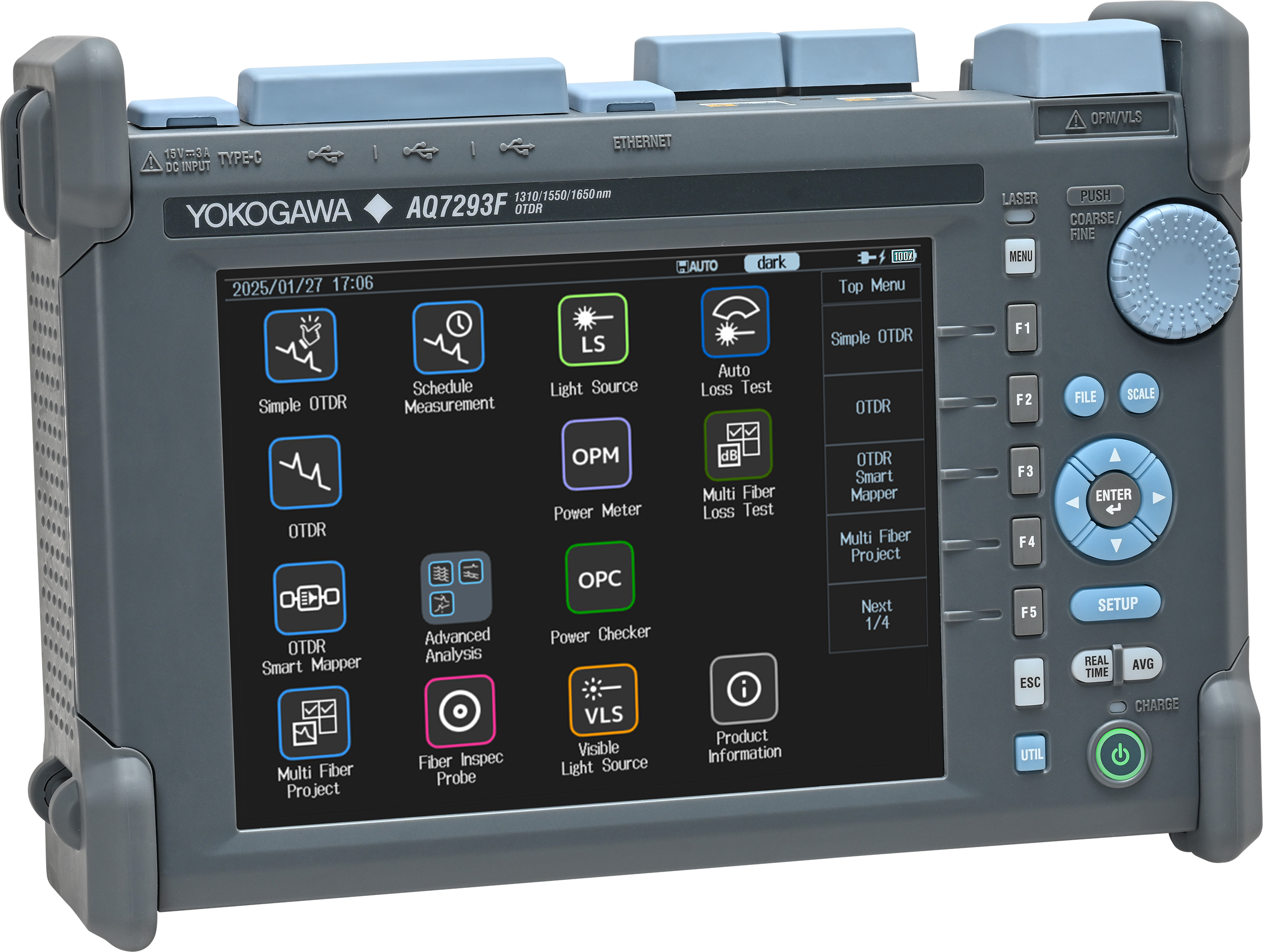

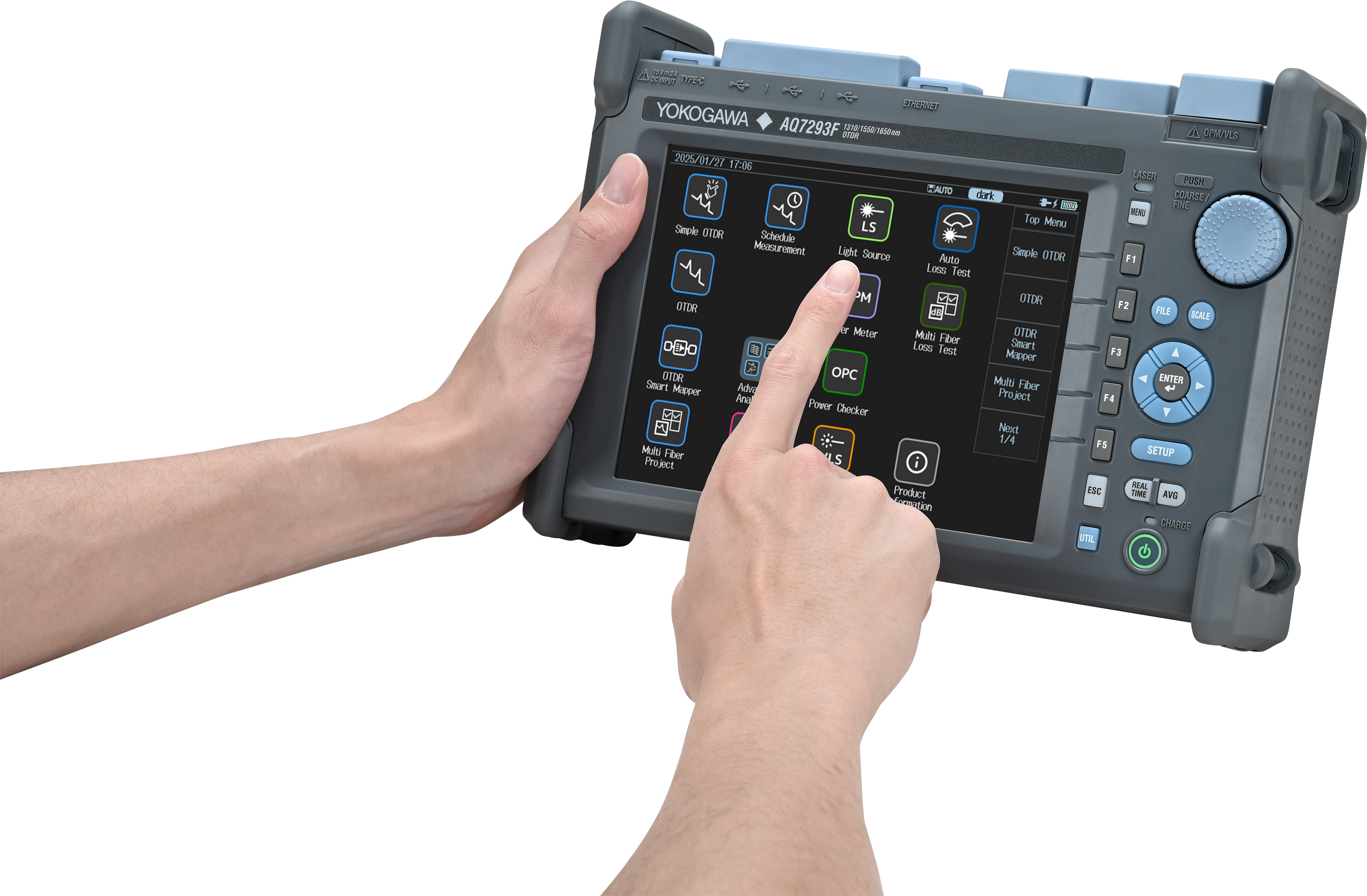

The 8.4-inch touchscreen enables intuitive operation. Select the desired function by simply tapping the icon on the main menu.

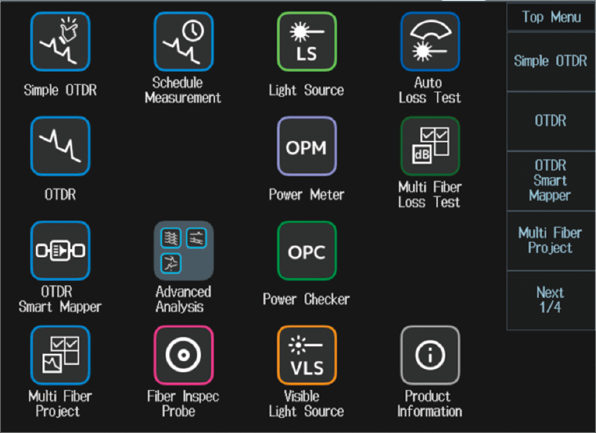

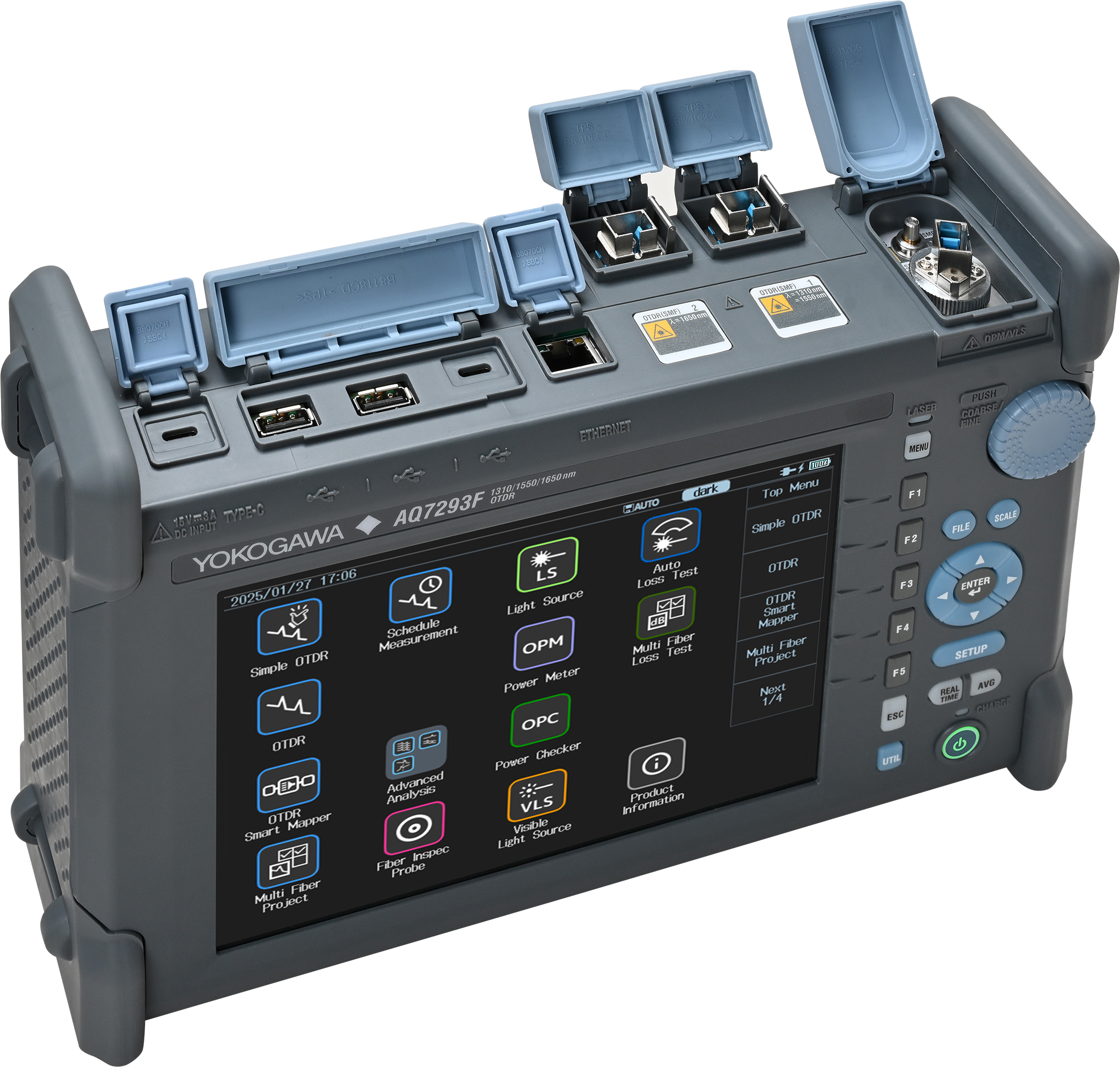

Function icons in the main menu

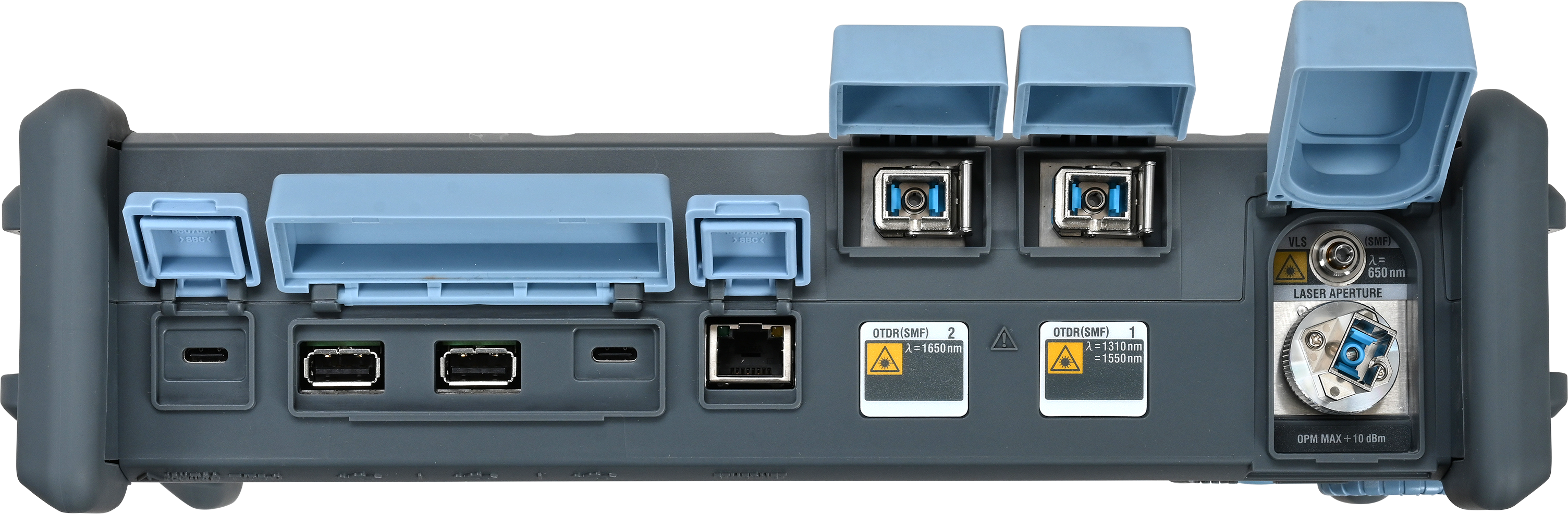

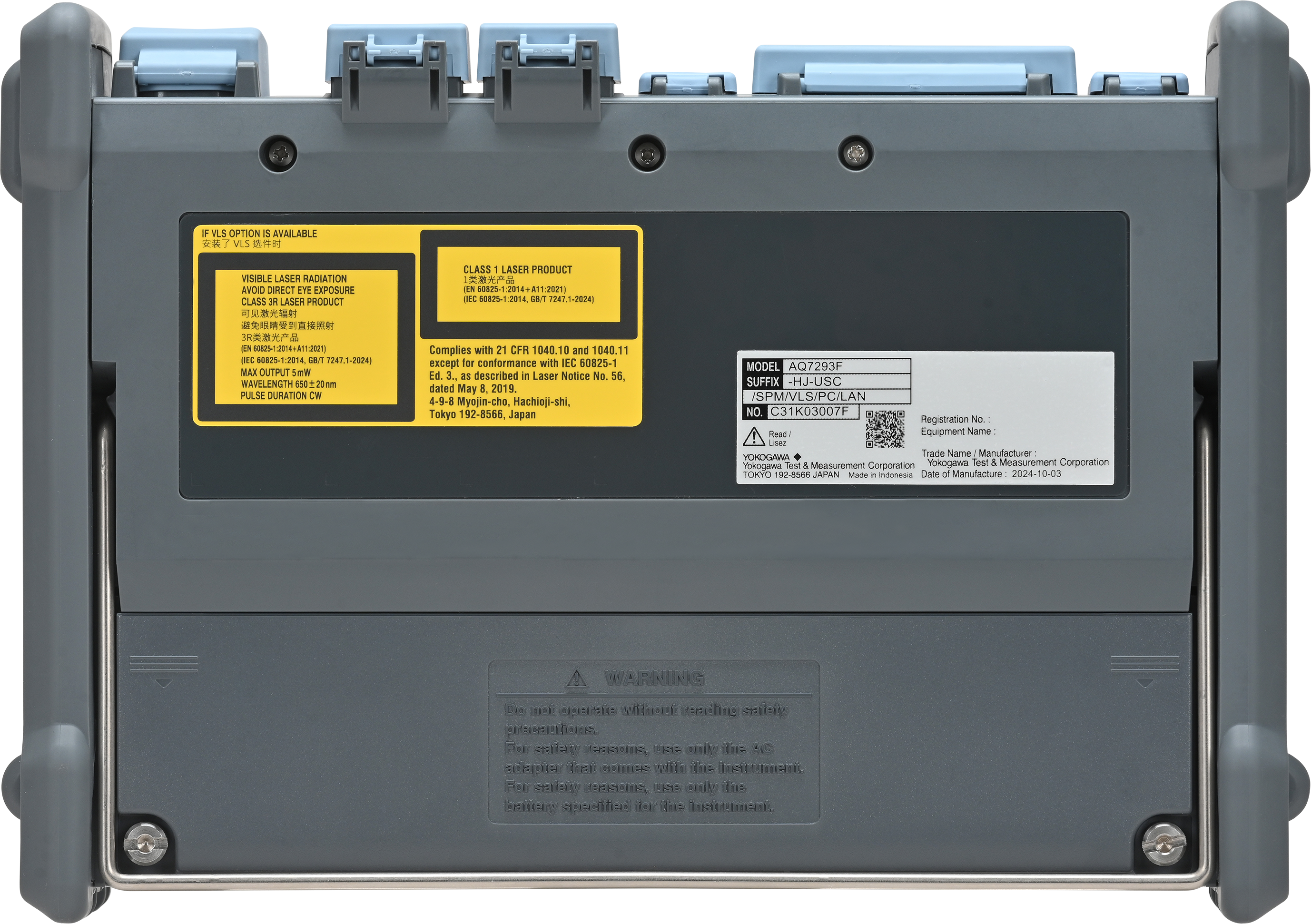

USB Type-C power supply

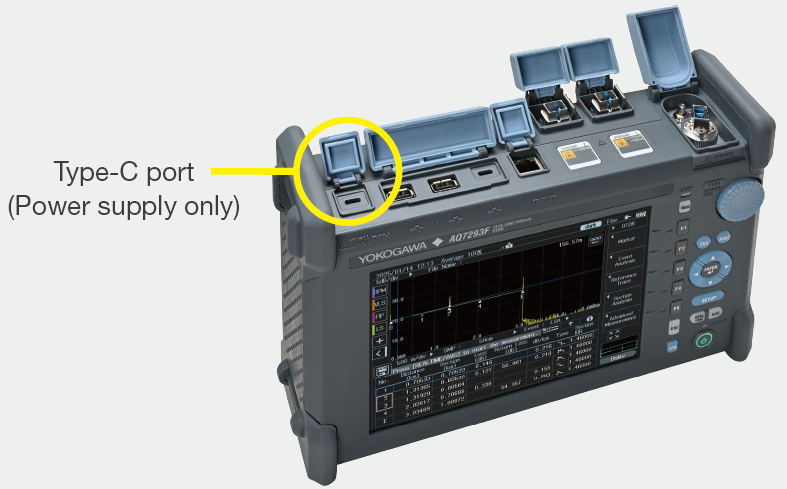

AQ7290 supports power supply from USB Type-C. It does not require a dedicated AC adapter and can be charged by using power adapter* that supports USB power delivery. In addition, It can also be powered from a mobile battery, allowing it to respond to sudden dispatch with ease.
* USB Power delivery 2.0 or later, an adapter with an output of 45 W or more is required. For details, please refer to the specifications page.

Remote control

By using a commercially available wireless LAN adapter and Wi-F router, OTDRs can be operated remotely. This allows users to operate and check OTDRs in the field from the office or home, it is ideal for business support by veterans and saving labors.

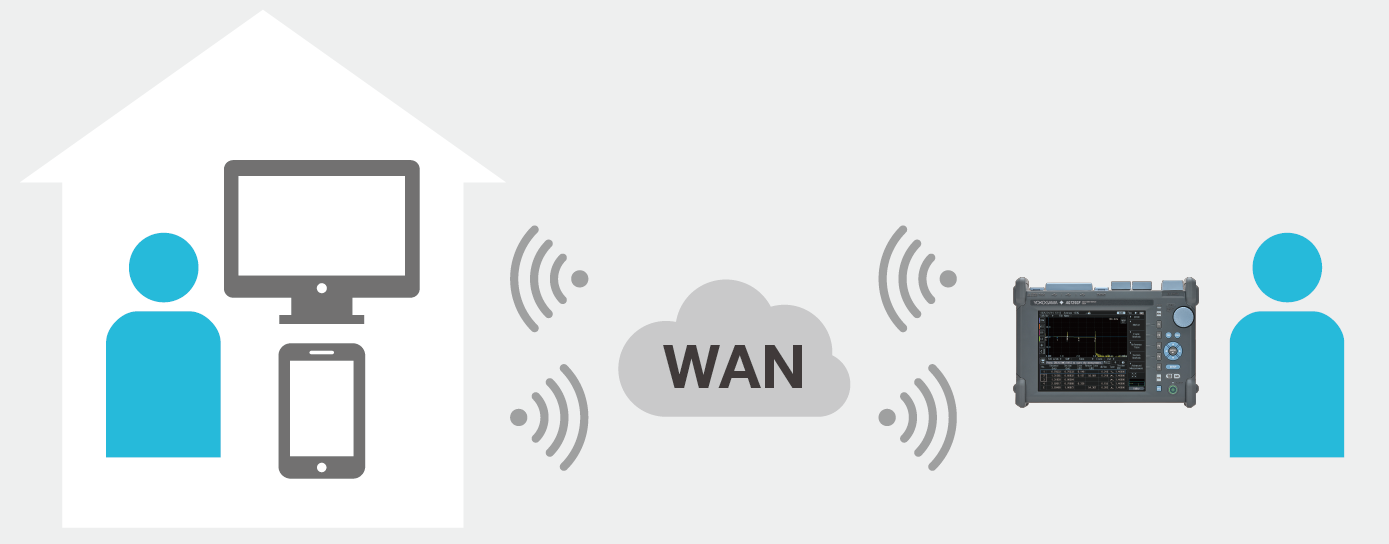

Work in the field can be checked from the office or home Start

Simple OTDR for easy measurement

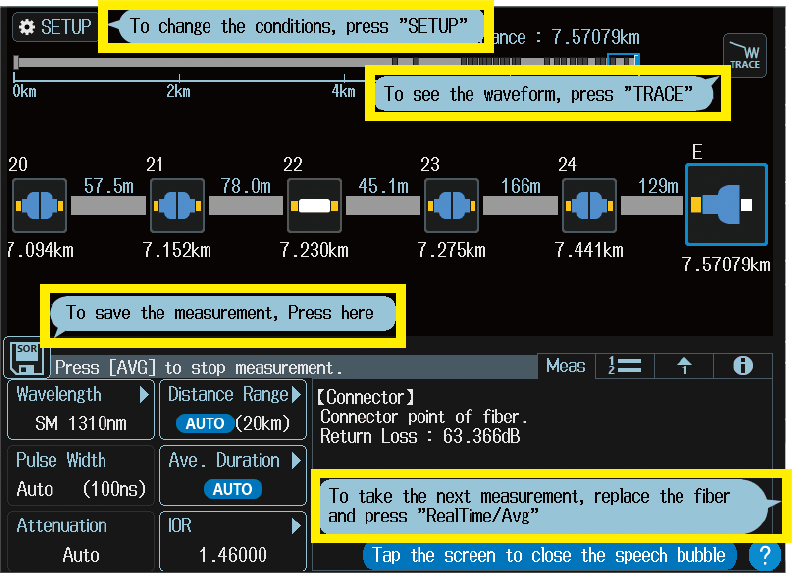

The AQ7290 has a new “Simple OTDR” function. A simple screen allows for setup and measurement, a pop-up window assists on saving and other tasks after measurement.

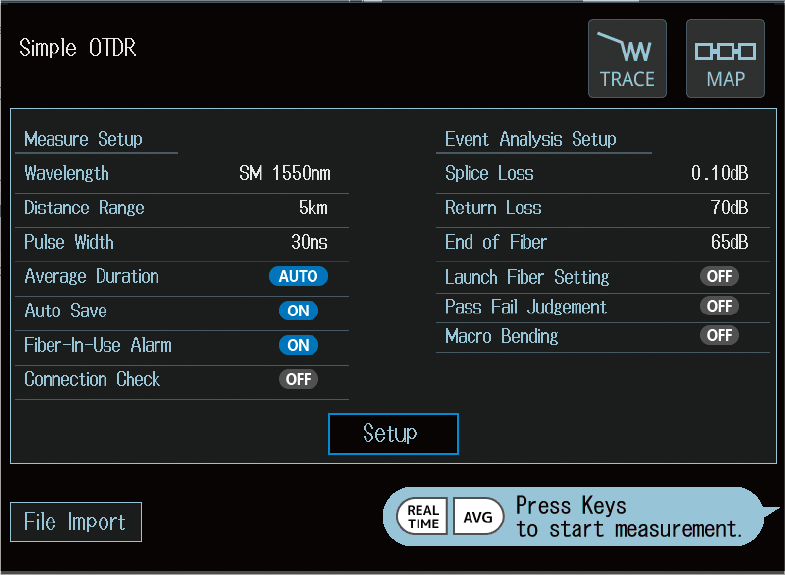

Start measurement with a single button from the settings screen

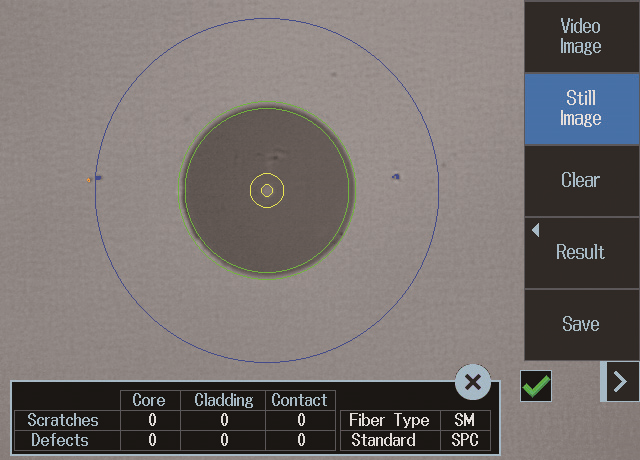

Multi-tasking

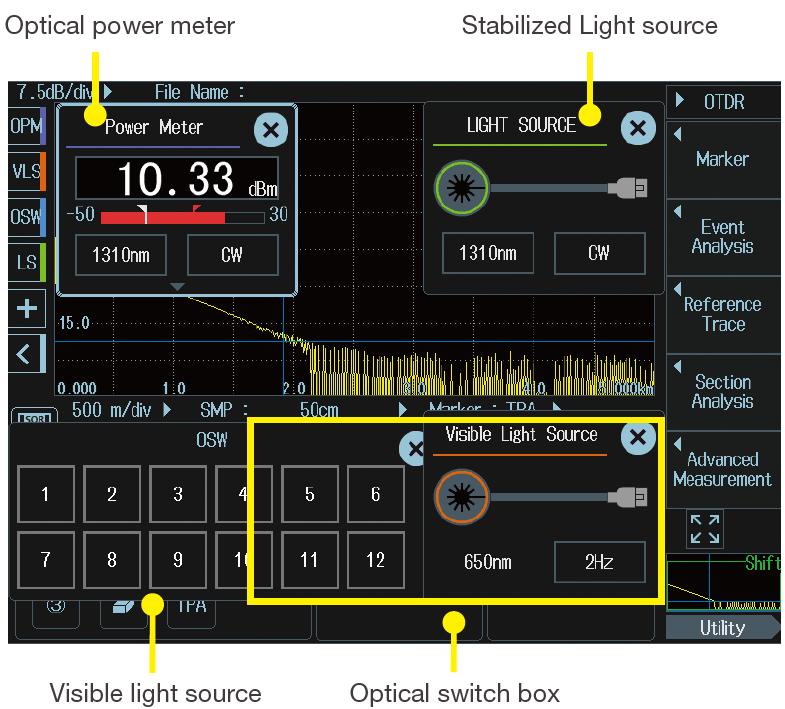

Functions other than OTDR can be used at the same time by activating them from the OTDR measurement screen. This unique multi-tasking feature reduces measurement idle time and revolutionizes the test process by enabling simultaneous parallel testing instead of serial testing. Multi-tasking features include Stabilized light source, visible light source, power checker, optical power meter, fiber surface image display, and optical switch box are available for multi-tasking.
* The stabilized light source and power checker cannot be used simultaneously with the OTDR.
Fiber inspection probe surface display and optical switch box cannot be used at the same time.

Multi-language support

The AQ7290 OTDR series offers users multiple display languages including but not limited to: Chinese, Czech, Dutch, English, Finnish, French, German, Italian, Norwegian, Polish, Portuguese, Spanish, Swedish, and Turkish.

Up to 60,000 waveforms can be stored in the int. memory.

The AQ7290 is equipped with 1 GB of internal memory. Up to 60,000 waveforms can be stored, allowing work to be performed with confidence even when large amounts of data need to be stored, such as in multi-fiber measurements.
Memory expansion with SD cards is also supported, allowing storage of up to 2 TB.

File transfer

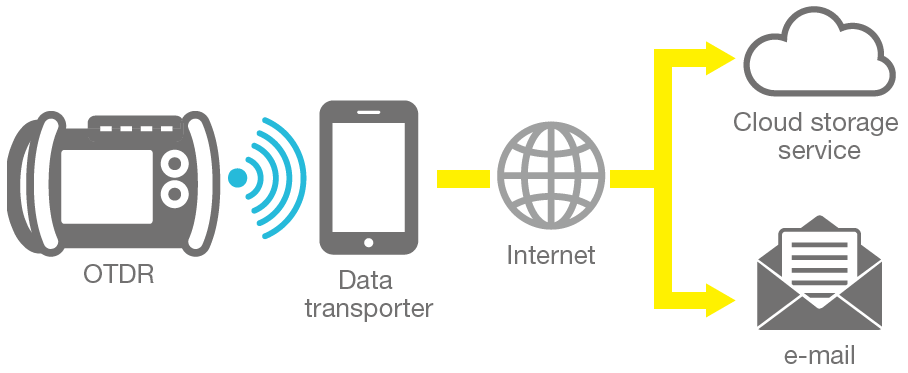

File transfers can be performed using USB, Ethernet cables, or wireless LAN adapters. Also offer Data Transfer, software that enable data transfer between OTDRs and mobile devices. Using it, file in the OTDR can be saved to cloud storage or be attached to an email by mobile device connected to the AQ7290 with wireless LAN. And also allows for simple analysis of the loaded waveforms.

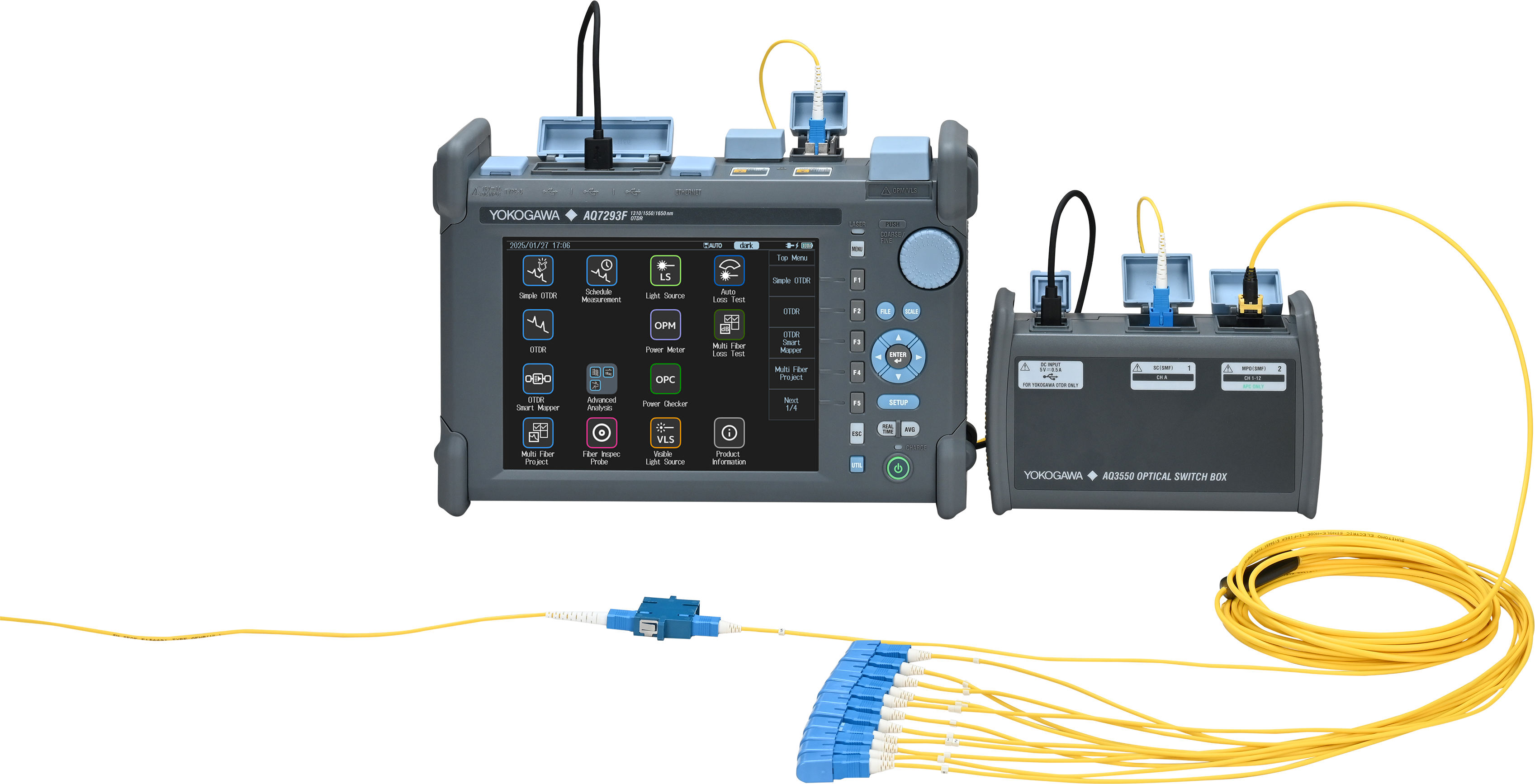

Multi-fiber Measurement

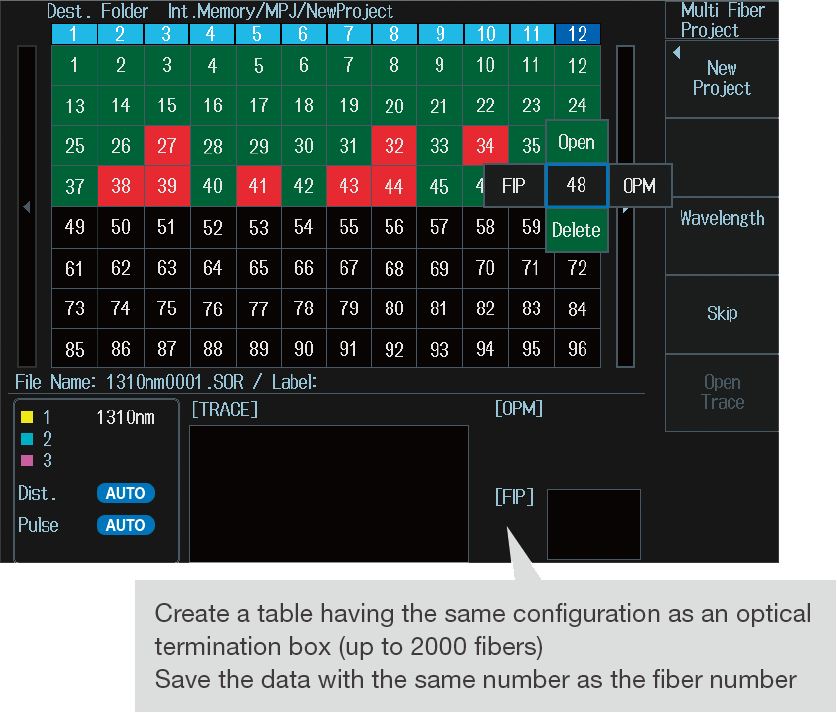

A project file is created that defines the test conditions of each fiber, with the measured data managed in a fiber number table. From here, the fiber is selected to perform tests, and once these are completed, the fiber number color changes to help prevent omission and confusion.

Simple OTDR

This feature allows you to easily perform OTDR measurements with a single button. Measurements are conducted according to pre-set conditions. There is no need for complex settings or operations, and after the measurement, a pop-up clearly indicates the next steps. This makes it easy for operators who are not familiar with using OTDR to use it with confidence.

Schedule Measurement (Monitoring function)

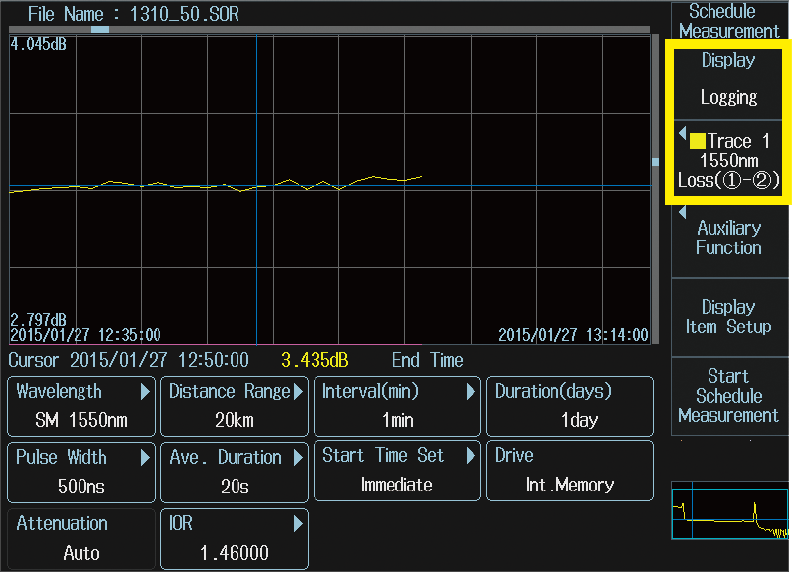

OTDR measurements are automatically performed based on user-defined intervals to detect network connection interruptions caused by intermittent events. The dB value of a fixed point and the loss over a specific section are displayed in the logging view to check changes over time. Saved trace data and logging graph data can be analyzed later.
*/MNT option of the OTDR main frame is required

Smart mapper

With Smart Mapper, users can press a single button and execute measurements, detect network events, and perform PASS/FAIL judgments. It includes a simple iconbased map view for easy interpretation of location and types of events, so even beginners can understand complex network configurations. PASS/FAIL judgments for each event are performed automatically based on thresholds specified in advance.

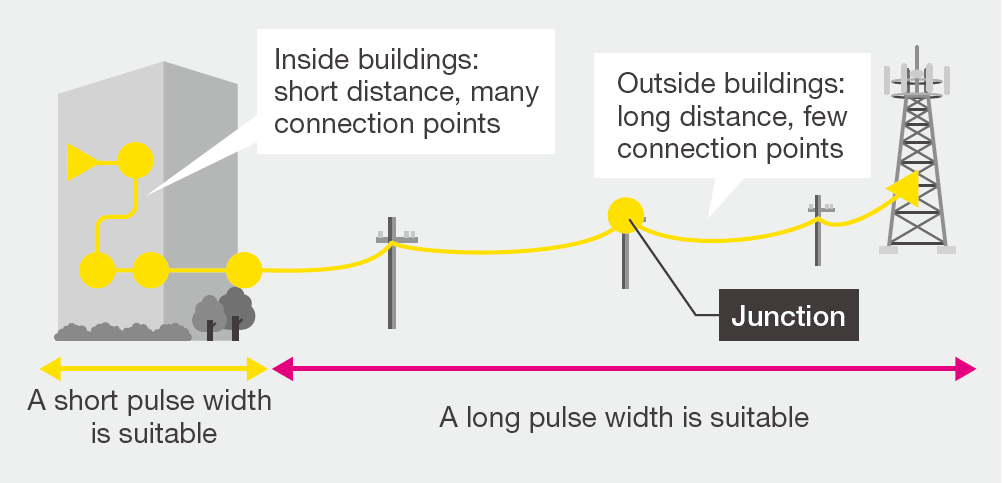

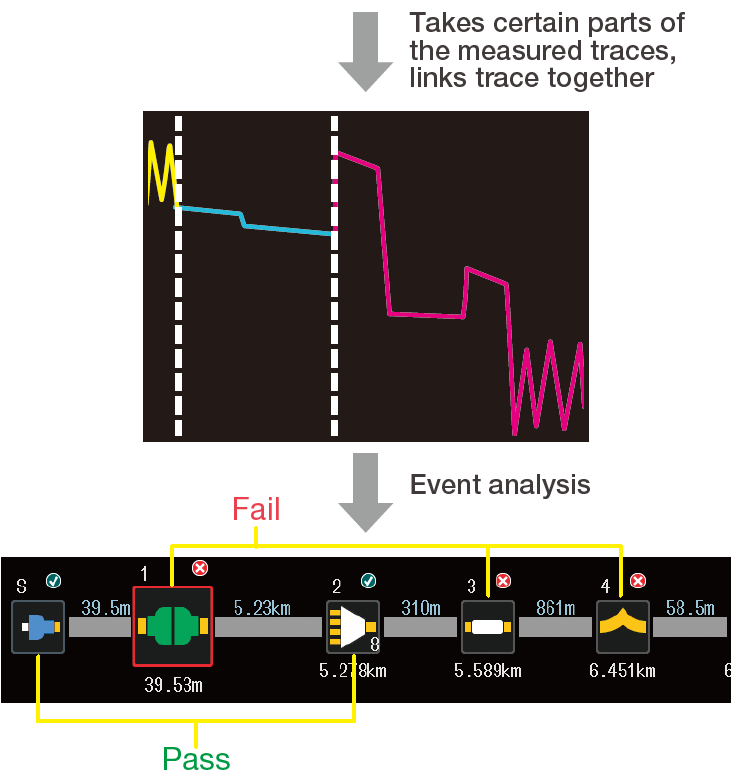

Measuring a network from the station to antenna

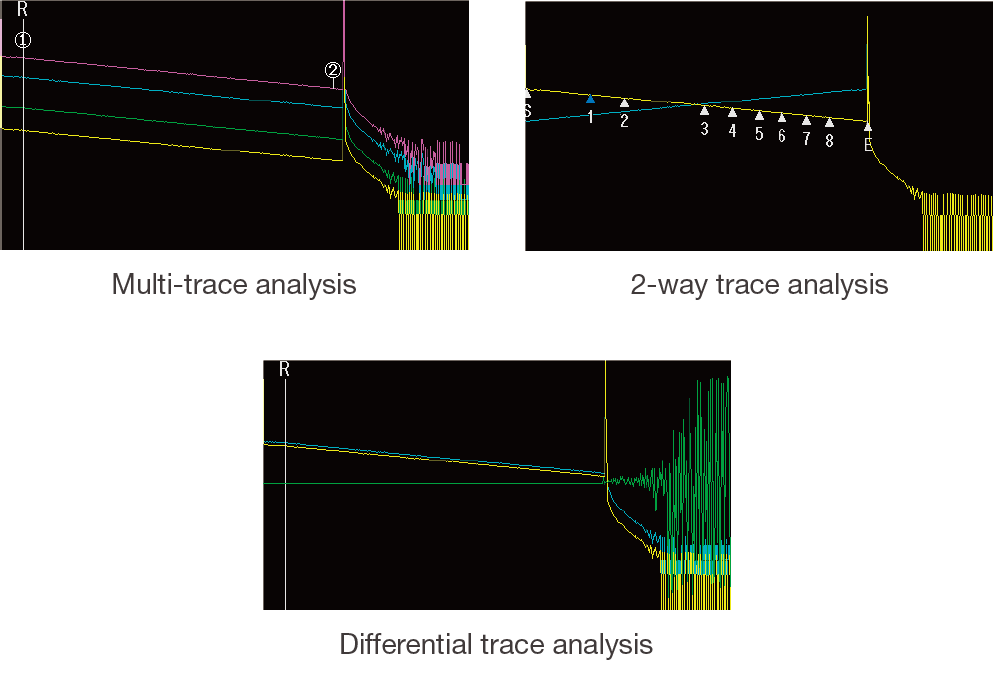

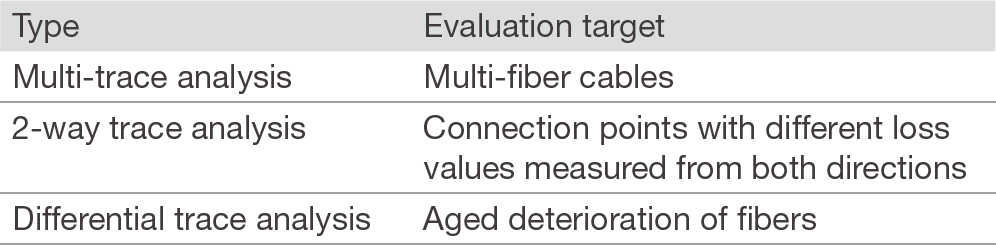

Advanced trace analysis

The OTDR main unit enables advanced analysis of measurement data

*A built-in cut filter to isolate from communication wavelengths included

Additional Option License for AQ7290

This is a license product for adding applicable optional features on to AQ7290 series on your own.
It is necessary to update firmware of AQ7290 in advance to R1.01 or later and above in order to apply this license.

Optical Power Meter & Checker

• Measures and displays optical power of a light source as an absolute/relative value for testing transmitter/network performance. Measurement results can be saved for reference purposes.
• Invaluable test instrument during installation and maintenance
• Calibrated and selectable wavelength setting. Single-mode and Multi-mode measurement ready. Continuous wave and modulated wave detection capability.
• Two selections of optical power sensors are available - optical power meter and optical power checker, different on the specs and functions

Multi-touch LCD touchscreen

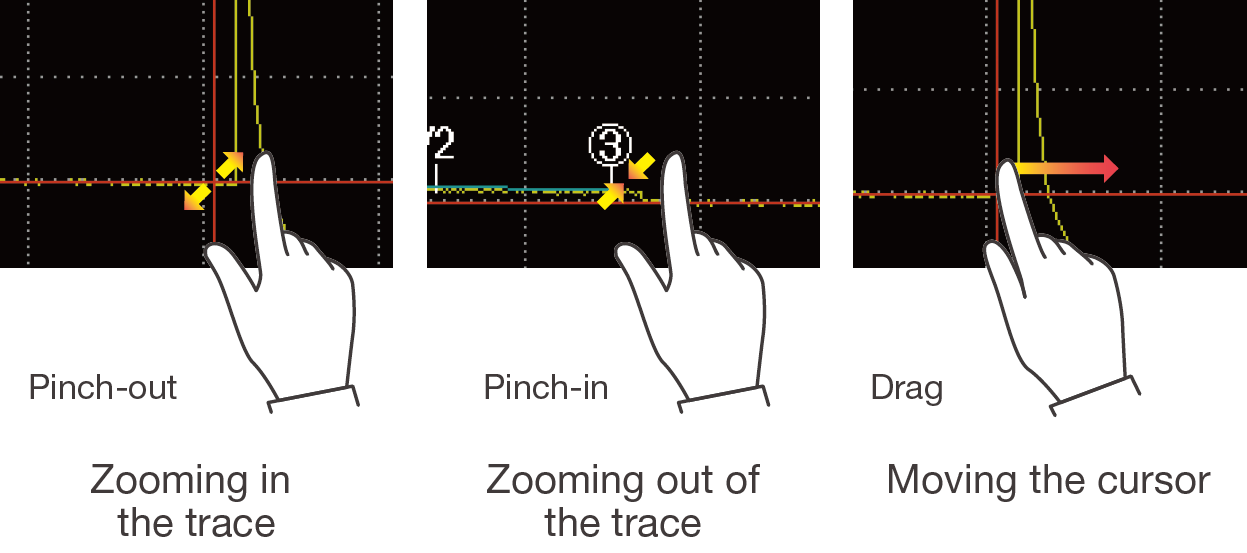

The intuitive capacitive multi-touch setup enables operations like pinch zooms and drag, similar to a smartphone or tablet.
* The touchscreen feature can be disabled for users who prefer the hardware key operations
