Digital Manometer MT300

The MT300 delivers high speed, high resolution, and synchronous measurements for high measurement accuracy and long term stability. It offers various functions for field device calibration, including 24 VDC transmitter output, built-in communication resistance, and Li-ion battery operation. The D/A output makes it easy to output data to a recorder or other instrument, and external I/O terminals allow users to output control signals.

Engineered with Yokogawa's silicon-based resonant sensor, the MT300 achieves:

  • a high measurement accuracy of 0.01% as relative accuracy
  • long-term stability performance guaranteed with a measurement accuracy of 12 months

Rich lineup

Choose from a variety of model based on your application needs.

Gauge
pressure model

Absolute
pressure model

Differential
pressure model

Gauge
pressure model
Absolute
pressure model
Differential
pressure model
6 ranges 3 ranges 4 ranges
10kPa
200kPa
1000kPa
3500kPa
16MPa
70MPa




 New
 New※1
130kPa
700kPa
3500kPa

 New
 New
1kPa
10kPa
130kPa
700kPa

*1 Shield gauge pressure model

High accuracy and long term stability

Absolute accuracy of pressure measurement:0.01%

Accuracy guarantee period: 12 months

Yokogawa’s proprietary silicon based resonant sensor technology achieves a high measurement accuracy of 0.01% as relative accuracy. In addition, with long-term stability performance backed by measurement data accumulated over many years, we guarantee the measurement accuracy of 12 months.

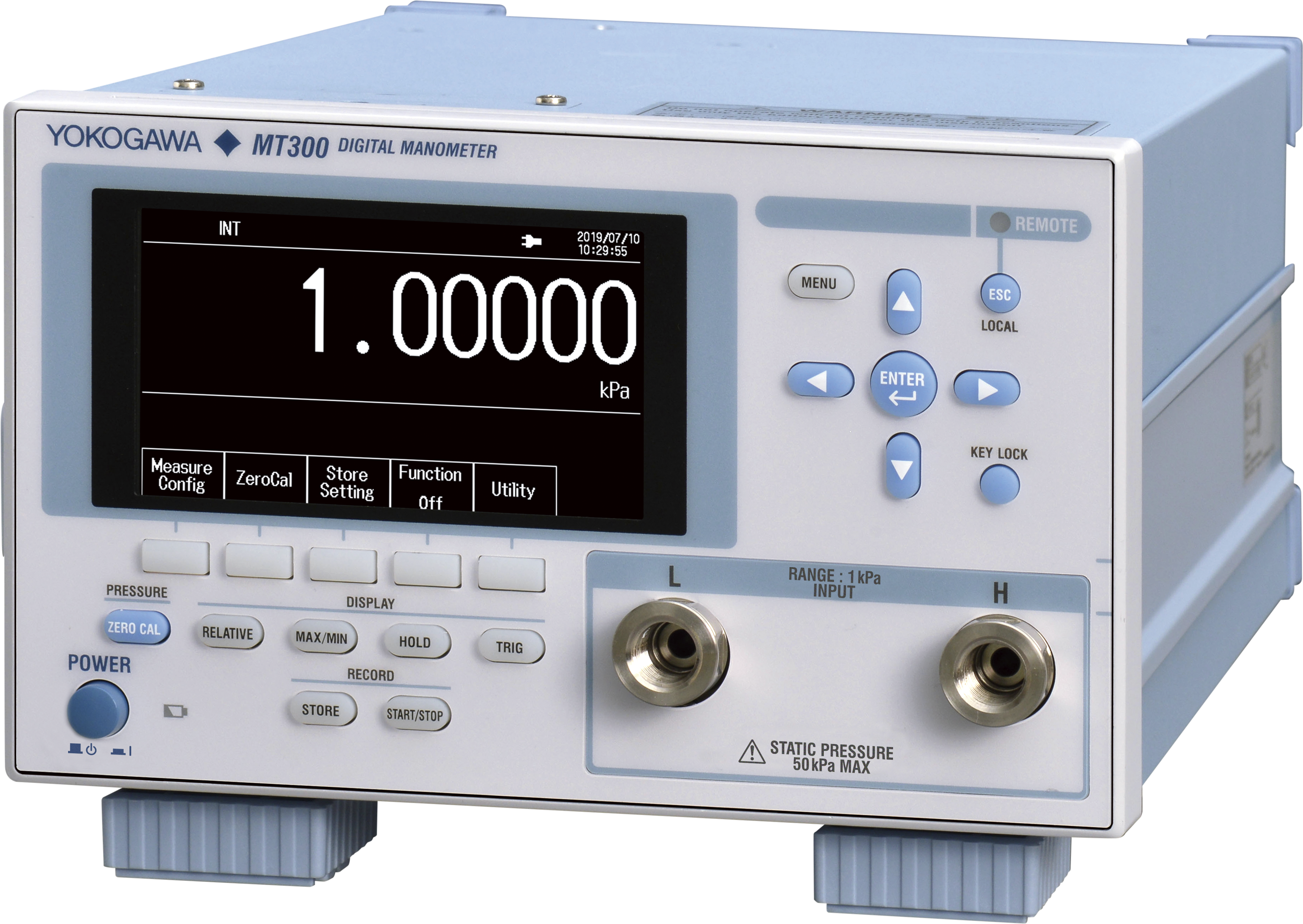

Informative color display

A color dot matrix LCD displays measurement data and analysis with high resolution and high visibility.

Informative color display

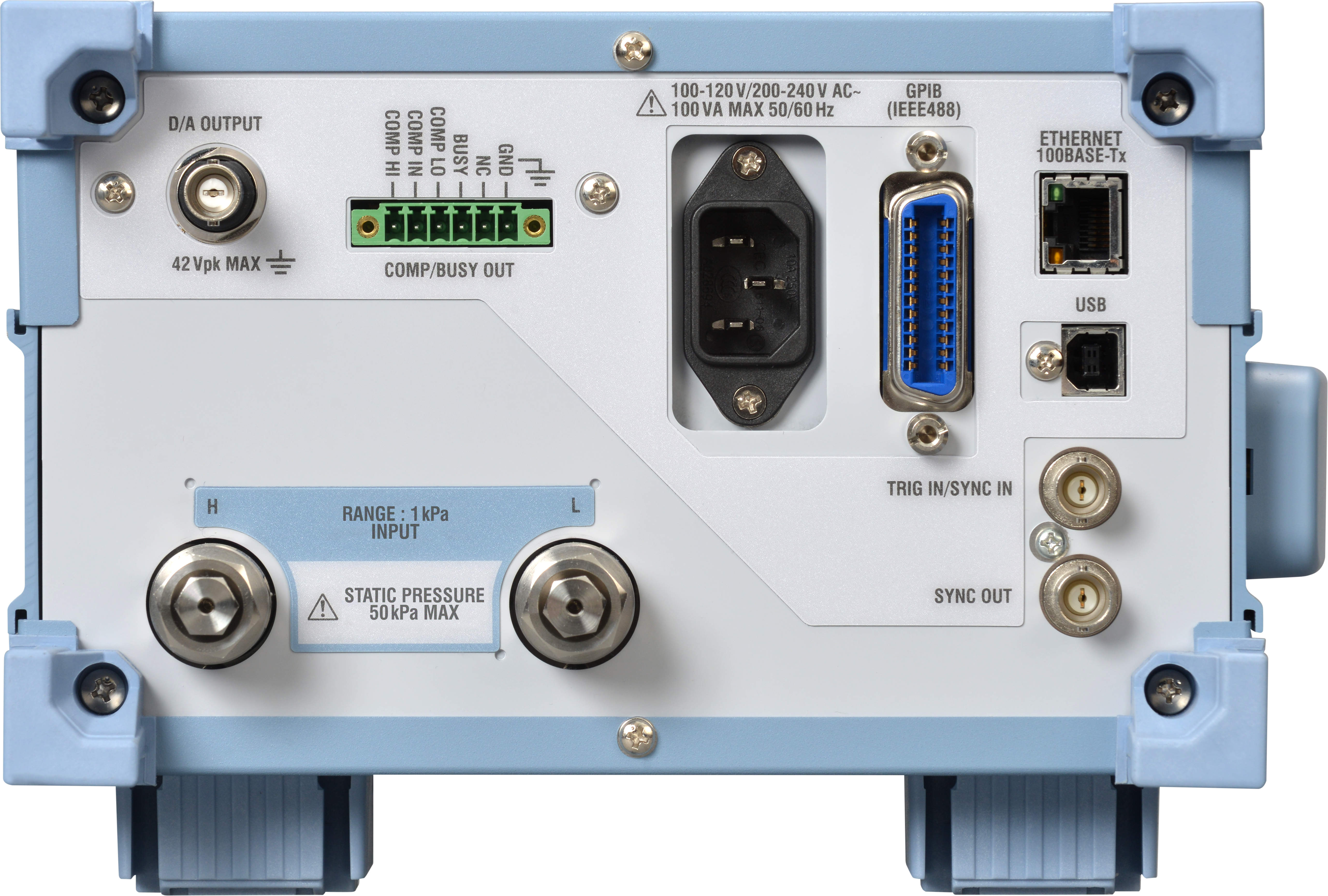

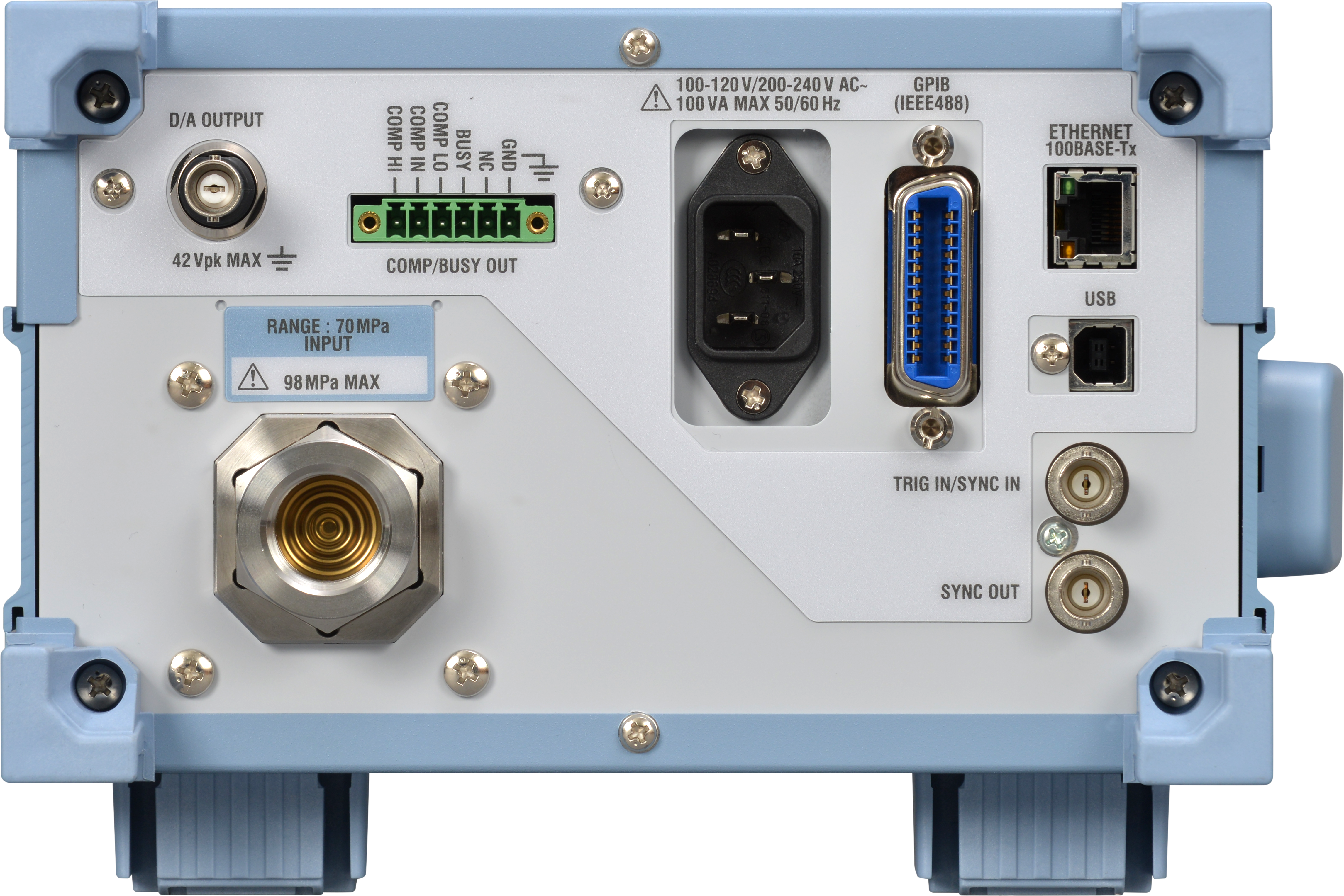

Front panel/rear panel



High precision measurements

High resolution display (When /R1 is selected.)

By using a high resolution display, pressure measurements can be more accurately displayed and visualized. In addition, the increased resolution, especially in calibration environments, reduces the uncertainty of the entire calibration process.

High resolution display

High speed measurement (When /F1 is selected.)

Rapid pressure changes and transient responses requires high speed and reliable measurements. Depending on the application, you can choose your measurement speeds from three different modes, normal, medium or high speed.

Synchronous measurement

Using the synchronization features, you can collect data and display measurements from multiple units. Measurements can be captured and correlated at high speed with high accuracy and confidence.

Application:
In the performance testing of vacuum cleaners, the suctionforce is calculated from the amount of suction-air in the pressure equalizing container and the degree of vacuum. The amount of intake-air can be obtained by measuring the differential pressure via a pitot tube, and the degree of vacuum can be obtained by measuring the absolute pressure. With the /F1 option, the dynamic characteristics can be captured at high speed, with accurate results, by synchronously measuring these two values from two MT300s.

Synchronous measurement

Support for efficient works

Leak test feature

The Leak-test feature can be used to measure pressure change or leak rate within the measurement period. It can be used to check the tightness or integrity of a pressure measurement system.

Leak test

Start: Pressure value and time when started
Stop: Pressure value and time when stopped
Time: Measurement time
Delta: Difference of pressure value between started and stopped
Rate: Deffence of pressure value per minute
Leak test

Scaling

The scaling function can be used to assign customer specific coefficients to the measured values. Depending on the application, you can display your own conversion value. Scaling coefficient A and offset B are determined according to the following equation. Set the scale values for the upper and lower span limits.

Scaling

※ If you change the unit, set scaling coefficient A and offset B again.

Statistical processing

You can apply statistical processing to the data acquired. Find and display the maximum value, minimum value, average value, and standard deviation for the measured data. When error data is detected, the number of error data within the measurement range can be recorded and displayed.

統計処理

Max:Maximum value AVG:Average value ERR:Number of error data
Min:Minimum value σ:Standard deviation

Support for linkage with external devices

D/A output (When /DA is selected)

The Digital-to-Analog (D/A) option, makes it easy to output measured pressure values to an external terminal going to a measurement system or a recorder. The output update interval can be set to 250 μs in combination with the /F1 option (in medium-speed/high-speed modes).

Scaling

Example of the waveform differences in measurement modes

Comparator output

Using external I/O terminals, you can output control signals, based on set upper and lower limits and judgement criteria’s on measured values. These features allow automation of production and/or inspection lines for pressure-related products.

Interfaces

Communication Interfaces such as GPIB, USB (type-B), and ETHERNET are available as standard features. Communication commands are compatible*1, *2 with existing models*3, making it easy to expand or update your existing measurement system.
*1: Some command cannot be used.
*2: Compatible commands cannot be used when -G07, -G08, -A05, -A06 are selected.
*3: MT210/MT210F/MT220

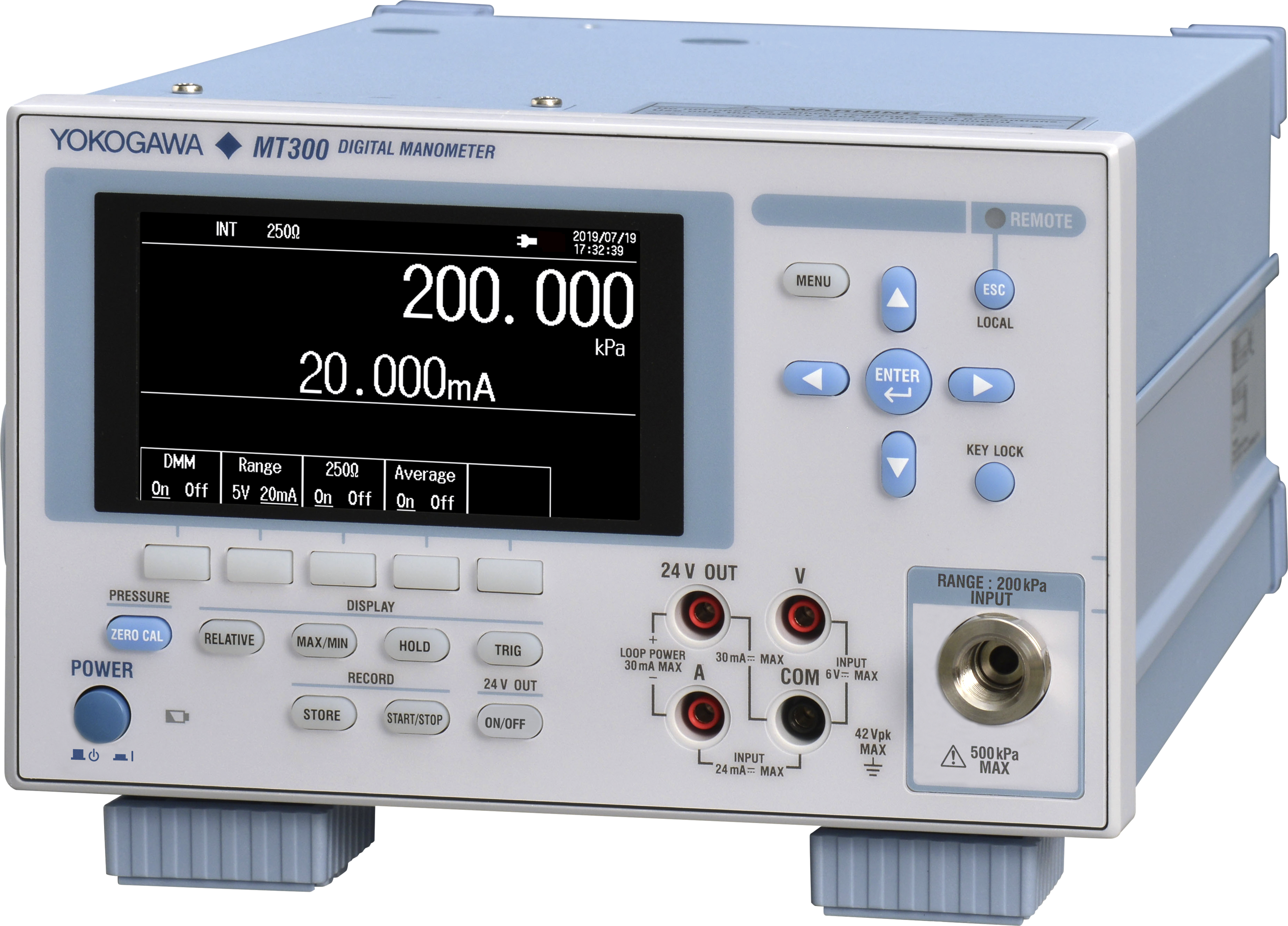

Support for field device calibration and maintenance works

Calibration involves inputting the same pressure level to both a calibrator and a transmitter and comparing the transmitter output with a value measured by the calibrator. The MT300 come with the functions you need for such calibration or maintenance work in the field.

  • Outputting 24 VDC for the supply of transmitter
  • Measuring transmitter output (1 to 5 V or 4 to 20 mA selective)
  • Built-in communication resistance enables ON/OFF switching.

Above functions can be available when /DM is selected.

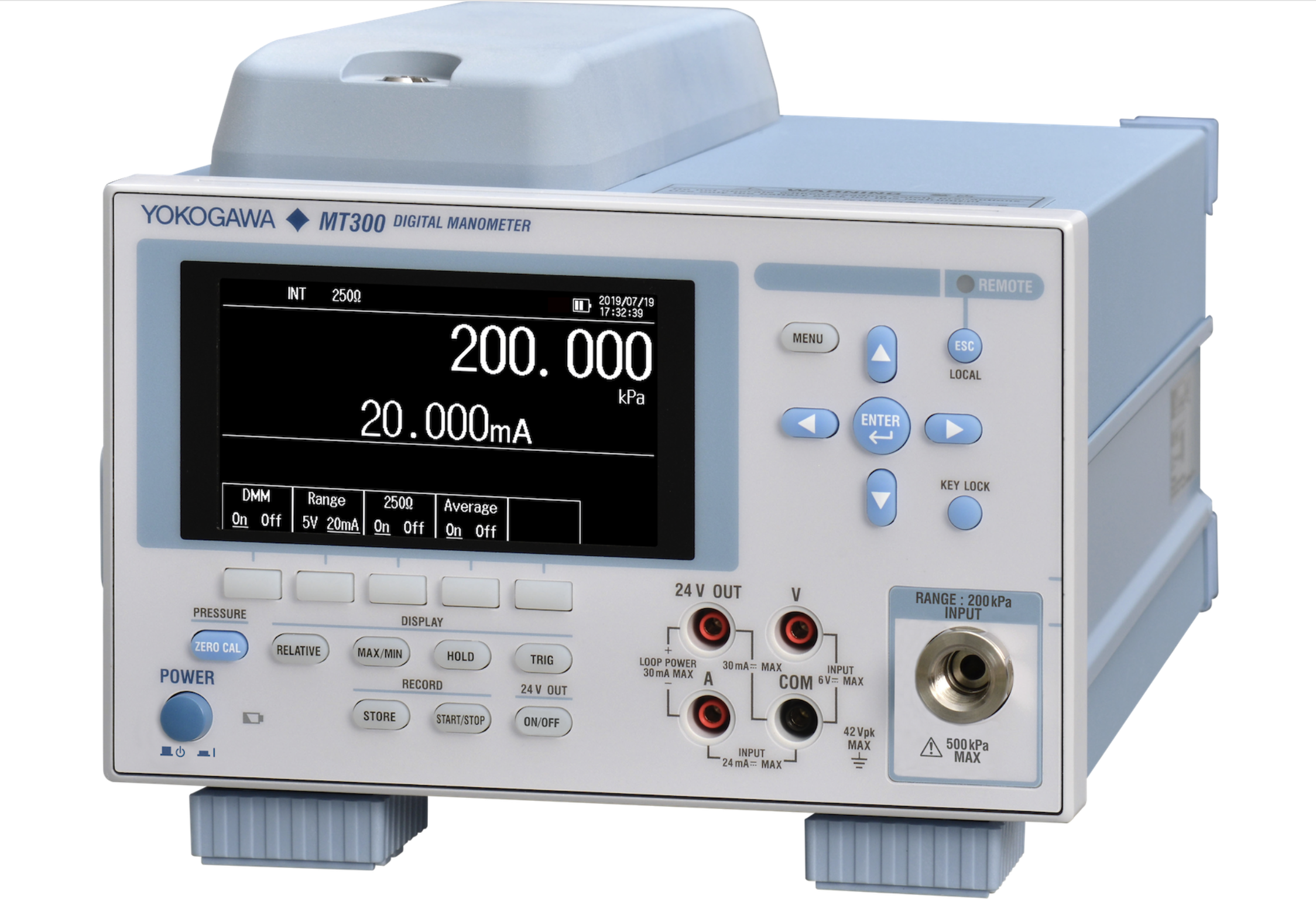

  • It is possible to bring it out without AC power by Li-ion battery operation.
    Running time: Approx. 6 hours with all functions turned on Charge time: Approx. 6 hours

Above function can be available when /EB is selected or add them as accessory after ordered.

High performance and reliability

Yokogawa’s proprietary and self-developed silicon based resonant sensor enables high accuracy, high resolution, and high stability pressure measurement system.

Yokogawa’s proprietary silicon resonant sensor has excellent characteristics that satisfy the conditions required for “accuracy measurement”, such as stability, reproducibility, sensitivity, and temperature characteristics.

High sensitivity and resolution and superior long term stability
The vibrators are in a vacuum. This reduces the dispersion of vibration energy. Combined with the superior flexibility of silicon single crystal, this makes it possible to obtain a high Quality factor.

Extremely low temperature dependency
Two vibrators are used, and pressure is derived from the difference between the two unique oscillation counts. With this operating structure, it is possible to cancel out external environment influences such as ambient temperature. In addition, the vibrators are in a vacuum, so they are not affected by humidity.

Extremely low temperature dependency

A vibrator, formed using semiconductor process technology on a silicon wafer, is driven by a permanent magnet. When pressure is applied to the silicon diaphragm, the vibrator is distorted, causing the resonant frequency to change.

Silicon Resonant Sensor

Efforts for National Metrology Institute

International Comparison
The Yokogawa’s pressure sensor and the MT series are adopted as a Transfer Standard for many CC-level and the regional-level (for example APMP) international comparisons of pressure standards based on the enhanced performance of digital pressure gauges and the evaluation result of long term stability.

* Transfer Standard:
A standard used as a transfer equipment to compare standards.

Efforts for National Metrology Institute



LCA  Reduced energy and emission of CO2 about 19% compared to the previous model.

PDFResults of Life Cycle Assessment

269918 Battery pack cover

Battery cover for MT300

接线柱(红黑色)99045

用于端接(连接)单根导线或测试导线。

转接头 366921

BNC-香蕉插孔(母接头)转接头。用于电压不超过42V的电路。

91080 Connector

R 1/4" male thread to 1/8” NPT female thread conversion connector (for -P1)

91081 Connector

R 1/4” male thread to 1/4” NPT female thread conversion connector (for -P1)

91082 Connector

1/4” NPT male thread to 1/8” NPT female thread conversion connector (for –P2)

91083 Adapting connector

1/2” NPT male thread to 1/8” NPT
female thread (for -P4)

91086 Adapting connector

1/2” NPT male thread to 1/4” NPT
female thread (for -P4)

91087 Adapting connector

1/2” NPT male thread to Rc 1/4”
female thread (for -P4)

B9984BW Connector assembly kit

For use with 4 mm diameter x 6 mm diameter PVC tubing

B9984BY Connector assembly kit

For use with 4 mm diameter x 6 mm diameter PVC tubing

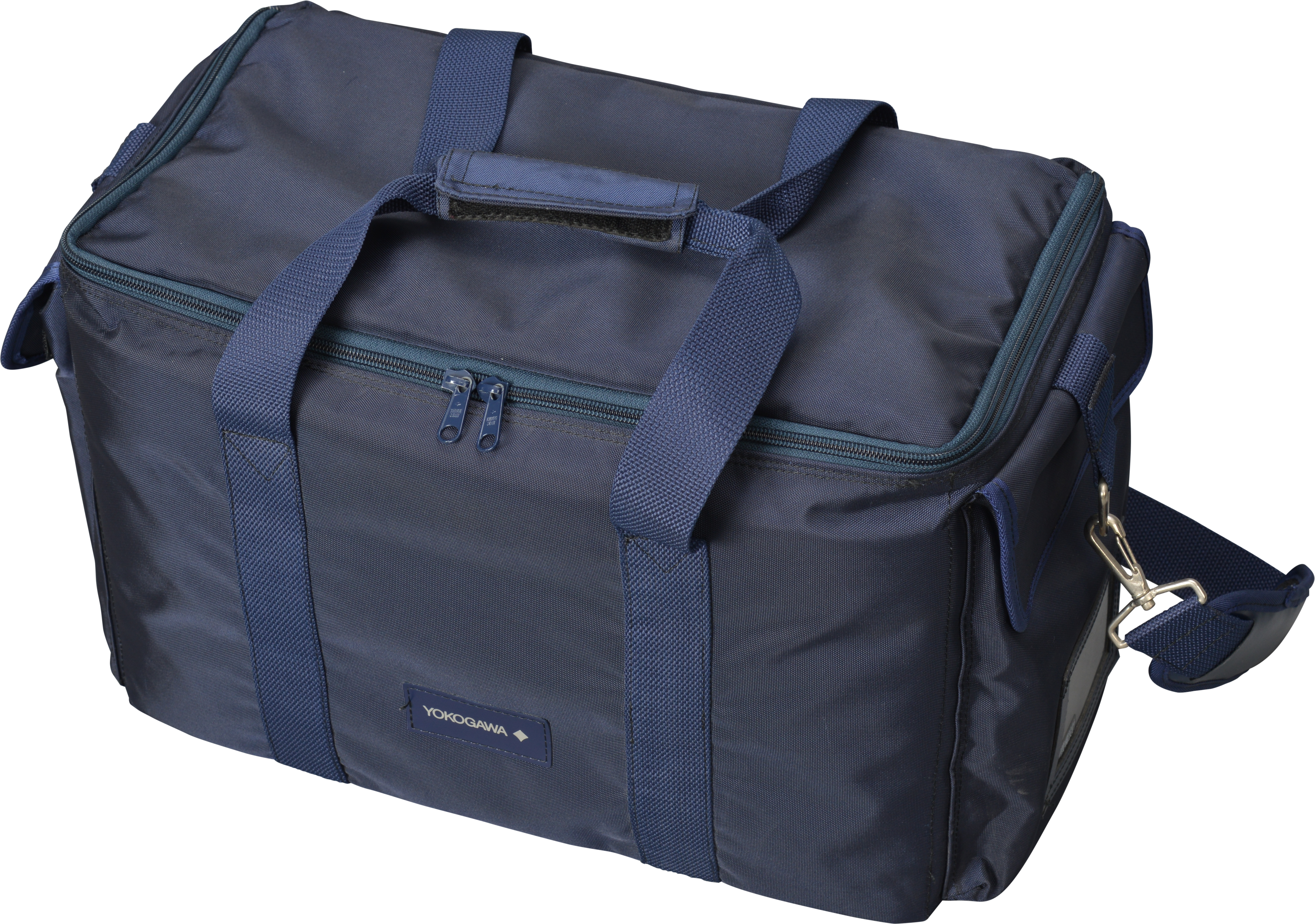

用于DL850/DL850V/DL750的便携软包 701963

提供3个包用来存储附件和操作手册。
