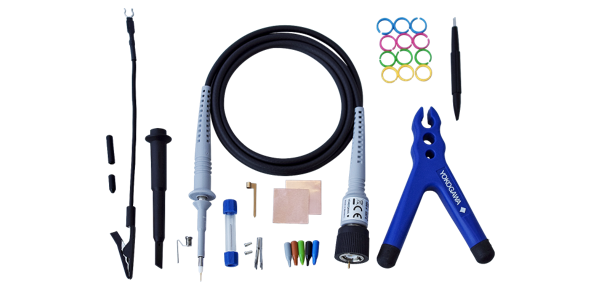

701946 Miniature Passive Probe 400V / 500 MHz
The 701946 is a passive probe for oscilloscopes meant for general purpose probing of board level circuits in embedded and power electronics designs. This probe is rated for measurements up to 400 Vrms and comes with a host of standard accessories to support probing ICs and high-density PCBs.
Specifications

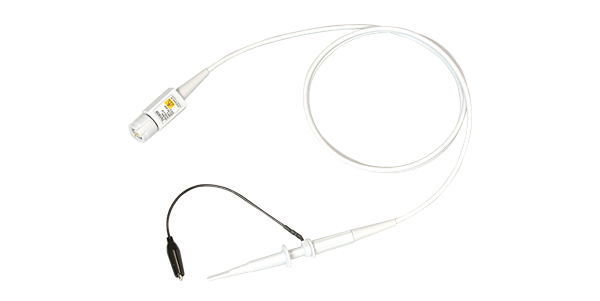

 701937 |
 701938 |
701939 |

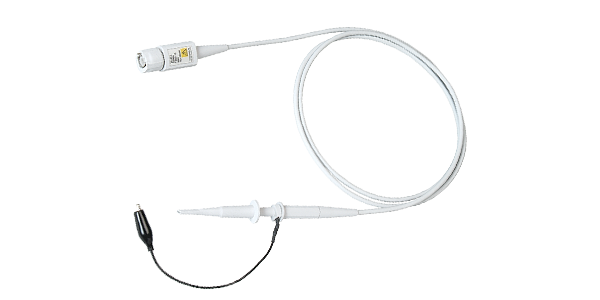

 701943 |

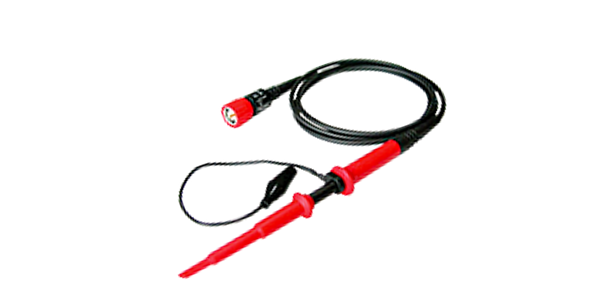

 701944 |

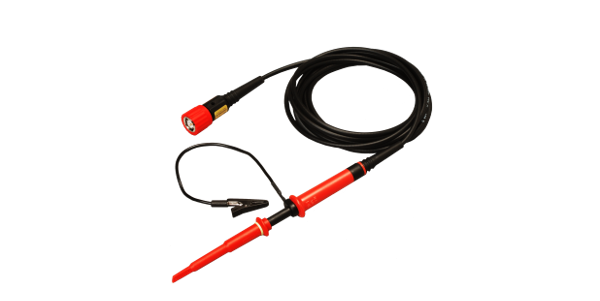

 701945 |
 701946 |
 701949 |

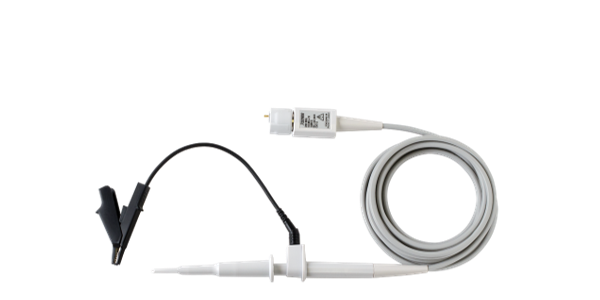

 702906 |
702907 |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Bandwidth | 500 MHz | 200 MHz | 500 MHz | 500 MHz | 400 MHz | 250 MHz | 500 MHz | 500 MHz | 200 MHz | 200 MHz |
| Max. input voltage | 600 V (DC + ACpeak) | 1000 Vrms | 400 Vrms | 1000 V (DC + ACpeak) | ||||||
| Attenuation ratio | 10:1 | 100:1 | 10:1 | |||||||
| Input impedance | 10 MΩ 10.5 pF |
10 MΩ 13.5 pF |
10 MΩ 10.5 pF |
10 MΩ 12.5 pF |
50 MΩ 7.5 pF |
10 MΩ 9.5 pF |
10 MΩ 16 pF |
10 MΩ 18 pF |
||
| Measurement category | CAT II 600 V (DC + ACpeak) | CAT II 1000 Vrms | CAT II 300 Vrms | CAT II 1000 V (DC + ACpeak) |
||||||
| Compatibility | DLM3000, DLM3000HD, DLM5000, DLM5000HD |
DLM2000 | DL6000, DLM2000, DLM4000, DLM6000 |
DL9000, DL9500, DL9700, SB5000 |
DLM3000, DLM3000HD, DLM5000, DLM5000HD |
DL6000, DLM2000, DLM4000, DLM6000 |
DLM3000, DLM3000HD, DLM5000, DLM5000HD |
DLM2000, DLM4000 |
DLM3000, DLM3000HD, DLM5000, DLM5000HD |
|
