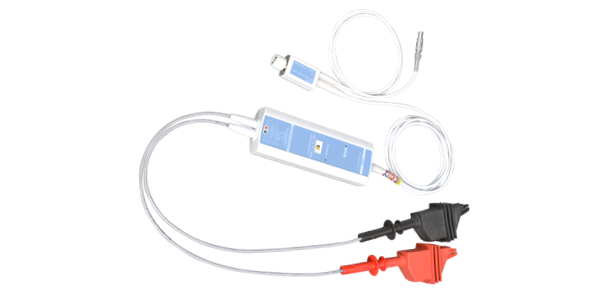

701977 Differential Probe 7000 V / 50 MHz
The 701977 Differential Probe delivers high-voltage differential measurement up to 7000 Vpeak/5000 Vrms with 50 MHz bandwidth for accurate, floating signal capture in power electronics and other high-energy applications
This probe works universally with any oscilloscope featuring standard probe interfaces and requires a compatible probe power supply (Yokogawa 701934) for operation.
The 701977 is well suited for 3.3 kV level railway drive inverter, IGBT, and high voltage surge noise waveform measurements.
|
Bandwidth |
: |
DC to 50 MHz |
|
Attenuation |
: |
1000:1 / 100:1 |
|
Max. Differential Input Voltage |
: |
5000 Vrms or less, and 7000 Vpeak or less |
|
Max. Operating Input Voltage |
: |
5000 Vrms and 7000 Vpeak |
|
Measurement Category |
: |
CATO 5000 V, CATⅢ 1000 V |
|
Connector Type |
: |
BNC |
|
Probe Power |
: |
probe power supply |
//Comparison Table for High Voltage Differential Probes

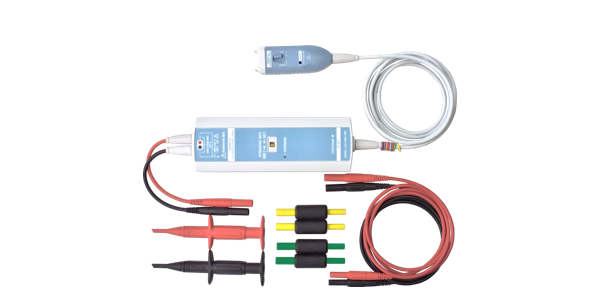

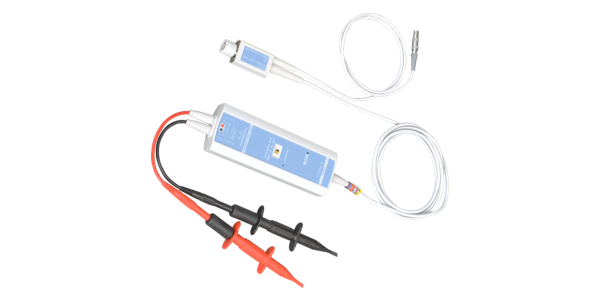

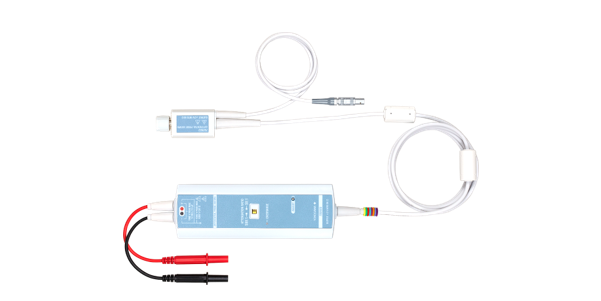

Specifications
 |
|
 |
|
 |
 701978 |
 |
|
|---|---|---|---|---|---|---|---|
| Bandwidth | DC to 400 MHz | DC to 150 MHz | DC to 150 MHz | DC to 50 MHz | |||
| Attenuation ratio | 50:1 / 500:1 | 100:1 / 1000:1 | 50:1 / 500:1 | 100:1 / 1000:1 | 50:1 / 500:1 | 100:1 / 1000:1 | |
| DC gain accuracy | ±0.7% | ±2 to ±3% | |||||
| Differential voltage | ±1000 V (DC + ACpeak) | ±2000 V (DC + ACpeak) | ±1000 V (DC + ACpeak) | ±2000 V (DC + ACpeak) | ±1400 V (DC + ACpeak) | ±1500 V (DC + ACpeak) | ±7000 V (DC + ACpeak) 5000 Vrms |
| Maximum input voltage | ±1000 V (DC + ACpeak) | ±2000 V (DC + ACpeak) | ±1000 V (DC + ACpeak) | ±2000 V (DC + ACpeak) | ±1400 V (DC + ACpeak) or 1000 Vrms |
±1500 V (DC + ACpeak) | ±7000 V (DC + ACpeak) or 5000 Vrms |
| CMRR (typical) | 80 dB (60 Hz) 50 dB (10 MHz) 30 dB (100 MHz) 20 dB (400 MHz) |
80 dB (60 Hz) 50 dB (1 MHz) |
|||||
| Noise (typical) | 250 mVrms | 500 mVrms | 250 mVrms | 500 mVrms | 300 mVrms | 700 mVrms | |
| Impedance (typical) | 6 MΩ | 5 pF (to ground) 12 MΩ | 2.5 pF (between +/- terminals) |
4 MΩ | 5 pF (to ground) | 4.1 MΩ | 5 pF (to ground) | 52 MΩ | 10 pF (to ground) | |||
| Measurement category | CAT II 1000 V CAT III 600 V |
CAT II 1000 V | CAT III 1000 V | CAT III 1000 V CAT O 5000 Vrms |
|||
| Interface | Yokogawa DLM Series | BNC | Yokogawa DLM Series | BNC | |||
