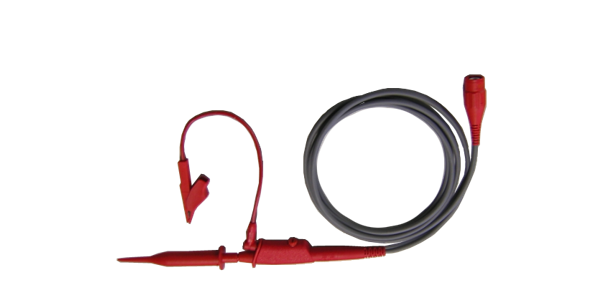

701940 Passive Probe 600V / 10 MHz
701940 Passive Oscilloscope Specifications
|
Bandwidth |
: |
DC to 10 MHz |
|
Attenuation |
: |
10:1/1:1 |
|
Input Resistance |
: |
10 MΩ |
|
Input Capacitance |
: |
22pF (10:1) |
|
Max. Input Voltage |
: |
600 V (DC + ACpeak) CAT II |
|
Probe length |
: |
1.5 m |
|
For use with ScopeCorder Non-Isolated Modules |
||
What is a Passive Probe?
Passive Probes are a type of oscilloscope probe with a wide dynamic range, including low-frequency signals. Therefore, they have many applications.
Specifications
 702902 |
 700929 |
 701947 |
 701940 |
|
|---|---|---|---|---|
| Isolation | Isolated | Isolated | Isolated | Non-isolated |
| Frequency bandwidth | 60 MHz | 100 MHz | 200 MHz | 10 MHz |
| Maximum input voltage | 1000 V (DC + ACpeak) | 1000 V (DC + ACpeak) | 3540 V (DC + ACpeak) | 600 V (DC + ACpeak) |
| Attenuation ratio | 10:1 | 10:1 | 100:1 | 1:1, 10:1 |
| Input resistance (with module) | 10 MΩ | 10 MΩ | 100 MΩ | 10 MΩ |
| Input capacitance (typical) | approx. 17 pF | approx. 18 pF | approx. 7 pF | approx. 22 pF (@10:1) |
| Total length | 2.5 m | 1.7 m | 1.7 m | 1.5 m |
| Measurement category | 1000 V (DC + ACpeak) CAT II |
1000 V (DC + ACpeak) CAT II 600 Vrms CAT III |
3540 V (DC + ACpeak) CAT O 1000 V (DC + ACpeak) CAT II |
600 V (DC + ACpeak) CAT II |
