适配器 / 连接器

• 701937,701938, 701939, 701943 (PB500) and 700939

BNC和母香蕉插头之间的转换
适用于DL750/DL750P、SL1000&SL1400。

- Applicable connector:
12-fiber or 24-fiber (AQ9340-12)
16-fiber or 32-fiber (AQ9340-16)^*1
- Compatible with both with and without guide pins
- Applicable fiber SM(9.5/125µm)^*2 , GI(50/125µm)

- Applicable sensor:
AQ2200-232 Optical Sensor Head (Large diameter detector, 800 to 1700 nm),
AQ2200-242 Optical Sensor Head (Large diameter detector, 400 to 1100 nm)

*1 The AQ9340-16 can only be used with AQ2200-242.
*2 AQ9340-12.

- Fiber count: 2, 4, 8, 12 and 24 fibers
- Applicable fiber
SM(9.5/125µm), GI(50/125µm)
- Applicable sensor:
AQ2200-232 Optical Sensor Head (Large diameter detector, 800 to 1700 nm),
AQ2200-242 Optical Sensor Head (Large diameter detector, 400 to 1100 nm),

NDIS接口可直接连接到应变模块上。

For use with 4 mm diameter x 6 mm diameter PVC tubing

For use with 4 mm diameter x 6 mm diameter PVC tubing

• AQ9447 Connector Adapters
• For optical input port
• AQ6370 Series Optical Spectrum Analyzer Accessories

For AQ2170 /AQ2170H /AQ2180 /AQ2180H

For AQ2170 /AQ2170H /AQ2180 /AQ2180H

For AQ2170 /AQ2170H /AQ2180 /AQ2180H

For AQ2170 /AQ2170H /AQ2180 /AQ2180H

For AQ2170 /AQ2170H /AQ2180 /AQ2180H

For AQ4280A /AQ4280B /AQ4280C

For AQ4280A /AQ4280B /AQ4280C

For AQ4280A /AQ4280B /AQ4280C

For 701937,701938, 701939, 701943 (PB500) and 700939 Standard accessories include: Adapter, red wire (3), black wire (3)

- Adapter for a ribbon fiber folder of fusion splicer
- Fiber count: 2, 4, 8 and 12 fibers
- Applicable fiber
SM(9.5/125µm), GI(50/125µm)
- Applicable sensor:
AQ2200-232 Optical Sensor Head (Large diameter detector, 800 to 1700 nm),
AQ2200-242 Optical Sensor Head (Large diameter detector, 400 to 1100 nm)

Connector set for the 91051 (quick adapter, pressure conversion adapter, flexible hose, sealing tape)

Connector set for the 91056 (quick adapter, sealing cap, flexible hose, sealing tape, and hex wrench)

用于将4mm香蕉插头插入压接端子的接头。套件包含一个黑色夹子和一个红色夹子。1000Vrms-CAT II。

For 701937, 701938, 701939, 701943 (PB500) and 700939.
Quantity of 1 unit: 10

A clip set designed for 701937, 701938, 701939, 701943 (PB500) and 700939

For 702902, 702906

For 702902, 702906

额定电压300V。连接到758917表笔。成对出售。

额定电压1000V。连接到758917表笔。成对出售。

一组两个转接头用于PX8000的电流输入

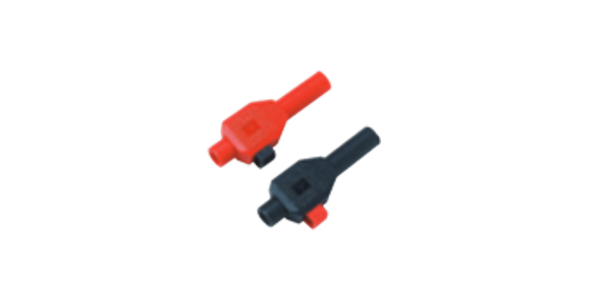

安全转换接头套件

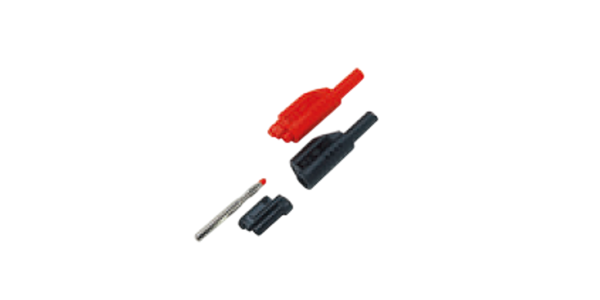

安全转换接头套件

D-Sub 9-pin connector with 2 screws
(female on connector side)

Screw-fastened type adapters for 30 A element. Black/Red two adapters in a set.

Used in temperature measurement (for CA71).

Used for temperature measurement.

Female-female type adapters for 5 A element. Black/Red two adapters in a set.

Two adapters to a set for 5 A current
(screw-fastened type using B9317WD)

BNC-香蕉插孔(母接头)转接头。用于电压不超过42V的电路。

香蕉插头(公接头)-BNC转接头。用于电压不超过42V的电路。

用于BNC接头的T适配器。用于电压不超过42V的电路。

R 1/4" male thread to 1/8” NPT female thread conversion connector (for -P1)

R 1/4” male thread to 1/4” NPT female thread conversion connector (for -P1)

1/4” NPT male thread to 1/8” NPT female thread conversion connector (for –P2)

1/2” NPT male thread to 1/8” NPT
female thread (for -P4)

1/2” NPT male thread to 1/4” NPT female thread
conversion connector (when -05 is selected)

1/2” NPT male thread to Rc1/4” female thread conversion
connector (when -05 is selected)

1/2” NPT male thread to 1/4” NPT
female thread (for -P4)

1/2” NPT male thread to Rc 1/4”
female thread (for -P4)

for OTDR port

for OTDR port

for OTDR port

for OTDR port

By connecting a GI 50 or GI 62.5 optical fiber with a relatively large NA to the NA Conversion Fiber, the NA Conversion Fiber reduces the loss that occurs at the input and improves the measurement dynamic range during passive device measurements and the stability of optical level measurements during active device measurements.

FC connector, for optical sensors
(A light shielding cap is not included)

SC connector, for optical sensors
(A light shielding cap is not included)

LC connector, for optical sensors
(Dust protection cap is not included)

MU connector, for optical sensors
(Dust protection cap is not included)
