DLM3000HD Series High-Definition Oscilloscope

Ideal for Everyday Use by Engineers

Adaptability is key in the development of high-performance and intelligent power semiconductor technologies and mechatronics in modern electric vehicles, motor controls, and energy efficient electronic designs. With up to 16 bits high resolution, best-in-class startup speed, and high noise immunity this four-channel oscilloscope provides an extensive set of analysis features in a compact design.

Setting a New Standard for High Definition

  • 4 analog channels, 8-bit logic
  • Bandwidth: 350 or 500 MHz
  • Sample Rate: up to 2.5 GS/s
  • Vertical resolution: 12-bit
  • High resolution mode: up to 16-bit
  • Measurement memory: up to 1 GigaPoints
  • History waveforms: up to 200,000 triggers
  • Simultaneous Multi-Channel Measurements: Up to 16-bit logic + 6 channels
    • Up to 8 channels with two connected DLM3000HDs via DLMsync
    • IEEE1588 Synchronous Support

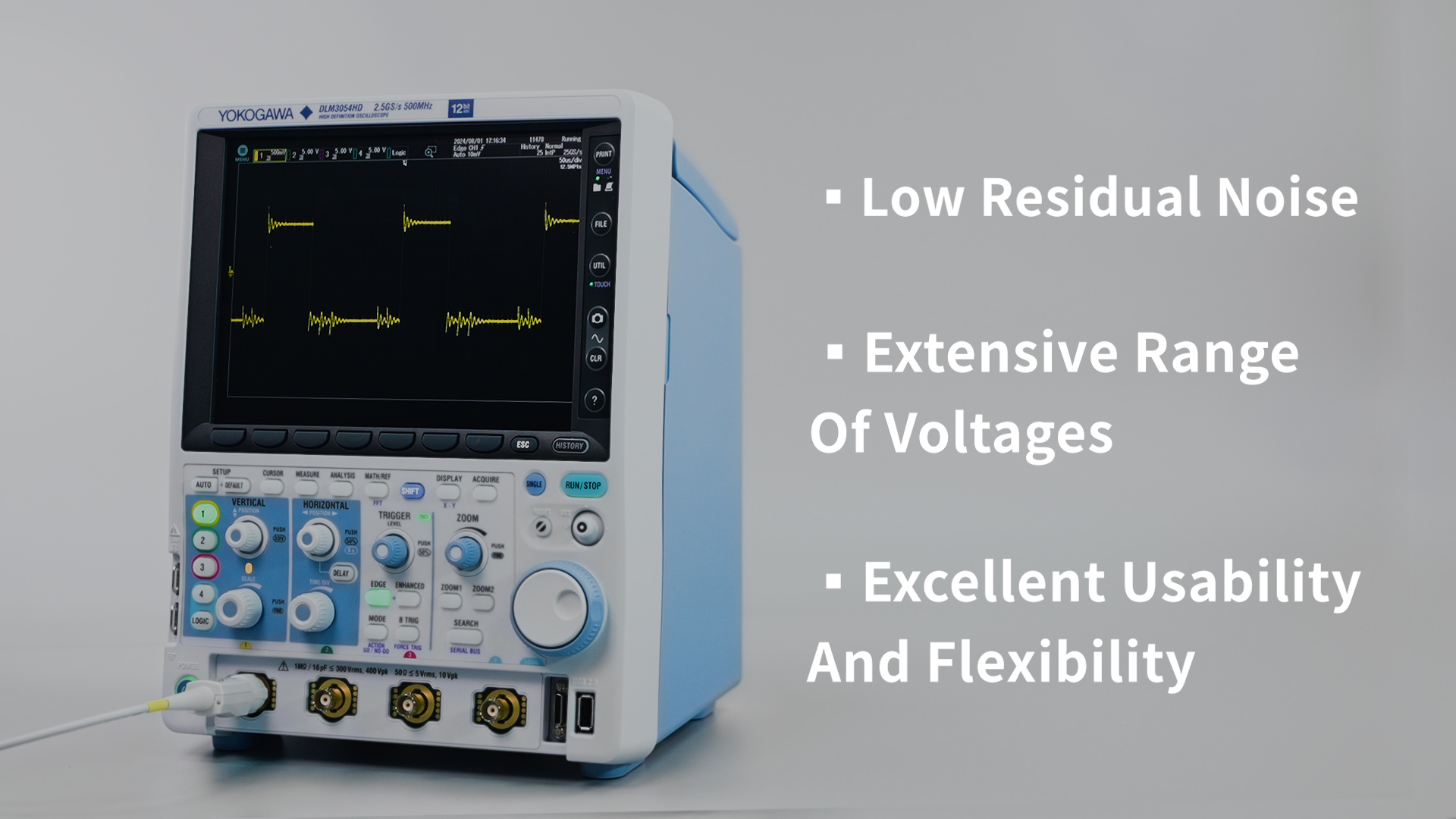

  • Highly-Responsive, Intuitive 8.4in Touchscreen
    • with Traditional Oscilloscope Control Panel
  • Superior Noise Immunity
  • Logic and Serial Bus Analysis
  • Additional Math Channels
  • Extensive Voltage Ranges
  • Compact, Light, Portable

Key Specifications

12- to 16-Bit High Resolution
Compared to traditional 8-bit oscilloscopes, the DLM3000HD measures 12-bit vertical resolution all the time. With its high-definition, resolution improves up to 16-bits, providing 16x more detail than existing high-definition oscilloscopes. Its high-resolution mode enables detailed measurement of events such as ringing and overshoot with impressive accuracy.

12-Bit Resolution | DLM3000HD High-Definition Oscilloscope | Yokogawa Test&Measurement

Multi-Channel Measurement Up to Eight Channels
A single DLM3000HD measures up to four channels simultaneously, while connecting two instruments extends synchronous measurement up to eight channels to enable evaluations via a single test.

Wide Bandwidth Measurement
Momentary phenomena such as overshoot at the rise of a high-speed inverter cannot be verified with low bandwidth oscilloscopes. The DLM3000HD combines a wide bandwidth of up to 500 MHz with a sample rate up to 2.5 GS/s.

Up to 2.5 GS/s (Four Channels at Once), Up to 1 G Points Memory
The DLM3000HD has a memory that can capture up to 1 G points (odd channels only) in a single waveform and up to 125 M points in a repetitive waveform acquisition to enable long time measurement without reducing the sample rate.

1 GPoint Memory | DLM3000HD High-Definition Mixed Signal Oscilloscope | Yokogawa Test&Measurement

Intuitive and Highly-Responsive Touchscreen
The 8.4in intuitive and highly-responsive touchscreen is useful for observing analog signals in detail and displaying information for debugging like parameters, zoom, XY display, and FFT analysis results.

Quick Startup
The DLM3000HD starts up from OFF to waveform display in twelve seconds for a quicker start on projects.

Link with a PC
It is often more effective and efficient to perform analysis using a PC because of its high CPU processing power. This can be accomplished with the DLM3000HD through integration with the IS8000 Integrated Test and Measurement Software Platform for multiple waveform and power measurement results and powerful analysis capabilities.

Key Features

History and Search
Automatically save previously captured waveforms with the DLM3000HD series, up to 200,000 previously captured waveforms can be saved in the acquisition memory. Display one or all of the previously captured waveforms (history waveforms) on screen and perform cursor measurement, computation, and other operations. Users can analyze rarely-occurring abnormal signals even when an appropriate trigger condition is difficult to find because its waveform shapes are not constant. Multiple intuitive search methods are also available. For example, you can specify a rectangular zone that captures a part of a waveform on the screen, a zone that covers an entire measured waveform, or a polygonal zone. If you know a value of interest, such as an abnormal value of voltage or pulse width, you can search history waveforms using waveform parameters.

Captured Waveforms History Function | DLM3000HD Oscilloscope | Yokogawa Test&Measurement


Zoom and Search
Multi-channel waveforms captured in the long memory need to be zoomed in vertically and horizontally for detailed viewing. The touchscreen plus dedicated zoom keys and knob allow you to quickly zoom in on aspects you wish to see. You can display two zoomed waveforms with different time axis scales at the same time and use Auto Scroll to sweep the zoom window across the waveforms automatically. The ability to zoom in on two distant locations at the same time (like “cause” and “effect” of an event) or to display them with different zoom factors is very useful for software debugging. Users can also search using multiple criteria to automatically find and zoom into features in the waveform for further inspection. The locations of the found waveforms are marked on screen.

Waveforms Zoom and Search | DLM5000HD High-Definition Oscilloscope | Yokogawa Test&Measurement


Logic Signal Measurement and Serial Bus Analysis
Equipped with 8-bit logic input as standard. Bus/State display and optional DA calculation functions (useful for AD/DA converters evaluation) are also provided.

Logic Signal Measurement and Analysis | DLM3000HD High-Definition Oscilloscope | Yokogawa Test&Measurement


Triggers
The DLM3000HD’s boasts easy-to-configure triggers such as Edge, Enhanced, and B triggers and can combine analog and logic inputs.

Filters
Real-time filters with optimum noise reduction support a wide range of frequencies from 8 kHz to 200 MHz. Each channel has 15 low pass filters available with cutoff frequencies from 8 kHz to 200 MHz and waveforms are filtered prior to storage in memory. These real-time filters allow for stable triggering of superimposed noise signals.

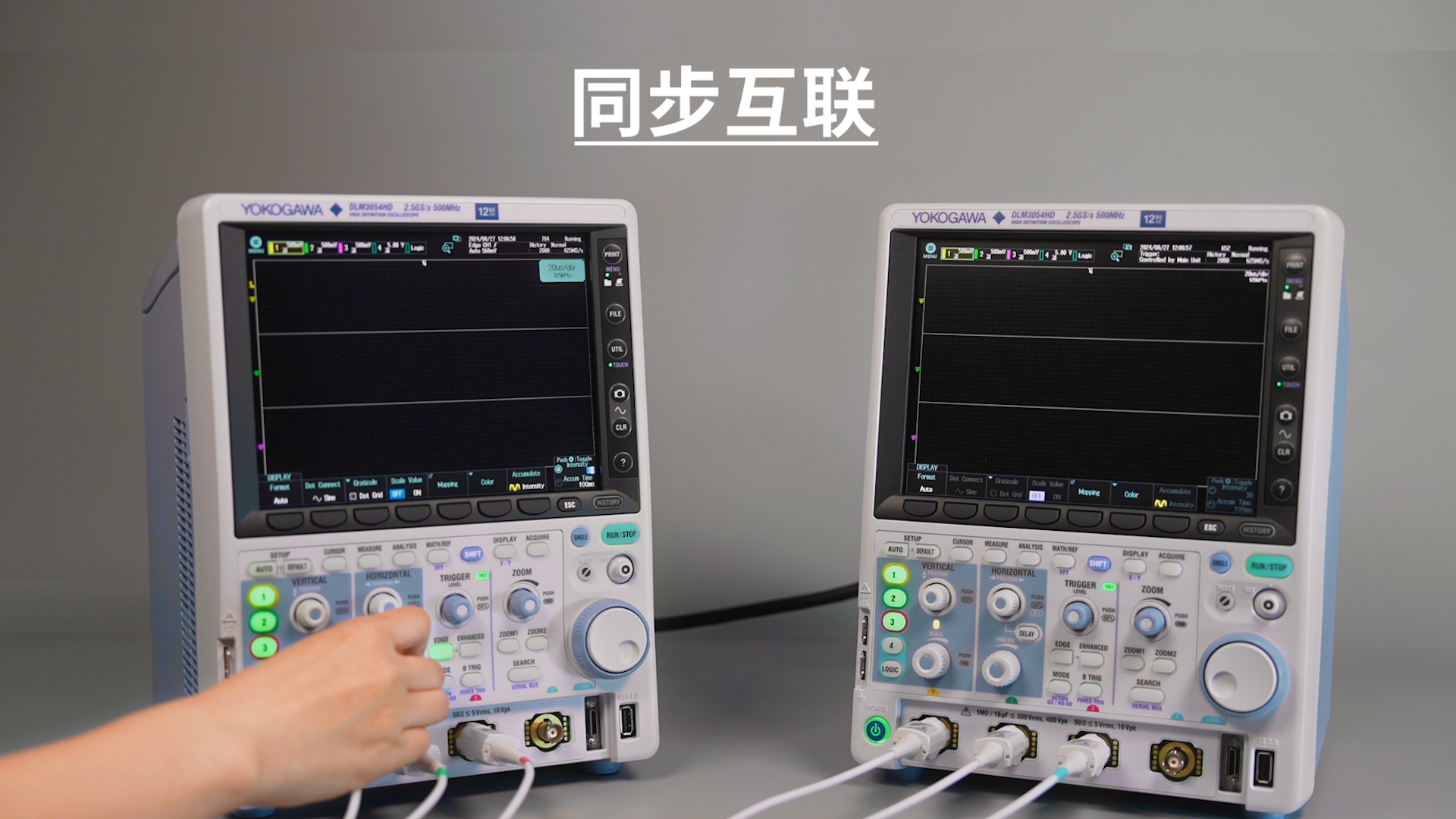

DLMsync Two-Unit Connection for More Channels (/SY)
Connecting two DLM3000HD Series models (with /SY option) with a dedicated cable (701982) enables synchronous measurement up to eight channels. Captured waveforms display on each unit, triggers operate in common, and common items (record length, sample rate, acquisition settings, horizontal axis scale settings) are linked like a single oscilloscope unit. Two synchronized instruments become linked and some operations are shared between the main unit and the sub unit. For example, if you zoom in on a waveform on the main or sub unit, the corresponding waveform on the other unit will automatically get zoomed in at the same spot. As measurement data can be output in batches, eight channels can be checked at once in combination with the IS8000 Integrated Test and Measurement Software Platform.

IEEE1588 Integrated Measurement Master (/CY)
The DLM3000HD can be set as the master unit for time-synchronized measurement using IEEE1588. This function connects measuring instruments in a LAN network to each other without a dedicated cable or complex settings typically required for synchronization, which allows users to start synchronized measurements easily. If using a network HUB, be sure to use an IEEE1588-supported version.  All measured data and results can be integrally analyzed on the same time axis on using IS8000.

Flexible MSO Input
The DLM3000HD can convert 4th channel analog input to 8-bit logic and function as a three-channel analog combined with an 8-bit logic MSO (mixed signal oscilloscope). Along with observing data and serving as trigger sources, the logic inputs are also used for serial bus analysis such as I2C-bus and SPI-bus. (Logic inputs require a separate logic probe.)


Other Functions for Improved Operational Efficiency

Additional Operational Functions | DLM3000HD High-Definition Oscilloscope | Yokogawa Test&Measurement

Multi-Channel Measurement Applications

High Voltage Switching Motor/Inverter Circuits Development
The high-definition oscilloscope DLM3000HD is ideal for measuring fast switching of inverters. It measures four channels simultaneously up to 2.5 GS/s with bandwidths up to 500 MHz and provides high-precision analysis with 12-bit resolution. In addition, DLMsync enables uncomplicated connection of two DLM3000HD Series models to allow evaluation tests to be completed all at once through multi-point measurements. The SW Loss Math Function is effective for inverter characterization and provides powerful analysis support. A full line of accessories for high voltages is also available.

Three Line Voltages Three Phase Currents of a Three-Phase Motor Simultaneously | DLM3000HD High-Definition Oscilloscope | Yokogawa Test&Measurement
Example: Simultaneous measurement of hree line voltages and three phase currents of a three-phase motor along with gate control signals of six SiCs in an inverter


Automotive Electronic Control Unit and Mechatronics Embedded Device Development
Digital waveform analysis using logic inputs alone cannot reveal anomalies such as voltage drift, noise, distortion or ringing, and measure rise-fall times. Electronic control unit (ECU) testing requires stringent examination of all digital waveforms and analog input channels are best for this job. Numerous I/O analog, digital, and serial-bus waveforms surrounding the ECU must be measured. The DLM3000HD offers ample channel-count and architecture to monitor four analog channels and up to 8-bits of logic input while simultaneously performing protocol analysis such as UART, I2C, SPI, CAN, CAN FD, LIN, CXPI, PSI5, and FlexRay.

Measuring Controller I/O Signals and Serial Bus Signals Simultaneously | DLM3000HD High-Definition Oscilloscope | Yokogawa Test&Measurement
Example: Measurement of controller I/O signals and serial bus signals simultaneously along with analog behavior

Serial Analysis Function Options (/F1 to /F6)

UART (RS232) /I2C/SPI/CAN/CAN FD/LIN/FlexRay/SENT/CXPI/PSI5 Airbag
Dedicated trigger and analysis options are available for various serial buses of both in-vehicle and embedded systems. Logic input can also be used for I2C/SPI/UART/SENT. When not necessary to observe waveform quality of a bus, decoding or analysis using logic inputs is possible.

Unique Auto Setup
Yokogawa Test&Measurement’s proprietary Auto Setup function automatically analyzes the input signal or captured waveforms and complex parameters such as bit rate and threshold level and selects the optimal settings in seconds. This saves time and is a powerful debugging feature when bit rate and other parameters are unknown.

Simultaneous Analysis (Up to Four Buses)
Perform high-speed simultaneous analysis on up to four different serial buses operating at different speeds. Extensive search capabilities enhance the usability and allow users to find specific data in very long memory. Use dual-zoom means view different buses and debug alongside each other.

Simultaneous Analysis of Up to Four Buses | DLM5000HD High-Definition Oscilloscope | Yokogawa Test&Measurement
Four-bus list display (top right image) and waveform display and decode results (bottom right image).

User-Defined Math Option (/G2)

Equations can be arbitrarily created using a suite of operators such as trigonometric and logarithmic operators, integration and differntiation, pulse width operators, phase measurement, and digital-to-analog conversion.

Power Supply Analysis Option (/G3)

Switching Loss Analysis
Calculate switching loss [ V ( t ) × i ( t ) ] over long test cycles utilizing the long built-in memory. A wide variety of switching loss analyses are supported, including turn-on/off loss calculation, loss including continuity loss, and loss over long cycles of 50 Hz/60 Hz power line.

Switching Loss Analysis | DLM3000HD High-Definition Oscilloscope | Yokogawa Test&Measurement

Power Parameter Measurement
Measure power parameters automatically for up to two pairs of voltage and current waveforms, such as active power, apparent power, power factor, and more. Cycle statistics and history statistics can also be calculated.

Power Parameter Measurement | DLM3000HD High-Definition Oscilloscope | Yokogawa Test&Measurement

逻辑探头(PBL100) 701988

701988 (PBL100)逻辑探头

GO/No-Go电缆 366973

此电缆用于连接外部设备,但在进行DL750/1600/1700/1700E/7400 GO/NO-GO判断时不使用此电缆。

逻辑探头(PBL250) 701989

逻辑探头(PBL250)

B8219EP Front cover

For DLM3000, DLM3000HD series

701937 Passive probe 600V / 500 MHz

500 MHz, 10:1, 600 V (DC + ACpeak) CAT II, 1.3 m Supplied standard with DLM3000, DLM5000, DLM5000HD series

701949 Miniature Passive Probe 400V / 500 MHz

500 MHz, 10:1, 400 Vrms, 1.3 m
For DLM3000, DLM5000, DLM5000HD series

702907 Passive Probe 1000V / 200 MHz

200 MHz, 10:1, ±1000V (DC + ACpeak) CAT II, 2.5 m
Operating environment: −40 to +85°C (no condensation)
For DLM3000, DLM5000, DLM5000HD series.

有源探头 900MHz 700939 FET

700939 FET是一个频率带宽为900MHz、衰减率为10:1的有源探头

高电压探头 100:1 701944

  • 701944高压无源探头1000Vrms /400 MHz
  • 适用于DL1700、DLM2000-6000、DL6000、DL9000、SB5000系列

高电压探头 100:1 701945

  • 3m高压探头(示波器)
  • 直流至250 MHz带宽
  • 100:1衰减
  • 最大输入1000 Vrms CAT II 4000 V瞬态过电压CAT O

701977 Differential Probe 7000 V / 50 MHz

  • 701977 Differential Probe for Oscilloscope 7000 V / 50 MHz
  • 50 MHz, 1000:1 / 100:1, Max.
  • Differential Voltage: 5000 Vrms and 7000 Vpeak or less

701978 Differential Probe 1500 V / 150 MHz

  • 701978 Differential Probe for Oscilloscope
  • 1500 V / 150 MHz
  • 500:1 / 50:1
  • Max. Differential Voltage:±1500 V (DC + ACpeak)

差分探头 (PBDH1000) 1.0GHz 701924

  • 差分探头701924
  • 1 GHz,50:1,最大差分电压:±25 V(直流 + 交流峰值),探头功率:专用探头接口

701925 PBDH0500 Differential Probe 25 V / 500 MHz

500 MHz, 50:1, Max. Differential Voltage:±25 V(DC+ACpeak)
Probe Power:Dedicated probe interface

电流探头 50 MHz/5 ARMS 701917

频率带宽: DC ~ 50 MHz

最大持续输入范围: 5 Arms

适用于数字示波器,示波记录仪和其他波形测量仪器。

电流探头 120 MHz/5 ARMS 701918

频率带宽: DC 至 120 MHz

最大持续输入范围: 5 Arms

适用于数字示波器,示波记录仪及其他波形测量仪器。

电流探头 50MHz 701929

此探头不需要额外的电源连接(LEMO接口),可被自动识别,通过DLM2000、DL6000/DLM6000、DL9000、SB5000系列的操作调整零位。

电流探头 100MHz 701928

此探头不需要额外的电源连接(LEMO接口),可被自动识别,通过DLM2000、DLM3000、DLM4000、DL6000/DLM6000、DL9000/DLM9000、SB5000系列的操作调整零位。

电流探头 10MHz 701930

带宽:DC到10MHz (-3dB)

电流探头 2MHz 701931

带宽:DC到2 MHz (-3dB)

702915 Current Probe 50 MHz/ 0.5 ARMS, 5 ARMS, 30 ARMS

  • 702915 Current Probe
  • Freq bandwidth: DC to 50 MHz
  • Maxi continuous input range: 0.5 Arms/ 5 Arms/ 30 Arms
  • Digital Oscilloscopes, ScopeCorders, other waveform measuring instruments

702916 Current Probe 120 MHz/ 0.5 ARMS, 5 ARMS, 30 ARMS

Frequency bandwidth: DC to 120 MHz
Maximum continuous input range: 0.5 Arms/5 Arms/30 Arms
Functions with Digital Oscilloscopes, ScopeCorders and other waveform measuring instruments

高性能电流传感器 CT1000S

AC/DC开合式电流传感器提供可靠的功率和效率测量,而且使用简单,能最大限度地节省工程师的宝贵时间。

探头电源 701934

电流探头、FET探头和差分探头的电源。为最多4个探头提供电源,包括大电流探头。

去延迟校正信号源 701936

701936去延迟校正信号源
通过消除延迟来改善开关损耗测量误差。701936去延迟校正信号源可使用钳式电流探头和穿孔型‘CT’电流传感器。

IC 夹 B9852ES

IC夹附加在逻辑探头(701980或701981)或微型夹(B9852CR)的顶端,可用于夹住相邻的0.5mm间距端子。共有10个夹子。

701909 Logic probe accessory kit

Logic probe accessory kit for use with 701989.

700971 Mini clip converter

A clip set designed for 701937, 701938, 701939, 701943 (PB500) and 700939

700972 BNC adapter

  • 701937,701938, 701939, 701943 (PB500) and 700939

BNC安全转接线 1:1 701901

1000Vrms-CAT II、1.8m长
安全BNC(公接头)到安全香蕉(母接头)与701959、701954、758921、758922或758929组合使用。

长测试夹 701906

701906长测试夹

尖端接插件 701948

701948尖端接插件
用于隔离探头

鳄鱼夹(海豚型) 701954

套件包含一个黑色夹子和一个红色夹子。1000Vrms-CAT II。

压接端子接头 758921

用于将4mm香蕉插头插入压接端子的接头。套件包含一个黑色夹子和一个红色夹子。1000Vrms-CAT II。

小号鳄鱼夹转接头 758922

额定电压300V。连接到758917表笔。成对出售。

大号鳄鱼夹转接头 758929

额定电压1000V。连接到758917表笔。成对出售。

测量线套件 758917

一套0.8m长的红色和黑色测量线,与一对758922或758929鳄鱼夹转接头选件一起使用。

761953 Safety Terminal Adapter Set

Two adapters to a set for 5 A current
(screw-fastened type using B9317WD)

BNC电缆 366924

  • 366924用于示波器的BNC到BNC电缆
  • 1m BNC线
  • 同时测量2个单元
  • 输入外部触发信号

T适配器 366923

用于BNC接头的T适配器。用于电压不超过42V的电路。

366945 Printed circuit board adapter

For 701937, 701938, 701939, 701943 (PB500) and 700939.
Quantity of 1 unit: 10

366946 Solder-in adapter

For 701937,701938, 701939, 701943 (PB500) and 700939 Standard accessories include: Adapter, red wire (3), black wire (3)

用于DL750的打印纸 B9988AE

用于DLM2000/DLM4000/DL850/DL6000/DL750的优质纸张

探头架 701919

使用带有灵活臂和重底座来固定和稳定探头的探头架可以简化电路板测试。

B8059GG Soft case

Soft Case for Accessories

微型夹转换器 B9852CR

设计用于700988、700960和701940探头的钳式套件。

701982 Connection cable

  • DLM Micro USB Cable
  • 701982-01 Connection cable for DLM 1.0 m
  • 701982-02 Connection cable for DLM 2.8 m
