OSA: Measurement of Temporal Change of Optical Power
Applicable model*: AQ6380/AQ6370 series/AQ6360
Yokogawa's optical spectrum analyzer is equipped with a "0 nm sweep function" that repeatedly measures the optical power of a specific wavelength and displays the change over time. It is also effective for aligning the optical axis, such as coupling an optical fiber to the light source.
0 nm Sweep function
When the wavelength span setting of the optical spectrum analyzer is set to 0 nm, the spectroscopic element (diffraction grating) is fixed at the center wavelength position. If you perform measurement (sweep) in this state, the change over time in the optical power at the center wavelength can be observed. The horizontal axis of the screen is changed to time. (Usually, wavelength) Before executing the 0 nm sweep, set the center wavelength to the measuring wavelength and the wavelength resolution to the maximum resolution (2 nm). This is to avoid missing the optical power due to changes in wavelength over time. Since the measurement (sweep) time can be set arbitrarily in [0nm SWEEP TIME]**, slow power changes can be displayed on one screen.
|
0nm sweep setting [CENTER] Set to a measuring wavelength [SPAN] 0nm Horizontal axis is set to time [RES] 2nm Set to the wide resolution not to miss the signal due to the wavelength drift [SENS] Set to a suitable sensitivity according to the optical power Normal = fast / for high power [0nm SWEEP TIME] Set the sweep time for the full span of screen as appropriate. |
* All versions unless otherwise specified.
** The sweep time depends on the measurement sensitivity (SENS) setting.
Therefore, it may take longer than the time set in [0nm SWEEP TIME].
Waveguide alignment and optical axis adjustment in spatial light experiments
Related Industries
Related Products & Solutions
AQ6360 Telecom Production 1200 - 1650 nm and 700 - 1700 nm
- AQ6360 optical analyzer
- Cost-effective optical spectrum analyzer
- Diffraction grating technology
- Ideal for optical device manufacturing
AQ6370D Telecom Optical Spectrum Analyzer 600 - 1700 nm
- AQ6370D Optical Spectrum Analyzer
- Popular TELECOM wavelength Range of 600nm to1700nm
- Ideal model for Telecommunications applications for single-mode and multi-mode optics
AQ6370E Telecom 600 - 1700 nm
- AQ6370E Optical Spectrum Analyzer
- Popular TELECOM wavelength Range of 600nm to1700nm
- Ideal model for Telecommunications applications for single-mode and multi-mode optics
AQ6373B Visible Wavelength Optical Spectrum Analyzer 350 - 1200 nm
- Dedicated SHORT wavelength Range of 350nm to1200nm
- Accurately measure visible spectrum of 380nm to 780nm
- Bio-sciences and beyond
- Measuring 1064nm Nd:YAG, DPSS Laser sources
AQ6373E Visible Wavelength 350 - 1200 nm
- The high-performance optical spectrum analyzer optimized for visible laser measurement
- 3 models line up for various applications [Standard, High resolution, Limited]
- Ideal for the lasers of industrial, bio and medical
AQ6374 Wide Range Optical Spectrum Analyzer 350 – 1750 nm
- AQ6374 Wide Range Optical Spectrum Analyzer
- Covers wavelengths from 350 to 1750 nm
- Visible lights (380 to 780 nm) and telecommunication wavelengths
AQ6374E Wide Wavelength Range 350 - 1750 nm
- Wide range optical spectrum analyzer covering from visible light to communications wavelength
- Wide wavelength range: 350 to 1750 nm
- Ideal for various applications including fiber
AQ6375B Long Wavelength Optical Spectrum Analyzer 1200 - 2400 nm
High Performance LONG WAVELENGTH
The AQ6375B is a bench-top optical spectrum analyzer covering the long wavelengths, 1200 to 2400 nm, with the added benefits of gas purging input ports / output ports, a built-in cut filter for high order diffracted light, and a novel double speed mode which increases the sweep speed up to 2 times compared to the standard sweep mode.
AQ6375E Long Wavelength 1200 to 2400 nm and 1000 to 2500 nm
High Performance LONG WAVELENGTH
The AQ6375E covers not only telecommunication wavelengths, but also the SWIR region which is often used for environmental sensing and medical applications.
・Lineup of 3 models [Standard, Extended and Limited]
・Covers wavelengths
1200 to 2400 nm [Standard, and Limited]
1000 to 2500 nm [Extended ]
AQ6376 Three Micron Optical Spectrum Analyzer 1500 - 3400 nm
MWIR WAVELENGTH with internal gas purge and cut filter
The AQ6376 is the latest version of our bench-top optical spectrum analyzer extending the wavelength coverage well beyond the NIR range of our previous models into the MWIR region from 1500 to 3400 nm.
Popular applications include the detection of gases such as carbon oxides (COx), nitrogen oxides (NOx), and hydrocarbon gas (CxHy) for environmental studies.
AQ6376E Three Micron 1500 - 3400 nm
MWIR WAVELENGTH with internal gas purge and cut filter
The AQ6376E is the latest version of our bench-top optical spectrum analyzer extending the wavelength coverage well beyond the NIR range of our previous models into the MWIR region from 1500 to 3400 nm.
Popular applications include the detection of gases such as carbon oxides (COx), nitrogen oxides (NOx), and hydrocarbon gas (CxHy) for environmental studies.
AQ6377 Five Micron 1900 - 5500 nm
- AQ6377 long-wavelength optical spectrum analyzer model covering the MWIR region over 5 μm
- AQ6370D optical analyzer model with highest resolution (up to 20 pm)
- Highest close-in dynamic (up to 78 dB)
- Widest measurement power (up to 110 dB)

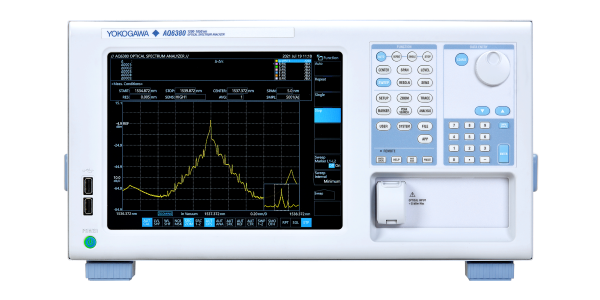

AQ6380 Highest Performance 1200 - 1650 nm and 900 - 1650 nm
