DLM5000HD High-Definition Oscilloscope: What Would You Like to Know? (YouTube Live Stream)

We went live on YouTube to answer your questions about the DLM5000HD High-Definition Oscilloscope from Yokogawa Test&Measurement and to discuss how to make the most of this incredible instrument. This live stream covers potential applications, settings and features like its high resolution, eight channels, serial bus capabilities, and portability, and last (but definitely not least) a few demonstrations.

Related Industries

Related Products & Solutions

DLM5000 Series Mixed Signal Oscilloscope

The DLM5000 series offers versatile measurement options with up to 8 analog channels.

  • 4 or 8 analog channels
  • 16-bit logic + optional additional 16-bit logic
  • Bandwidth: 350 or 500 MHz
  • Sample Rate: up to 2.5 GS/s
  • Vertical resolution: 8 bit
  • High resolution mode: up to 12 bit
  • Measurement memory: up to 500 MegaPoints
  • History waveforms: up to 100,000 triggers
  • Synchronization function for up to 16 analog channels
  • Logic and Serial Bus Analysis

DLM5000HD Series High-Definition Oscilloscope

The DLM5000HD series sets a new standard for high-definition oscilloscopes.

  • 4 or 8 analog channels
  • 16-bit logic + optional additional 16-bit logic
  • Bandwidth: 350 or 500 MHz
  • Sample Rate: up to 2.5 GS/s
  • Vertical resolution: 12 bit
  • High resolution mode: up to 16 bit
  • Measurement memory: up to 1 GigaPoints
  • History waveforms: up to 200,000 triggers
  • Synchronization function for up to 16 analog channels
  • Logic and Serial Bus Analysis

Mixed Signal Oscilloscopes

  • Yokogawa mixed signal oscilloscopes
  • Simultaneous, time correlated observations
  • Analysis of analog with digital (logic) signals
  • Troubleshooting electrical anomalies, measuring parametric values, monitoring signals

Oscilloscope Accessories

  • Comprehensive oscilloscope accessories
  • Oscilloscope cables, cases, alligator clips, adaptors, probe stands, and more
  • Compatible oscilloscope probe BNC adapters

Oscilloscopes

  • Digital oscilloscopes
  • High-speed sampling
  • Range of bandwidths for electronic device design and development
  • Advantages of oscilloscope and multi-channel data recorder

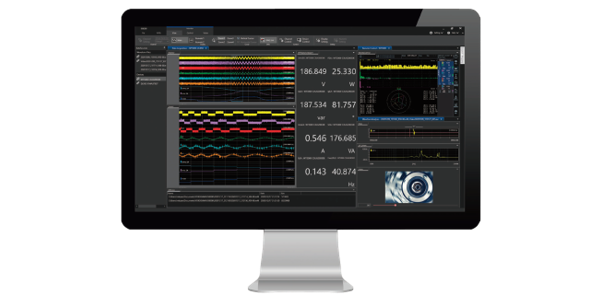

Oscilloscopes Application Software

  • Yokogawa Test&Measurement oscilloscope application software
  • View, export, analyze, and manage data
