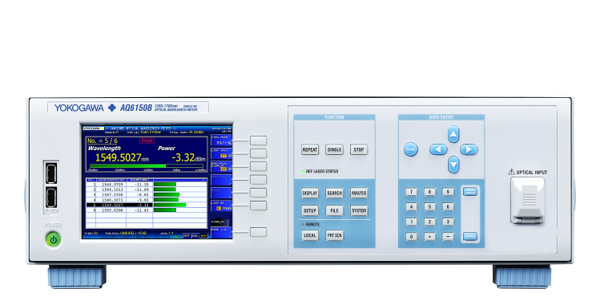

The AQ6150 and AQ6151 models simultaneously measures the wavelength and power levels of both CW and Modulated optical signals from Dense Wavelength Division Multiplexing (DWDM) components, transceivers, and transmission systems for metro, long haul, and access network applications with high speed data rates of 10G, 40G, 100G and beyond.

• Accuracy: ±0.7 ppm
• Range: 900 to 1700 nm
• Wavelength and power levels of both CW and Modulated optical signals from transceivers and WDM transmission systems.

• Accuracy: ±0.2 ppm
• Range: 900 to 1700 nm
• Wavelength and power level of CW and modulated optical signals from tunable lasers and DWDM transmission systems

• 0.1 nm resolution
• ±20 pm accuracy
• 55 dB dynamic range
• -80 dBm level sensitivity
• High sweep speed for manufacturing

The AQ6370 OSA Viewer is a package of PC application software for the AQ6380, the AQ6360, and the AQ6370 series Optical Spectrum Analyzer.

• Yokogawa AQ6370 Optical Spectrum Analyzer
• Re-defining Optical Spectrum Measurement Excellence

High performance with a 20 picometer wavelength resolution supporting 25 GHz DWDM spacing and 40G/100G applications, this OSA also supports non-Telecom applications with a wavelength range from 600nm to 1700nm.

Popular TELECOM wavelength Range of 600nm to1700nm makes this an ideal model for Telecommunications applications for both single-mode and multi-mode optics.
New for 2010 includes both High Performance and Standard Performance versions.

• AQ6370D Optical Spectrum Analyzer
• Popular TELECOM wavelength Range of 600nm to1700nm
• Ideal model for Telecommunications applications for single-mode and multi-mode optics

• Dedicated SHORT wavelength Range of 350nm to1200nm
• Accurately measure visible spectrum of 380nm to 780nm
• Bio-sciences and beyond
• Measuring 1064nm Nd:YAG, DPSS Laser sources

• AQ6374 Wide Range Optical Spectrum Analyzer
• Covers wavelengths from 350 to 1750 nm
• Visible lights (380 to 780 nm) and telecommunication wavelengths

High Performance LONG WAVELENGTH
The AQ6375B is a bench-top optical spectrum analyzer covering the long wavelengths, 1200 to 2400 nm, with the added benefits of gas purging input ports / output ports, a built-in cut filter for high order diffracted light, and a novel double speed mode which increases the sweep speed up to 2 times compared to the standard sweep mode.

• 0.05 nm resolution
• ±50 pm accuracy
• 55 dB close-in dynamic range
• 90 dB measurement dynamic range
• -70 dBm level sensitivity
• Single-mode and multi-mode
• NIR and SWIR wavelengths
• Advanced pulsed light measurement (APLM) mode

MWIR WAVELENGTH with internal gas purge and cut filter
The AQ6376 is the latest version of our bench-top optical spectrum analyzer extending the wavelength coverage well beyond the NIR range of our previous models into the MWIR region from 1500 to 3400 nm.
Popular applications include the detection of gases such as carbon oxides (COx), nitrogen oxides (NOx), and hydrocarbon gas (CxHy) for environmental studies.

• 0.1 nm resolution
• ±0.5 nm accuracy
• 55 dB close-in dynamic range
• 78 dB measurement dynamic range
• -65 dBm level sensitivity
• Single-mode and multi-mode
• SWIR and MWIR wavelengths
• Advanced pulsed light measurement (APLM) mode
•

• 0.1 nm resolution
• ±0.5 nm accuracy
• 50 dB dynamic range
• -60 dBm level sensitivity
• singlemode and multi-mode
• MWIR wavelengths

• 0.005 nm (5 pm / 0.624 GHz) resolution
• ±5 pm accuracy
• 67 dB dynamic range
• -85 dBm level sensitivity

• Up to 50 dB dynamic range
• Wavelengths: 1550 / 1650 nm
• Live network or PON testing with built-in cut filter

• 13 module types
• Up to 50 dB dynamic range
• Wavelengths: 1310 / 1383 / 1490 / 1550 / 1625 / 1650 nm

Unique LONG wavelength range of 1200 to 2400 nm makes this the world's first and only OSA specifically designed for use in advance applications such as Carbon Monoxide (CO), Carbon Dioxide (CO2) gas detection and LIDAR.

• High-resolution measurement of optical power vs wavelength
• Ideal for R&D, manufacturing, and laser characterization
•

Advanced optical testing tools engineered to validate components and systems powering today’s high-speed fiber networks and emerging photonics technologies.

• Instrument for optical fiber installation and maintenance
• Locate events or faults along a fiber

• High peak wavelength accuracy (±0.2 ppm)
• Wavelength & power of CW laser and DWDM systems
• FT interferometer-based design
