DL850E/DL850EV ScopeCorder (DISCONTINUED)
Notice: This product was discontinued on Aug 20, 2021.
See this replacement product:
This product is no longer available in the U.S. Please contact your local sales representative for any requirement or replacement.
The most feature-rich ScopeCorder, the DL850E combines a mixed signal oscilloscope and portable data acquisition recorder into a modular platform designed to capture both high-speed transients and low speed trends.
Combining signal conditioning, signal processing, and large recording memory, the DL850E is ready to be configured to meet your application demands. With its menu-driven user interface, advanced features are easily accessible, so you can gain insights and solve problems faster.
As the premier instrument in Yokogawa’s ScopeCorder family, the DL850E offers:
Most processing options
- 29 waveform parameter measurements
- Optional real-time math
- Optional power math
Highest channel count
- 8 input module slots
- Up to 128 channels
- Up to 100 MS/s sampling rate
- Up to 16-bit analog resolution
Deepest memory
- Up to 2 gigapoints waveform memory
- Optional internal HDD
- Optional external eSATA port for external drives
- Maximum 200 days recording time
Making the Difficult Easy
We developed an algorithm to optimize induction motor operation and produce an average power consumption savings of at least 10%. To demonstrate our algorithm’s effectiveness, we needed a proven and verified system that would give these results credibility. The solution provided by Yokogawa Test&Measurement enabled us to monitor and refine our algorithm using real-time speed, power, and temperature readings – data that would normally be incredibly difficult to accurately obtain. Having these real-world results that demonstrate the effectiveness of our algorithm means we can be more efficient with our own customers.
—Neil Singer
President, AC Kinetics
President, AC Kinetics
Flexible and Swappable Input Modules With Built-in Signal Conditioning
Choose from 20 types of input modules and install up to 8 in the DL850E ScopeCorder at a time to capture up to 128 channels. Input types include:
- Voltage & Currents
- Sensor Outputs
- Temperature, Vibration/Acceleration, Strain, Frequency
- Logic Signals & CAN / CAN FD / LIN and SENT
Eliminate Post Processing
Optional Real-Time Math and Power Math Processing
Available real-time digital signal processors calculate math functions or electrical power parameters. Results are plotted on the screen in real-time and can be measured with cursors, captured with triggers, and saved to disk, making the DL850E a productive tool for motors and drives and other time-based power engineering.
GiGAZoom Engine II
Zoom into two billion samples in just the blink of an eye. A dedicated zoom processor can operate two zoom windows with zero delay.
Cursor Measurement
Available cursors are horizontal, vertical, marker, degree or combined horizontal & vertical.
Automated Parameter Measurement
Measure up to 29 different waveform parameters in different time conditions, including:
- Entire waveform
- Per cycle
- Between cursors
- Cycle statistics
- History statistics
Never Miss a Data Point
Capture data for up to 200 days using up to 2Gpoint memory and optional hard disk recording. The History Memory function saves previous trigger data for later search and analysis.
The dual capture function is ideal for long-term testing. Capture the important transient events at a high sample rate while recording steady-state data at a low sample rate. The DL850E automatically switches to a high sampling rate when the trigger condition is met.
Time Synchronization
Correlate data with important events using the optional GPS and IRIG timing functions. The DL850E internal clock and sample clock can be aligned to synchronize multiple systems in remote locations. Merge data sets using XViewer PC software for easier analysis.
Real-Time Measurement of Electrical Power - /G5 option
Get results faster with real-time signal processing for electrical power parameters. Trend calculations such as active power, power factor, integrated power and harmonics, using a dedicated Digital Signal Processor (DSP) that is able to calculate and display up to 126-types of electrical power related parameters in real-time. This enables the user to display raw waveform signals such as voltages and currents along with power calculated parameters and even the capability to trigger on all of them. Data updating rate up to 100kS/s. Trend waveforms of each order of harmonics, bar-graphs and vector displays can be displayed. Both RMS and Power analysis modes are available. Besides the powerful power calculations, the /G5 option also contains all the functionality of the /G3 real-time math option.
Gapless Real-Time Calculations
Taking advantage of the real-time calculations of power parameters allows engineers to create a high-channel count, time series data set of mixed signals including sensors, automotive serial bus data, and accessory analog and discrete inputs. This is ideal for such scenarios as:
- Long-term monitoring or validation of power system performance over hours or days of testing
- Fast transient evaluation while operating test vectors such as start-up, emergency shutdown, or vehicle simulated drive conditions
- Using enhanced triggers to evaluate power parameters and trap unusual behavior for continuous improvement
DL850EV Vehicle Edition
The ScopeCorder Vehicle Edition is designed for engineers working in the automotive and railway industry, providing a thorough insight into the dynamic behavior of the electromechanical system. This integrated approach results in considerable time saving compared to using multiple separate instruments.
CAN/CAN FD or LIN/SENT bus Monitoring
Use a ScopeCorder to decode the CAN/CAN FD or LIN bus or SENT signals and display information on physical data like engine temperature, vehicle speed and brake-pedal position as analog waveforms and compare this with the data coming from real sensors
Powerful Real-Time Calculations and Analysis Functions
As a standard feature, the ScopeCorder is equipped with a set of basic arithmetic functions such as addition, subtraction, division, multiplication, Fast Fourier transformation and more. In addition to standard math, advanced real-time analysis functions are available.
Real-Time Mathematical Computations and Digital Filtering - /G3 option
Armed with a dedicated digital signal processor the ScopeCorder can perform mathematical calculations such as arithmetic operators with coefficients, integrals differentials, and higher order equations on acquired measurement data. The results of these calculations are displayed during waveform capture in real-time. In addition to mathematical operators, steep digital filters can also be selected to isolate or trigger on the amplitude of certain frequency components.
Measuring the electrical angle corresponding to the mechanical angle is important for understanding motor characteristics. The Electrical Angle operation enables the extraction of the fundamental component of current by Discrete Fourier Transform, then the calculation of the phase difference between it and the rotary angle in real-time. A trend of the phase difference can also be displayed in real-time.
User defined computations - /G2 option
With user defined computations it is possible to create equations using a combination of differentials and integrals, digital filters, and a wealth of other functions. Moreover, it is possible to perform various types of FFT analysis using two FFT windows. In applications such as vibration and shock tests, you can easily evaluate abnormal vibrations while simultaneously measuring other signals.
Application Example | With FFT
Flexible operation and a variety of connection interfaces
A ScopeCorder has been designed to grant users access to functionality in the field quickly and easily using the front panel menu buttons. For users that prefer workbench operation it is possible to connect a USB mouse or keyboard.
Front View
Side View
Software Control
Analyze measurement data using the ScopeCorder itself or on the PC using the Yokogawa Xviewer software or select any of the drivers below. Please download "free software" and "Trial Versions" in the software tab above.
Available Software
Xviewer / XviewerLITE
Xviewer lets you transfer files between the DL850E series and a PC and allows you control your ScopeCorder remotely using your PC.
XWirepuller
XWirepuller enables Yokogawa’s digital oscilloscopes and ScopeCorders to be controlled from your PC via the Ethernet, USB, or GP-IB interface. When the software program starts, the front panel image of the connected instrument appears on your PC. You can control the instrument from your PC with the mouse to simulate operations using the front panel keys of the instrument.
LabVIEW Driver
National Instruments LabVIEW Driver for DL850 is available on National Instruments web site.
WDF File Access Library
WDF File Access Library is the special library to access waveform data files saved in WDF format.
* VisualStudio 2008 SP1 is required to use this software.
MATLAB WDF Access Toolbox
MATLAB WDF Access Toolbox enables the access to waveform data files saved in WDF format on MATLAB.
To control the instruments on MATLAB, please use Instrument Control Toolbox provided by MathWorks.
Improving Accelerometer Measurement Reliability in Data Acquisition Systems
The ScopeCorder DL850E was designed with built-in antialiasing filters to accept inputs from wide bandwidth, high voltage accelerometers, providing low impedance inputs for excellent noise eliminating characteristics.
Finding Absolute Position of Electric Motors with Yokogawa ScopeCorders
Properly orienting the north pole of the rotor is critical to the goals of Field Oriented Control and allows the results of the Park and Clarke transformations to be more accurate. The DL850 with Real-Time Math eliminates programming and post-processing, serving as an essential tool for the motor drive designer or drive system integrator.
720211 High-Speed 100 M/s, 12-Bit Isolation Module
High-Speed 100 MS/s 12-Bit Isolation Module (2 channels)
IsoPRO technology enables 1kV isolated measurements in combination with 700929 or 701947 probe and is designed for inverter / IGBT related applications in mind. Using high speed optical fiber-based transmission, the module achieves high speed ADC clock and data isolation and provides the performance needed to develop high efficiency inverters, which employ high voltages, large currents, and ever increasing switching speeds.
Applicable to DL350, DL850 series, DL950 and SL1000.
720254 4-CH 1M/s 16-Bit Isolation Module
- High-Speed 1 MS/s 16-bit Isolation Module (4 ch)
- High Noise Immunity
- Monitor/test power generator/multi-output power supplies
- Dynamic multi-channel data recording analysis
- DL350 and DL850 series
720221 16-CH Temperature/Voltage Input Module
- 16 Channel Voltage/Temperature Input Module
- To be used with 701953 Scanner Box
- Applicable to DL350 and DL850 series
- Voltage/Temperature Conversion
720220 16 Channel Voltage Input Module
- 16 Channel Voltage Input Module
- Isolated (GND-terminal)
- Non-Isolated (CH-CH)
- Max allowable voltage between sub-channel high inputs 42V (DC + AC Peak)
- Applicable to DL350 and DL850 series
701953 16-CH Scanner Box
- External scanner box for 720221 module
- Voltage or temperature measurement (scanner method)
- Thermocouple (K, E, J, T, L, U, N, R, S, B, W, Au-Fe-chromel)
720250 Voltage Module 10MS/s
- 720250 Voltage Module
- 10 MS/s sample rate
- 12-bit resolution
- 3 MHz bandwidth
- 2 isolated channels
- DL350, DL850, DL950, SL1000
720281 Frequency Module
- 720281 Frequency Module
- 1 MS/s sample rate 16-bit resolution
- 2 isolated channels
- 420 V*2, 42 V*3 max input voltage
- ±0.1% DC accuracy
- 0.01 Hz to 500 kHz measurement frequency
720230 Logic Input Module
- 720230 Logic Input Module
- Display input logic signals as waveforms at 10 MS/s sampling resolution
- Single module can observe 16-bit logic signals
- 700986, 700987, 702911, 702912 logic probe
- DL350, DL850, DL950
720241 CAN/LIN Bus Monitor Module
- 720241 CAN/LIN bus monitor module
- Decode CAN or LIN-Bus signals
- Display physical data as analog waveforms
- DL850V & DL850EV, DL350 (/VE option), DL950 (/VCE option) ScopeCorder Vehicle Edition
701251 Analog Voltage Input Module
- 701251 Analog Input Module
- High-Speed 1 Ms/s 16-Bit Isolation Module (2 ch)
- High sensitivity range (10 mV), low noise (±100 µVtyp), high noise immunity
- DL850, DL750, SL1000
720242 CAN/CAN FD Monitor Module
- CAN/CAN FD Monitor Module
- Decode the CAN/CAN FD-Bus signals, display information on physical data as analog waveforms, compare with sensor data
- DL850V & DL850EV, DL350 (/VE option), DL950 (/VCE option) ScopeCorder Vehicle Edition
720243 SENT Monitor Module
Use the SENT monitoring module to decode the SENT protocol signal and display information on physical quantities from SENT output sensors.
Applicable to DL850V & DL850EV, DL350 (/VE option), DL950 (/VCE option) ScopeCorder Vehicle Edition only.
701255 Analog Voltage Input Module
High-Speed 10 MS/s 12-Bit non-isolation Module (2 ch)
Non-Isolation version of model 720250
Applicable to DL350, DL850 series, DL950 and SL1000.
701947 Isolated Probe 1000V / 200 MHz
- 1.5m Isolated Probe (ScopeCorder)
- DC to 200 MHz bandwidth
- 100:1 attenuation Isolated
- BNC connector type
- For ScopeCorder Isolated Modules
702902 Isolated Passive Probe 1000V / 60 MHz
Passive Probe, 1000V(DC+ACpeak) CAT II, 60MHz, 10:1, 10MΩ, 2.5m
Wide operating temperature range(-40 to 85°C)
For isolated BNC input modules for ScopeCoder series
700929 Isolated Passive Probe 1000V / 100 MHz
- Versatile 700929 passive oscilloscope probe
- 100MHz frequency bandwidth
- Isolated input module of ScopeCorder series
- For use with isolated BNC inputs
701940 Passive Probe 600V / 10 MHz
- 701940 Passive Probe
- 10 MHz, 10:1/1:1, 600 V (DC + ACpeak) CAT II, 1.5 m
- For ScopeCorder Non-Isolated Modules
700924 Differential Probe 1400V / 100 MHz
- Differential oscilloscope probe
- 100 MHz
- ±1400 V (DC + ACpeak) at 1000:1
- Internal battery or probe power supply
- Oscilloscopes, ScopeCorders
700925 Differential Probe 500V / 15 MHz
Works with Oscilloscopes, ScopeCorders. 15 MHz, 100:1/10:1, Max. Differential Voltage: ±500 V (DC + ACpeak) or 350 Vrms at 100:1 attenuation, Probe Power: Internal battery or probe power supply.
701261 Universal Voltage & Temperature Input Module
- 701261 Universal Module (2 ch)
- Thermocouple (K, E, J, T, L, U, N, R, S, B, W, iron-doped gold/chromel)
- Applicable to DL350, DL850 series, DL950 and SL1000.
701926 Differential Probe 7000V / 50 MHz
50 MHz, 1000:1/100:1, Max. Differential Voltage: 5000 Vrms/7000 Vpeak (1000:1), Probe Power: Internal battery or probe power supply B9852MJ power cable is bundled Work with Oscilloscopes, ScopeCorders
701917 Current Probe 50 MHz / 5 ARMS
- 701917 oscilloscope current probe
- Frequency bandwidth: DC to 50 MHz
- Maximum continuous input range: 5 Arms
- Functions with Digital Oscilloscopes, ScopeCorders, other waveform measuring instruments
701262 Universal Voltage & Temperature Input Module (w/AAF)
- Universal Module (with Anti-Aliasing Filter, 2 ch)
- Thermocouple (K, E, J, T, L, U, N, R, S, B, W, iron-doped gold/chromel), with AAF
- DL350, DL850 series, DL950 and SL1000
701918 Current Probe 120 MHz / 5 ARMS
- Yokogawa 701918 Current Probe
- Frequency bandwidth: DC to 120 MHz
- Maximum continuous input range: 5 Arms
- Functions with Digital Oscilloscopes, ScopeCorders, other waveform measuring instruments
701930 Current Probe 10 MHz / 150 ARMS
- 701930 Current Probe 10 MHz / 150 ARMS
- Powered by Yokogawa Digital Oscilloscopes, Scopecorders or external power supply
720268 High Voltage Module 1MS/s
- 720268 High Voltage Power Supply Module
- 300 kHz bandwidth
- 2 isolated channels
- Max input (DC+ACpeak) 1000V
- DC accuracy ±0.25%,
- DL350, DL850, DL950, SL1000
701931 Current Probe 2 MHz / 500 ARMS
- 701931 Current Probe 2 MHz / 500 ARMS
- Powered by Yokogawa Digital Oscilloscopes, Scopecorders or external power supply
701932 Current Probe 100 MHz / 30 ARMS
- 701932 Current Probe 100 MHz / 30 ARMS
- Powered by Yokogawa Digital Oscilloscopes, Scopecorders, or external power supply
701265 High-Precision Temperature Input Module
Temperature/high-precision voltage Module (2 ch)
Thermocouple (K, E, J, T, L, U, N, R, S, B, W, iron-doped gold/chromel), high sensitivity range (1 mV), and low noise (±4 µVtyp)
Applicable to DL350, DL850 series, DL950 and SL1000.
701933 Current Probe 50 MHz / 30 ARMS
- 701933 50 by 30 current probe
- Powered by Yokogawa Digital Oscilloscopes, Scopecorders or external power supply
701934 External Probe Power Supply
- 701934 External Probe Power Supply
- Power supply for current probes, FET probes, and differential probes
- Supplies power for up to four probes, including large current probes
701270 Strain Input Module (NDIS)
- Strain Module, NDIS (2 channels)
- 701955 or 701956 NDIS bridge head
- Detect/display mechanical stress with ScopeCorder
- DL350, DL850 series, DL950, SL1000
B9852MJ Power Cable for Differential Probes
- B9852MJ power probe extension cable
- Supplies power to 700924, 700925, and 701921 differential probes from the DL probe power connectors
- Required on DL unit
- Only works with newer probes
701271 Strain Input Module (DSUB)
Strain Module with Shunt Calibration, type DSUB (2 channels) to be used in combination with 701957 or 701958 DSUB bridge head.
Using the strain module and strain gauge the ScopeCorder can detect and display mechanical stress (strain). It works on the principle that the resistance value of a metal foil changes as it expands and contracts.
Applicable to DL350, DL850 series, DL950 and SL1000.
701275 Acceleration & Voltage Input Module (w/AAF)
- 2 channel Voltage Module/Acceleration Module
- Anti-Aliasing Filter
- Direct input from built-in amp type acceleration sensor to measure acceleration
- DL350, DL850 series, DL950 and SL1000.
720266 High-Sensitivity, Low-Noise, Voltage, Temperature Module
- The 720266 Temperature Module/Voltage Module
- 16-Bit, 125 S/s (Voltage) and 125 S/s (Temperature) sample rate
- DL350, DL850 series, DL950, SL1000
700986 Logic Probe
8-bit, non-isolated, response speed: 1µs, threshold level approx 1.4V
Two measurement leads (B9879PX and B9879KX) included.
700987 Logic Probe - Isolated Inputs
- 700987 Logic Probe - Isolated Inputs
- 8-bit, isolated, response speed: 1ms or less (DC), 20ms or less (AC), threshold level 6VDC, or 50VAC.
- 758917 and 758922, 758929, 701954
702911-702912 Logic Probe
8-bit, non-isolated, response speed: 3µs or less, treshold level approx 1.4V
702911: 1 meter cable, 702912: 3 meter cable

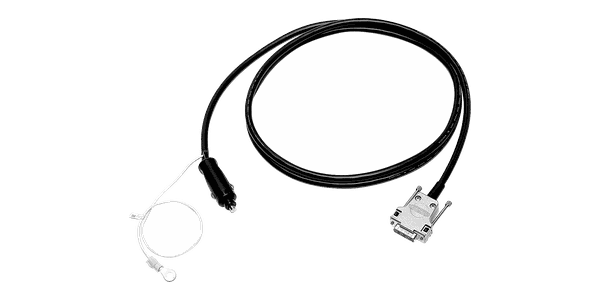

701970 DC Power Cable, Cigarette Lighter Type for DL850EV
For the DC power supply model (/DC). Cigarette lighter plug type.

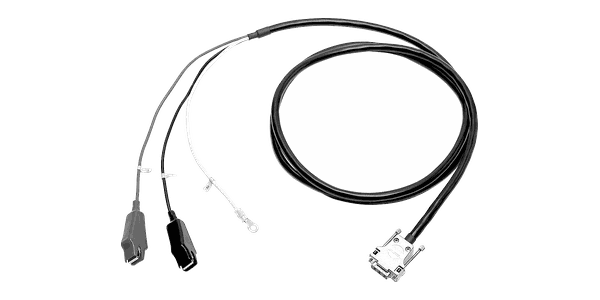

701971 DC Power Cable, Alligator Clip Type for DL850EV
- 701971 Alligator clip type for DL850EV ScopeCorder
- For the DC power supply model (/DC).
A1002JC NDIS Connector for 701270
- Yokogawa Oscilloscope and ScopeCorder products
- A1002JC NDIS connector
- Direct connection to strain module 701270
701955/701956 NDIS Bridge Heads 120Ω/350Ω
- ScopeCorder Accessories for DL850 series, DL750/DL750P, SL1000 & SL1400
- 701955 NDIS Bridge Head, Bridge resistance: 120Ω , 5m NDIS cable included
- 701956 NDIS Bridge Head, Bridge resistance: 350Ω , 5m NDIS cable included
701957/701958 D-Sub Bridge Heads 120Ω/350Ω
- 701957 and 701958 D-SUB Bridge Head
- Shunt calibration
- 5m DSUB cable included
- Bridge resistance: 120Ω
- Bridge resistance: 350Ω
366923 BNC to T Adapter
T-adapter for BNC connectors. Use for circuits having voltage levels no greater than 42 V.
758924 BNC to Banana Conversion Adapter
For conversion between BNC and female banana plug
Applicable for DL750/DL750P, SL1000 & SL1400.
B8099NM 4mm conversion adapter
For 702902, 702906
758917 DMM Measurement Lead Set
- Set of 0.8m long red and black multimeter test leads
- Used in combination with a pair of optional 758922 or 758929 alligator-clip adapters
- 1000 Vrms, 32 Arms CAT II
758933 Measurement lead
2 pieces (red and black) in 1 set
length: 1.00 m
Used in combination with the 701959, 758921, 758922, or 758929
Rating: 1000 V CAT III/19 A
701901 BNC to Safety Banana 1.8m Cable, 1:1
- 701901 BNC to Safety Banana 1.8m Cable, 1:1
- 1000 Vrms-CAT II, 1.8 m long
- Safety BNC(male) to safety banana(female)
- 701959, 701954, 758921, 758922, 758929
751512 Banana (Male) to Binding Post Adapter
Safety-terminal-binding-post adapter. Use for circuits having voltage levels no greater than 42 V.
701906 Long Test Clip
Set contains one black and one red clip
1000 Vrms-CAT II
2 pieces (red and black) in 1 set
Connected to the 758933, 758917, or 701901
Length: 0.3m
Applicable for DL750/DL750P, SL1000, SL1400
701948 Extension Clip Accessories
Connected to the 700929, 701947
Maximum input voltage: 1,000V (DC + ACpeak)
Length: 0.26m/0.3m/0.4m
Applicable for DL750/DL750P, SL1000, SL1400
701954 Large Alligator Clip (dolphin type)
Set contains one black and one red clip.
1000 Vrms-CAT II.
758929 Large Alligator Clip Adapter 1000V
- Yokogawa 758929 Alligator Clip Adapter
- Rated at 1000V
- Attaches to 758917 test leads
- Sold in pairs black/red
758922 Small Alligator-Clip Adapter 300V
Rated at 300 V. Attaches to the 758917 test leads. Sold in pairs.
758921 Fork terminal adapter
- 758921 Fork Terminal Adapters
- For fitting a 4mm banana plug to a fork terminal
- One black and one red clip
- 1000 Vrms-CAT II
758931 Screw-Fastened Safety Voltage Terminal Adapter Set
Screw-fastened adapters. Two adapters in a set. 1.5 mm Allen Wrench.
701902/701903 Safety BNC to BNC Cable 1m/2m
- 701902/701903 Safety BNC to BNC Cable for oscilloscope
- Safe, high-voltage measurements with DL350, DL950, and SL1000 isolated input modules
- 701902: 1000 Vtms-CAT II (BNC-BNC), 1 m
- 701903: 1000 Vrms-CAT II (BNC-BNC), 2 m
366924 BNC to BNC 1m Cable
- 366924 BNC to BNC cable for oscilloscope
- 1m BNC wire
- Simultaneous measurement with 2 units
- Input external trigger signal
720930 Clamp on Probe
The 720930 and 720931 passive clamp-on current probes allow current waveform readings directly via analog input modules on ScopeCorders including the DL350 and DL850 using isolated BNC connections.
- AC 50 A
- 40 Hz to 3.5 kHz Bandwidth
701919 Probe Stand
- 701919 oscilloscope probe stand
- Flexible arm, heavy base to hold and stabilize 8-13mm probes
- Can simplify circuit board testing
720931 Clamp on Probe
The 720931 passive clamp-on current probe anables current waveform readings directly via analog input modules on ScopeCorders including the DL350 and DL850 using isolated BNC connections.
- AC 200 A
- 40 Hz to 3.5 kHz Bandwidth
366925 BNC to BNC 2m Cable
BNC-BNC 2m. For connection to simultaneously measurement with 2 units, or for input external trigger signal.
366926 BNC to Alligator 1m Cable, 1:1
- 1 m long BNC to alligator clip cable
- Only for circuits with voltage levels no greater than 42 V
- Applicable for DL750/DL750P, SL1000 & SL1400
366961 Banana to Alligator 1.2m Cable, 1:1
A subassembly of 1.2 m long test leads with alligator-clip adapters.
Use only for circuits having voltage levels no greater than 42 V.
Applicable for SL1000 & SL1400.
Overview:
There are several factors for a user to consider when using an IEPE accelerometer, particularly when used with newly available integrated signal conditioner/data acquisition process. Correctly managing these factors will help the user avoid erroneous data from their IEPE accelerometer and ensure the quality of the data measurement is at the level they expect and require.
Overview:
With the increased demand in electric-hybrid vehicles, the electromechanical designs of in-vehicle systems are becoming more sophisticated and there has been a demand shift towards high efficiency brushless direct current motor (BLDC) implementation. Think of motorized seat adjustment, electric window, power steering, HVAC fans, pumps, etc. In many of these systems various types of motors are used as actuators; more specifically, 3-phase BLDC motors are gaining popularity as they provide these important advantages:
- Improved speed vs torque characteristics
- High dynamic response
- High efficiency
- Extended speed ranges
- Long operation life
Industries:
Overview:
- Construction and verification of SENT communication system
- Accurate, reliable data transmission at low cost
Overview:
Use built-in calculations to analyze motor rotor position of Brushless DC motors (BLDC) and Permanent Magnet Synchronous Machines (PMSM) and find the relative angle between the rotor and position sensors such as encoders or resolvers
Industries:
Overview:
Evaluation of high efficiency motors in large air heaters
Industries:
Overview:
How can I capture data from motion sensors synchronized with other analog data? The Yokogawa ScopeCorder series of instruments feature input modules and functions to make this possible.
Industries:
Overview:
Evaluating and designing the Electric Power Steering (EPS)
Overview:
- Battery Voltage Fluctuation During ABS Action
- Why Does My Battery Voltage Meter Fluctuate During ABS Action?
Industries:
Overview:
Testing actuation of a side impact airbag to measure the optimal timing.
Industries:
Overview:
Using the OR trigger and Dual Capture, it is easy to trap and record failure conditions on electrical harnessses (wiring interconnects) over a long duration test.
Overview:
Testing Engine Valve Spring Strength
Overview:
The objective of this paper is to show the close relationship between efficiency and power quality, and provide education on the causes of power quality, types of power quality issues, and provide guidance on measurement considerations.
Industries:
Overview:
We do not have an instruction manual describing the *.WDF file format structure like we did for the *.WVF files.
We provide a list of support options with more details.
Overview:
- 720268 High Voltage Module maximum input voltage derating analysis curve
- DL850E/DL850EV ScopeCorder
Overview:
- DMM Data Logger issue
- Connecting DL850 ScopeCorder to IRIG
Overview:
- 720211 High-Speed 100 M/s, 12-Bit Isolation Module vs 720210 Analog Voltage Input Module
- You can only use four 720210 modules per DL850E
- You can use up to eight 720211 modules
Overview:
- Yokogawa DL850 ScopeCorder PP Compression setting
- PP Compression as post-process within Xviewer
Overview:
We developed an algorithm to optimize induction motor operation and produce an average power consumption savings of at least 10%. To demonstrate our algorithm’s effectiveness, we needed a proven and verified system that would give these results credibility. The solution provided by Yokogawa Test&Measurement enabled us to monitor and refine our algorithm using real-time speed, power, and temperature readings – data that would normally be incredibly difficult to accurately obtain. Having these real-world results that demonstrate the effectiveness of our algorithm means we can be more efficient with our own customers. —Neil Singer, President, AC Kinetics
Brochures
- DL850E/DL850EV ScopeCorder (5.5 MB)
- ScopeCorder DL850E/DL850EV Introduction for Firmware Ver. 3.21 (750 KB)
- Plug-in modules specifications ScopeCorder series DL950/DL850E/DL850EV/DL350/SL1000 (4.0 MB)
Instruction Manuals
- DL850E/DL850EV ScopeCorder Features Guide (14.0 MB)
- DL850E/DL850EV ScopeCorder User's Manual (8.8 MB)
- DL850E/DL850EV ScopeCorder Getting Started Guide (14.0 MB)
- DL850E/DL850EV ScopeCorder Communication Interface User's Manual (4.3 MB)
- DL850E/DL850EV ScopeCorder Real Time Math (/G3)/Power Math (/G5) User's Manual (4.8 MB)
- DL850E/DL850EV Acquisition Software User's Manual (4.2 MB)
- Precaution Concerning the Modules (178 KB)
- DL850E/DL850EV FreeRun Application Programming Interface User's Manual (404 KB)
- Model DL850E ScopeCorder Model DL850EV ScopeCorder Vehicle Edition Radio Equipment Directive(RED) (149 KB)
Specifications
- Bulletin DL850E-00 (EU - English) (2.7 MB)
- Bulletin DL850E-00 (German) (2.7 MB)
- Bulletin DL850E-00 (Spanish) (2.6 MB)
- Bulletin DL850E-00 (Italian) (2.6 MB)
- Bulletin DL850E-00 (French) (2.7 MB)
Software
- Xviewer 701992 / XviewerLITE
- Xwirepuller
- WDF File Access Library
- MATLAB WDF Access Toolbox
- Symbol Editor
- Binary Data File Converter
- DL-Term
- Communication Sample Programs
- DL850E/DL850EV Acquisition Software
- DL850E/DL850EV ScopeCorder Free-Run Library
- Yokogawa WDF DataPlugin ( NATIONAL INSTRUMENTS Web Page )
- GO-NOGO Zone Editor
- TMCTL
- USB Drivers
- LabVIEW drivers for DL850 series ( NATIONAL INSTRUMENTS Web Page )
Firmware
Drawings
- DL850E/DL850EV ScopeCorder (1.8 MB)
Product Overviews
- Values and key features of Yokogawa’s DL850EV ScopeCorder
- Capture high-speed transient events and long-run trends
- Widely used in automotive, power electric, mechatronics
Overview:
How-tos
- Data Acquisition for Systems Validation and Reverse Engineering video
- How DL850EV data acquisition system can be used to gather various analog and serial bus data for systems validation and reverse engineering in automotive industry
- Decoding features of the DL850EV ScopeCorder
- Decoding and plotting SENT data, fast and slow channels, exactly equivalent to analog input channels.
Overview:
Overview:
Overview:
A demonstration reading a 4 - 20 mA transducer into an analog channel on the Portable DL350 ScopeCorder.
Webinars
- How to avoid the “gotcha's” of inverter-based measurements
- Computations for field-oriented control
- The integration of CAN bus communications
- Correlations in the frequency domain
- Other advanced motor and drive topics
Overview:
You know the basics of electrical power measurements, have set up your dyno, and made key measurements – which is great. But as your motor and drive projects progress, the complexities of system drive requirements can change frequently. Control algorithms, networked communications, and mechanical systems form a complex web of interactions that need sorting. This 60-minute webinar explains how to get past ground-level measurements and delve into comprehensive solutions that leverage test and measurement instruments including power analyzers, high-speed data acquisition, and real-time software.
Topics include:
The technical presentation includes an audience Q&A.
Top
