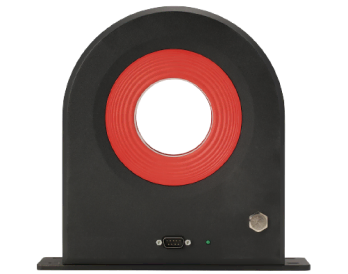

DL Series Current Transducer

The DL series current transducers provide ultra-high accuracy, galvanically isolated AC and DC current measurement for demanding power electronics and energy applications. Based on closed-loop fluxgate technology, the DL series delivers excellent linearity, low offset drift, and wide bandwidth, making it well suited for precision power analysis, EV test benches, and laboratory or production test environments.

All DS models feature a compact mechanical design with a Ø68 mm aperture and current-output interface, enabling easy integration with precision power analyzers, data acquisition systems, and custom test setups.

Key Features

• Closed-loop fluxgate sensing for high accuracy and long-term stability

• Galvanic isolation between primary conductor and output

• Very low offset and offset drift

• Excellent linearity across the full measurement range

• Wide bandwidth to capture fast current transients

• Compact form factor with large aperture for busbars and cables

• Current output via D-sub-9 connector with status indication

Typical Applications

• EV inverter and motor test benches

• Power analyzer front ends and calibration setups

• Battery cycling and energy storage testing

• Power electronics R&D and validation

• Precision current measurement in laboratory and production environments
