Can the 96030 clamp-on probe be used with the CW500?

To use a Yokogawa 9603096033, or 96036 current clamp-on probe with the CW500, you need a 99073 banana-DIN adapter.
The sensor identification function cannot be used, so the clamp-on probe settings need to be manually configured.

Related Products & Solutions

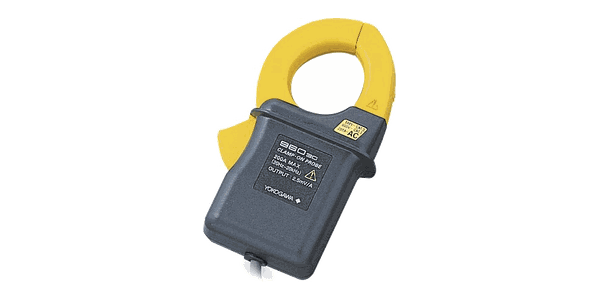

96030 Clamp-on Current Probe
