GP10/20 Touchscreen Portable Data Acquisition System
The GP10/GP20 is a modular, touchscreen-enabled data acquisition system designed for industrial and laboratory environments. It combines the precision and scalability of the GM10 with an intuitive built-in display for local control and real-time visualization, no PC required. It supports browser-based access and software integration, with up to 450 physical channels. With robust isolation, high-accuracy A/D converters, the GP10/GP20 delivers trusted performance in both standalone and networked applications.
Intuitive Touchscreen Interface

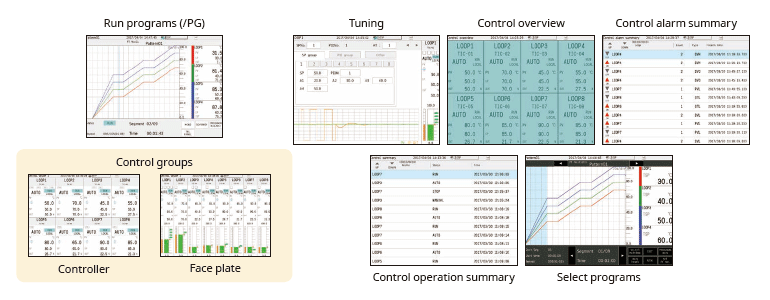

The GP10/GP20 features a high-resolution, capacitive touchscreen that delivers fast, responsive operation, just like a smartphone or tablet. Users can swipe, pinch, and tap to navigate between screens, zoom in on data, or scroll through channels. Built-in trend displays, alarm overviews, and diagnostic views make it easy to monitor and interact with your system in real time, right at the point of measurement.
Flexible, Scalable Architecture
Designed with modularity in mind, the GP10/GP20 adapts to your application, whether you're building a compact desktop setup or a distributed system with hundreds of channels. Its universal input modules support thermocouples, RTDs, voltage, and current signals, while optional output, pulse, and control modules extend its versatility. You can start small and expand as your needs grow, up to 1000 channels with communication and MATH options.
Built for Intelligent Operation
The GP10/GP20 goes beyond simple data logging. With features like real-time computation (MATH), event-based recording, custom channel naming, and web-based remote access, it’s engineered for smart, unattended operation. Use it as a stand-alone recorder or integrate it into a larger networked system via Modbus/TCP, FTP, or email notifications. Data is stored securely and can be retrieved through USB, SD card, or over Ethernet.
| Model | Name | Measurement/Application | Channels |
|---|---|---|---|
| GX90XA-10-U2 | Analog Input Module | DC voltage, thermocouple, RTD, contact (solid state relay scanner type) | 10 |
| GX90XA-10-L1 | DC voltage, thermocouple, contact (low withstand voltage solid state relay scanner) | 10 | |
| GX90XA-10-T1 | DC voltage, thermocouple, contact (electromagnetic relay scanner type) | 10 | |
| GX90XA-10-C1 | DC current (mA) (solid state relay scanner type) | 10 | |
| GX90XA-10-V1 | DC voltage, contact (solid state relay), high withstand voltage (600V/1000V insulation) | 10 | |
| GX90XA-04-H0 | DC voltage, thermocouple, RTD, contact (individual A/D type) | 4 | |
| GX90XA-06-R1 | 4-wire RTD, 4-wire resistance (solid state relay scanner type) | 6 | |
| GX90YA | Analog Output Module | Current output (isolated between channels) | 4 |
| GX90XD | Digital Input Module | Remote control input or operation recording | 16 |
| GX90YD | Digital Output Module | Alarm output | 6 |
| GX90WD | Digital I/O Module | Remote control input or alarm output | DI:8 / DO:6 |
| GX90XP | Pulse Input Module | Pulse signal data acquisition, integral count | 10 |
| GX90UT | PID Control Module | PID control (2 loops) | AI:2 / AO:2 / DI:8 / DO:8 |
| GX90EX | Expansion Module | Connects additional modules to the main unit | — |
GP20/GP10
|
Model |
GP20 |
GP10 |
|
|---|---|---|---|
| Construction | Portable | Portable | |
| Display | 12.1" TFT color LCD (800 × 600 dots) | 5.7" TFT color LCD (640 × 480 dots) | |
| Touchscreen | 4 wire resistive touchscreen, 2-point touch detection | ||
| Max. no. of connectable modules | 10 (When mounted on expansion module: 9) | 3 (When mounted on expansion module: 2) | |
| * The maximum number of connectable modules is limited by the maximum number of I/O channels, and differs depending on the types and combinations of modules. | |||
| Analog input channels | Standard: 100, Large memory: 450 (with expansion unit) | Standard: 30, 100 (with expansion unit) | |
| No. of mathematical channels | GP20-1: 100, GP20-2: 200 | 50 | |
| No. of communication channels | Standard: 300, Large memory: 500 | 50 | |
| Internal memory (flash memory) | Standard: 500 MB , Large memory: 1.2 GB | 500 MB | |
| External storage media | SD memory card (up to 32 GB) (format: FAT32 or FAT16), 1 GB included USB interface (/UH option): USB 2.0 compliant (external storage media: USB flash memory) (Keyboard/mouse: HID Class Ver. 1.1 compliant) |
||
| Communication functions | Ethernet (10BASE-T/100BASE-TX), IEEE802.3 compliant (Ethernet frame type: DIX), Connecting configuration: Cascade max. 4 level (10BASE-T), max. 2 level (100BASE-TX), segment length: Max. 100 m, E-mail inform function (E-mail client), FTP client function, FTP server function, Web server function, SNTP client function, SNTP server function, DHCP client function Modbus/TCP (client*/server functions) */MC option is required. |
||
| Options | Serial communications (/C2: RS-232, /C3: RS-422 or RS-485), Modbus/RTU (master/slave functions), EtherNet/IP communication (/E1), WT communication (/E2), OPC-UA server (/E3), SLMP communication (Mitsubishi PLC) (/E4) | ||
| Other functions | Security functions: Key lock function, login function Clock functions: With calendar function, accuracy: ±5ppm (0 to 50°C) LCD saver function |
||
| Rated supply voltage | 100 to 240 VAC (allowable power supply voltage range: 90 to 132 VAC, 180 to 264 VAC) 12 VDC (allowable power supply voltage range: 10 to 20 VDC, only for a GP10 of power supply voltage code "2") |
||
| Rated supply frequency | 50/60 Hz | ||
| Power consumption | Max. 90 VA (100 VAC), max. 110 VA (240 VAC) | Max. 45 VA (100 VAC), max. 60 VA (240 VAC) | |
| Insulation resistance | Between the Ethernet, RS-422/485, and each insulation terminal and earth: 20 MΩ or greater (at 500 VDC) | ||
| Withstand voltage | Between the power terminal and earth: 3000 V AC (50/60 Hz) for one minute | ||
| External dimensions （W×H×D） |
Main Unit | 288 × 318 × 197 (mm) | 144 × 168 × 197 (mm) |
| Including modules | 288 × 318 × 248 (mm) | 144 × 168 × 248 (mm) | |
| Weight (main unit only) | Approx. 12 lbs | Approx. 4.2 lbs | |
