General Purpose 10 MS/s 12-Bit Non-Isolation Module with AAF

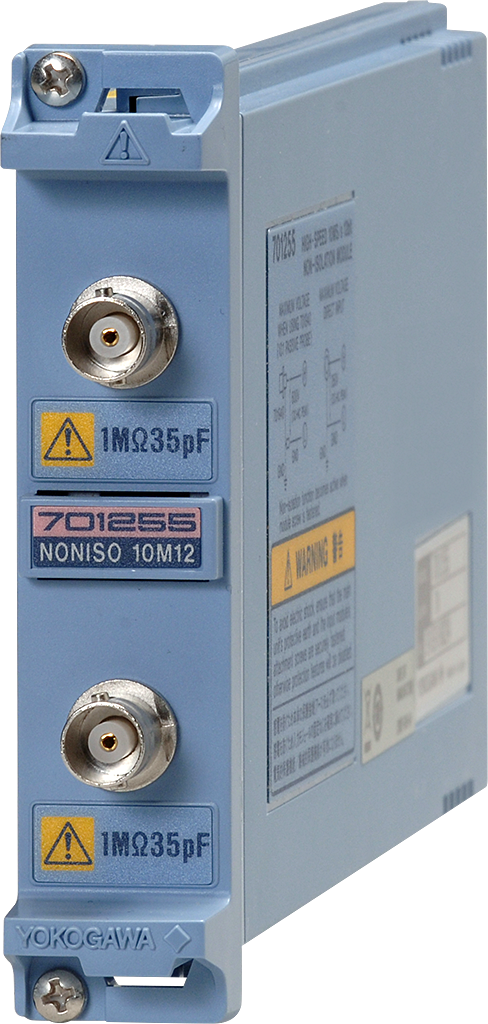

701255 General Purpose Non-Isolation Module with AAF （已停产）

注意: 该产品已于 2019年6月28日停产。

The Yokogawa 701255 is a 2-channel general purpose module that is capable of 3 MHz of bandwidth at 12-bit resolution and ±0.5% accuracy.

With a sampling rate of 10 MS/s along with the ability to deliver 600 V on non-isolated inputs, the 701255 combines accuracy, reliability, and safety in one compact design.

请求报价

技术支持

宣传手册

概观
简介
资料下载

概观
简介
资料下载

Key Features

High Speed: 10 MS/s sampling with 12-bit resolution delivers accurate waveform capture

BNC Inputs: Accurate non-isolated measurements up to 600 V*

Consistent Signal Integrity: Maintains low noise and high accuracy across a wide measurement bandwidth
Seamless System Integration: Fully compatible with Yokogawa’s ScopeCorder (DL950) and High-Speed DAQ (SL2000) platforms, the 701255 extends system capability without adding setup complexity

* in combination with 10:1 probe model 701940
