The High-resolution reflectometer accurately detects the quantity and location of reflections within optical connectors and modules. It reveals microcracks that standard loss measurements might miss, helping to avoid unpredictable and potentially detrimental failures.

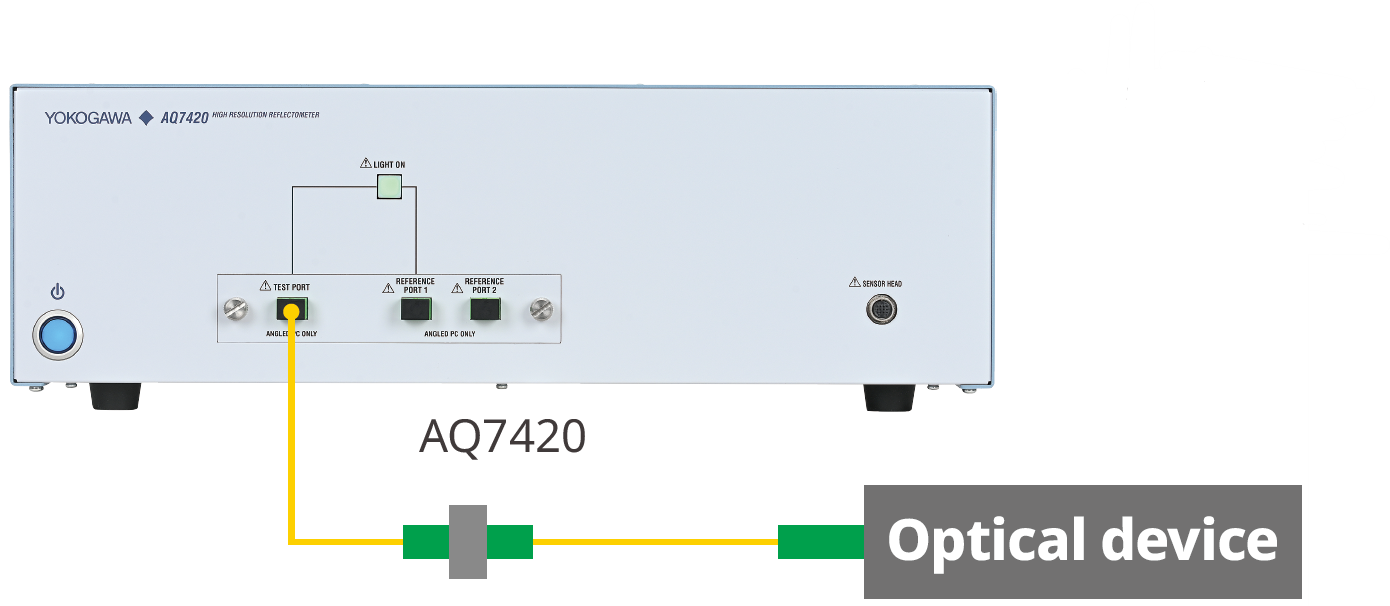

Component Position and Reflection Analysis in Optical Devices

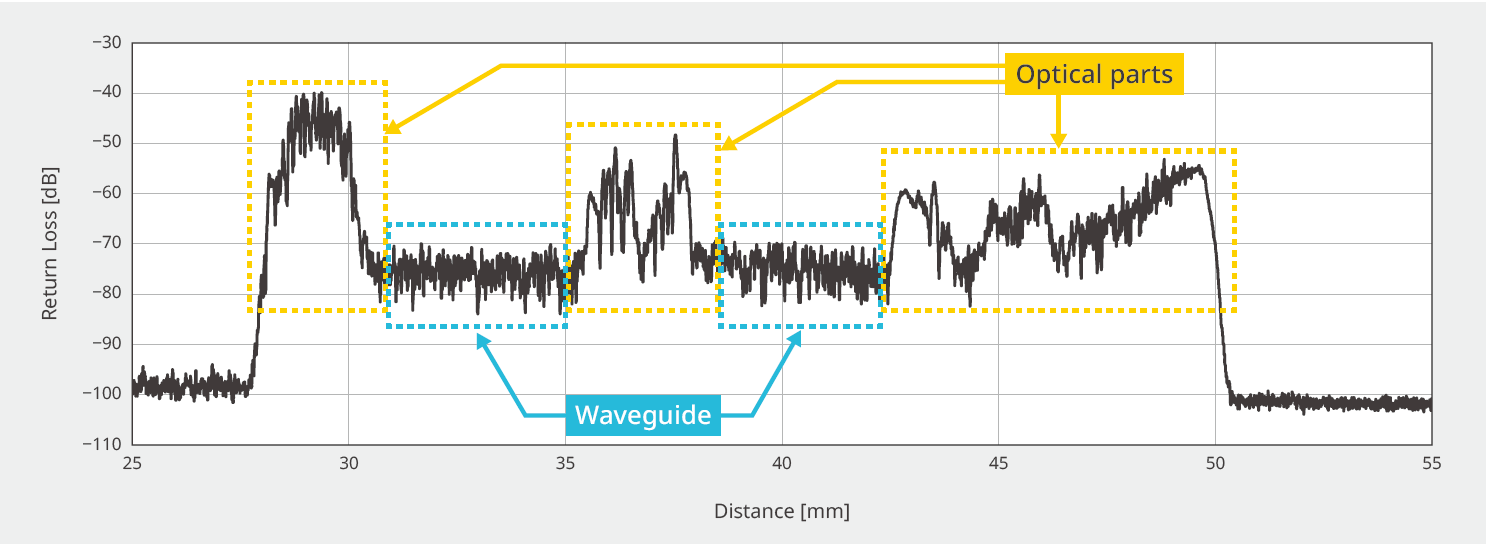

With high spatial resolution, spurious-free operation, and sharp waveforms, the AQ7420 and AQ7421 precisely identify component positions inside optical devices and measure the reflected light generated at their edges.
- Spatial resolution: 40 μm
- Spurious noise: −100 dB avoids false detections
- Simultaneous measurement of multiple reflection and insertion loss
- Up to 8 m with optional expander unit
- Spatial resolution: 40 μm
- Spurious noise: −100 dB avoids false detections
- Simultaneous measurement of multiple reflection and insertion loss
