Optical Time Domain Reflectometer
Advanced Reflectometry for Precise Fiber Optic Testing
An optical time domain reflectometer (OTDR) is a precision instrument used to locate events or faults along a fiber link, typically within an optical communications network.
Working Principle
The OTDR launches a series of high-speed optical pulses into the fiber. Events on the fiber generate Rayleigh backscatter, which returns to the OTDR. The strength of the return pulses is measured and integrated over time, plotted as a function of fiber length, with distance on the horizontal axis and loss on the vertical axis.
Uses
OTDRs are essential for optical time domain reflectometry in fiber installation and maintenance, servicing both access and user networks. They are used to verify splice loss, measure optical return loss, and locate faults.
Key Features
- Precision Measurement: Locate and identify faults along fiber links with high accuracy.
- Dynamic Range: Our OTDRs offer a broad range of dynamic performance suited for various field applications.
- Durability: Designed for field use, offering robust performance in harsh environments.
- Cost Performance: Combining affordability with advanced features.
Benefits
- Enhanced Network Reliability: Quickly identifies faults and ensures network integrity.
- Ease of Use: Intuitive interface for easy operation in the field.
- Versatility: Suitable for both installation and maintenance phases of network management.
Product Lineup
- Basic OTDRs: For standard testing and troubleshooting.
- Advanced OTDRs: For comprehensive analysis and detailed reporting.
- Specialized OTDRs: Designed for specific applications such as high-density networks or long-haul fibers.

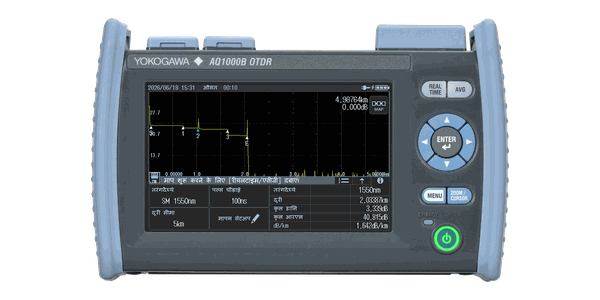

- AQ1000 optical time domain reflectometer
- Increase productivity optical access networks field personnel
- Intuitive and responsive
- One-button measurement
- Trace and map view
- Yokogawa AQ7280 Optical Time Domain Reflectometer (OTDR)
- Fast and precise measurements with confidence
- Satisfies broad range of test and measurement needs
- Analyzing optical networks from access to core

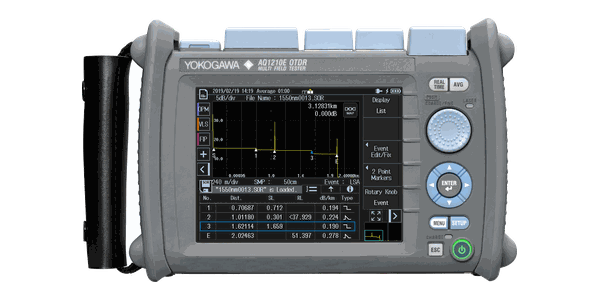

- Yokogawa AQ1210 series OTDR
- Fast and precise
- Optical time domain reflectometer delivers high reliability
- Harsh field conditions
- Multi-touch touchscreen, automatic measurement
AQ7933 is application software to display and analyze waveform data measured by Yokogawa OTDRs and create a work report on a PC. This software provides more intuitive operability than the conventional software, helping field engineers to reduce their work.
- High performance OTDR module
- For RFTS (Remote Fiber Test System)

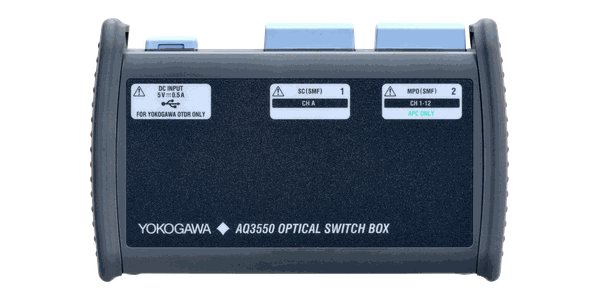

A 12-channel optical switch box that effectively improves workability with YOKOGAWA OTDRs.
Controlled from an OTDR, the OSW allows continuous measurement of all or a subset of the 12 channels.
The compact size makes this an ideal solution to conveniently measure multiple ribbon fibers in the field or conserve production test rack space.
Single Mode Optical Fiber
AQ7280
| Model | Number of wavelength | High DR | Cut Filter | Number of OTDR port | Dynamic range (dB) (Typ) | Application | Fiber Network | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1310 nm | 1383 nm | 1490 nm | 1550 nm | 1625 nm | 1650 nm | Installation | Maintenance | Research ・ Manufacturing |
Core | Metro | Access | PON | ||||||
| Dark | Live | |||||||||||||||||
| AQ7282A | 2 | 1 | 38 | 36 | ● | ● | ● | ● | ||||||||||
| AQ7283A | 2 | ● | 1 | 42 | 40 | ● | ● | ● | ● | ● | ||||||||
| AQ7284A | 2 | ● | 1 | 46 | 45 | ● | ● | ● | ● | ● | ||||||||
| AQ7285A | 2 | ● | 1 | 50 | 50 | ● | ● | ● | ● | ● | ||||||||
| AQ7283E | 3 | ● | ● | 2 | 42 | 40 | 40 | ● | ● | ● | ● | ● | ● | |||||
| AQ7283F | 3 | ● | ● | 2 | 42 | 40 | 40 | ● | ● | ● | ● | ● | ● | |||||
| AQ7282G | 3 | 1 | 38 | 36 | 36 | ● | ● | ● | ● | |||||||||
| AQ7283H | 3 | ● | 1 | 42 | 40 | 39 | ● | ● | ○ | ● | ● | ● | ||||||
| AQ7284H | 3 | ● | 1 | 46 | 45 | 44 | ● | ● | ○ | ● | ● | ● | ||||||
| AQ7283K | 4 | ● | 1 | 42 | 38 | 40 | 40 | ● | ● | ○ | ● | ● | ● | |||||
| AQ7283J | 4 | ● | 1 | 42 | 39 | 40 | 40 | ● | ● | ○ | ● | ● | ● | |||||
| AQ7286A | 2 | ● | 1 | 42 | 40 | ● | ||||||||||||
| AQ7286H | 3 | ● | 1 | 42 | 40 | 39 | ● | |||||||||||
| AQ7286J | 4 | ● | 1 | 42 | 39 | 40 | 39 | ● | ||||||||||
○: Using an external filter
AQ1210
| Model | Number of wavelength | High DR | Cut Filter | Number of OTDR port | Dynamic range (dB) (Typ) | Application | Fiber Network | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1310 nm | 1383 nm | 1490 nm | 1550 nm | 1625 nm | 1650 nm | Installation | Maintenance | Core | Metro | Access | PON | ||||||
| Dark | Live | ||||||||||||||||
| AQ1210A | 2 | 1 | 37 | 35 | ● | ● | ● | ● | |||||||||
| AQ1215A | 2 | ● | 1 | 42 | 40 | ● | ● | ● | ● | ● | |||||||
| AQ1210E | 3 | ● | 2 | 37 | 35 | 35 | ● | ● | ● | ● | ● | ||||||
| AQ1215E | 3 | ● | ● | 2 | 42 | 40 | 39 | ● | ● | ● | ● | ● | ● | ||||
| AQ1215F | 3 | ● | ● | 2 | 42 | 40 | 37 | ● | ● | ● | ● | ● | ● | ||||
| AQ1216F | 3 | ● | ● | 2 | 42 | 40 | 40 | ● | ● | ● | ● | ● | ● | ||||
AQ7277B
| Model | Number of wavelength | High DR | Cut Filter | Number of OTDR port | Dynamic range (dB) (Typ) | Application | Fiber Network | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1550 nm | 1650 nm | Installation | Maintenance | Core | Metro | Access | PON | ||||||
| Dark | Live | ||||||||||||
| AQ7277B-B01 | 1 | ● | ● | 1 | 40 | ● | ● | ● | ● | ● | |||
| AQ7277B-B02 | 1 | ● | 1 | 50 | ● | ● | ● | ● | |||||
AQ1000
| Model | Number of wavelength | High DR | Cut Filter | Number of OTDR port | Dynamic range (dB) (Typ) | Application | Fiber Network | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1310 nm | 1383 nm | 1490 nm | 1550 nm | 1625 nm | 1650 nm | Installation | Maintenance | Core | Metro | Access | PON | ||||||
| Dark | Live | ||||||||||||||||
| AQ1000 | 2 | 1 | 32 | 30 | ● | ● | ● | ||||||||||
Multi Mode Optical Fiber
AQ7280
| Model | Number of wavelength | High DR | Cut Filter | Number of OTDR port | Dynamic range (dB) | Application | |||
|---|---|---|---|---|---|---|---|---|---|
| 850 nm | 1300 nm | Installation | Maintenance | ||||||
| Dark | Live | ||||||||
| AQ7282M | 2 | 1 | 25 | 27 | ● | ● | |||
Single Mode Optical Fiber + Multi Mode Optical Fiber
AQ1210
| Model | Number of wavelength | High DR | Cut Filter | Number of OTDR port | Dynamic range (dB)(Typ) | Application | Fiber Network | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Installation | Maintenance | Core | Metro | Access | PON | ||||||||||
| 1310 nm | 1550 nm | MM 850 nm |
MM 1300 nm |
Dark | Live | ||||||||||
| AQ1210D | 4 | 2 | 37 | 35 | 25 | 27 | ● | ● | ● | ● | |||||
Operation of the AQ7280 and AQ1210 has been verified in combination with the following third-party products.
For the details of each products, please visit the website of each manufacturer.
Please note that Yokogawa do not guarantee the all operation of the contents posted on each manufacturer's website.
Wired LAN adapter
| Manufacturer | Product name / model number | Supported Products | ||
|---|---|---|---|---|
| AQ7280 | AQ1210 | AQ1000 | ||
| TP-Link | UE300 | － | ● | － |
Wireless SD card
| Manufacturer | Product name / model number | Supported Products | ||
|---|---|---|---|---|
| AQ7280 | AQ1210 | AQ1000 | ||
| KIOXIA | FlashAirTM（32GB or less） | ● | － | － |
※This feature may not be available due to the discontinuation of FlashAir™.
Wireless LAN adapter
| Manufacturer | Product name / model number | Supported Products | ||
|---|---|---|---|---|
| AQ7280 | AQ1210 | AQ1000 | ||
| TP-Link | TL-WN725N | － | ● | － |
| COMFAST | CF-WU810N | － | ● | － |
For AQ1000, to use the wireless feature, Wireless functionality option (/WLN) must be selected at the time of purchase.
Fiber inspection probe
| Manufacturer | Product name / model number | Function | Supported Products | |||
|---|---|---|---|---|---|---|
| Fiber surface image display (standard feature) |
Fiber surface test function (option) |
AQ7280 | AQ1210 | AQ1000 | ||
| Lightel | DI-2000 | ● | ● | ● | ● | － |
| Lightel | DI-1000 | ● | ● | ● | ● | － |
| Lightel | CI-1100 (discontinued) | ● | － | ● | ● | － |
| Eternal | FVO-730B-P | ● | － | ● | ● | － |
