Voltage Probes
Enhance Measurement Precision with Yokogawa's Advanced Voltage Probes

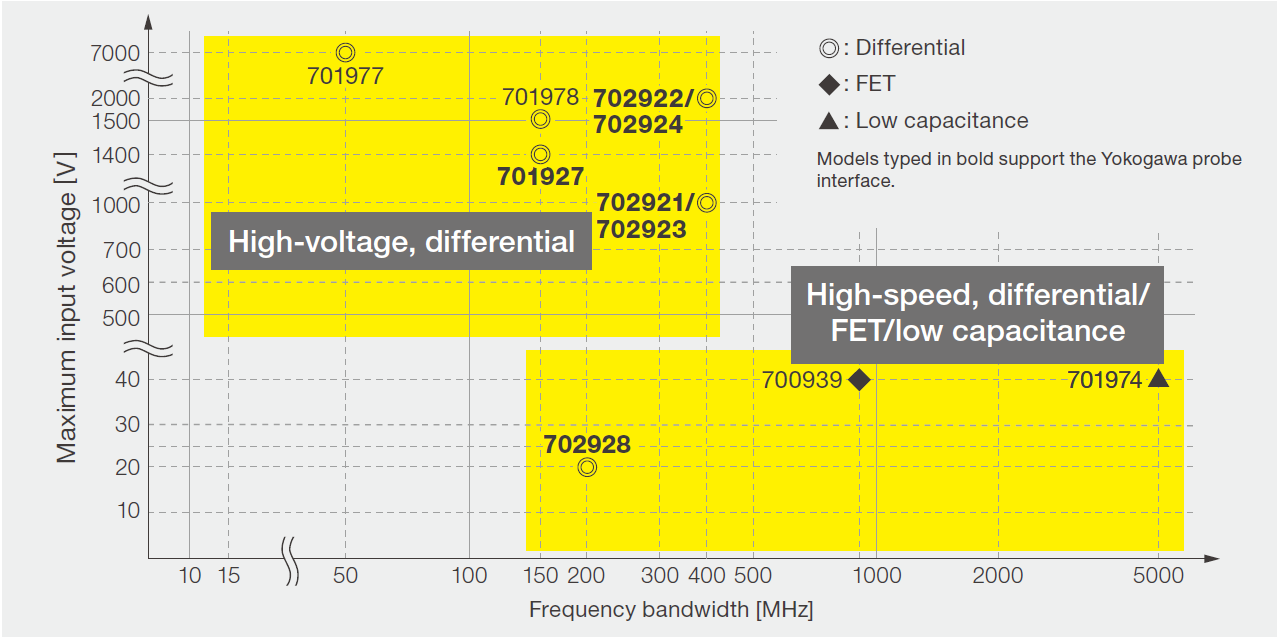

An oscilloscope's performance heavily relies on the quality of its probes. Yokogawa offers a comprehensive range of voltage probes, including high voltage scope probes, differential probes, active probes, low capacitance probes, and passive types. Our voltage probes cater to a wide range of applications with capabilities up to 7kV and frequency bandwidths reaching 5 GHz.
Key Features of Yokogawa Voltage Probes
Yokogawa's voltage probes are designed to meet the highest standards of precision and reliability:
- High Voltage Scope Probes: Suitable for measuring high voltage signals with accuracy.
- Differential Probes: Ideal for measuring between two points in a circuit.
- Active Probes: Provide high-frequency performance with minimal loading.
- Low Capacitance Probes: Ensure minimal interference with the circuit being measured.
- Passive Probes: Robust and versatile for general-purpose measurements.
Applications of Voltage Probes
Yokogawa's voltage probes are used across various industries for diverse applications, including:
- Oscilloscope Measurements: Ensuring precise and reliable data collection in high-frequency environments.
- High Voltage Testing: Safe and accurate measurement of high voltage signals.
- Differential Measurements: Accurate signal measurement between two circuit points.
Advantages of Yokogawa Voltage Probes
Yokogawa's voltage probes offer several benefits, making them the preferred choice for professionals:
- Wide Range of Options: From high voltage to differential and active probes.
- High Accuracy and Reliability: Ensure precise measurements every time.
- Durable and Robust Design: Built to withstand rigorous use in various environments.
Equip your oscilloscopes with Yokogawa's advanced voltage probes to enhance your measurement precision and reliability.
- 701924 Differential Probe
- 1 GHz, 50:1, Max. Differential Voltage: ±25 V (DC + ACpeak), Probe Power: dedicated probe interface
500 MHz, 50：1, Max. Differential Voltage：±25 V（DC+ACpeak）
Probe Power：Dedicated probe interface
- Wide-bandwidth high-voltage differential probe
- 400 MHz bandwidth
- Max. differential voltage: ±1000V (DC + ACpeak) at 500:1
- Probe power: Dedicated probe interface for DLM3000, DLM3000HD, DLM5000, DLM5000HD
- Wide-bandwidth high-voltage differential probe
- 400 MHz bandwidth
- Max. differential voltage: ±2000V (DC + ACpeak) at 1000:1
- Probe power: Dedicated probe interface for DLM3000, DLM3000HD, DLM5000, DLM5000HD
- 701927 Isolated Differential Probe
- 150 MHz
- Max. Differential Voltage: ±1400 V (DC + ACpeak) at 500:1
- Probe Power: dedicated probe interface For DLM, DL, and SB5000 series
- 701977 Differential Probe for Oscilloscope 7000 V / 50 MHz
- 50 MHz, 1000:1 / 100:1, Max.
- Differential Voltage: 5000 Vrms and 7000 Vpeak or less
- 701978 Differential Probe for Oscilloscope
- 1500 V / 150 MHz
- 500:1 / 50:1
- Max. Differential Voltage：±1500 V (DC + ACpeak)
500 MHz, 10:1, 600 V (DC + ACpeak) CAT II, 1.3 m Supplied standard with DLM3000, DLM5000, DLM5000HD series
- 701938 Passive Probe
- 200 MHz, 10:1, 600 V (DC + ACpeak) CAT II, 1.5 m
- For DLM2000 (200 MHz model)
- 701939 Passive Probe 600V / 500 MHz
- 500 MHz, 10:1, 600 V (DC + ACpeak) CAT II, 1.3 m
- For DLM2000, DLM4000, DL6000, DLM6000 series
- 701940 Passive Probe
- 10 MHz, 10:1/1:1, 600 V (DC + ACpeak) CAT II, 1.5 m
- For ScopeCorder Non-Isolated Modules
400 MHz, 10:1/1:1, 600 V (DC + ACpeak) or 424 Vrms CAT II, 1.5 m
For DL9000, DL9700/DL9500, SB5000 series
500 MHz, 10:1, 400 Vrms/1250 Vpeak CAT O 300 Vrms CAT II, 1.2 m
For DLM2000, DLM4000, DL6000, DLM6000 series
500 MHz, 10:1, 400 Vrms, 1.3 m
For DLM3000, DLM5000, DLM5000HD series
- 701944 High Voltage Passive Probe 1000Vrms / 400 MHz
- For DL1700, DLM2000-6000, DL6000, DL9000, SB5000 series
- 3m High Voltage Probe (oscilloscope)
- DC to 250 MHz bandwidth
- 100:1 attenuation
- Max Input 1000 Vrms CAT II 4000 V transient over-voltage CAT O
200 MHz, 10:1, ±1000 V (DC + ACpeak) CAT II, 2.5 m,Wide operating temperature range (−40 to +85°C)
For DLM2000, DLM4000 series.
200 MHz, 10:1, ±1000V (DC + ACpeak) CAT II, 2.5 m
Operating environment: −40 to +85°C (no condensation)
For DLM3000, DLM5000, DLM5000HD series.
- Versatile 700929 passive oscilloscope probe
- 100MHz frequency bandwidth
- Isolated input module of ScopeCorder series
- For use with isolated BNC inputs
- 1.5m Isolated Probe (ScopeCorder)
- DC to 200 MHz bandwidth
- 100:1 attenuation Isolated
- BNC connector type
- For ScopeCorder Isolated Modules
Passive Probe, 1000V(DC+ACpeak) CAT II, 60MHz, 10:1, 10MΩ, 2.5m
Wide operating temperature range(-40 to 85°C)
For isolated BNC input modules for ScopeCoder series
- 701974 Low Capacitance Probe
- 5 GHz, 20:1 / 10:1, 20 Vrms / 40 VACpeak, 1.1 m, For DLM series
- Low input capacitance
- Low input resistance
- 700939 Active FET Probe
- 900 MHz Active FET Probe Circuit
- 10:1, ±10 V (DC + ACpeak) FET Input Active Probe
- 1.5 m
