VG3000E/VG6000 Synthesizer-Vektor-Signalgeneratoren (EINGESTELLT)

To meet your digital and wireless needs, this unit offers:

•     Frequency range: 250 kHz to 3.2 GHz (VG3000E)/0.1 Hz res.  250 kHz to 3.2 GHz, 4.96 GHz to
•     6.2 GHz (VG6000)/0.1 Hz res.
•     RF bandwidth: Up to 120 MHz (-3 dB)
•     Arbitrary waveform generator function (optional):
•     Max. 64 Mpoints, max. 100 MHz clock, 14-bit D/A resolution, 2-channel (I&Q)
•     Pulse modulation: 1 µs to 30 µs (rise/fall time)
•     AM modulation: 60 MHz
•     An example of system configuration for RX testing (JPG, 21 KB)

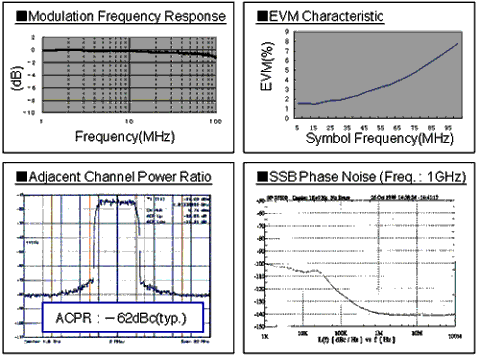

•     VG characteristics
